Product Introduction

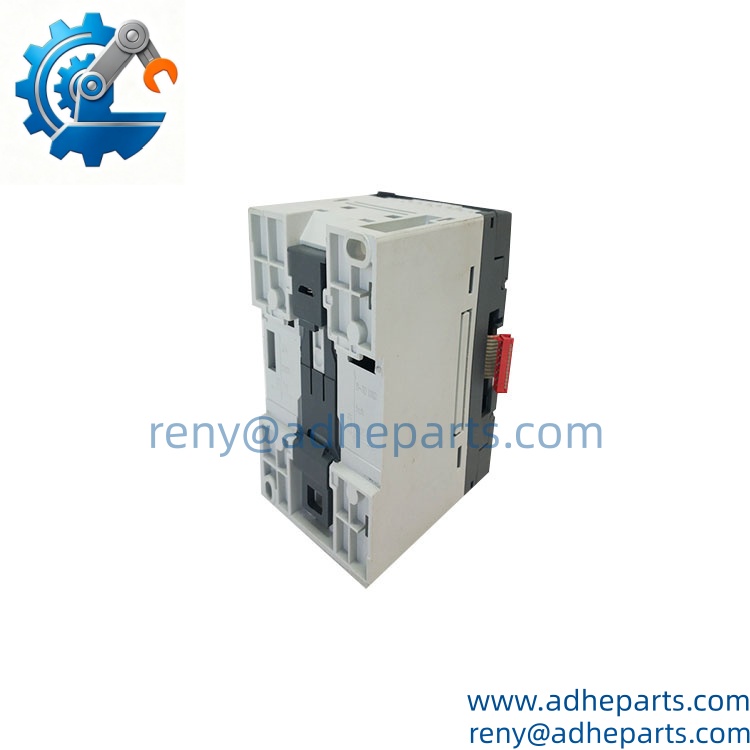

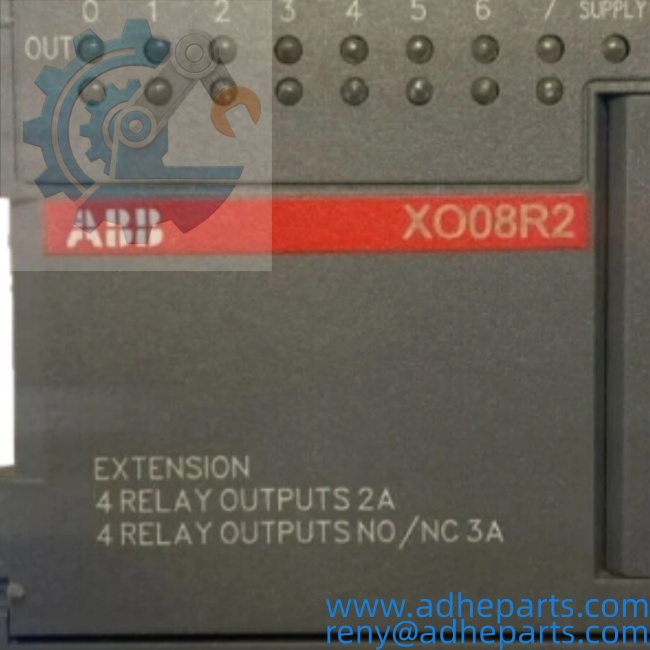

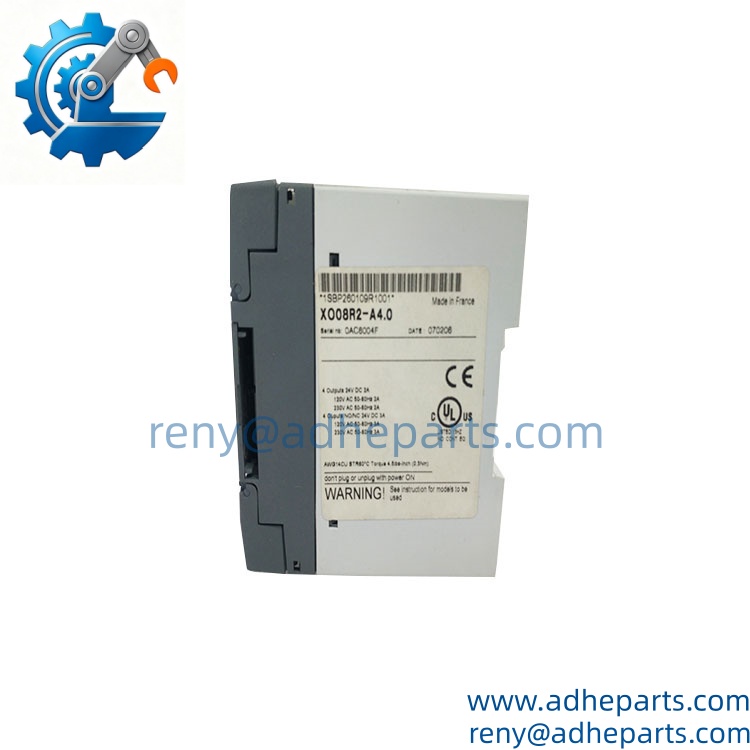

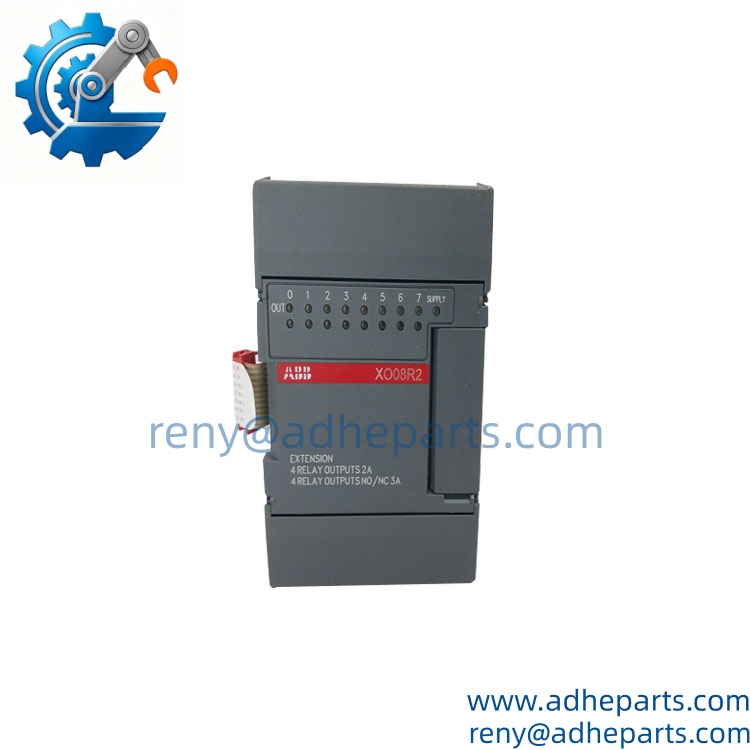

When a packaging line’s solenoid valve bank drops out mid-run, this module keeps the rest of the control loop from cascading into full downtime. It slots directly into ABB AC 800M and Symphony Plus racks, driving indicator lights, small contactors, and valves without extra intermediate relays. Its 12mm slim form factor fits in tight cabinet slots most standard 16mm modules cannot access.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Output Channels | 8 independent SPDT changeover relays |
| Max Contact Voltage | 30V DC, 250V AC |
| Max Switching Current (Resistive) | 6A at 24V DC, 6A at 240V AC |
| Max Continuous Current | 2A rms at cosϕ=1, 1A rms at cosϕ=0.4 |
| Minimum Operating Current | 10mA at 12V DC |
| Isolation Test Voltage | 2.5kV rms, 1 minute between channels |
| Contact Material | Silver-nickel (AgN) |
| Dimensions | 66mm × 85mm × 94mm |
| Unit Weight | 0.26kg |
| Communication Compatibility | Profibus / PROFINET for ABB DCS platforms |
Field Application & Technical Pitfalls (The Engineer’s Guide)
This part is non-negotiable in three common plant scenarios. It runs the indicator light array on automotive assembly station HMI panels, it sequences the purge valves on small food packaging lines, and it controls the local pump interlocks in mid-sized water treatment facilities.
Three non-negotiable pitfalls to avoid on swap-out:
- ⚠️ Firmware revision mismatch: Older AC 800M racks running v2.7 firmware will not recognize this module’s diagnostic registers, even if the physical slot fits.
- ⚠️ Overloading inductive loads directly: Switching a 10A AC contactor coil straight off the relay will pit the AgN contacts in under 3 months, no exceptions.
- ⚠️ Skipping ESD wrist strap: The third terminal block from the left sits directly over the module’s ASIC, and a static discharge here will kill the channel’s status LED even if the relay still clicks.
I watched a maintenance tech skip the firmware check last quarter. He slotted the new module into a 2018-vintage rack, got no fault codes on the front panel, and walked away. At 2 a.m. the next shift, the DCS threw a silent “channel unresponsive” flag, and the line sat idle for 90 minutes before anyone noticed.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM packing list serial number against the module’s laser-etched label, run anti-counterfeit marker validation on the housing to rule out cloned units.
- Live Rig Testing: Mount the module in a stock AC 800M test rack, cycle every channel 100 times, confirm full protocol handshake with Control Builder M.
- Parameter Testing: Run 2.5kV hipot test across all relay contacts and backplane connections, verify insulation resistance reads above 100MΩ at 500V DC.
- Final QA & Packaging: Seal the unit in a static-shielded anti-static bag, apply a scannable QC passed label, and tuck a printed test report in the shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the rack is powered up? Yes, the backplane hot-swap design supports this. Just confirm no field wiring is live on the output side before you pull the unit, to avoid accidental arc flash.
- What exact ABB controllers does this work with? It is fully validated for AC 800M, Compact 800, and Symphony Plus racks. It will not map correctly to older S800 I/O systems, no workarounds exist.
- How long does the standard warranty last? All new surplus units carry a full 12-month OEM-backed warranty. Defects in material or workmanship get a direct replacement, no hidden restocking fees.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine units have a laser-etched serial number on the side of the housing, not a printed sticker. The contact terminals also have a matte tin finish, not the bright shiny plating you see on third-party reworked parts.
- What is the maximum inductive load I can switch directly? Stick to 2A at 240V AC for AC-15 inductive loads. For anything larger, add an intermediate contactor to protect the relay contacts.
- Does this module have built-in channel short-circuit protection? It has basic overcurrent shutdown, but it will not survive a direct 24V DC short across the output terminals for more than 2 seconds. Add a 5A fast-acting fuse per channel for heavy-duty field circuits.
