GE IS220PPROS1B | Emergency Turbine Protection Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

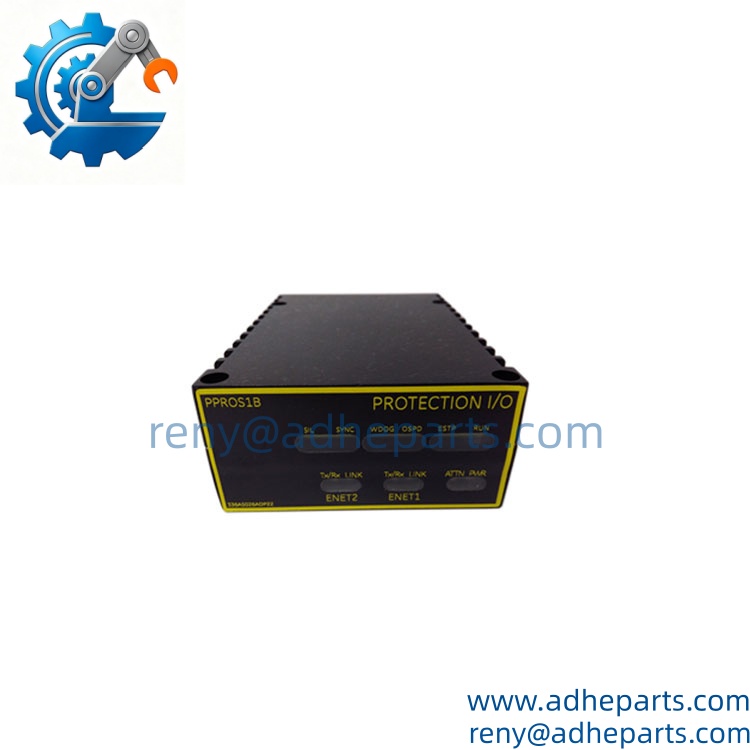

The GE IS220PPROS1B is a Mark VIe Backup Turbine Protection I/O Pack, designated PPROS1B. GE documentation specifically identifies it as a backup turbine protection module and lists its compatible SPRO, TPRO, and TREA terminal boards.

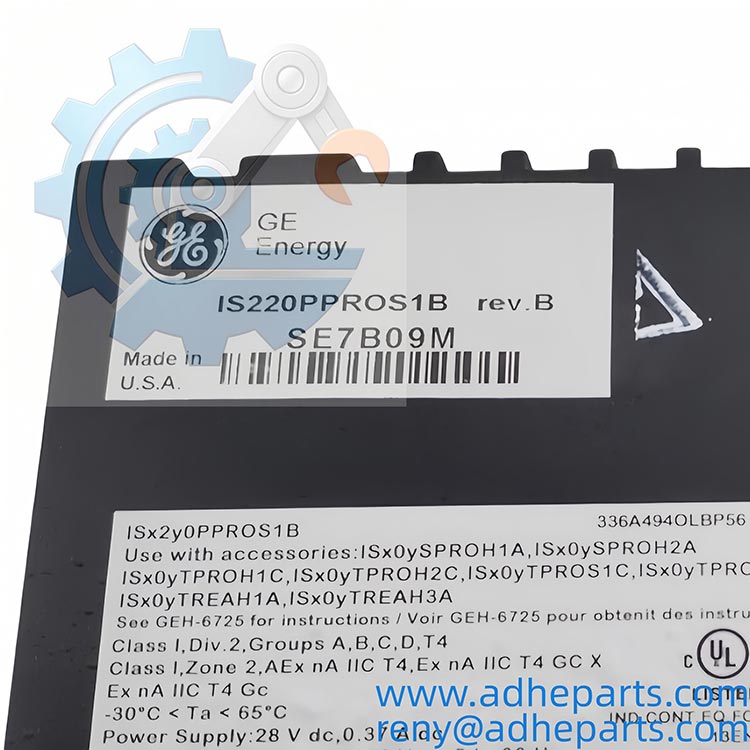

GE IS220PPROS1B | Emergency Turbine Protection Module

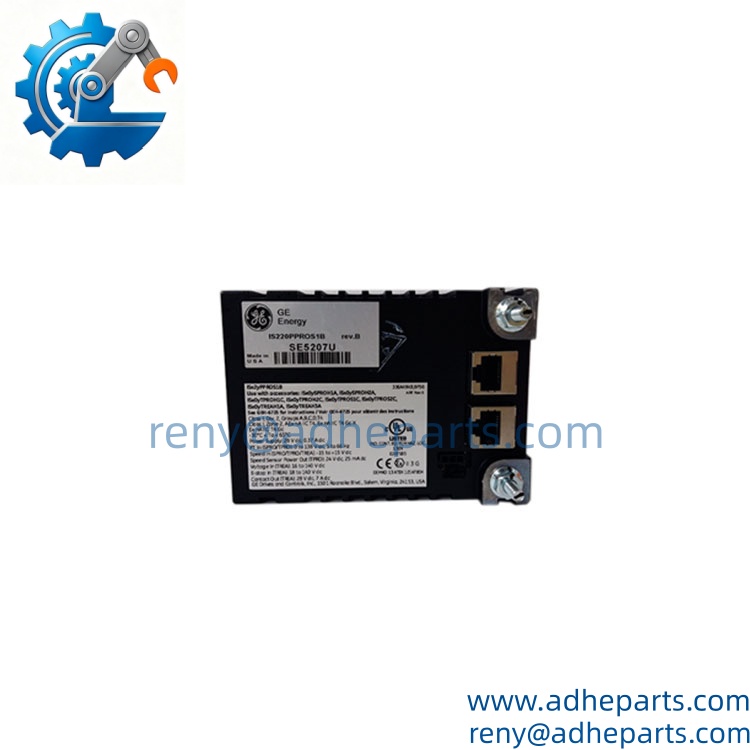

GE IS220PPROS1B | Emergency Turbine Protection Module

Key Technical Specifications

GE’s functional-safety assessment identifies IS220PPROS1B as the PPRO I/O Pack Assembly, Revision B, and lists the associated processor and turbine-protection boards that make up the PPRO assembly.

The module is specifically intended for backup turbine protection rather than ordinary process I/O. GE’s documentation gives a 27.4–28.6 VDC supply range around a 28 VDC nominal value and identifies speed, PT, and emergency-trip interfaces associated with the PPRO architecture.

GE IS220PPROS1B Emergency Turbine Protection Module Datasheet Can Click Here:

GE IS220PPROS1B Detail Information

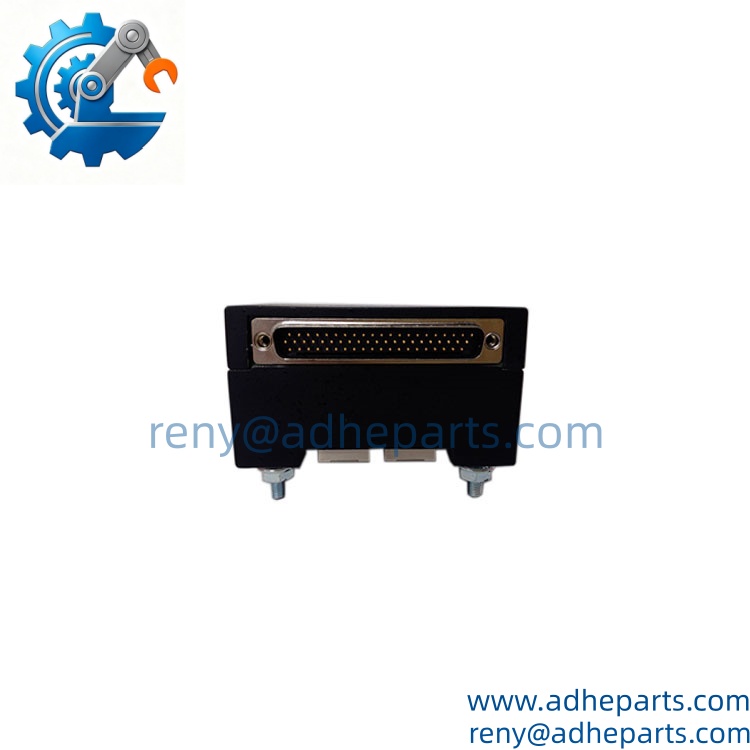

GE IS220PPROS1B | Emergency Turbine Protection Module

Product Introduction (Anti-Template)

When the primary turbine controller is no longer the only line of defense, the protection architecture has to make its own decisions. The GE IS220PPROS1B is the Mark VIe PPROS1B backup turbine protection I/O pack, designed for protection functions such as overspeed monitoring and related emergency turbine protection. GE’s documentation recognizes it as a dedicated backup protection device rather than a conventional Mark VIe I/O module.

A typical arrangement can use three PPRO I/O packs in a triple-modular-redundant configuration, with the packs connected through appropriate SPRO or emergency-trip terminal boards. The exact terminal-board arrangement depends on the turbine and protection design, so the installed board should be identified before a replacement is approved.

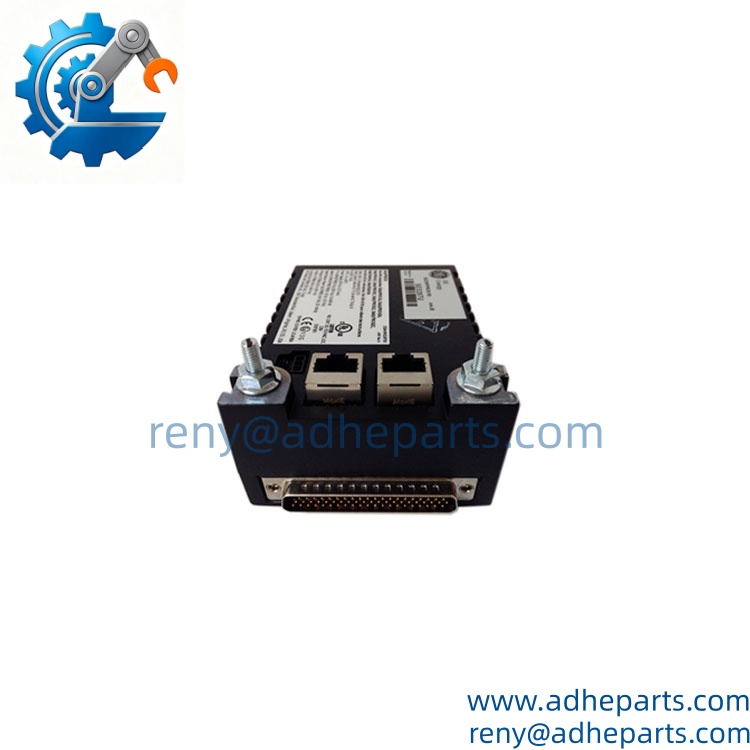

GE IS220PPROS1B | Emergency Turbine Protection Module

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the complete catalog number: IS220PPROS1B.
   • Verify the PPROS1B identification and hardware revision.
   • Record the serial number and manufacturing information.
   • Inspect the DC power connector, Ethernet ports, and terminal-board interface.
   • Check the housing and mounting hardware for impact or deformation.
   • Confirm the customer’s terminal board is one of the approved compatible boards.
2. Live Rig Testing
   • Apply the specified DC supply using a controlled test fixture.
   • Verify startup and module diagnostic indications.
   • Check Ethernet/I/O communication where the test system supports it.
   • Test representative speed-input signals within the applicable range.
   • Verify relevant voltage-input channels where applicable.
   • For a TMR application, verify that the pack communicates correctly with the protection system and does not generate configuration or voting-mismatch diagnostics.
3. QA & Anti-Static Packaging
   • Photograph the model and revision label before shipment.
   • Place the I/O pack in an ESD-safe bag.
   • Protect Ethernet and board connectors from impact.
   • Use rigid cushioning around the enclosure.
   • Prevent the module from moving inside the carton during transportation.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, origin information, and applicable HS classification.
   • Use a precise description such as GE Mark VIe emergency turbine protection I/O pack.
   • Air shipment is generally practical for this type of module.
   • Use ESD-safe and impact-resistant packaging for air or sea freight.
   • Confirm the final HS classification with the destination customs broker before export declaration.

Technical Pitfalls & Integration Warnings

1. PPROH1A vs. PPROS1B

This is a particularly important distinction. GE documentation contains a specific diagnostic warning for installing a PPROH1A instead of a PPROS1B when Rate-Based Overspeed protection is configured. In that situation, the RBOS feature is not available on the installed hardware.

Scenario: A maintenance team installs what appears to be a compatible PPRO module, but the ToolboxST configuration still expects PPROS1B functionality. The turbine protection system reports a configuration-related diagnostic and the expected protection feature does not operate.

Match the complete catalog number.

2. TMR Voting Mismatch

The can participate in a TMR protection arrangement. GE documentation specifically describes diagnostics for Input Signal Voting Mismatch and recommends checking the R/S/T pack configuration, networking, mounting, wiring, and the signal source.

Scenario: One of three PPRO packs sees a different speed signal from the other two. Replacing the module immediately may not solve the problem—the actual cause could be wiring, the sensor, network communication, or an inconsistent ToolboxST configuration.

3. Terminal Board Compatibility

GE specifies approved terminal-board combinations for IS220PPROS1B, including IS200SPROH1A, IS200SPROH2A, IS200TPROH1C, IS200TPROH2C, IS200TPROS1C, IS200TPROS2C, IS200TREAH1A, and IS200TREAH3A.

Do not substitute a terminal board simply because its connector looks similar. The protection function and wiring arrangement have to match.

4. Configuration Mismatch

Protection modules are not ordinary I/O cards. GE’s diagnostic documentation notes that R/S/T pack configurations need to correspond with the ToolboxST configuration.

Honestly, for a turbine protection replacement, checking the software configuration before installing the spare is often more important than checking whether the module powers up.

Frequently Asked Questions (FAQ)

It is a Mark VIe Backup Turbine Protection I/O Pack, also referred to as the protection module. It is used for independent/backup turbine protection functions rather than ordinary process measurement.

Q2: What does PPRO stand for in this application?

PPRO refers to the turbine protection I/O function used for backup protection. The system can monitor turbine speed and other critical signals and participate in emergency protection logic.

Q3: Is used for overspeed protection?

Yes. It is associated with backup overspeed protection, including speed monitoring functions. The also has specific support for Rate-Based Overspeed functionality that must be matched by the hardware and system configuration.

Q4: How many speed inputs does have?

The published specifications identify three speed inputs, with an input range of approximately 2 Hz to 20 kHz.

Q5: Can I replace with PPROH1A?

Do not assume so. GE’s diagnostic documentation specifically distinguishes from PPROH1A and states that Rate-Based Overspeed is not supported when PPROH1A is substituted for without the corresponding configuration change.

For a protection application, use the exact catalog number unless GE documentation for the customer’s system confirms an alternative.

Q6: What terminal boards are compatible with ?

GE lists several approved terminal boards, including:

• IS200SPROH1A
• IS200SPROH2A
• IS200TPROH1C
• IS200TPROH2C
• IS200TPROS1C
• IS200TPROS2C
• IS200TREAH1A
• IS200TREAH3A

The correct board depends on the turbine and protection architecture.

Q7: Can the be hot-swapped?

Do not treat it as a routine hot-swap module. This is part of a turbine protection system. Before removing it, follow the plant’s approved protection bypass, shutdown, and maintenance procedure.

If the module is part of an active TMR protection group, removing one pack can also affect voting and diagnostic status.

Q8: What information should I provide when ordering a replacement?

For a reliable compatibility check, provide:

• Full part number:
• Hardware revision
• Serial number
• Existing terminal-board model
• Mark VIe controller/system information
• Whether the system uses TMR PPRO
• Current ToolboxST configuration
• Current protection alarm or diagnostic code
• Clear photographs of the installed module and terminal board

For this component, the terminal-board model and protection configuration should be verified together with the I/O pack part number.
