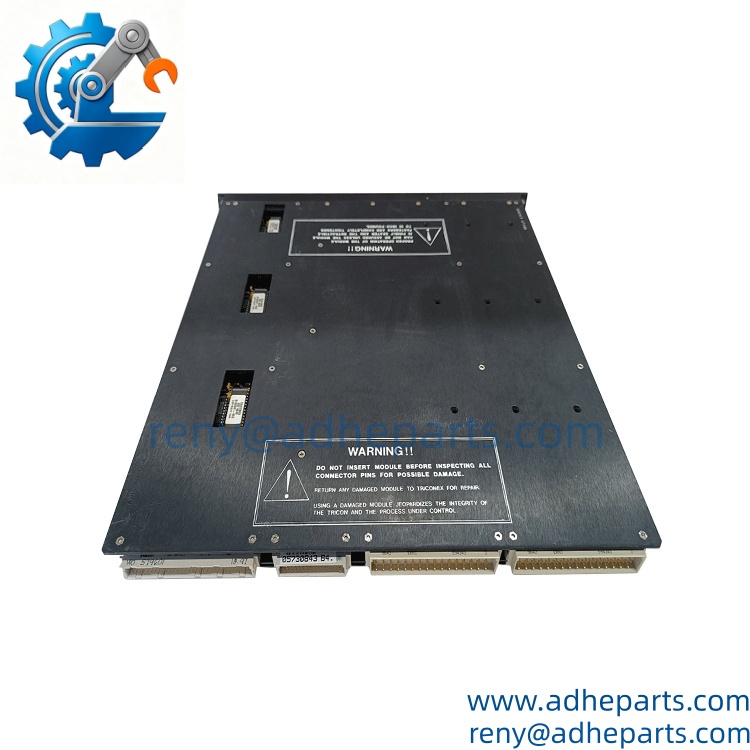

Triconex 3704E
Key Technical Specifications
- Input Channels: 64 commoned single-ended analog inputs
- Input Signal Range: 0–5 VDC or 0–10 VDC, selected via TriStation software
- Resolution: 12-bit analog-to-digital conversion
- System Architecture: Triple Modular Redundant (TMR), 2-out-of-3 mid-value voting
- Input Update Rate: 75 ms
- Accuracy: <0.25% full scale from 0 °C to 60 °C
- Overrange Protection: 150 VDC / 115 VAC continuous
- Status Indicators: PASS, FAULT, ACTIVE LED indicators
- Power Supply: 24 VDC chassis backplane feed
- Operating Temperature: 0 °C to +60 °C
- Mounting: Slot mount for Tricon chassis, mechanically keyed
- Safety Standard: IEC 61508 SIL 3 capable
Product Introduction
When a main CPU trips and downtime costs thousands per minute, safety loops cannot lose analog process readings during hardware faults. The 3704E delivers high-density analog signal acquisition for Tricon safety systems, built with three independent signal paths that vote to reject single-channel failures.
Honestly, the 64-point commoned design cuts down slot count for bulk temperature and pressure monitoring —though customs clearance in the EU might add 2 days for cross‑border safety system hardware shipments. This module does not offer per-channel galvanic isolation, so all connected field transmitters must share one common ground reference.

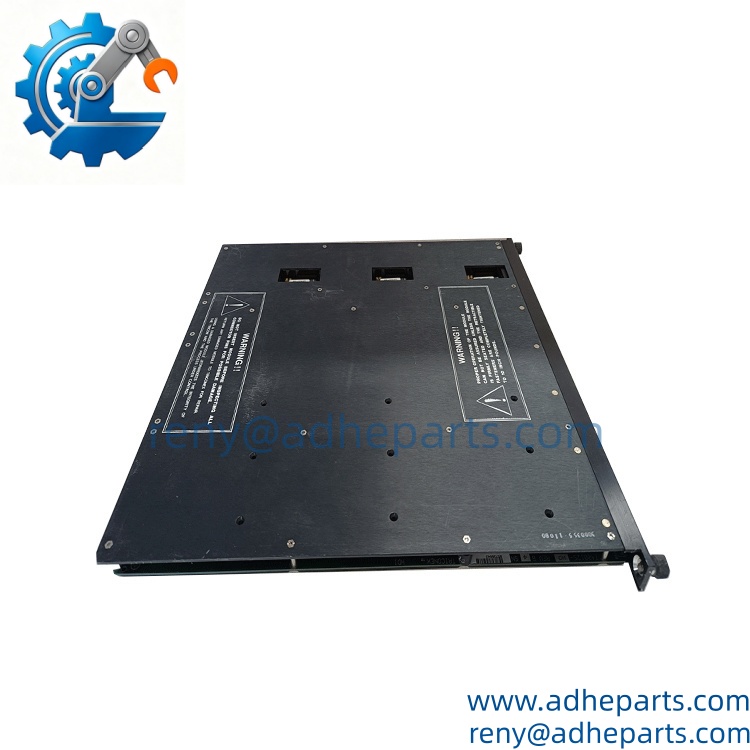

Triconex 3704E
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect OEM labeling, chassis housing and edge connector pins; cross-check hardware revision codes against official documentation to filter mismatched or refurbished mislabeled units; log existing firmware version.
- Live Rig Testing: Install in matching Tricon backplane; run power‑on self‑test, validate all three TMR channels, check analog reading accuracy and LED fault response under simulated signal input.
- QA & Anti‑Static Packaging: Clean connector contacts; place unit inside static shielding bag, add custom foam padding to absorb shock during transit.
- Global Logistics & Export Compliance: Apply optimized HS code classification for safety system analog I/O modules. Use reinforced rigid casing for air or sea freight; compile full technical documentation to reduce hold‑ups at global procurement portals and customs databases.

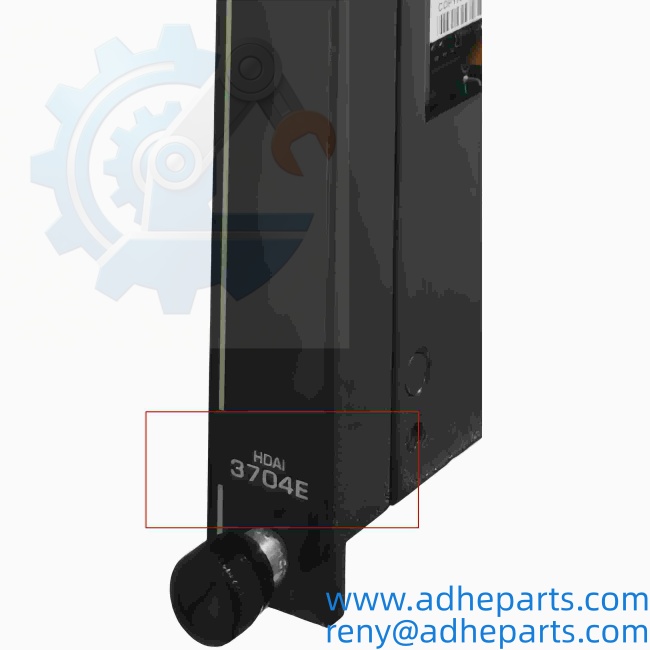

Triconex 3704E

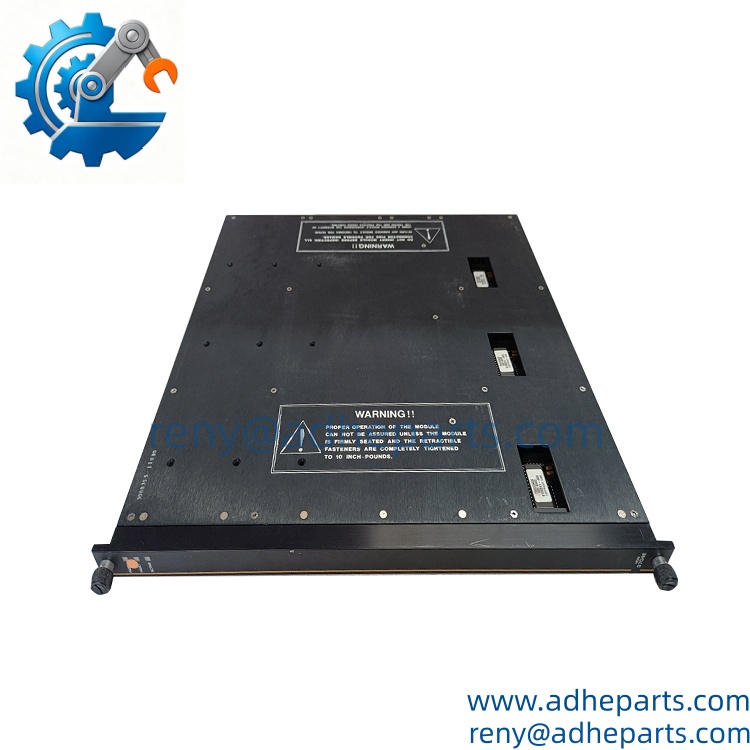

Triconex 3704E
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. If the 3704E’s onboard firmware does not match the TriStation project and Tricon controller firmware, channel scaling and voting logic break. One site swapped the module without version validation and saw drifting pressure readings on safety monitoring points.
- DIP Switch / Configuration errors. Wrong chassis slot address setting makes the module invisible to the Tricon main controller. A technician copied switch settings from an isolated 3720 module and spent hours troubleshooting missing analog data.
- Wiring/Terminal incompatibility. Mixing transmitters with differing ground potentials creates ground loops. A field engineer wired multiple floating sensors to this commoned module and introduced large measurement offsets on every channel.
- ESD destruction during unboxing. Touch exposed backplane connector traces without proper wrist grounding. The unit may pass bench static tests but throw intermittent TMR channel mismatch faults once mounted in the live rack.
Frequently Asked Questions (FAQ)
What global lead times should I expect for Triconex 3704E? Stock‑on‑hand hardware can ship within 1‑3 business days. Final arrival depends on destination; remote regions can push total transit cycle to 14‑22 calendar days.
What shipping and customs options apply for this TMR analog input module? Air freight shortens delivery window at higher cost. Sea freight lowers cost for bulk orders but increases transit duration. Complete documentation and accurate HS classification reduce customs inspection delays.
Can I hot‑swap 3704E while the Tricon safety rack remains powered? This module supports hot-swap within a fully functional TMR chassis. Always follow vendor lockout and bypass procedures before extraction. Never hot-swap if the system already has another failed I/O or controller channel.
Does 3704E maintain backward compatibility with older Tricon generations? Physically it fits many legacy Tricon chassis. TriStation software project versions and controller firmware must align. Direct drop‑in operation is not guaranteed without bench validation before live safety commissioning.
What pre‑installation checks should the safety team complete?
- Inspect edge connector pins for bending, oxidation or residue
- Confirm module firmware matches the Tricon host controller baseline
- Validate all field sensor ground references before wiring to the commoned inputs
Can I use 4-20mA transmitters directly with this 3704E? It reads voltage signals only. 4-20mA transmitters require external precision shunt resistors to convert current into 0–5V or 0–10V for input capture.
Is repair service available for this legacy Triconex safety module? Original OEM component sourcing is limited. Direct hardware replacement is the recommended low-risk option for safety-critical ESD and process monitoring racks.
