TRICONEX 3009 TMR Main Processor Module

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

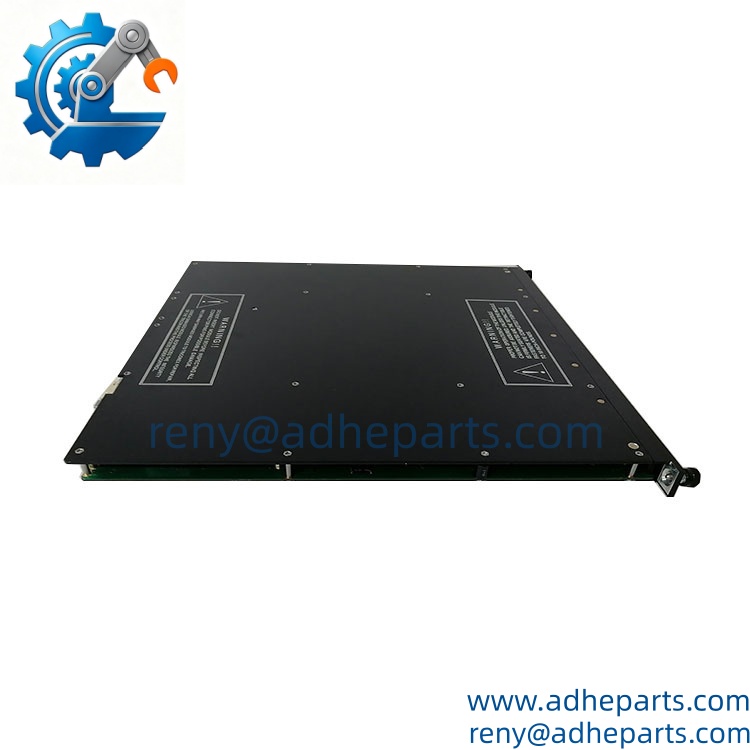

TRICONEX 3009

Key Technical Specifications

The published Tricon v9–v11 documentation identifies the 3009 as the Main Processor for v11.x and specifies the QorIQ P1021 architecture, 256 MB DRAM, 2 MB SRAM, and 128 MB Flash PROM. TriBus performance depends on the chassis in which the processor is installed.

Product Introduction — Anti-Template

The TRICONEX 3009 sits at the center of a Tricon v11 safety controller, executing the application program while participating in the system’s fault-tolerant processing architecture. Unlike an ordinary PLC CPU, it operates as one of three Main Processor channels. Each processor works independently, while TriBus provides processor-to-processor communication, data comparison, synchronization, and hardware voting.

The processor uses a dual-core QorIQ P1021 at 800 MHz and includes dedicated DRAM, battery-backed SRAM, and Flash PROM. The exact chassis matters here—the same 3009 can operate with different TriBus speeds depending on whether it is installed in an 8110, 8100-1, or 8120E chassis. (That detail is easy to miss when buying a used replacement.)

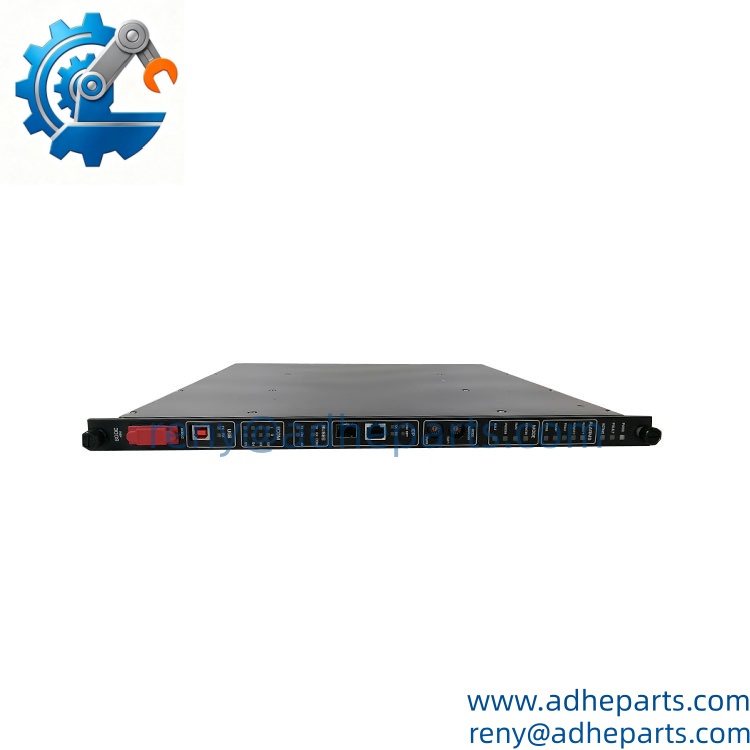

TRICONEX 3009

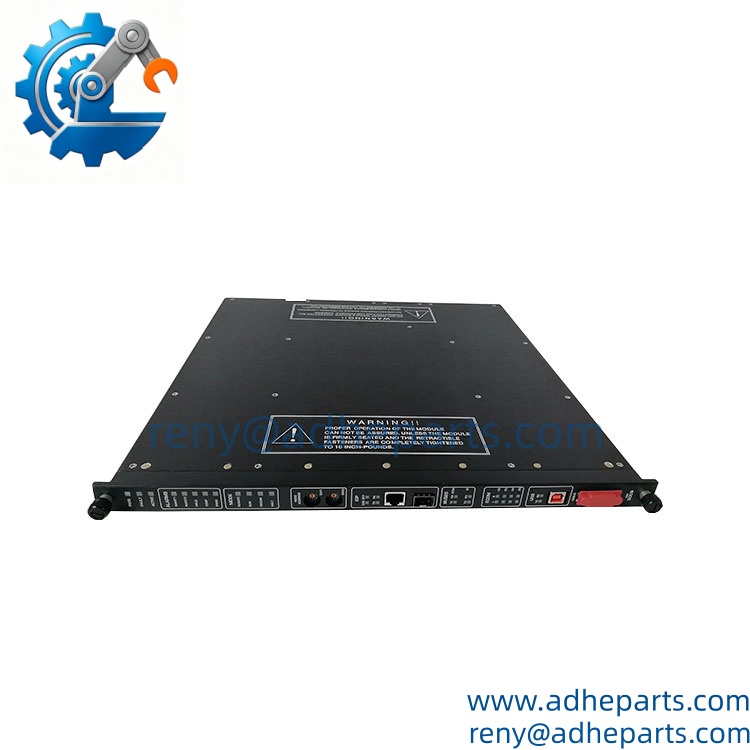

TRICONEX 3009

QC, Procurement & Logistics SOP

1. Inbound Verification

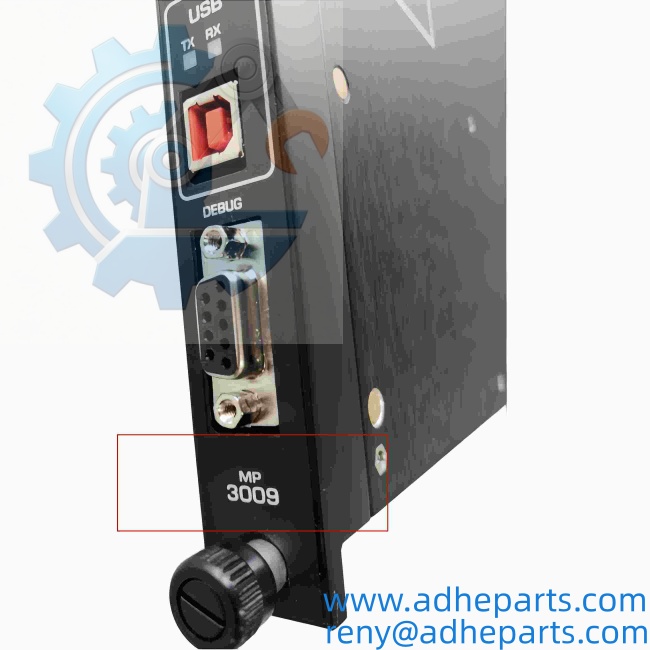

• Verify the complete model marking: 3009.
• Check the module label, serial number, revision information, and manufacturing markings.
• Inspect the PCB, edge connectors, housing, and chassis interface for oxidation, contamination, bent contacts, or previous repair work.
• Confirm that the module is being purchased for the correct Tricon v11.x architecture.

2. Functional Verification

For available test equipment and system conditions, verification should include:

• Processor startup and diagnostic status.
• Memory diagnostics.
• TriBus communication.
• I/O processor communication.
• Communication interface checks.
• RS-232 diagnostic interface where applicable.
• Controller configuration recognition.

The manufacturer’s documentation describes processor diagnostics covering program memory, RAM, processor instructions, I/O processors, shared memory, TriClock, and TriBus interfaces.

3. QA & Packaging

Each unit should be protected against:

• ESD during handling.
• Mechanical shock.
• Connector impact.
• Moisture and condensation.

For international shipment, use an ESD bag, internal cushioning, rigid outer packaging, and appropriate moisture protection. For multiple modules, separate each processor individually rather than allowing boards to contact each other.

4. Export & Logistics

For international orders, confirm:

• Commercial invoice and packing list.
• Correct customs classification.
• Country of origin.
• Gross/net weight.
• Package dimensions.
• Consignee and end-use information where required.
• DHL/FedEx/UPS air express or air freight according to shipment size and destination.

For customs classification, the final HS code should be confirmed against the actual product configuration and destination-country tariff schedule rather than copied from an unrelated Tricon module.

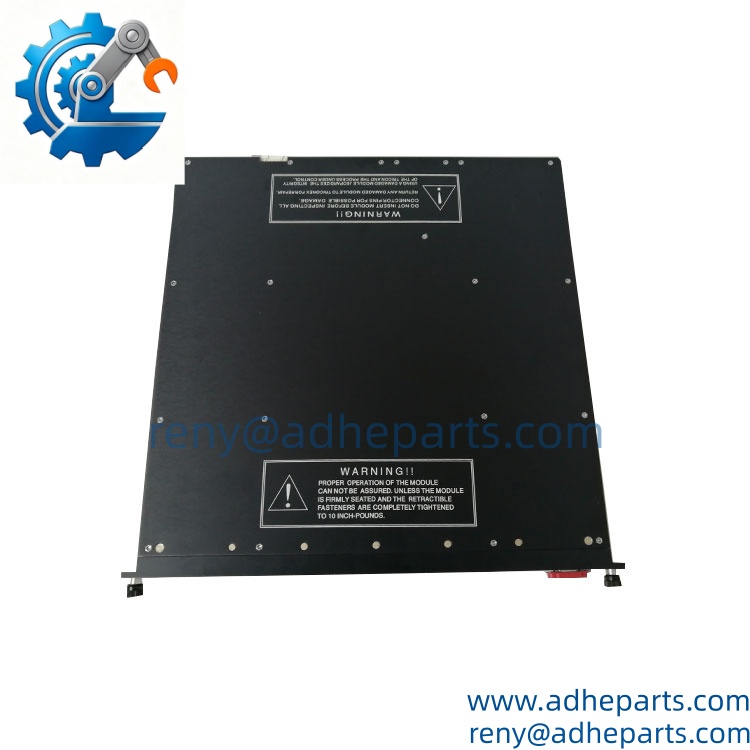

TRICONEX 3009

Technical Pitfalls & Integration Warnings

1. Do not assume 3009 replaces every Tricon processor

The published compatibility table lists 3009 for Tricon 11.x, while 3006/3007 and 3008 correspond to earlier system versions. A processor upgrade therefore requires checking the complete controller revision and system configuration.

2. Chassis type affects TriBus performance

The 3009 supports 25 Mbps TriBus operation in the 8110 and 8100-1 chassis, while the 8120E Enhanced Performance chassis can provide up to 1000 Mbps. Do not quote the maximum 1 Gbps figure without checking the actual chassis.

3. TMR means three processors—not one

A normal Tricon chassis uses three Main Processor modules, with each processor serving one controller channel. Replacing one processor is therefore a system-level maintenance operation, not simply a matter of inserting a generic CPU card.

4. Firmware/configuration compatibility matters

Before installation, verify the controller’s system version, processor revision, application configuration, and engineering-software compatibility. A physically identical module can still be unsuitable if its revision does not match the installed system.

5. Handle the module as an ESD-sensitive safety-system component

Avoid touching the PCB or connector contacts directly. During replacement, follow the site’s approved maintenance and safety procedure rather than relying only on the physical hot-swap capability of the chassis.

TRICONEX 3009

Frequently Asked Questions

Q1. What is the TRICONEX 3009?
It is the Main Processor module for Tricon v11.x fault-tolerant safety controllers. A complete Tricon chassis normally uses three Main Processor modules.

Q2. Is 3009 compatible with Tricon v10 systems?
The published compatibility table identifies 3009 with Tricon 11.x. Earlier versions use other processor models, so compatibility must be checked against the exact controller revision before ordering.

Q3. What CPU does the 3009 use?
The documented 3009 uses a dual-core QorIQ P1021 processor running at 800 MHz, with 256 MB DRAM, 2 MB battery-backed SRAM, and 128 MB Flash PROM.

Q4. Can I replace one 3009 while the Tricon system is operating?
Do not assume that a physical module replacement automatically means the operation is safe to perform online. Follow the applicable Tricon maintenance procedure and verify the installed system revision and redundancy state before removing a processor.

Q5. What is the difference between 3008 and 3009?
They are different generations of Tricon Main Processor. The published compatibility table associates 3008 with Tricon 9.6–10.x and 3009 with Tricon 11.x.

Q6. Can you supply a tested TRICONEX 3009?
Availability depends on current inventory. For a purchase inquiry, provide the required quantity and your existing Tricon system/version; the module revision and condition can then be checked before quotation.

Q7. What should I provide when requesting a replacement 3009?
The safest information is the 3009 model number, existing Tricon system version, chassis model, module revision/label photos, quantity, and destination country. That gives procurement and technical teams enough information to verify compatibility before shipment.
