ABB CI627 | Advant OCS Communication Board, Replacement Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

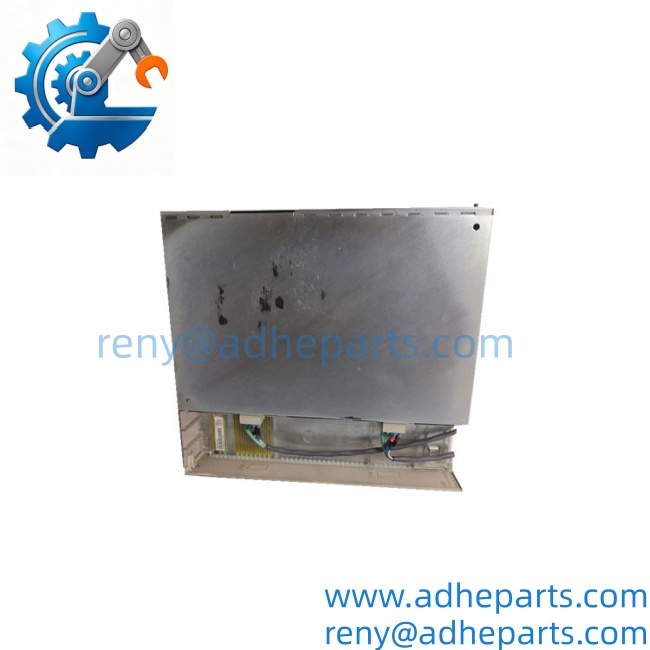

ABB CI627

ABB CI627

3. Key Technical Specifications

ABB CI627

ABB CI627

ABB CI627

4. Product Introduction

The ABB CI627 is a Profibus DP communication module for the Advant Controller 400 series. It plugs into the controller rack and provides a master interface to a Profibus DP network, letting the Advant CPU exchange cyclic and acyclic data with remote I/O, drives, and intelligent field devices. The module handles the protocol stack, so the controller’s application program sees the remote data as ordinary I/O.

The engineering value is bus transparency. You configure the network in the Advant engineering tool, map the slave data into the controller’s memory, and the CI627 manages the polling and diagnostics. The 12 Mbit/s maximum data rate supports networks with fast update requirements, and the module’s diagnostics buffer logs bus faults and slave dropouts. For plants running legacy Advant systems, this module is often the only path to integrate modern Profibus DP devices without replacing the controller.

ABB CI627

ABB CI627

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The headache with legacy DCS integration is not the controller — it is the fieldbus. A plant with an Advant system wants to add a Profibus DP remote rack, a smart valve positioner, or a drive with a Profibus card. Without a native interface, the options are a protocol converter, a hardwired signal exchange, or a controller replacement. None of those are cheap. The CI627 solves this by putting a Profibus DP master directly on the Advant backplane. I have used this module to bring new instrumentation into a 20-year-old Advant system with no change to the controller program beyond a few I/O mapping edits. The module does the heavy lifting of the bus protocol.

Part 2 – Numbered List (Application Scenarios)

1. Water Treatment – Remote Pump Station Integration – A plant with an Advant controller needed to monitor new Profibus DP flow meters and VFDs at a remote pump station. The CI627 provided the master interface, and the remote I/O data appeared in the Advant controller as local I/O.
2. Metals – Drive Network on a Rolling Mill – The CI627 connects the Advant controller to a Profibus DP network of DC drives. The controller sends speed references and reads back current and fault status over the bus, eliminating hundreds of discrete signal wires.
3. Chemical – Smart Valve Positioners – A batch plant used Profibus DP valve positioners for precise flow control. The polled the positioners and passed the valve position and diagnostic data to the Advant controller for display and logging.
4. Power Generation – Auxiliary System Monitoring – The interfaces the Advant controller to Profibus DP remote I/O racks that collect temperature and vibration data from auxiliary equipment. The module’s diagnostics buffer helped isolate a recurring bus fault to a loose connector on a remote rack.

Part 3 – Short Field Story

A steel mill in the Midwest had an Advant Controller 400 running a billet caster. The plant wanted to add a new Profibus DP remote rack for a cooling bed, but the existing control system had no Profibus interface. The integrator quoted a controller upgrade and a new network. We supplied a module and configured it in the Advant engineering tool. The mill’s electrician installed the module, connected the Profibus cable to the new rack, and mapped the I/O. The caster was back in production the next day, and the controller upgrade was avoided entirely.

6. Standard Operating Procedure (SOP) for Quality Control

Every module passes this QC sequence:

• Visual & Origin Inspection – We verify the ABB marking, the model number, and the date code. We inspect the backplane connector and the 9-pin D-sub for bent pins or corrosion. A module with a cracked connector shroud or evidence of rework is rejected.

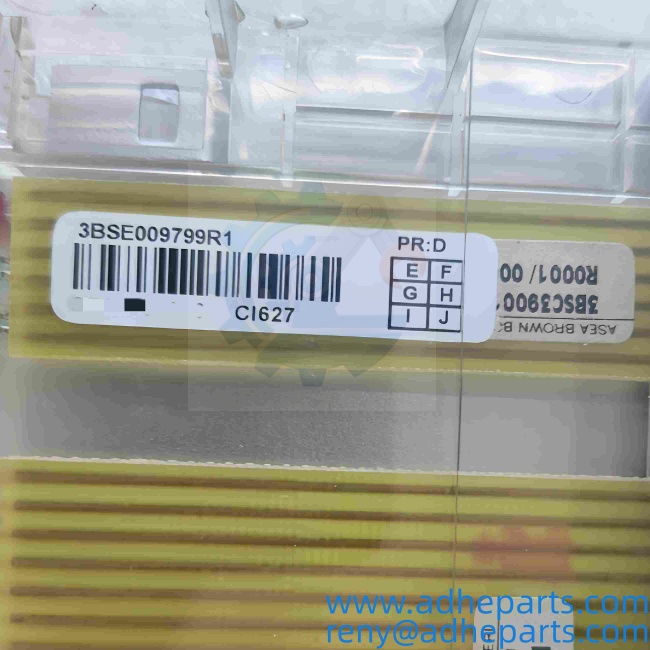

• Revision Documentation – We read and record the firmware revision string. We photograph the module before packing so you can compare it to your existing unit.
• Power-Up Self-Test – The module is inserted into a known-good Advant Controller 400 rack. We verify it initializes without a bus fault and that the controller recognizes the module type.
• Profibus Communication Test – We connect the module to a Profibus DP test network with a known slave device. We verify data exchange at 1.5 Mbit/s and 12 Mbit/s, and confirm the module reports slave diagnostics correctly.
• Diagnostics Buffer Test – We simulate a slave dropout and verify the module logs the fault and the controller receives the diagnostic message.
• Connector Integrity Test – We mate and unmate the backplane connector and the D-sub connector ten times to confirm the contacts do not deform and the retention mechanism holds.
• ESD-Safe Packaging – The module is wrapped in anti-static film, placed in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Will the work in any Advant Controller 400 rack?

A: The is designed for the Advant Controller 400 series, but you must verify the rack type and firmware compatibility. Some older racks require a specific backplane revision. Check the rack model and the controller firmware version before ordering. If you send us the rack model, we can confirm the match.

Q2: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers communication processor failure, backplane connector failure, and D-sub connector failure under normal operating conditions. It does not cover damage from hot-swapping the module with the rack energized, bent pins from forced insertion, or ESD damage from handling without a wrist strap. We test every module in a live Advant rack before it ships.

Q3: Do you have this in stock?

A: Legacy Advant inventory moves quickly. Confirm availability before you plan an outage. If we are out, we will give you a realistic restock window, not a placeholder date. For quantities above two units, contact us for a stock check.

Q4: What happens if the firmware revision does not match my system?

A: The module may fail to initialize, or it may initialize but drop communication under load. In some cases, the controller will not recognize the module at all. A firmware mismatch is the most common reason a replacement module does not work. Send us the revision string from your old module and we will match it if we can.

Q5: Any installation pitfalls I should watch for?

A: Three. First, power down the rack before inserting or removing the module. These modules are not hot-swap capable. Second, the Profibus D-sub connector pinout is standard, but verify the termination resistors on the bus — a missing terminator causes intermittent communication faults. Third, after installation, check the module’s diagnostic buffer for any bus errors before you return the system to service. A module that powers up is not necessarily communicating correctly.
