GE SR469-P5-HI-A20-E | Multilin 469 Replacement Unit, Ready to Ship

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

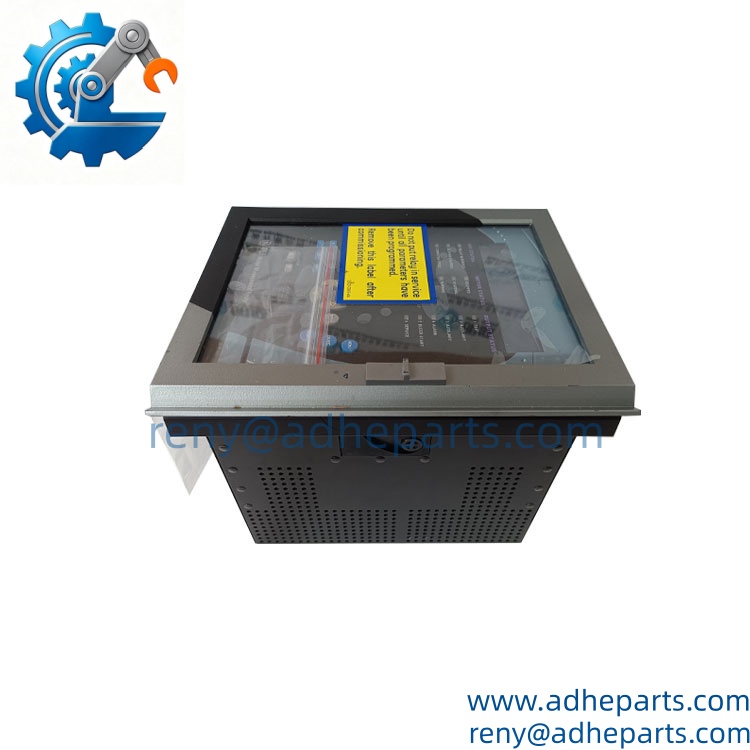

GE SR469-P5-HI-A20-E

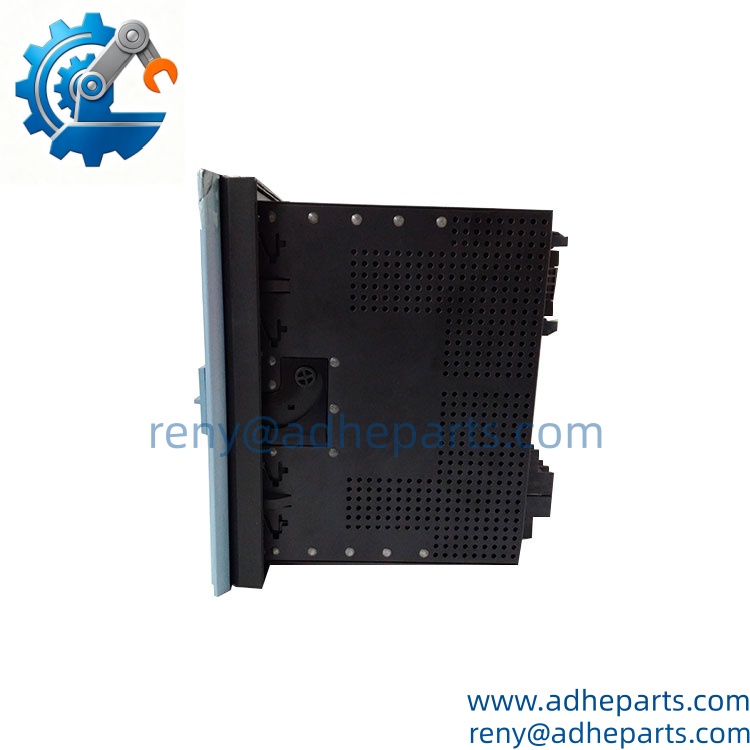

GE SR469-P5-HI-A20-E

3. Key Technical Specifications

4. Product Introduction

The GE Multilin SR469-P5-HI-A20-E is a full-featured motor management relay designed for the protection, control, and monitoring of medium-voltage and large low-voltage induction motors. It is the industry-standard workhorse for motors from 50 HP to 10,000 HP, commonly found in pumps, fans, compressors, and conveyors. The relay combines thermal overload protection, short-circuit protection, ground fault detection, and comprehensive motor-thermal modeling in one 4U high panel-mounted unit.

What sets the 469 apart from basic overload relays is the adaptive thermal model. The relay continuously calculates motor winding temperature using a bi-thermal model, and it automatically resets the thermal capacity used (TCU) based on the cooling rate during stoppage. The SR469-P5-HI-A20-E spec specifically includes 5A CT inputs (P5), high insulation (HI) for improved dielectric withstand on RTD circuits, the A20 enhanced I/O package with additional digital inputs and outputs, and the Ethernet communication option (E). The Ethernet port gives you Modbus TCP and IEC 61850 capability, making it easy to integrate into modern DCS/SCADA architectures.

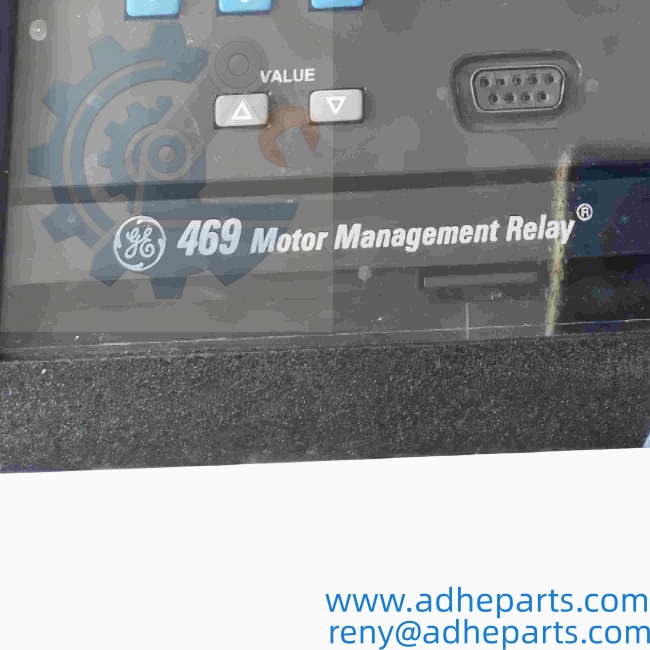

GE SR469-P5-HI-A20-E

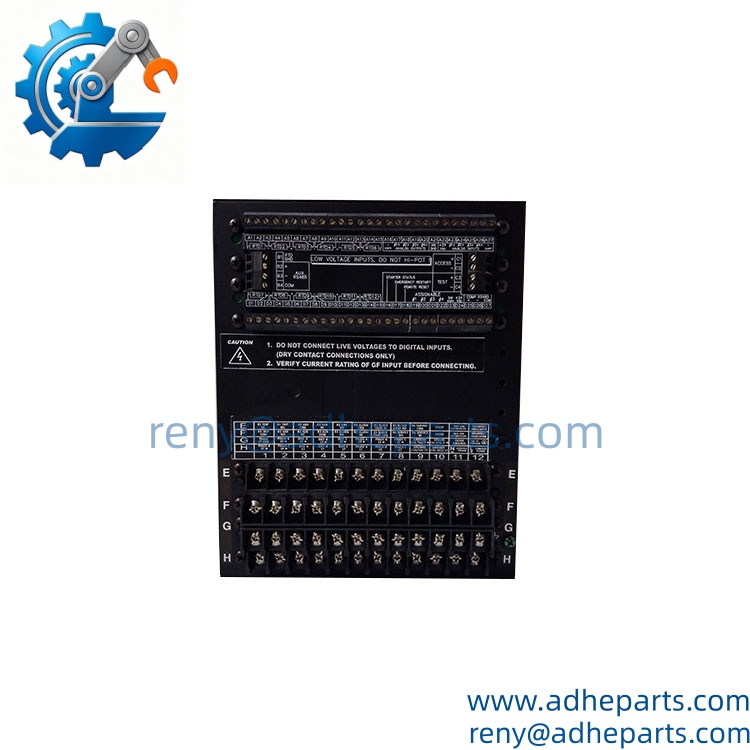

GE SR469-P5-HI-A20-E

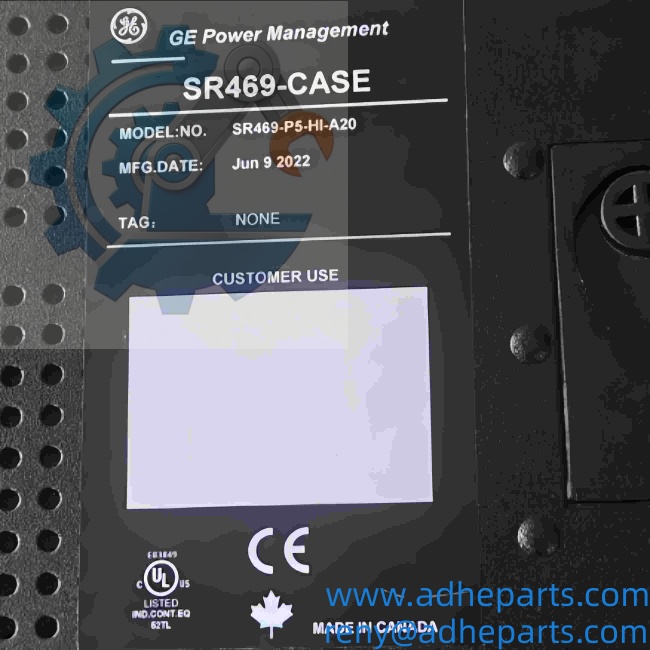

GE SR469-P5-HI-A20-E

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

I have walked into more than one control room where a 1000 HP ID fan motor tripped on “overload,” but the maintenance crew could not figure out why—the ammeters showed normal current. The culprit was a phase imbalance caused by a failing contactor contact, a condition that a basic overload relay does not catch. The 469 relay solves that with its negative-sequence current element, which detects phase imbalance and locks out the motor before the rotor bars are damaged. The built-in event recorder then shows exactly the sequence of events—”Phase B current dropped to 85% at 14:32:07, trip at 14:32:12″—giving the maintenance team a definitive diagnosis instead of a guessing game.

Part 2 – Numbered List (Application Scenarios)

1. Power Generation – Forced Draft Fan Motors – The 469 provides comprehensive protection for 6000V ID/FD fans in coal-fired plants. The thermal model accounts for the long start time (up to 30 seconds) and sets the stall protection accordingly. The Ethernet port sends real-time thermal capacity to the DCS.
2. Water/Wastewater – Large Raw Water Pumps – The relay monitors motor bearing temperatures via the 5 RTD inputs and initiates an alarm before bearing failure. The enhanced I/O package controls the discharge valve sequencing during start-stop cycles.
3. Mining – Conveyor Belt Drives – The jam protection feature trips within 100 ms if the motor fails to accelerate to nominal speed. The starts-per-hour counter prevents the operator from overriding and damaging the motor.
4. HVAC – Chiller Compressor Motors – The 469’s undercurrent detection trips the motor on loss-of-load (broken belt or cavitation). The data logger records motor efficiency over time, helping the plant optimize energy use.

Part 3 – Short Field Story

A steel mill had a roughing mill stand motor that would trip once a week on “thermal overload.” The mill had replaced the motor twice, but the problem persisted. The motor’s current draw was within spec—something else was at play. We connected a GE 469 relay temporarily (the mill was using a simple thermal switch). The 469 recorded that one phase current was 8% lower than the others for 5 seconds before every trip—a classic sign of a bad vacuum contactor. The contactor was replaced, and the mill’s maintenance staff finally had a diagnosis instead of a myth.

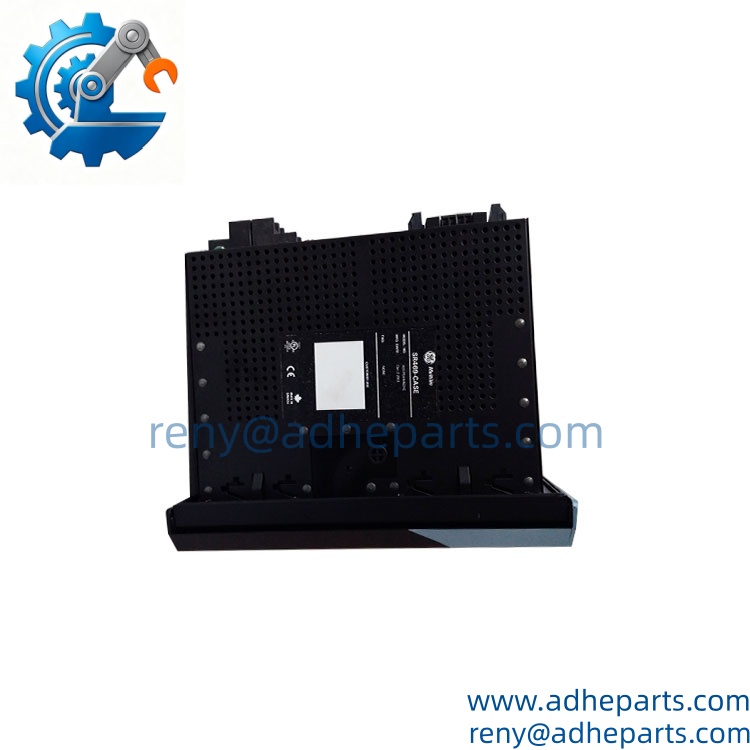

GE SR469-P5-HI-A20-E

6. Standard Operating Procedure (SOP) for Quality Control

Every GE SR469 relay goes through this rigorous QC process:

• Visual & Origin Inspection – We verify the GE/Multilin label, the SR469-P5-HI-A20-E model string, and the serial number. We open the case to inspect the PCBs for water damage, burned components, or prior repair work. Any sign of non-factory soldering means rejection.
• Power-Up & Self-Test – The relay is powered up on a test bench. We verify the LCD backlight illuminates, the keypad responds, and the self-test passes (no “System Error” messages). We record the firmware version and note it on the test report.
• CT Input Calibration – We inject precise test currents (0–10A at 5A CT rating) into the phases and neutral. The relay’s measured values are compared against a reference ammeter—they must match within ±0.5%.
• RTD Inputs Test – We connect a calibrated PT100 simulator to all 5 RTD inputs. The relay’s temperature readings are compared across the range (0–200 °C) and must track within ±1 °C of the simulator.
• Relay Output Exercise – We command each of the 8 relay outputs to trip, verifying contact continuity and that the normally-open and normally-closed contacts change state correctly. We also exercise the trip coil output.
• Communication Ports Check – We connect to the RS-485 port and poll the relay with a Modbus RTU master. We then connect via Ethernet (Modbus TCP) and verify a successful read of basic metering values.
• Battery Backup Verification – We open the front panel and check the internal coin-cell battery. If it shows less than 2.8V, we replace it and reset the event log timestamp.
• ESD-Safe Packaging – The relay is wrapped in anti-static film, placed in a fitted foam insert with dielectric separators for the terminal pins, and packed in a heavy-duty corrugated carton with shock-absorbing foam.

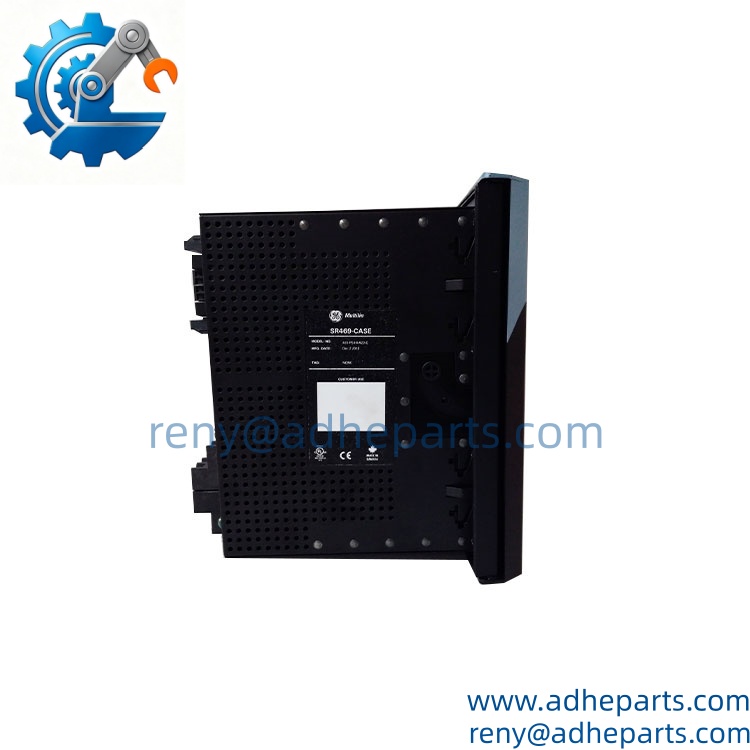

GE SR469-P5-HI-A20-E

7. Frequently Asked Questions (FAQ)

Q1: Does the Ethernet port support IEC 61850, or just Modbus TCP?

A: That depends on the firmware. If your unit has firmware revision 5.0 or higher, it supports IEC 61850 Edition 1 and 2. Older firmware (pre-4.x) only supports Modbus TCP. We will test the unit on our bench and confirm its firmware version. If you need IEC 61850, we can verify before shipping. If the firmware is outdated, we can update it to the latest stable version (subject to availability of the update files).

Q2: I have CTs with a 1A secondary. Will this relay work?

A: No—the “P5” in the model number specifies 5A CT inputs. If your existing CTs are 1A, you will need to either install interposing CTs (5A to 1A) or order the SR469-P1 variant (which is less common). Using 5A-rated CTs with 1A inputs will result in inaccurate measurement. The standard recommendation is to replace the CTs if possible.

Q3: The relay has three RTD inputs. What is the difference between standard and HI insulation?

A: The “HI” (high insulation) option adds additional galvanic isolation between the RTD inputs and the relay logic. This is critical if your motor RTDs are located in high-voltage zones (above 3000V). Standard insulation is rated for 300V; HI is rated for 1000V. If your motor is above 3kV, you need the HI variant. Without it, a transient spike on the RTD wiring could damage the relay.

Q4: What is the warranty, and does it cover the LCD display?

A: We offer a 12-month warranty covering hardware defects—processors, memory, CT inputs, relay outputs, communication ports, and the internal power supply. The LCD display is covered for pixel defects or backlight failure under normal operation. It is not covered for physical impact (cracks) or display burnout due to excessive backlight brightness set in the configuration. We also include a note: the internal battery is a consumable and not covered, but we always install a fresh one before shipment.

Q5: The relay is used in an outdoor MCC. Can it handle -40 °C?

A: Yes, the rated operating temperature goes down to -40 °C. However, the LCD display may become slow or unresponsive below -20 °C—this is a known characteristic of LCD technology. The relay will still protect and trip correctly, but you will not be able to read the display easily. A heated enclosure is recommended if you need frequent display reading at extreme temperatures. The “HI” option also improves performance in high-humidity outdoor cabinets.
