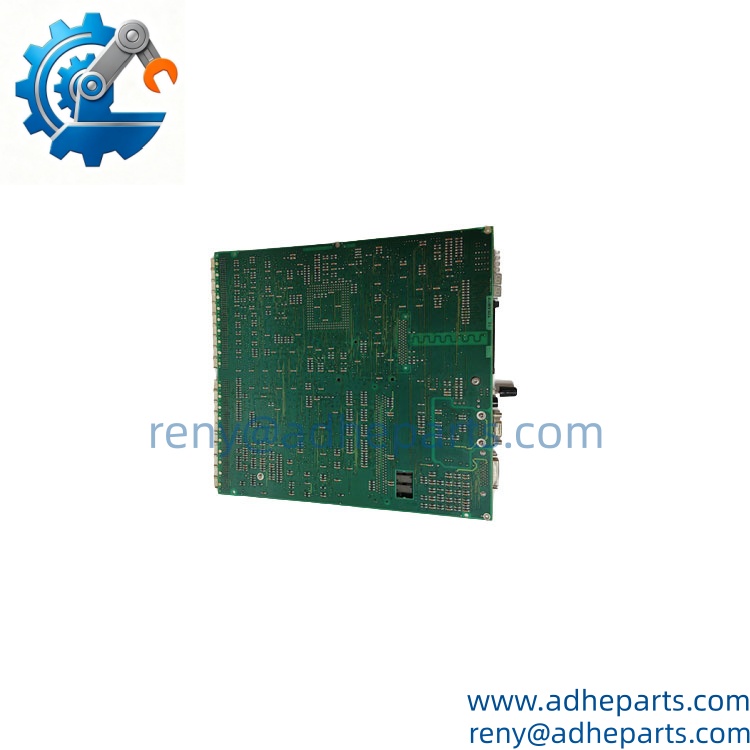

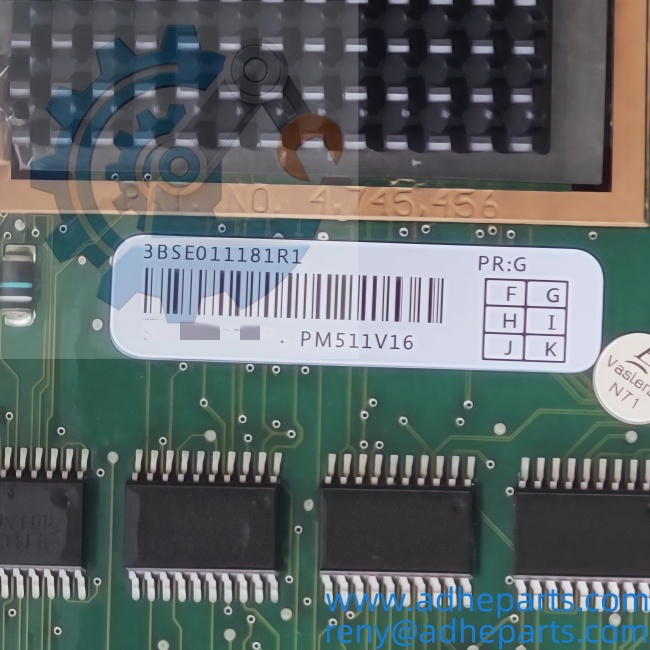

ABB PM511V16 3BSE011181R1
ABB PM511V16 3BSE011181R1
Key Technical Specifications
- Processor: 32‑bit PowerPC RISC architecture
- Memory: 16 MB ECC‑protected DRAM, 16 MB onboard Flash memory
- Expansion Slot: Type II PCMCIA for external flash storage
- Communication: Dual 10/100 Mbps Ethernet; RS‑232 / RS‑485 serial port
- Supported Protocols: Modbus TCP, Modbus RTU, controller backplane bus
- Programming Standard: Full IEC 61131‑3 language support
- Supply Voltage: 24 VDC ±20%
- Power Consumption: Approx. 9.5 W
- Operating Temperature: ‑20 °C to +60 °C
- Protection Rating: IP20 (for rack‑mount cabinet installation)
- Weight: 0.8 kg
- Mounting: Backplane slot‑mount for AC800M rack chassis
Product Introduction
When a main CPU trips and downtime costs thousands per minute, unplanned outages on process‑critical racks cannot wait for long‑lead factory orders. The PM511V16 3BSE011181R1 serves as the primary processing core for ABB AC800M hardware, supporting both single and redundant controller setups within 800xA environments.
Honestly, the PCMCIA memory slot simplifies project backup and firmware migration for site technicians —though customs clearance in the EU might add 2 days for cross‑border industrial control hardware shipments. It handles sequential logic, closed‑loop PID control and plant‑wide data exchange without requiring full system hardware overhauls.

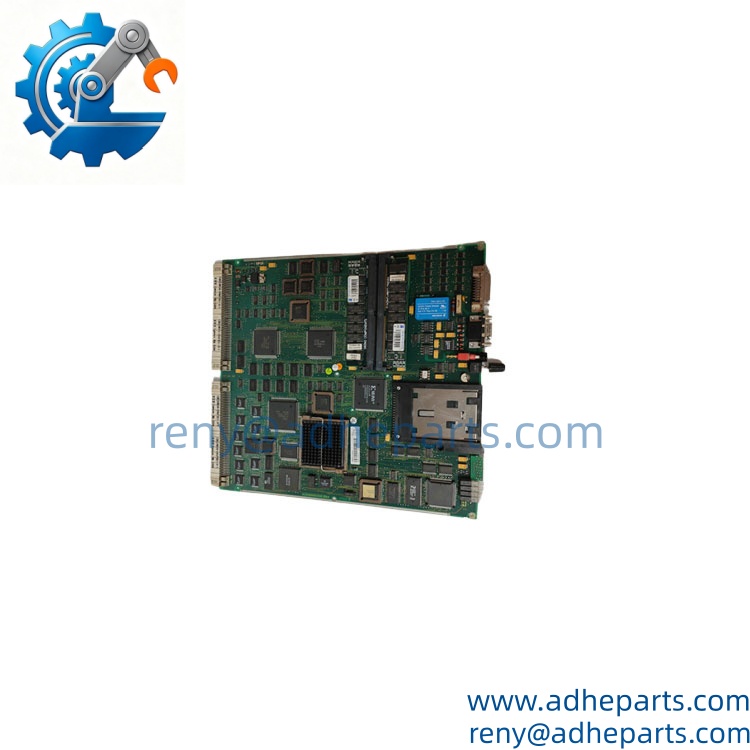

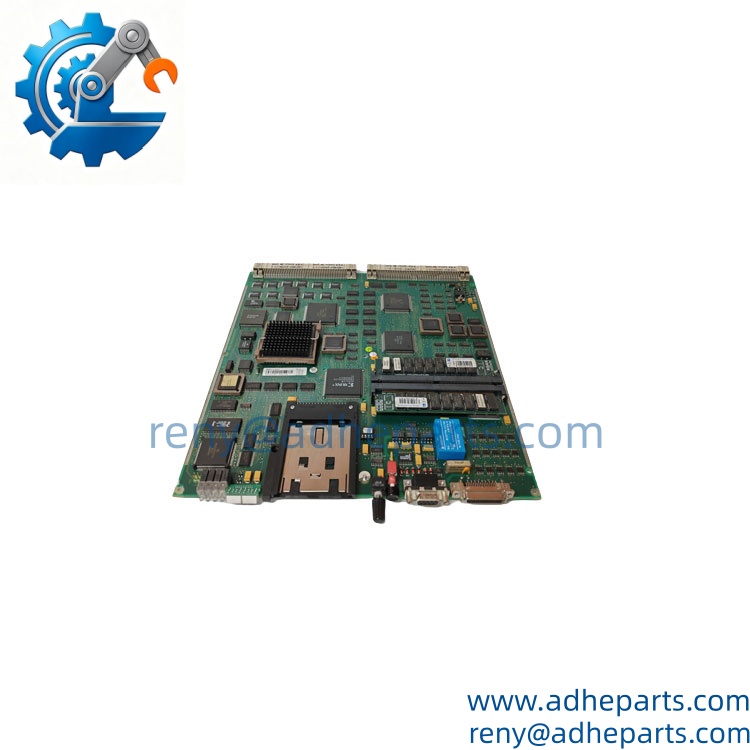

ABB PM511V16 3BSE011181R1
QC, Procurement & Logistics SOP
- Inbound Verification: Validate OEM part marking and physical seal integrity; cross‑check hardware revision codes against official datasheets to filter mislabeled sub‑variants; log existing firmware revision.
- Live Rig Testing: Install on matching AC800M test backplane; run power‑on self‑test; verify backplane bus handshake, Ethernet link, serial port communication and watchdog fault response.
- QA & Anti‑Static Packaging: Clear connector pins of debris; place unit inside static‑shield enclosure, add shock‑absorbent foam padding to guard against transit vibration.
- Global Logistics & Export Compliance: Apply optimized HS code classification for industrial control processor hardware. Use reinforced rigid outer casing for air or sea freight; compile full technical documentation to reduce hold‑ups at global procurement portals and customs databases.
ABB PM511V16 3BSE011181R1
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. If installing a PM511V16 loaded with Control Builder M firmware V4.1 into an existing rack running V3.3, tag mapping breaks and partial I/O drop‑outs appear under live load. One site swapped CPUs without matching firmware revisions and triggered a 5‑hour process hold.
- DIP Switch / Configuration errors. Incorrect rotary switch settings for controller node ID will make the CPU invisible to the 800xA engineering station. A maintenance tech copied switch values from a different AC800M CPU variant and spent half a shift debugging network time‑outs.
- Wiring/Terminal incompatibility. Re‑using generic serial cables without correct pin assignments blocks Modbus RTU communication. Mismatched Ethernet pin‑outs do not always trigger link‑down LEDs, creating hard‑to‑trace intermittent data corruption.
- ESD destruction during unboxing. Touch exposed backplane connector pins without proper grounding. The module may pass idle bench tests but trigger random watchdog resets under full process load. A field technician skipped wrist strap grounding and saw sporadic CPU crashes after commissioning.
Frequently Asked Questions (FAQ)
What global lead times should I expect for PM511V16 3BSE011181R1? Stock‑on‑hand units can ship within 1‑3 business days. Final arrival depends on destination; remote locations may extend full transit cycle to 14‑22 calendar days.
What shipping and customs options apply for this AC800M CPU module? Air freight delivers faster transit at higher cost. Sea freight cuts expenses for bulk orders but lengthens total delivery window. Accurate HS classification and complete part documentation lower customs inspection risk.
Can I hot‑swap this processor module while the AC800M rack stays powered? Do not hot‑swap this unit in non‑redundant configurations. Removing or inserting the CPU under live backplane power causes bus faults and full system shutdown. Even for redundant setups, follow official vendor lock‑out procedures before physical exchange.
Does PM511V16 3BSE011181R1 offer backward compatibility with older PM511V08 racks? Physically it fits the same backplane slot. Existing application projects require firmware version alignment. Drop‑in functional behavior is not guaranteed without bench validation before live plant deployment.
What pre‑installation checks should my engineering team complete?
- Inspect backplane connector pins for bending, corrosion or residue
- Confirm CPU firmware revision matches the site’s 800xA baseline
- Double‑check rotary node‑address switch settings before applying 24 VDC power
Can I restore existing project backup onto this surplus PM511V16 unit? Project restoration is possible, but backup files must match the target firmware revision. Mismatched firmware versions lead to partial tag loss or runtime crashes.
Is repair service available for this legacy ABB processor hardware? Original OEM component sourcing grows limited for this legacy platform. Direct hardware swap represents lower‑risk option for production‑critical process racks.
