Product Introduction
When your critical process control system cannot tolerate even a short CPU downtime that would trigger unplanned plant shutdowns, this redundant controller delivers seamless hot-standby switchover without data loss.

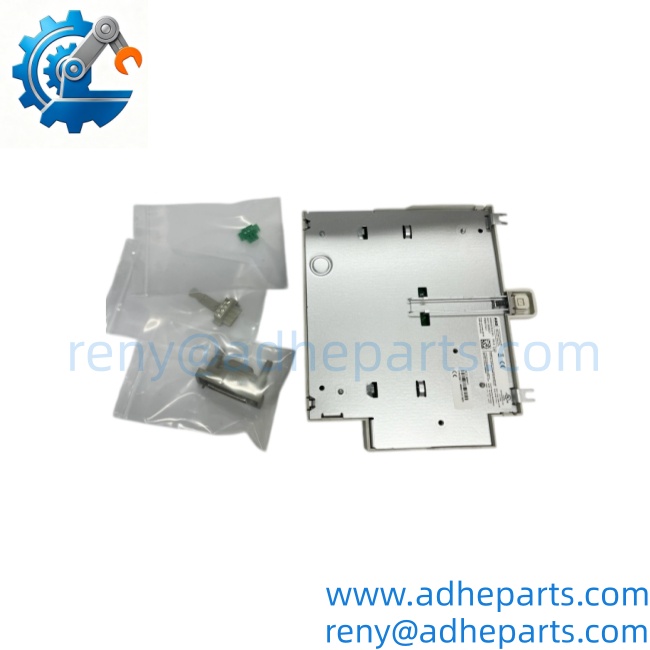

It comes factory packaged with PM891 CPU module, TB850 CEX-bus terminator and TB853 RCU Control Link Terminator, no license included in standard delivery . It is fully compatible with 800xA controller builders and third-party monitoring software, and supports SIL 1/2 security certification when paired with the SM812 safety module .

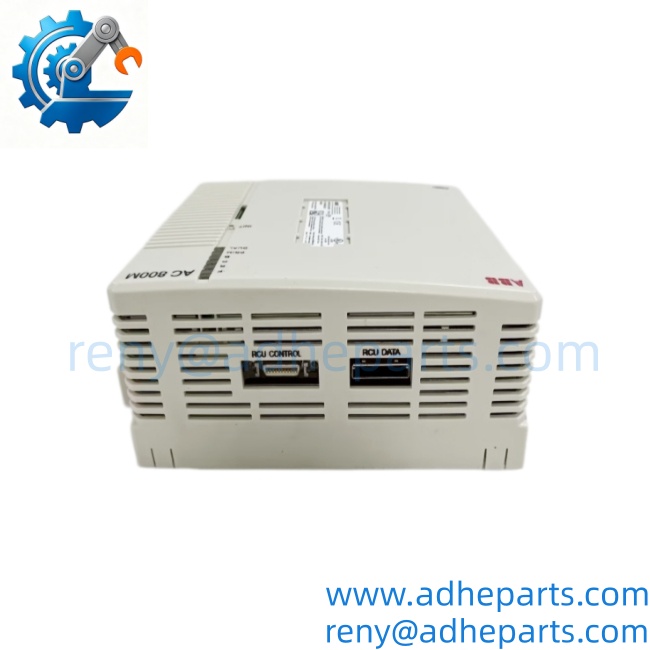

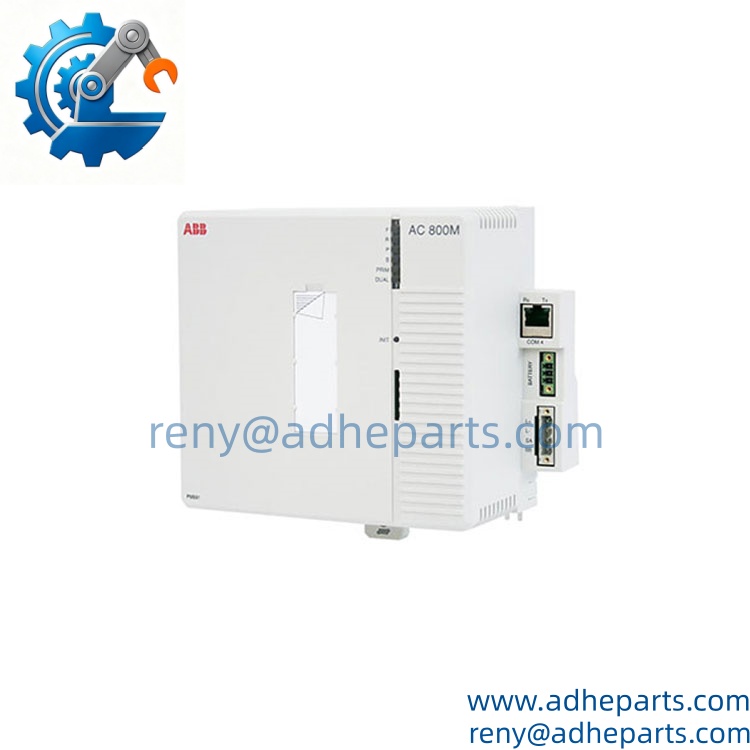

ABB PM891K01 3BSE053241R1
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product ID | 3BSE053241R1 |
| Type Designation | PM891K01 Processor Unit |
| CPU Clock Speed | 450 MHz |
| Onboard Memory | 256 MB |
| Redundancy Switching Time | <10ms dual-processor hot standby |
| Communication Ports | Dual RJ45 Ethernet ports (CN1/CN2) for redundant network architecture |
| RS-232C Interface | COM4: RS-232C, 9600 baud, RJ-45 female, opto isolated, no RTS-CTS support |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Vibration Rating | 10<f<50Hz: 0.0375mm amplitude; 50<f<150Hz: 0.5g acceleration |
| Protection Class | IP20 according to EN 60529 |
| Altitude Rating | 2000m maximum operating altitude |
| Supported Protocols | Profibus, Modbus, EtherNet/IP, OPC UA and other standard industrial protocols |
| Certifications | CE Mark, EN 50178, IEC 61131-2, UL 61010-1, UL 60079-15 cULus Class 1 Zone 2 |

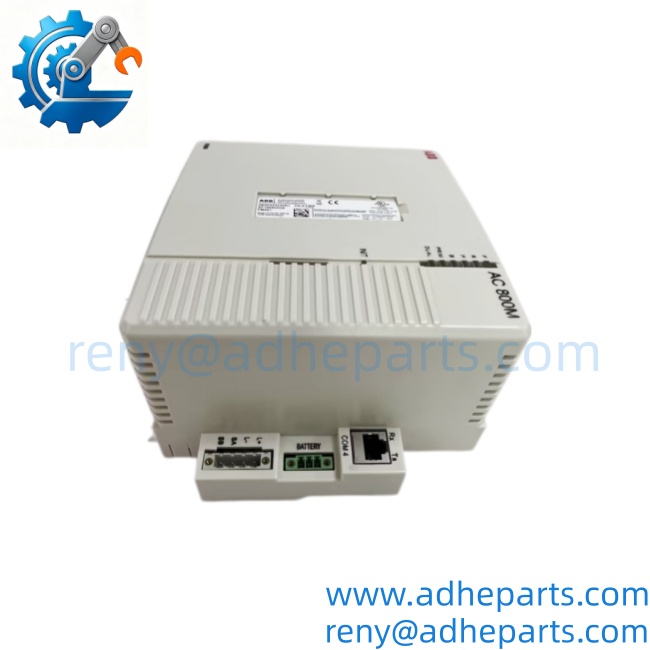

ABB PM891K01 3BSE053241R1
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Power Plant DCS Control: Acts as the main redundant controller for large power plant distributed control systems, ensuring continuous stable operation of boiler, turbine and auxiliary equipment.
- Petrochemical Refinery Process Control: Delivers uninterrupted control for refinery continuous process units, avoiding unplanned shutdowns that would cause massive production losses and safety risks.
- Pharmaceutical Manufacturing GMP Production: Provides reliable redundant control for pharmaceutical batch production lines, meeting strict GMP traceability and continuous operation requirements.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never mix different firmware revision PM891K01 units in the same redundant pair. The third communication port will experience handshake conflicts that break the <10ms seamless switchover performance.
- ⚠️ Bold Warning 2: Skipping the 10-minute post-installation redundant switchover test will leave you with uncaught hidden synchronization faults. The issue will only surface when the primary CPU fails, leading to unexpected system downtime.
- ⚠️ Bold Warning 3: Do not remove the TB850 CEX-bus terminator during normal operation. The CEX-bus will lose signal termination, causing random communication dropouts across all connected I/O modules.
A chemical plant maintenance team once swapped a PM891K01 CPU unit and skipped the redundant switchover test. When the primary CPU failed 2 days later, the two CPUs could not complete synchronization, triggering a 3-hour unplanned plant shutdown that cost over $28,000 in lost production.

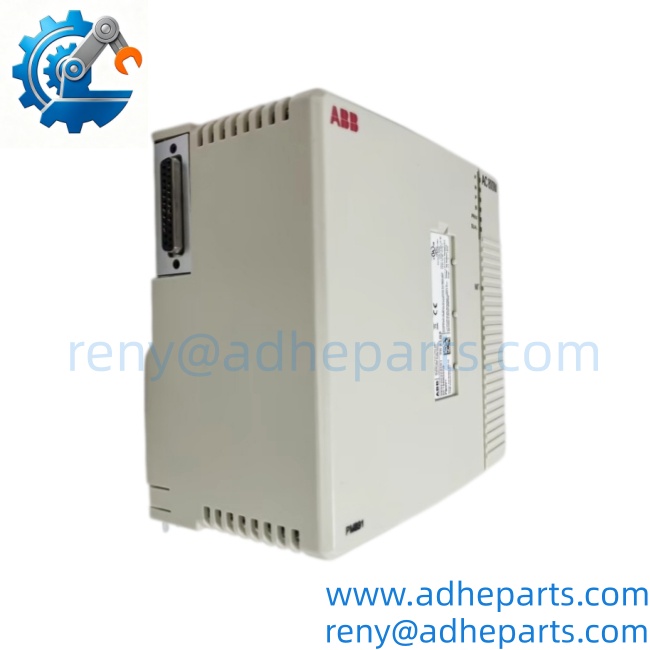

ABB PM891K01 3BSE053241R1
ABB PM891K01 3BSE053241R1
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official part registry, confirm the full package includes PM891 CPU, TB850 and TB853 terminators, and inspect no bent pins on the backplane and Ethernet connectors.
- Live Rig Testing: Seat the unit in a calibrated AC 800M redundant test rack, apply system power, and confirm full primary/standby CPU handshake and 100% data synchronization stability for 2 continuous hours.
- Parameter Testing: Verify <10ms seamless redundant switchover performance, confirm dual Ethernet ports operate at full 100Mbps speed, and validate all front panel LED status indicators function correctly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
ABB PM891K01 3BSE053241R1
Frequently Asked Questions (FAQ)
- Can I hot-swap this CPU while the AC 800M redundant system is running? Yes, but you must confirm the standby CPU is fully online and synchronized before removing the primary unit, otherwise you will trigger a temporary system control gap.
- What exact ABB systems is this module compatible with? It works natively with all ABB AC 800M series racks, 800xA 5.1/6.0 system platforms, and is fully compatible with the Control Builder M programming environment .
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.

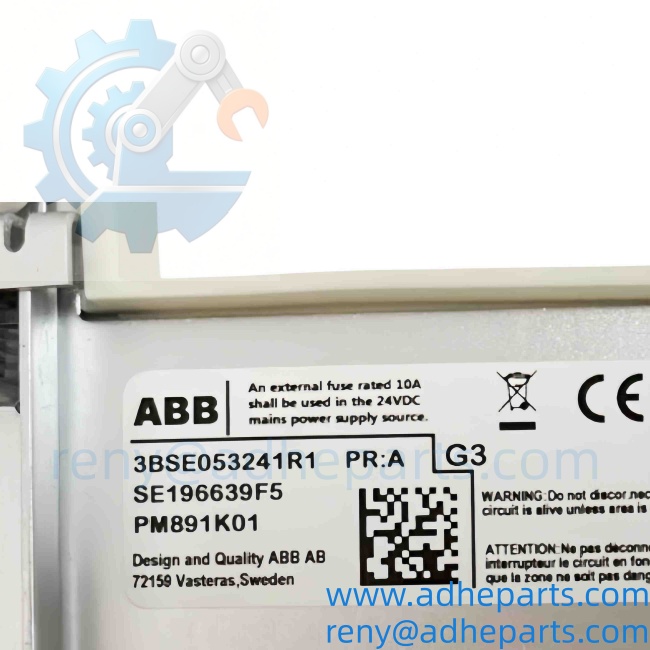

- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB PM891K01 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the <10ms redundant switchover performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older PM864K01 AC 800M controller? Well, technically it fits the same rack footprint, but you will need to reconfigure your control logic in Control Builder M to unlock the higher 450MHz processing performance and 256MB memory space .
