ABB SYN5202A | Direct Replacement Busbar Synchronizing Controller

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction

When generator and grid phase alignment drift outside safe limits, closing the breaker triggers heavy inrush currents and winding damage. This SYN5202A Synchrotact 5 unit performs automatic synchronization before generator bus tie closure.

It monitors both sides of the breaker in real time and compensates for circuit breaker closing delay. Built-in blocking logic rejects closing signals if voltage or frequency mismatch exceeds set thresholds, though your mileage may vary depending on PT wiring accuracy.

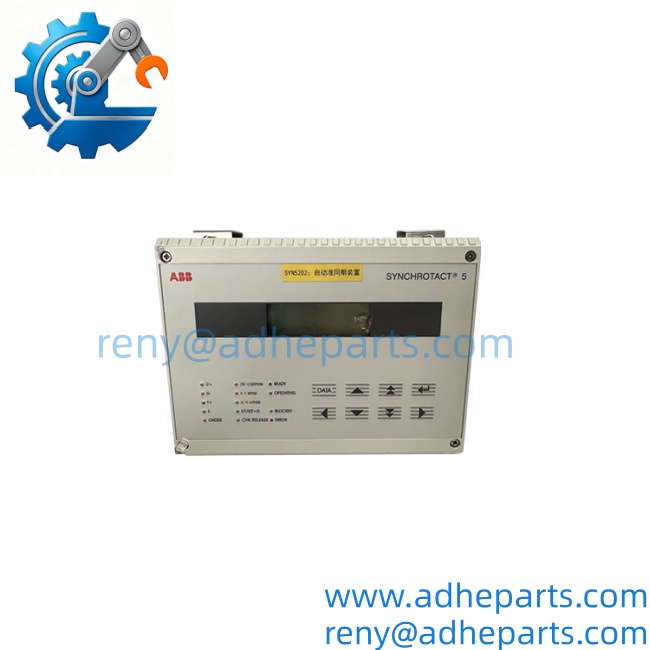

ABB SYN5202A

Key Technical Specifications

Field Application & Technical Pitfalls (The Engineer’s Guide)

Critical Industrial Scenarios

1. Cogeneration power plants: automates safe generator paralleling to the local utility grid during startup and load restoration.
2. Hydroelectric small generating stations: handles slow speed ramps and tight phase matching before breaker closure.
3. Island mode industrial powerhouses: synchronizes backup generators to site busbars after mains loss events.

Critical Technical Pitfalls

• PT Polarity Reversal: Swapped voltage transformer secondary leads flip the measured phase reading. The unit will show false alignment and command breaker closure at a dangerous phase offset. Verify wiring at the second terminal block on the voltage input side.
• Mismatched Breaker Closing Time Calibration: If the configured closing delay does not match the actual mechanical speed of your circuit breaker, the contact closes late and lands outside the sync window.
• Unfiltered Transients on Voltage Inputs: Lightning or switching noise on PT wiring creates false voltage fluctuations. These can trigger premature sync ready signals even when real phase conditions remain unstable.

A power station protection technician swapped a SYN5202A spare during a scheduled outage. He reused existing PT wiring and skipped polarity verification. The unit passed bench tests and showed acceptable frequency matching during startup. When the close command fired, the generator connected out of phase, creating a large transient shock. The generator protection relay tripped immediately, and the unit remained offline for 12 hours for winding inspection. That misalignment risked permanent damage to the generator stator.

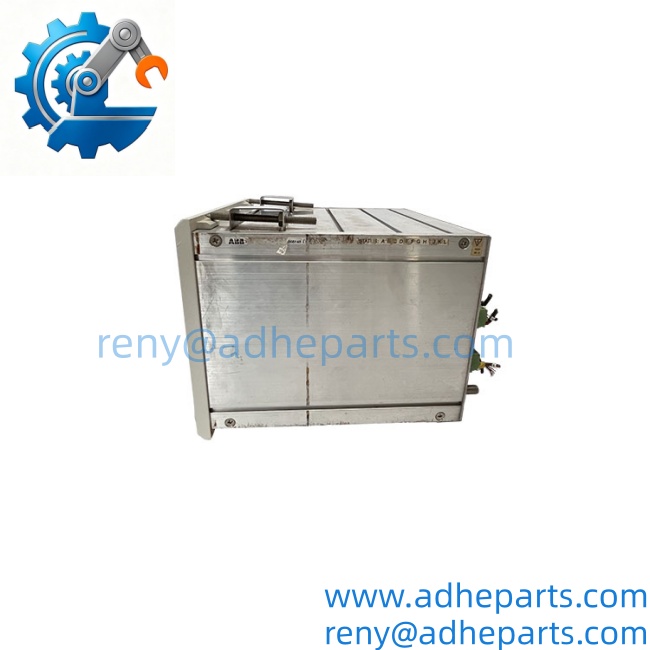

ABB SYN5202A

Quality Control (QC) SOP & Transparency

1. Inbound Verification: Cross-reference OEM part marking, serial number and factory documentation; inspect housing, terminal blocks and front panel for counterfeit marking, cracked casing or bent screw terminals.
2. Live Rig Testing: Apply simulated generator and grid voltage signals, sweep frequency and phase difference, validate sync-ready indication and relay close output at configured thresholds.
3. Parameter Testing: Check isolation resistance across voltage input circuits, confirm alarm outputs activate for overvoltage and frequency mismatch faults.
4. Final QA & Packaging: Archive full test log tied to serial number; place unit inside anti-static shielding bag, affix QC passed label and pack within rigid shock-resistant carton.

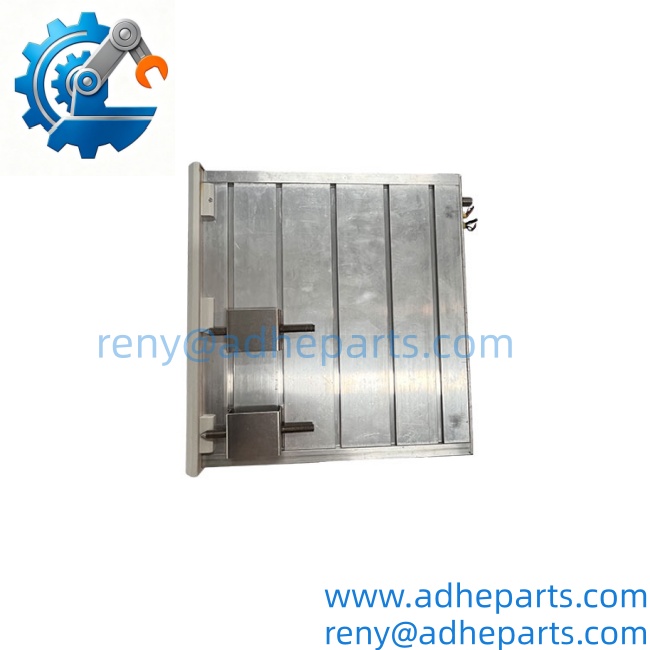

ABB SYN5202A

Frequently Asked Questions (FAQ)

1. Can I replace the SYN5202A while the generator and busbar remain energized? No. The voltage sensing terminals connect directly to PT secondaries. Isolate all control and measurement circuits, lockout/tagout, and confirm de-energization before removal.
2. Does this SYN5202A work for multi-generator busbar sync outside grid paralleling? Yes. It supports busbar-to-generator synchronization for islanded power systems. Confirm your application settings match the site protection scheme before commissioning.
3. What warranty is provided for this new surplus SYN5202A? This unit carries a 12-month warranty covering hardware defects. Warranty excludes damage from reversed PT wiring, overvoltage transients, misconfiguration, or surge damage on signal terminals.
4. How to distinguish genuine OEM hardware from reworked synchronizer units? Check front panel labeling, terminal block molding and internal board component markings. Refurbished units often show resoldered relay contacts or replaced electrolytic capacitors.
5. What happens if the generator slips outside the sync window right before breaker contact? The aborts the close command instantly. It will reset and restart the synchronization sequence once voltage and frequency stabilize again.
6. What software do I use to set parameters for ? Configuration is completed through SynView software over the dedicated serial interface. Parameters include phase threshold, slip frequency and breaker closing compensation time.
7. What PT secondary voltage ranges are supported by this unit? Standard 100V or 120V PT secondary inputs. Verify exact voltage range with the OEM datasheet before wiring.
