Product Introduction
When your critical steam turbine needs microsecond-level fast vibration fault response to avoid catastrophic mechanical damage, this module acts as the “nervous system core” of the entire machinery protection system.
It supports standard 19-inch rack mounting or DIN rail TS-35 installation, and can directly connect with Vibro-Meter series vibration, speed and displacement sensors. Its wide operating temperature design ensures stable operation even in extreme harsh industrial environments such as desert compressor stations and offshore platforms.

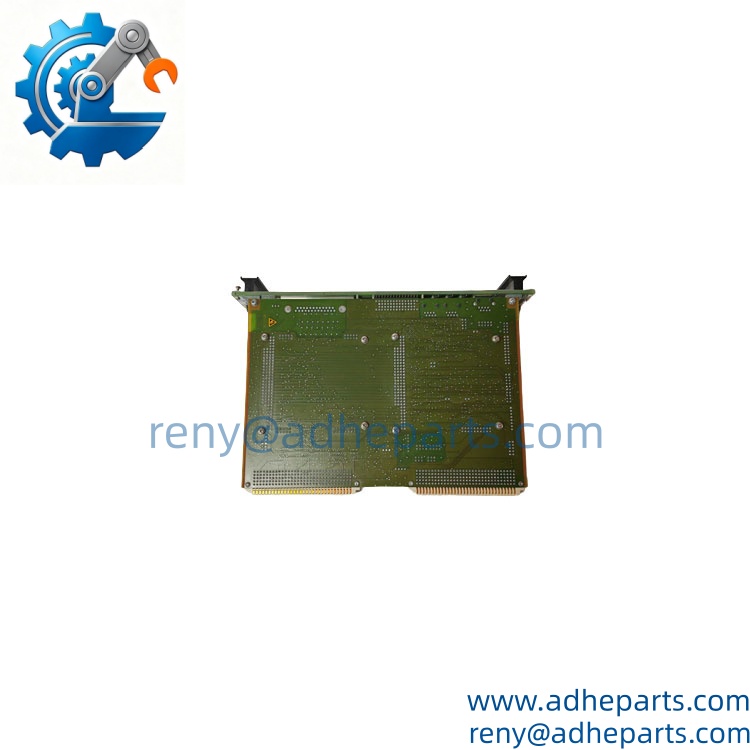

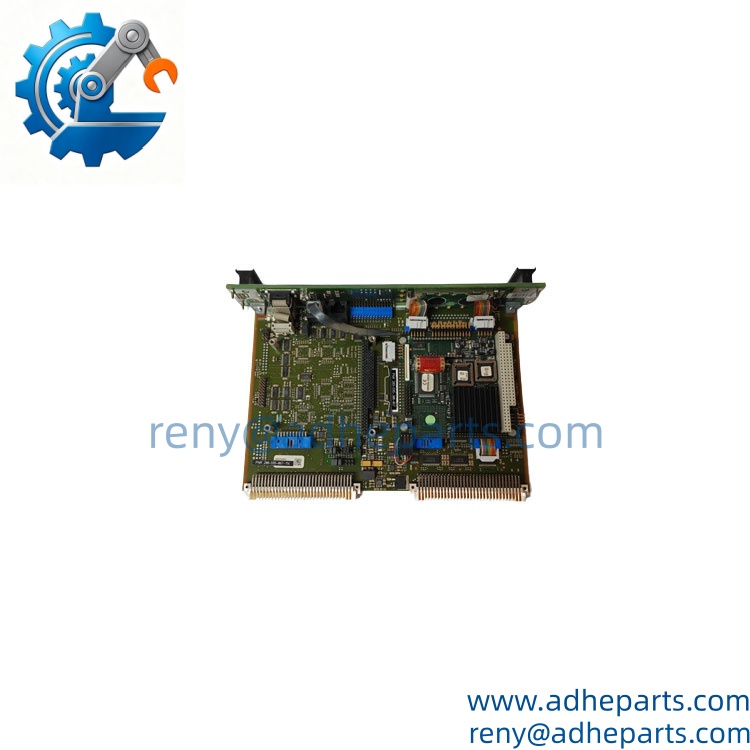

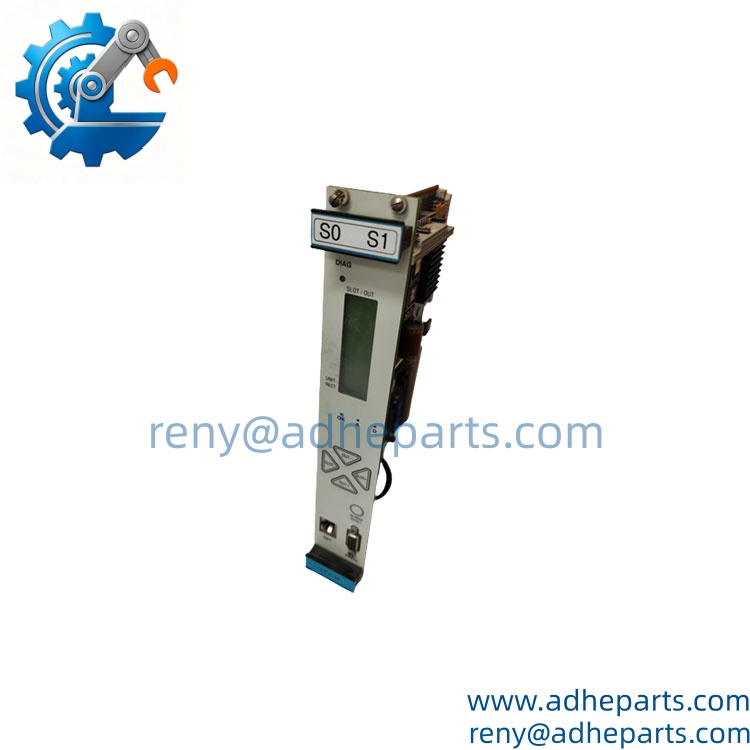

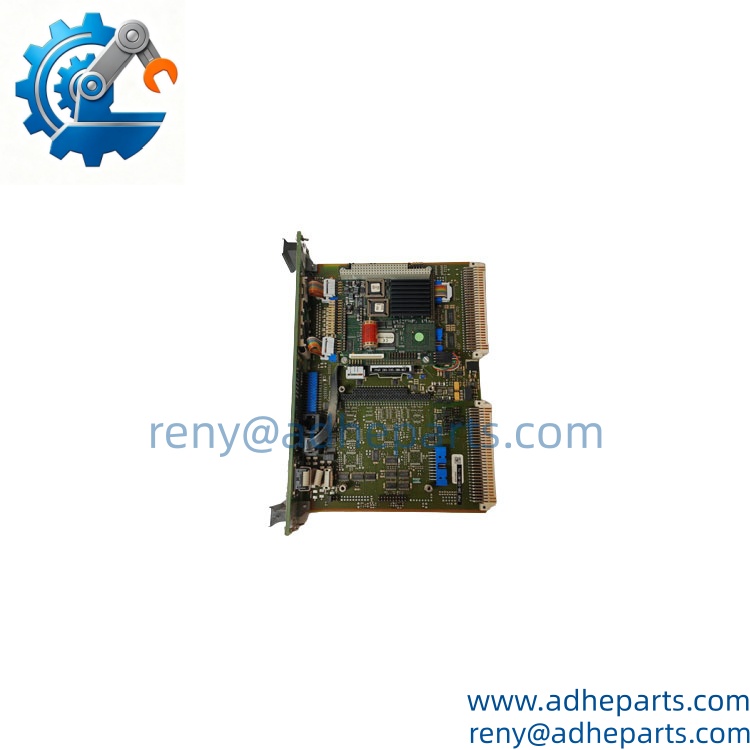

Vibro-Meter VM600 CPUM 200-595-067-114
Vibro-Meter VM600 CPUM 200-595-067-114
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 200-595-067-114 |
| Power Supply | 24 VDC ±15%, 1.5A max, redundant power input supported |
| Dimensions | 200mm × 120mm × 55mm |
| Weight | 1.2 kg |
| Maximum Sampling Rate | 20 kHz per independent channel |
| Analog Inputs | 8 channels (4-20mA / ±20V voltage dual range) |
| Relay Outputs | 4 channels, rated 250V AC 5A contact capacity |
| Communication Protocols | Modbus TCP Ethernet, Profibus DP RS-485 dual interface |
| Operating Temperature Range | -40°C ~ +70°C |
| Humidity Range | 5% ~ 95% non-condensing |
| Installation Method | 19-inch standard rack / DIN rail TS-35 |
Vibro-Meter VM600 CPUM 200-595-067-114
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Power Plant Steam Turbine Protection: Monitors shaft vibration, axial displacement and rotational speed of large steam turbines, triggering fast protection trip when abnormal vibration occurs to prevent blade fracture and unit damage.
- **Oil & Gas Centrifugal Compressor Monitoring: Executes full-condition vibration monitoring and protection logic for large centrifugal compressors in refineries, avoiding unplanned downtime caused by rotating equipment failures.
- **Offshore Platform Gas Turbine Control: Provides continuous machinery protection for offshore platform power generation gas turbines, adapting to high humidity and high salt spray harsh working conditions.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never route vibration sensor signal cables alongside high-power inverter cables. The third analog input channel will pick up electromagnetic interference that causes ±15% vibration reading drift.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable the 20kHz high-speed sampling function. This unit requires VM600 system firmware v4.2+; it will only run at 1kHz low sampling rate on v3.x legacy racks.
- ⚠️ Bold Warning 3: Skipping the 15-minute post-installation vibration signal calibration will leave you with uncaught baseline offset. The fault will only surface when real equipment vibration increases, leading to false protection trips.
A refinery maintenance team once swapped a VM600 CPUM module and skipped the full signal calibration. A 12% baseline vibration offset caused the compressor protection system to trigger a false trip during normal startup, resulting in a 3-hour unplanned shutdown that cost over $22,000 in lost production.
Vibro-Meter VM600 CPUM 200-595-067-114
Vibro-Meter VM600 CPUM 200-595-067-114
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Bently Nevada’s official part registry, confirm the part number 200-595-067-114 matches the factory label, and inspect no bent pins on the backplane and communication connectors.
- Live Rig Testing: Power the unit in a calibrated VM600 test rack, apply 24V DC power, and confirm full system handshake and 20kHz high-speed sampling stability for 2 continuous hours.
- Parameter Testing: Verify all 8 analog input channels accuracy stays within ±0.1% of full scale, confirm 4 relay outputs switch correctly under 5A load, and validate Modbus TCP and Profibus DP communication functions meet factory specifications.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the VM600 protection system is running? No. You must first place the machinery protection system in bypass mode before removing the unit, otherwise you will temporarily lose all vibration monitoring functions.
- What exact Vibro-Meter systems is this module compatible with? It works natively with all Vibro-Meter VM600 series machinery protection racks. It will not operate correctly with older VM300 systems without a custom protocol converter.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.

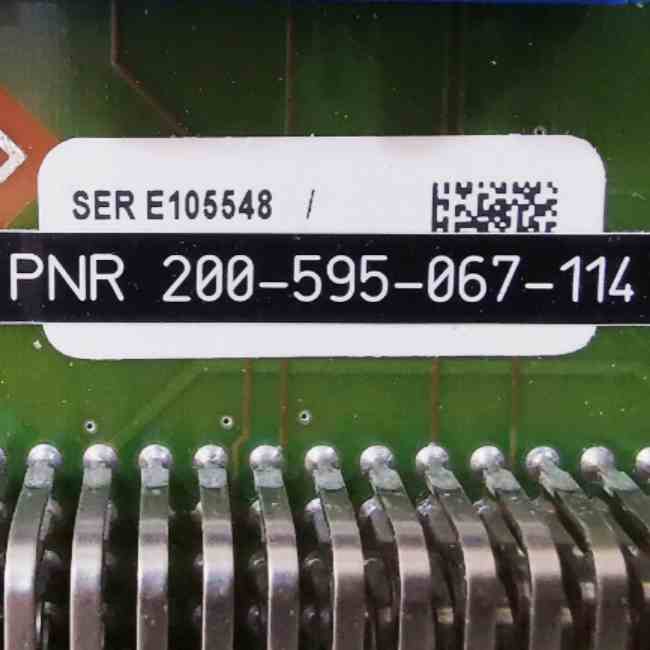

- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine Vibro-Meter VM600 CPUM units have a laser-etched part number on the metal housing, not a printed sticker. Clone units almost always fail the 20kHz high-speed sampling performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Bently Nevada factory calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older CPU M version 100-595-000 legacy unit? Well, technically it fits the same rack slot, but you will need to reconfigure all vibration monitoring parameters in the engineering software to unlock the full 20kHz sampling performance.
