3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Designation | 200-560-000-016 |
| Card Type | IOC4T (Input/Output Card) |
| System Family | Vibro-Meter VM600 |
| Associated Protection Card | MPC4 / MPC4SIL |
| Dynamic Inputs | 4 channels |
| Tachometer Inputs | 2 channels |
| Additional Features | Buffered raw outputs, configurable analog outputs (4–20 mA or 0–10 V), relays |
| Mounting | Rear of VM600 rack (behind MPC4) |
| Interface | Industry Pack (IP) to MPC4 via backplane |
| Protection | EMI / surge protection on inputs and outputs |
4. Product Introduction (Anti-Template)
When a VM600 machinery protection system uses an MPC4 card, the 200-560-000-016 IOC4T serves as the dedicated signal interface. It mounts in the rear of the VM600 rack directly behind the MPC4 and connects via the backplane.
The card brings in four dynamic (vibration) sensor signals and two tachometer/speed signals. It also provides buffered raw transducer outputs, configurable DC analog outputs, and relay contacts. All field connections are made on the IOC4T, while the MPC4 performs the protection logic and signal processing. This separation keeps high-integrity processing on the front card and robust field interfacing on the rear card.

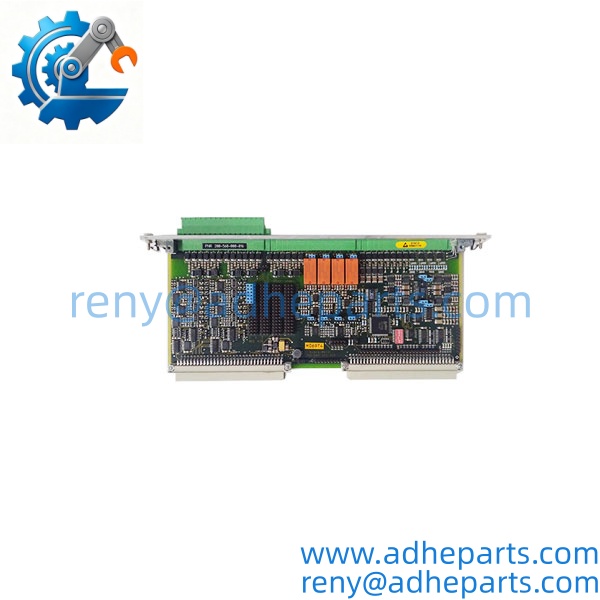

200-560-000-016

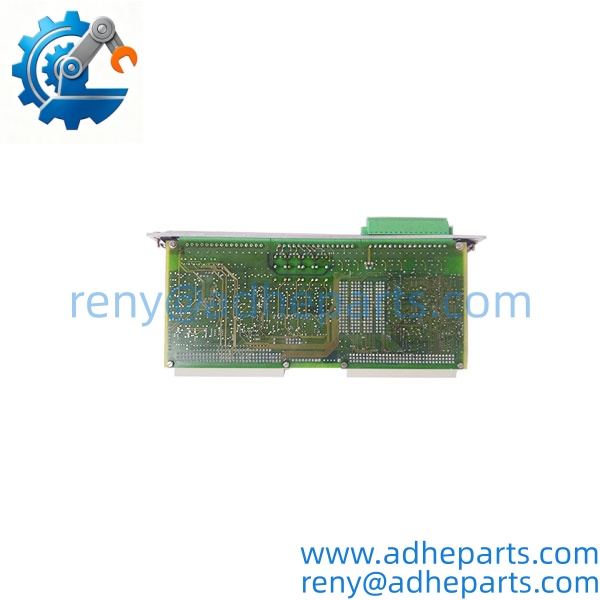

200-560-000-016

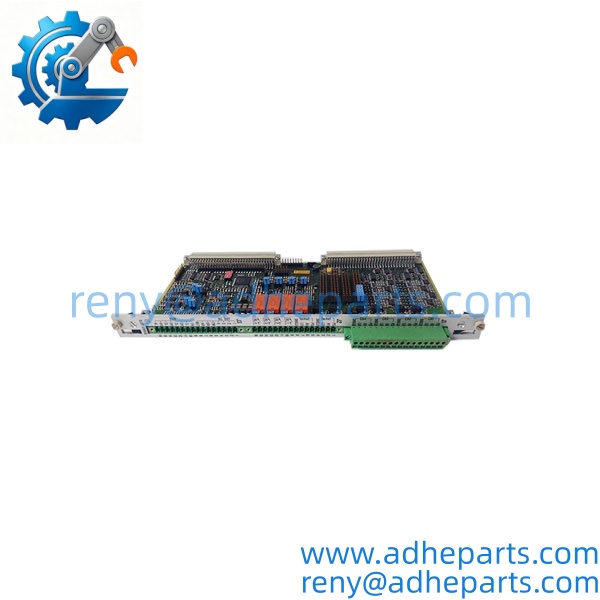

200-560-000-016
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full ordering number (200-560-000-016), hardware revision labels, connector condition, and any associated firmware markings. Photograph all identifiers.
- Live Rig Testing – Install in a compatible VM600 rack with a matching , apply power, and verify backplane communication, input channel recognition, and basic relay/analog output response.
- QA & Anti-Static Packaging – After functional inspection, protect all connectors, clean the card, and seal in anti-static shielding with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial monitoring interface modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Pairing – The IOC4T must be paired with a compatible (or MPC4SIL) card. Mismatched hardware or firmware revisions can prevent proper operation.
Sensor Power and Wiring – Each dynamic and tachometer channel typically supplies sensor power. Incorrect wiring or short circuits can damage the card or the sensors.
Relay and Output Configuration – Relays and analog outputs are software-configurable. Incorrect configuration in the VM600 software will produce unexpected field behavior.
Rack Position – The IOC4T must be installed in the correct rear slot directly behind its associated . Wrong positioning breaks the Industry Pack interface.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 200-560-000-016?
As a specialized interface card, availability depends on surplus stock. Typical lead time after verification is 5–15 business days plus standard air freight.
What is the function of the 200-560-000-016?
It is the IOC4T input/output card that provides the field signal interface for the machinery protection card in a system.
How many channels does it support?
4 dynamic (vibration) channels and 2 tachometer (speed) channels.
Where is it installed?
In the rear of a rack, directly behind the associated card.
Does it work as a standalone module?
No. It operates as a slave interface to the via the rack backplane.
What additional outputs does it provide?
Buffered raw sensor signals, configurable analog outputs (voltage or current), and relay contacts.
What should be confirmed before ordering a replacement?
Exact ordering number and hardware revision, compatibility with the existing card, and the required sensor interface configuration.
