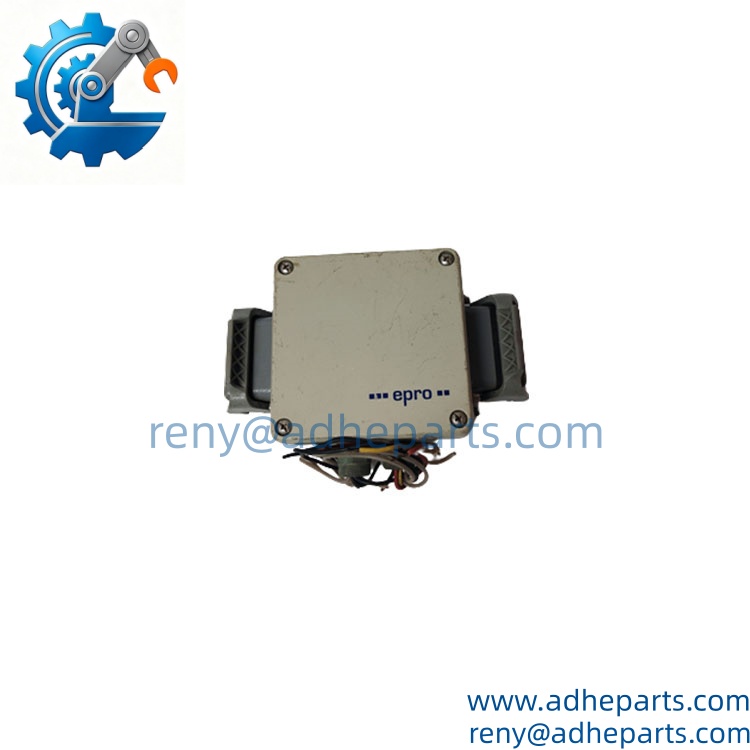

EPRO MMS3120/022-000 | Turbine Bearing Vibration Monitor

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

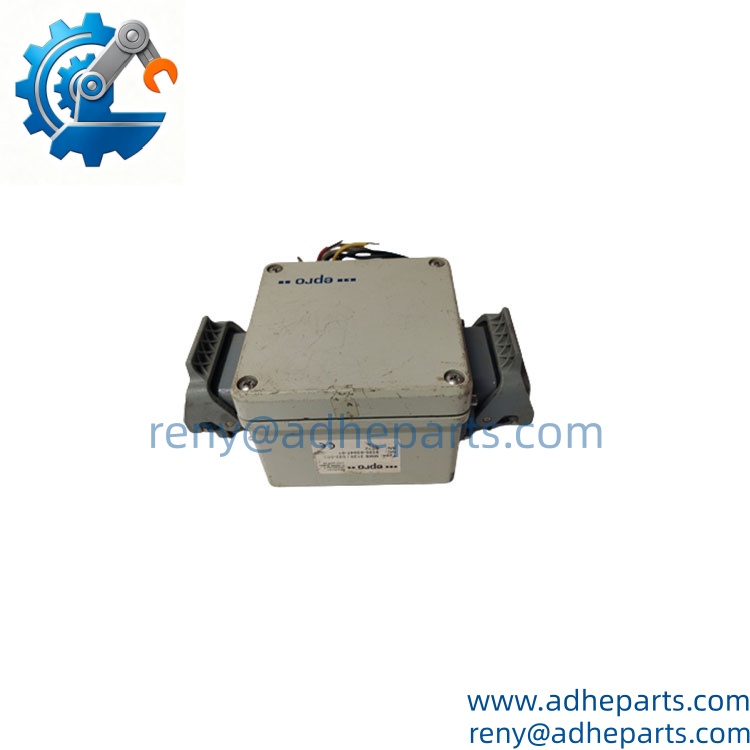

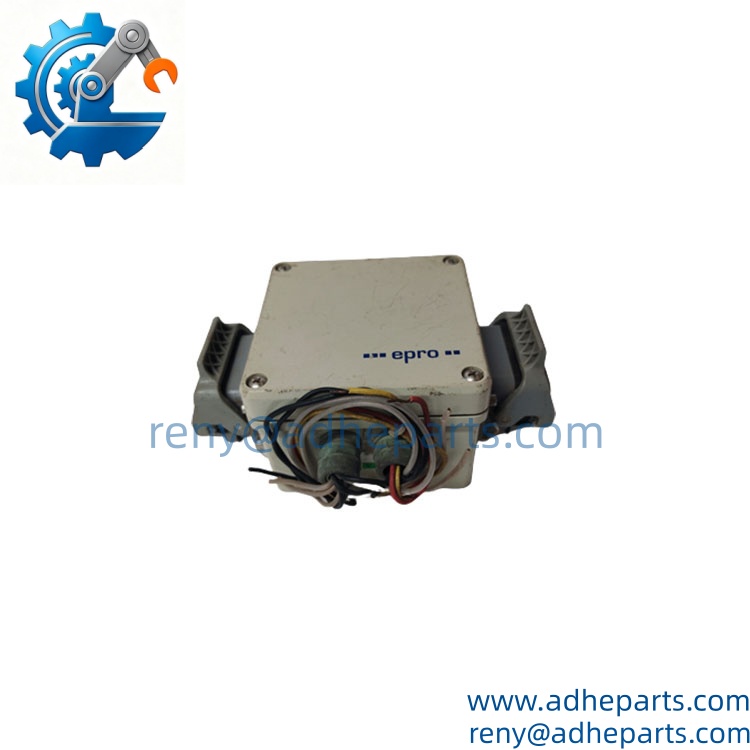

Available technical records identify MMS3120/022-000, 9100-03047-01 as a dual-channel bearing vibration monitor/transmitter. The module is associated with EPRO PR9266 and PR9268 series vibration sensors and can be configured through an RS232 interface.

Key Technical Specifications

*Some available product records list a nominal +24 VDC supply, but the accessible technical sources are inconsistent on detailed electrical specifications. For engineering replacement, the original nameplate and system documentation should take priority.

Product Introduction (Anti-Template)

When bearing vibration starts increasing on a turbine, compressor, or pump, the measurement system needs to distinguish a real mechanical problem from an instrumentation fault. The EPRO MMS3120/022-000 is a dual-channel bearing vibration monitoring unit designed for this purpose. Available technical records associate the module with EPRO PR9266 and PR9268 series vibration sensors and identify 9100-03047-01 as its part number.

Configuration is performed locally through an RS232 interface, with the MMS6910 configuration kit used for setup and monitoring. This matters during replacement: the module should not be treated as a generic analog vibration card. The connected sensor type, measurement configuration, and existing monitoring architecture need to be checked first.

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify MMS3120/022-000 / 9100-03047-01 against the physical label. Check the serial number, hardware revision, connectors, enclosure, front-panel markings, and PCB condition.
2. Live Rig Testing
   On a compatible EPRO monitoring setup, verify power-up, channel initialization, sensor input response, vibration measurement, alarm/status behavior, and RS232 configuration communication. A simple power-on test is not sufficient for a vibration-monitoring module.
3. QA & Anti-Static Packaging
   Handle the module under ESD precautions. Protect the connectors and PCB from static discharge, impact, moisture, and excessive mechanical pressure. Keep the module immobilized inside anti-static packaging during transportation.
4. Global Logistics & Export Compliance
   Export documentation should identify the item as an EPRO MMS3120/022-000 Dual-Channel Bearing Vibration Monitor, with 9100-03047-01 listed as the part number. HS classification should be reviewed according to the actual monitoring function and destination customs requirements. For urgent turbine or rotating-equipment maintenance, air freight is generally the practical option.

Technical Pitfalls & Integration Warnings

1. Sensor Compatibility
   Available records specifically associate MMS3120/022-000 with PR9266 and PR9268 series sensors. Installing the module without confirming the existing sensor can result in incorrect vibration readings or an unusable measurement channel.
2. Configuration Loss After Replacement
   A replacement module may require configuration to match the original measurement setup. Before removing the existing unit, record the channel settings, measurement ranges, alarm parameters, and sensor arrangement where possible.
3. RS232 Configuration Connection
   The module uses a local interface for configuration. The MMS6910 configuration kit includes the software, connection cable, and documentation required for configuration and status monitoring.
4. ESD During Unboxing
   Do not remove the module from its anti-static packaging and immediately handle the PCB. Ground the technician and cabinet first, then install the module using the approved maintenance procedure. Static damage can create intermittent measurement faults that are difficult to diagnose.

Frequently Asked Questions (FAQ)

Q1: “What is EPRO /022-000 used for?”

It is a dual-channel bearing vibration monitoring/transmitting unit used to monitor vibration on rotating machinery. Typical applications include turbines, compressors, pumps, fans, blowers, gearboxes, and centrifuges.

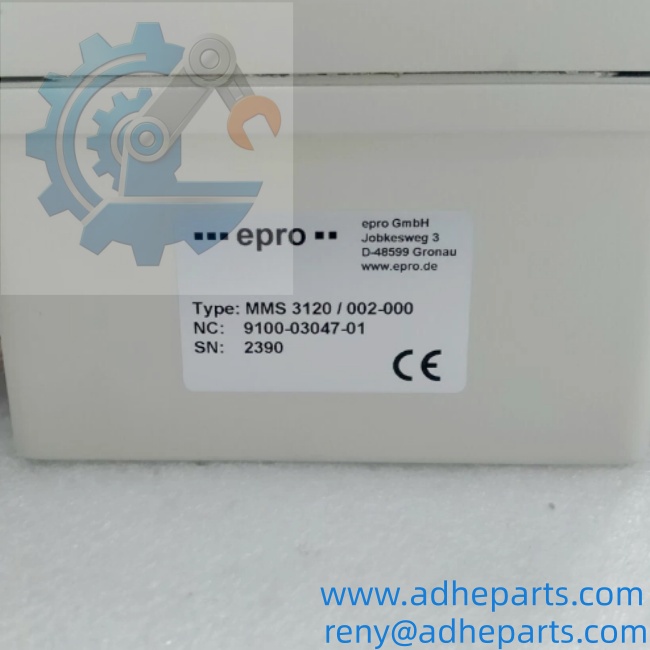

Q2: Is 9100-03047-01 the part number for /022-000?

Yes. Available product records consistently associate 9100-03047-01 with . For procurement, use both identifiers together to reduce the chance of a configuration mismatch.

Q3: “How many vibration channels does it have?”

The available product documentation identifies this configuration as a dual-channel bearing vibration monitor. Each channel is intended to process vibration information from the associated machinery sensor arrangement.

Q4: Which sensors can be used with it?

Available technical records identify EPRO PR9266 and PR9268 series sensors as compatible input devices. The exact sensor model should still be checked against the customer’s existing installation before replacement.

Q5: How is the configured?

Configuration is performed through an interface. Available documentation identifies the MMS6910 configuration kit as the toolset containing the required software, connection cable, and system documentation.

Q6: Can I hot-swap the ?

Do not assume that it can be removed while energized. Even if the surrounding monitoring system supports maintenance replacement, the actual procedure depends on the rack and machinery-protection architecture. Place the system in the approved maintenance state and follow the applicable procedure before removing the module.

Q7: “What should I send before ordering a replacement?”

Please provide:

• nameplate photo
• Complete part number
• Hardware revision
• Existing sensor model
• Sensor quantity and channel arrangement
• Current measurement range
• Alarm configuration, if available
• Existing rack/system model
• Quantity required
• Destination country
• Required delivery date

For this EPRO module, the connected sensor is particularly important. If the customer can provide a clear photo of the existing label and the connected PR9266/PR9268 sensor nameplate, replacement verification becomes much more reliable.
