Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A413240 |
| Device Type | Valve Control Interface Module |
| Signal Type | 4–20 mA analog control and feedback |
| Supply Voltage | 24 VDC (18–30 VDC operating range) |
| Channel Isolation | Galvanic isolation between field and backplane |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Mounting | Rack backplane mount |
| Protection | Over-current and reverse polarity protection |
| HS Code | 8537101190 |
Product Introduction (Anti-Template)
Unlike entry-level modules, the Metso A413240 isolates high-current field wiring noise from sensitive DCS backplane circuits. It delivers setpoint signals to valve positioners and captures real-time valve stem position feedback for closed-loop control in continuous process lines. Honestly, this isolation design prevents common-mode noise from triggering false valve position alarms in noisy mining and pulp mill environments.

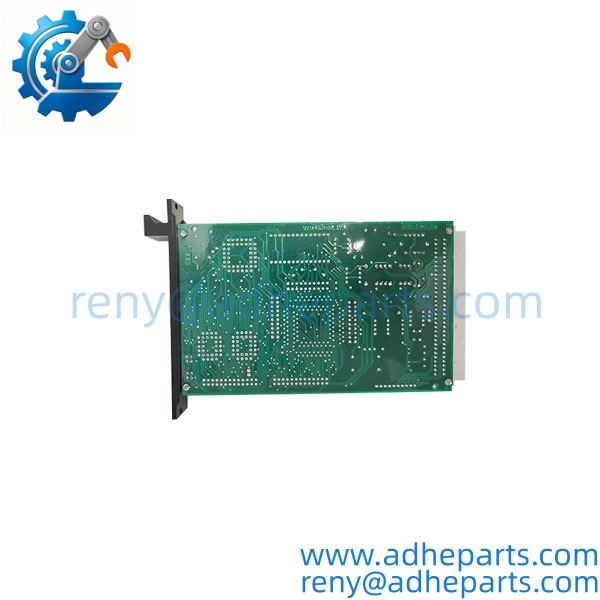

A413240

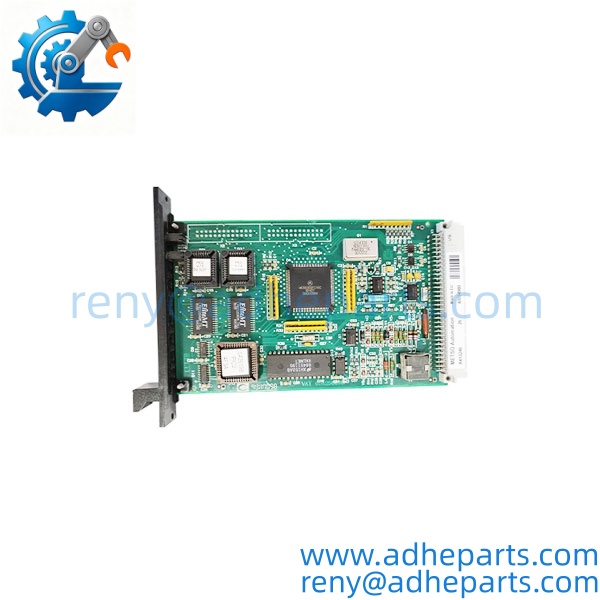

A413240

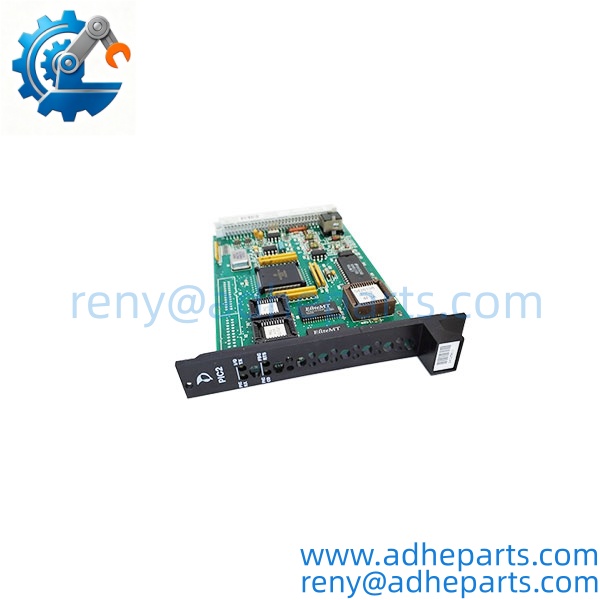

A413240
QC, Procurement & Logistics SOP
- Inbound Verification: Origin trace review and OEM part marking validation. Visual inspection for corrosion on terminal pins, burnt traces or tampered component seals.
- Live Rig Testing: Power-on self-test, 4–20mA signal sweep test, channel isolation check, feedback loop simulation and fault condition testing. Full test report packaged with each unit.
- QA & Anti-Static Packaging: Module cleaned and inspected, sealed inside ESD shielding bag, fitted inside rigid shock-resistant carton.
- Global Logistics & Export Compliance: Apply optimized HS code classification to reduce customs hold risk. Secure packaging rated for air or sea freight; commercial invoice and certificate of origin prepared for customs databases.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. If your existing Metso rack runs firmware V1.6 and the replacement A413240 uses V2.1, valve scaling parameters will not load correctly. One pulp mill swapped the module and spent 9 hours calibrating misreported valve stroke values.
- DIP Switch / Configuration errors. Incorrect channel range selection will skew 4–20mA feedback readings. A chemical plant technician set 0–20mA mode and saw stuck valve position indicators on the operator screen.
- Wiring/Terminal incompatibility. Reversing the 24VDC field supply terminals bypasses built-in reverse polarity protection. A mining site crossed positive and negative leads and burned out the module’s input channel.
- ESD destruction during unboxing. The onboard analog signal amplifier chips are sensitive. A technician touching exposed connector pins without ESD protection can create latent faults that drift position readings after weeks of runtime.
Frequently Asked Questions (FAQ)
Q: What lead times apply for international shipments? A: Stocked units ship within 1–3 business days. Air freight transit runs 3–7 days; sea freight takes 25–45 days, though customs clearance in the Middle East might add 2–3 days. Q: What export documentation can you provide? A: We prepare commercial invoice, packing list and certificate of origin for customs filing. All documentation matches the declared HS classification. Q: Can I hot-swap this module while the control rack remains powered? A: Hot swapping is not permitted. Removing or inserting the module under power can drop valve control loops and force process shutdowns. Q: Will this module fit older Metso automation racks? A: Compatibility depends on backplane hardware revision and rack firmware. Confirm the rack part number before ordering; older backplanes cannot support newer A413240 revisions. Q: What is covered under the standard warranty? A: Warranty runs 12 months from shipment date, covering factory-verified hardware defects. Damage from ESD, miswiring or firmware misconfiguration falls outside coverage. Q: Can this module operate both valve control output and position feedback on the same channel? A: Yes, the channel supports bidirectional 4–20mA control and feedback, but you must validate loop resistance before commissioning to avoid signal attenuation. Q: Does this module include valve positioner cables? A: No, field wiring cables are not included. Site teams must supply shielded twisted pair wiring for analog signal runs.
