ICS Triplex T8312-4
ICS Triplex T8312-4
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8312-4 |
| Product Type | Trusted TMR Expander Interface Adapter Unit |
| System | Trusted TMR |
| Controller Interface | 96-way Type C connector |
| Expander Connections | 4 |
| Expander Connectors | 4 × 12-pin ODU |
| Expander Bus Data Rate | 250 Mbps |
| Compatible Chassis | T8100 / T8311 |
| Mounting | Rear of Trusted Controller Chassis |
| Enclosure | Shielded metal housing |
| Dimensions | 130 × 60 × 115 mm |
| Weight | Approx. 650 g |
| Operating Temperature | 0°C to +60°C |
| Non-Operating Temperature | -25°C to +70°C |
| Relative Humidity | 10–95%, non-condensing |
| Architecture | Triple Modular Redundant (TMR) |
| Primary Function | Controller-to-expander chassis interconnection |
The manufacturer’s reference documentation identifies the T8312-4 as the version for up to four Expander Chassis, while the T8312-7 version supports up to seven. The T8312-4 uses four 12-pin ODU connectors and a 96-way Type C connection to the controller-chassis interface.
The published mechanical specification is approximately 130 mm × 60 mm × 115 mm, with a fully populated weight of approximately 650 g. The expander bus is specified at 250 Mbps in the T8312 documentation.
ICS Triplex T8312-4
Product Introduction (Anti-Template)
When a Trusted safety system needs to extend beyond the main controller chassis, the T8312-4 provides the physical interface between the controller-side Expander Interface Modules and up to four remote Expander Chassis. Its four locking ODU connections are arranged specifically for the smaller Trusted system configuration.
The T8312-4 does not perform the control logic itself. Instead, it carries the interconnection required by the Trusted expansion architecture. The assembly is shielded for EMC protection and mounts directly onto the rear connectors of the Controller Chassis. Honestly, connector condition is one of the first things I would inspect on a used unit—this assembly depends heavily on those mechanical and electrical interfaces.
ICS Triplex T8312-4
QC, Procurement & Logistics SOP
- Inbound Verification

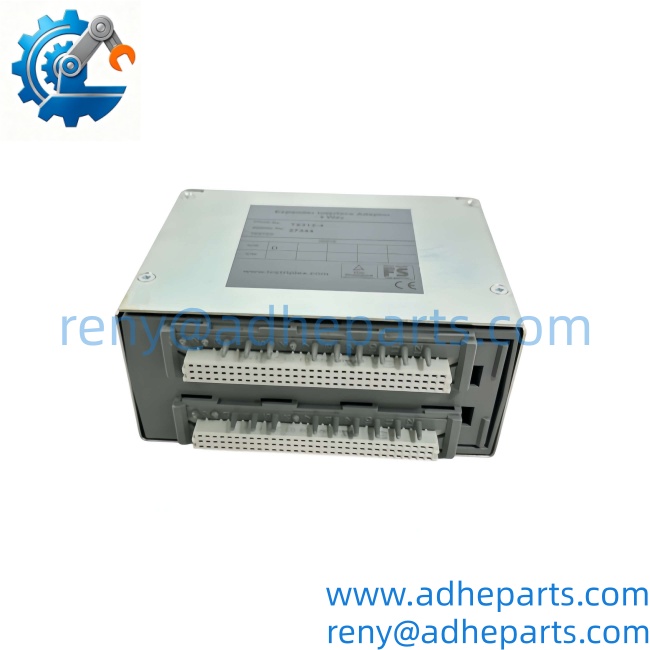

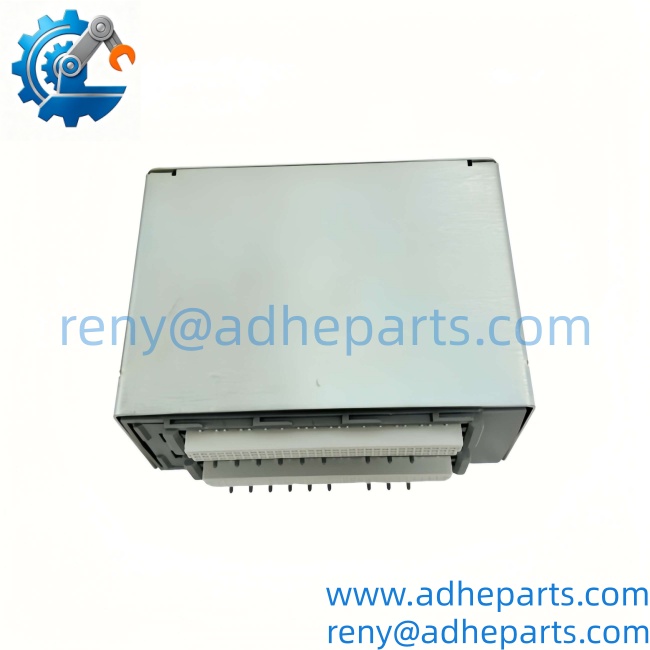

Confirm the complete identification T8312-4 and inspect the metal enclosure, release mechanism, rear 96-way connector, four ODU connectors, and connector locking mechanisms. - Connector & Mechanical Inspection
Check for bent pins, cracked housings, damaged locking hardware, corrosion, contamination, or signs of previous forced insertion. The rear interface should receive particular attention. - System Compatibility Verification
Confirm that the customer’s installation uses the Trusted Controller Chassis / T8311 architecture and requires the four-expander version rather than -7. - Live System Verification
Where an appropriate Trusted test environment is available, verify the expander communication path, link status, chassis recognition, and communication with representative Expander Chassis. - QA & Anti-Static Packaging
Although the assembly is housed in a metal enclosure, ESD precautions should still be used around exposed connector interfaces and PCB areas. Protect all ODU connectors and the rear connector from impact and contamination. - Global Logistics & Export Compliance
Export documentation should identify the item as an ICS Tx Trusted TMR Expander Interface Adapter Unit. HS classification should be reviewed according to the actual control-system interface function and destination customs requirements. Use rigid internal cushioning for air or sea freight to prevent connector damage.
Click here for T8312-4 unpacking video
Technical Pitfalls & Integration Warnings
- T8312-7
These are not simply different revisions. The connects up to four Expander Chassis, while -7 is intended for up to seven. Ordering the wrong variant can leave the system physically short of the required expansion connections. - Is Not the T8311 Interface Module
e is the adapter assembly used to interconnect the Expander Interface Modules with the Expander Chassis. The actual TMR Expander Interface Modules reside in the Controller Chassis. The two should not be treated as interchangeable components. - Connector Damage
A bent rear connector pin can prevent one or more communication paths from operating correctly. Do not attempt to straighten damaged pins; the installation documentation specifically calls for inspection before installation. - Chassis Configuration / Addressing
The Trusted system configuration determines how controller and expander chassis are identified. A replacement adapter does not by itself resolve an incorrect chassis configuration or expander addressing problem. The system configuration should be checked before commissioning.
Frequently Asked Questions (FAQ)
Q1: “What exactly is the ICS Tx ?”
It is a Trusted TMR Expander Interface Adapter Unit. Its purpose is to connect the Expander Interface Modules in the Trusted Controller Chassis with up to four Expander Chassis.
Q2: “s different from -7?”
The main difference is expansion capacity:
- up to 4 Expander Chassis
- T8312-7: up to 7 Expander Chassis
The connector count changes accordingly.
Q3: What connectors doe use?
It has:

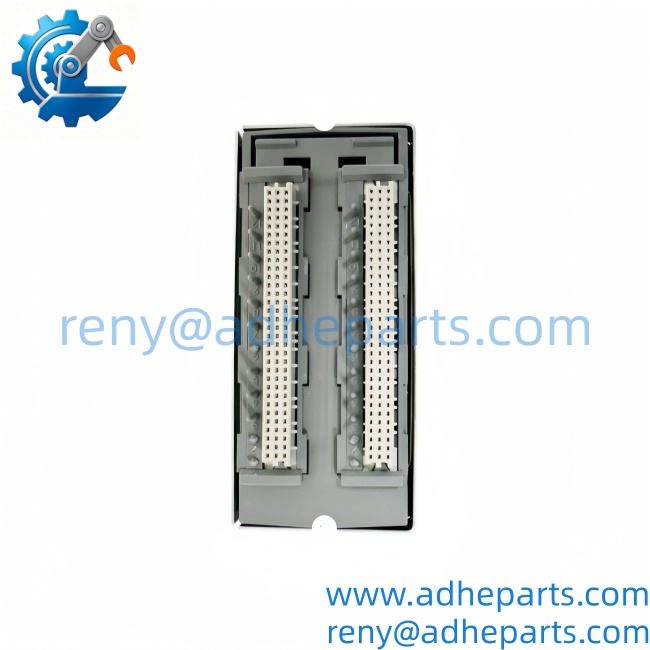

- 1 × 96-way Type C connector for the Controller Chassis interface

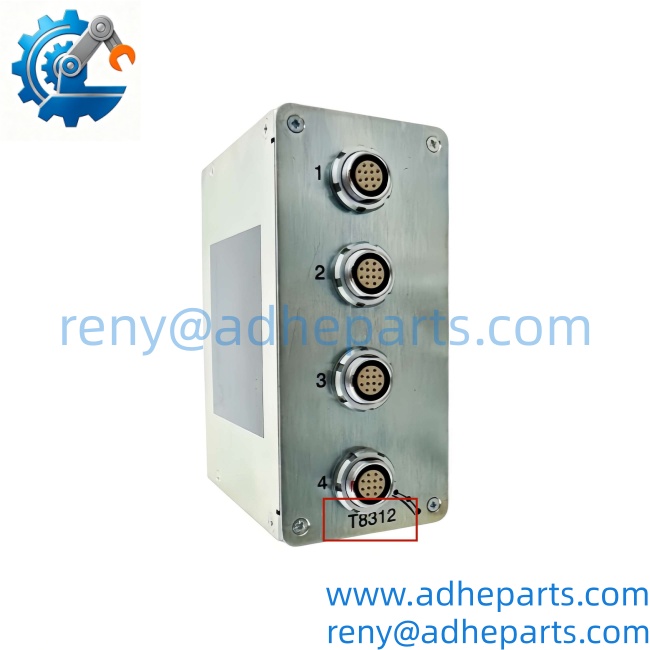

- 4 × 12-pin ODU connectors for Expander Chassis connections
The complete assembly is enclosed in a shielded metal housing.
Q4:s contain the controller CPU?”
No. It is an interface adapter assembly. The control processing and TMR functions are performed by the appropriate Trusted controller modulee provides the required physical/electrical interconnection to the expansion architecture.
Q5: Can I hot-swe ?
Do not assume that it can be removed while the safety system remains operational. Although some Trusted components support maintenance procedures involving live insertioe connects multiple chassis and its removal can affect the expansion communication path. Follow the site’s approved Trusted maintenance procedure before disconnecting it.
Q6: “What is the expander bus speed?”
The documentation specifies an Expander Bus data rate of 250 Mbps for the assembly.
Q7: What should I send before ordering a replacement?
For accurate matching, provide:

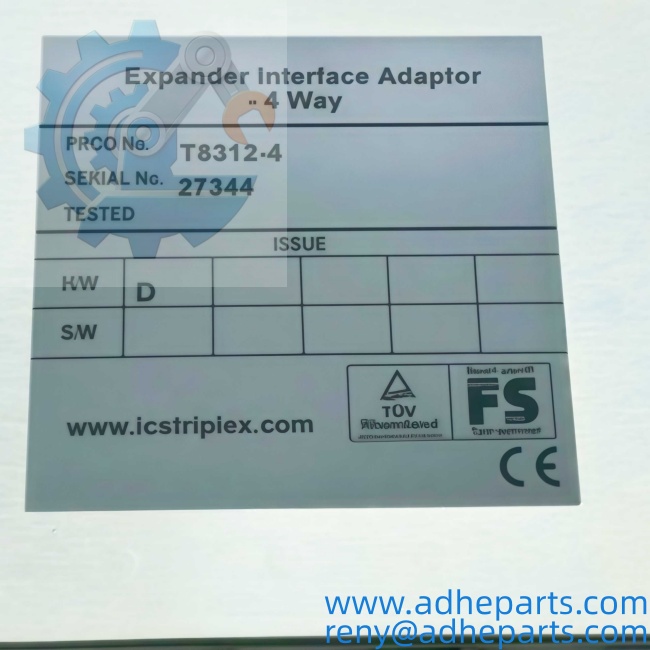

- nameplate or identification photo
- Rear connector photo
- Number of connected Expander Chassis
- Existing Expander Interface Module model
- Trusted Controller Chassis model
- Current system configuration, if available
- Quantity required
- Destination country
- Required delivery date
For this part, the rear connector arrangement and number of expansion chassis are more useful than the model number alone. If the customer is replacing an insd , matching those details can prevent an otherwise avoidable compatibility problem.
