ABB identifies XVC767AE102 as the type designation associated with product ID 3BHB007209R0102. Available product records classify it as an ABB XVC module and list Switzerland as the country of origin.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Brand | ABB |
| Model | XVC767AE102 |
| Product ID | 3BHB007209R0102 |
| Product Type | Monitoring Module / Current Monitoring Board |
| Product Family | ABB XVC Series |
| Primary Function | Current monitoring / electrical feedback |
| Country of Origin | Switzerland |
| Product Net Weight | Approximately 0.02 kg |
| Customs Tariff Reference | 85049099 |
| Installation | Installed within the associated ABB drive/power-electronics system |

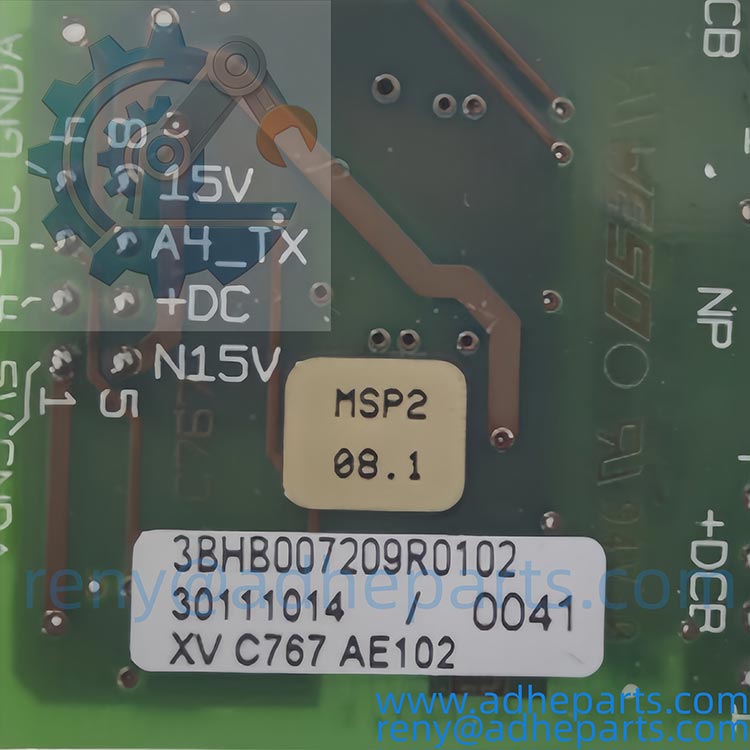

The strongest product identification available lists XVC767AE102, 3BHB007209R0102, Switzerland as origin, a net product weight of approximately 0.02 kg, and customs tariff reference 85049099.
One caution: some third-party records describe this part as a “current monitoring board,” while other pages provide inconsistent technical descriptions. The part-number relationship itself is consistently identified as XVC767AE102 = 3BHB007209R0102. For procurement, the physical nameplate and the customer’s existing assembly should therefore take priority over generic descriptions.
Product Introduction (Anti-Template)

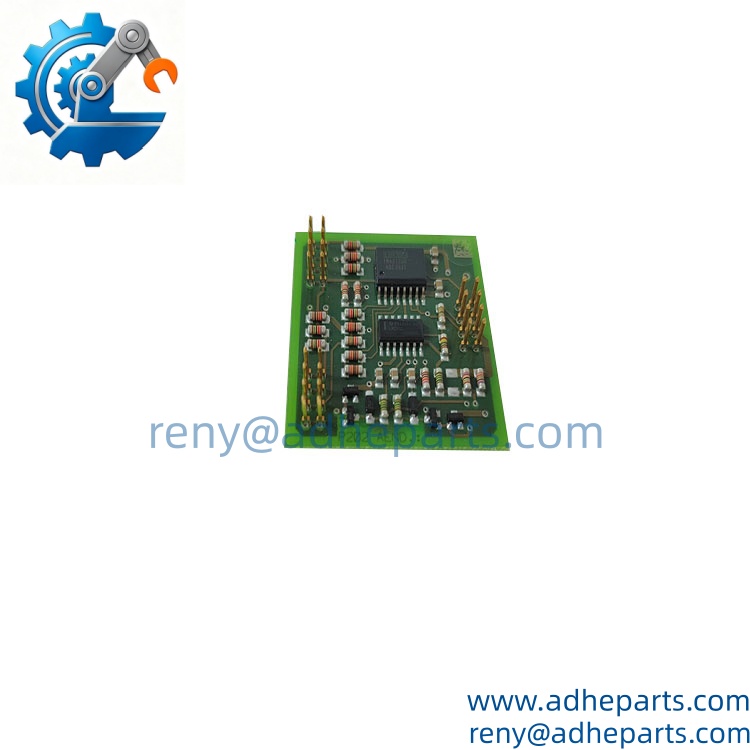

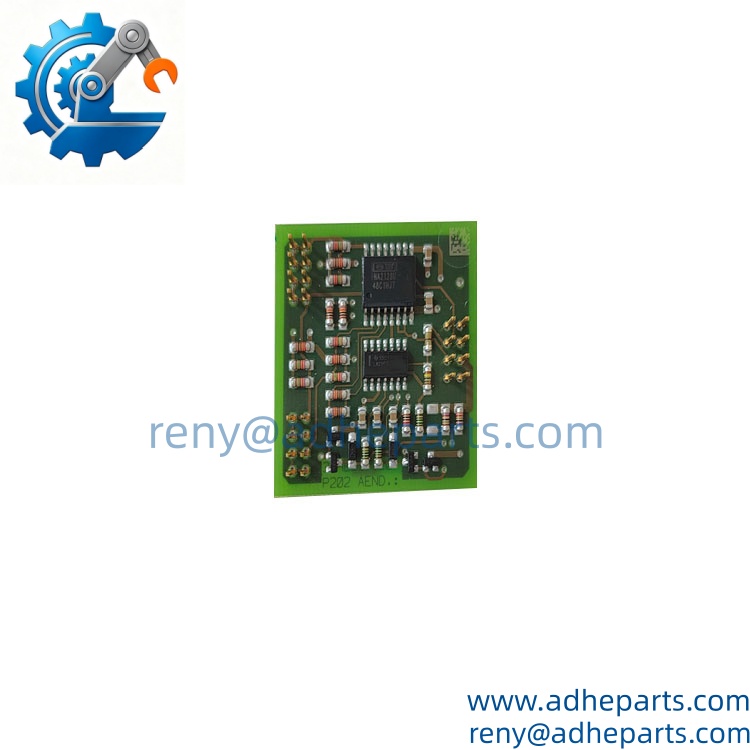

When a high-power drive begins reporting abnormal current feedback, the monitoring hardware deserves attention before anyone starts replacing major power assemblies. The ABB XVC767AE102 3BHB007209R0102 is identified as an XVC-series electronic module associated with current monitoring and electrical feedback functions in ABB power-conversion equipment.
This is a small electronic component, but its role should not be judged by its physical size. A feedback or monitoring error can propagate into drive protection, diagnostics, or control decisions. Before replacement, compare the exact ABB type designation, product ID, board revision, connector arrangement, and installed drive configuration.
QC, Procurement & Logistics SOP
- Inbound Verification
- Confirm the complete identification: XVC767AE102 / 3BHB007209R0102.

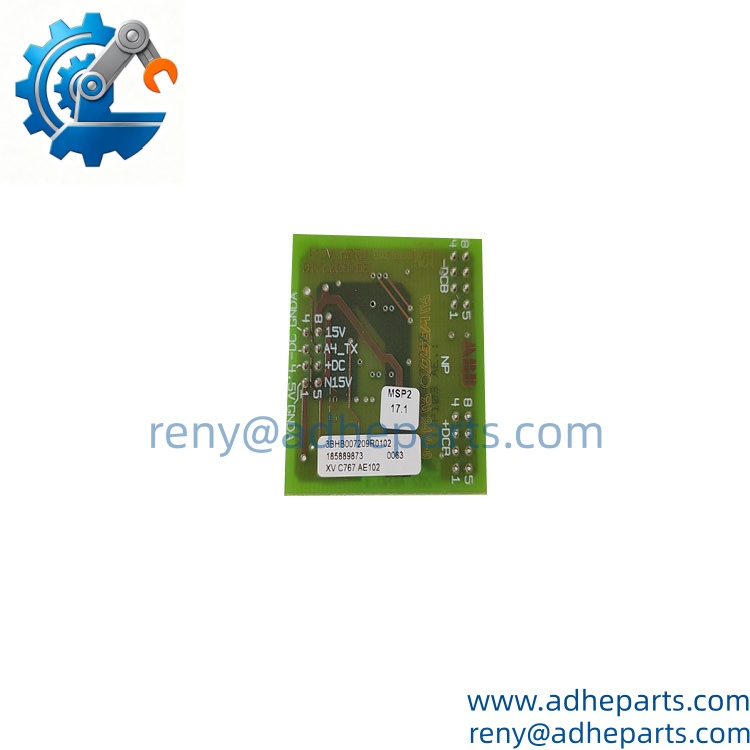

- Photograph the nameplate and all visible identification markings.
- Inspect connectors, pins, PCB surfaces, mounting points, and visible components.
- Compare the replacement with the customer’s installed board.
- Verify the hardware revision before shipment whenever the revision is marked separately.
- Live Rig Testing
- Use compatible ABB drive test equipment where available.
- Verify board recognition and associated monitoring feedback under controlled conditions.
- Check connector integrity and electrical continuity before connecting the module to live drive hardware.
- Do not apply arbitrary voltage directly to the board simply to confirm operation.
- For an outage-critical replacement, record the test result against the exact serial number.
- QA & Anti-Static Packaging
- Handle the board using ESD precautions.
- Keep it inside anti-static packaging until installation.
- Protect connectors and exposed PCB areas against impact.
- Use rigid cushioning because small electronic boards can be damaged by compression or bending.
- Record the product identification before the package is sealed.
- Global Logistics & Export Compliance
- Prepare the commercial invoice, packing list, product description, country-of-origin information, and appropriate HS classification.
- One available product record lists 85049099 as the customs tariff reference; the final classification should be checked against destination-country requirements.
- Air freight is generally suitable for such a lightweight electronic spare.
- Use compact anti-static packaging to avoid unnecessary dimensional freight charges.
- Describe the item accurately as an industrial electronic monitoring module rather than using an overly broad description such as “computer board.”
Technical Pitfalls & Integration Warnings
1. Part-Number Confusion
ABB XVC-series components can have visually similar designations. The safe procurement reference is the complete combination . Do not order a neighboring XVC variant simply because the connector or board outline appears similar. Available ABB-related records separately list XVC768115 with product ID 3BHB007211R115, showing that these identifiers are not interchangeable.
2. Hardware Revision Mismatch
A replacement board may have a different hardware revision from the unit originally installed. Imagine the replacement physically fitting but producing an unexpected feedback value after commissioning. That is exactly why the board revision and complete drive configuration should be checked before installation.
3. Wiring / Connector Compatibility
Current-monitoring hardware depends heavily on the surrounding electrical architecture. Verify connector orientation, terminal assignment, signal routing, and the associated drive assembly before transferring the board. Never assume that a physically identical connector means electrically identical pin assignments.
4. ESD Damage During Unboxing
This is a small electronic board, so ESD handling is not optional. Keep the module in its anti-static bag until the installation area is ready. Avoid touching exposed circuitry and connector contacts. A board damaged during handling may look perfect externally and still fail once the drive is energized.
Frequently Asked Questions (FAQ)
Q1: What is ABB 3BHB007209R0102?
It is an ABB XVC-series electronic module identified by ABB Type Designation and Product ID 3BHB007209R0102. Available records associate it with current monitoring within ABB power-electronics equipment.
Q2: Is the same part as 3BHB007209R0102?
Yes. These are the two identifiers used for the same ABB component: is the type designation, while 3BHB007209R0102 is the product ID.
Q3: What is the approximate weight?
One product record lists a net weight of approximately 0.02 kg. Actual packed shipping weight will be higher after anti-static protection and export packaging are added.
Q4: Can I replace with another XVC-series board?
Not without verification. XVC-series parts can have different electrical functions and hardware configurations. For example, XVC768115 is separately identified with product ID 3BHB007211R115. Match the complete part number rather than relying on the XVC prefix alone.
Q5: Can this board be hot-swapped?
Do not assume it can. If the board is installed inside an operating drive or power-conversion system, removing it may interrupt monitoring or protection functions. Follow the equipment-specific isolation procedure before replacement.
Q6: What information should I provide when requesting a replacement?
For the safest compatibility check, provide:
- / 3BHB007209R0102
- Clear photograph of the existing nameplate
- Board revision, if visible
- Drive model
- Drive power rating
- Photographs of the board connectors
- Existing fault code or diagnostic message
Q7: What HS code can be used for procurement planning?
An available product record lists 85049099 as the customs tariff reference. Treat this as a planning reference rather than a universal declaration code; the final classification depends on the destination customs tariff and the actual function of the imported component.
Q8: How should this part be shipped internationally?
Because the component is lightweight and electronic, air freight is generally practical. Anti-static packaging, connector protection, and moisture control are more important than heavy-duty structural crating. For customs clearance, make sure the invoice description accurately identifies the part as an ABB industrial electronic module.
