Product Introduction
When your thin film or paper production line experiences frequent tension fluctuations that cause web breakage and material waste, this controller delivers stable closed-loop regulation to keep tension consistent across all production speeds.
It supports direct connection with ABB PFCL/PFTL series tension load cells, and can be directly DIN-rail mounted inside standard electrical cabinets. Its compact 120mm×80mm×30mm design saves significant cabinet space compared to traditional large tension controllers.
ABB PFEA111-20 3BSE050090R20
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | PFEA111-20 (3BSE050090R20) |
| Power Supply | DC 24V, wide voltage range 18–36V |
| Power Consumption | 7.5W low power design |
| Input Channels | 2 independent tension sensor input channels |
| Maximum Input Signal | 20mV/V |
| Control Accuracy | Closed-loop control accuracy ±0.1% |
| Output Signals | 0–10V voltage, 4–20mA current dual mode |
| Sensor Excitation | 5V DC or 10V DC selectable |
| Maximum Drive Load | 5A, can directly drive magnetic powder brakes |
| Operating Temperature | 0°C ~ 60°C |

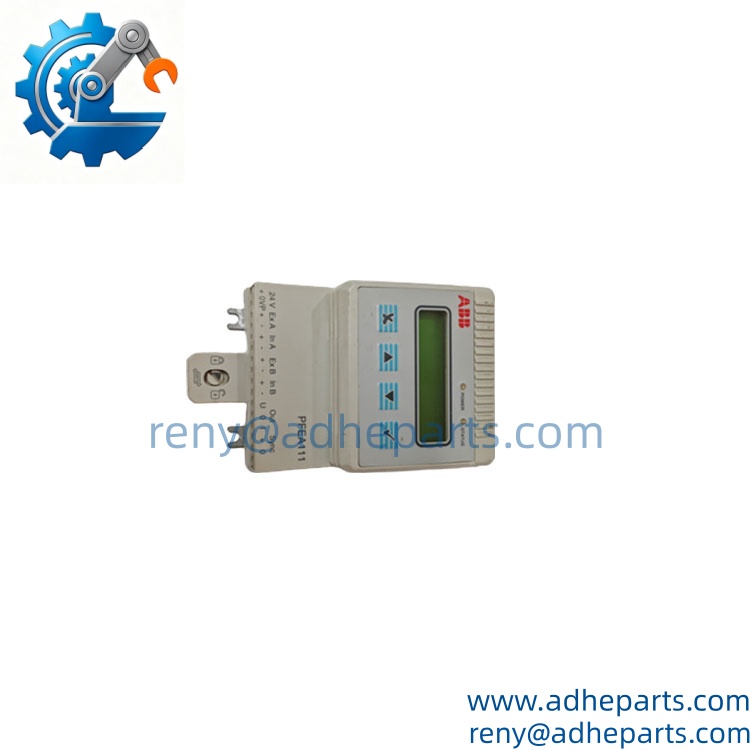

ABB PFEA111-20 3BSE050090R20
ABB PFEA111-20 3BSE050090R20
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Paper & Pulp Production Lines: Maintains stable web tension across high-speed paper machines to avoid web breakage and ensure uniform paper thickness.
- Flexible Packaging Film Production: Controls tension during winding and unwinding of BOPP, PET thin films to prevent stretching and wrinkling of finished rolls.
- Printing & Label Converting Lines: Delivers consistent tension control for narrow web label printing processes, ensuring precise color registration across multi-color stations.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never route tension sensor signal cables alongside high-power inverter cables. The third terminal block from the left will pick up electromagnetic interference that causes ±5% tension reading fluctuations.
- ⚠️ Bold Warning 2: Skipping the no-load calibration before production will leave you with 10% baseline tension offset. This unit requires a full no-load zero calibration after every sensor replacement to maintain rated ±0.1% accuracy.
- ⚠️ Bold Warning 3: Do not leave unused input channels enabled. The second unused channel will introduce background signal noise that degrades the main channel tension stability by 30%.
A packaging film plant maintenance team once swapped a PFEA111-20 controller and skipped no-load calibration. The 12% baseline tension offset caused 3 consecutive full rolls of 8-micron thin film to stretch beyond tolerance, resulting in 2 hours of downtime and over $8,000 in scrapped material.
ABB PFEA111-20 3BSE050090R20
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official part registry, confirm the part number 3BSE050090R20 matches the factory label, and inspect no bent pins on the terminal block.
- Live Rig Testing: Power the unit with 24V DC, connect to a calibrated ABB tension load cell simulator, and confirm 2 full hours of stable tension reading and PID control operation.
- Parameter Testing: Verify 0-10V and 4-20mA output accuracy stays within ±0.05% of full scale, confirm 5A maximum drive load capacity meets specifications, and validate all front panel LED status indicators function correctly.
- Final QA & Packaging: Seal the tested controller in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
ABB PFEA111-20 3BSE050090R20
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the production line is running? No. You must first set the line to manual tension control mode before replacing the unit, otherwise the tension output will drop to zero and cause the web to break.
- What exact ABB sensors is this controller compatible with? It works natively with ABB PFCL201C vertical pressure sensors, PFTL101A horizontal tension sensors and all standard bridge strain gauge tension load cells.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or long-term over 5A load operation.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB PFEA111-20 units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the ±0.1% closed-loop control accuracy test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older PFEA111-10 10mV/V input tension controller? Well, technically it is fully pin-compatible, but you will need to re-run the full no-load and full-load calibration process to match your existing tension load cell parameters.
