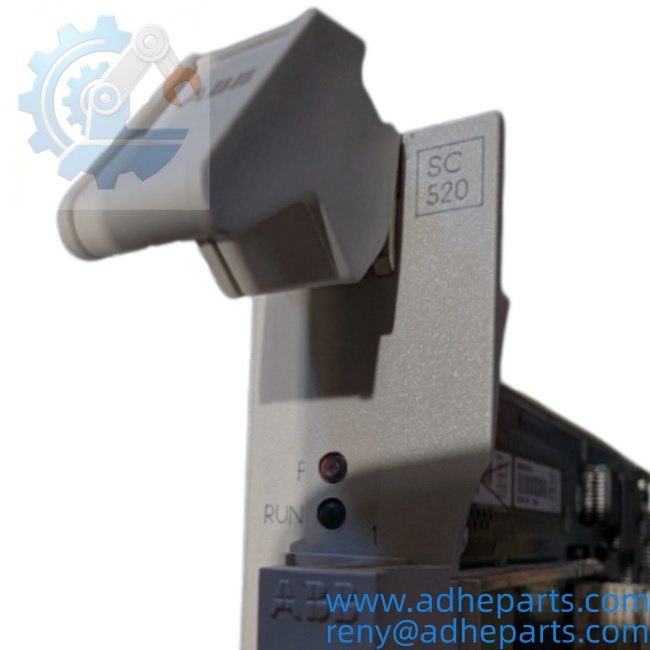

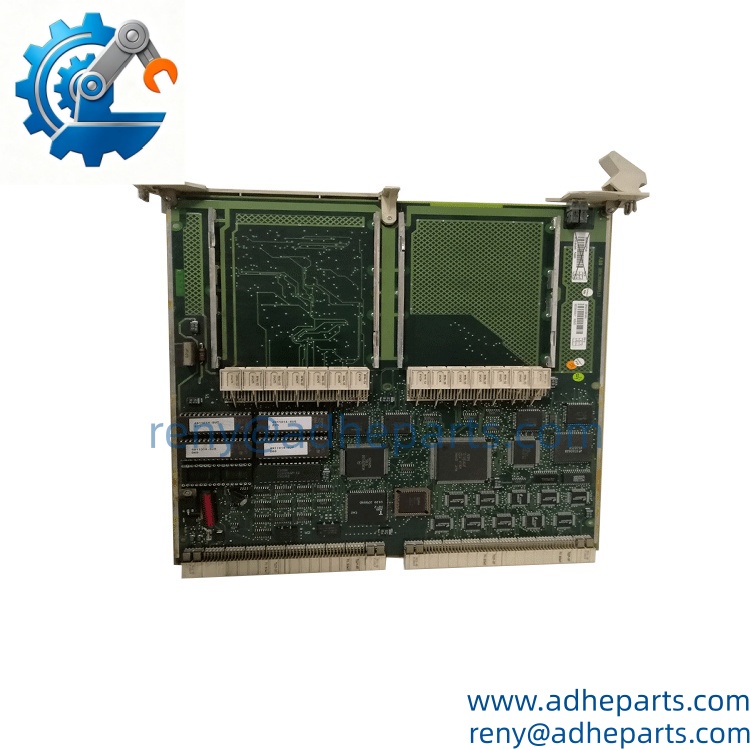

The key feature of ABB SC520 3BSE003816R1 is a submodule carrier equipped with an integrated local CPU, designed for ABB Advant Master DCS systems. It supports MB300 / MB300E communication buses, provides expansion slots for various submodules, and undertakes local logic processing and internal data forwarding tasks.
This means that customers replacing this model should not only compare the full part number. The hardware revision, backplane compatibility and matching system software version also need to be verified.
A typical system may include:Advant Master Control Rack Backplane → ABB SC520 3BSE003816R1 → Plug-in Submodules → Main Controller and Field I/O Units
Therefore, if the customer’s existing distributed control system relies on this carrier module for local computation and module expansion, bus protocol matching and hardware revision consistency must be confirmed before purchasing the replacement module.
This is an important ordering consideration that distinguishes ABB SC520 3BSE003816R1 from general-purpose analog and digital I/O modules.
Advantages and Features
- Integrated Local CPU: Built-in processing for simple control logic, diagnostics, and MB300/MB300E protocol handling without extra hardware.
- MasterBus 300/300E Support: Enables reliable fieldbus communication for I/O expansion, safety systems, and distributed control in Advant Master platforms.
- Modular & Scalable Design: Fits standard RF533-style subracks (up to 6–7 carriers per rack); supports hot-swap in many configurations and redundancy with CPU options.
- Compact & Efficient: Slim 30 mm width, low power consumption (typical 0.8 W excl. submodules), 24 VDC operation, and IP20 protection.
- High Reliability & Diagnostics: Built-in status LEDs (RUN/Fault), watchdogs, and compatibility with legacy Advant Controller 450 Version 2.3 and higher.
- Long Lifecycle Support: Proven in demanding process and marine applications; RoHS-exempt version available.
Application Cases in Application Fields
- Process Industry (Chemical, Oil & Gas, Power): Real-time communication and control in large-scale Advant Master systems for continuous process automation.
- Paper & Converting Plants: Tension, speed, and drive control via MasterBus 300/300E in modernized Advant Controller 450 installations.
- Marine & Offshore: Coated SC520M variants for harsh marine environments with classified certification.
- Legacy System Upgrades: Migration from older MasterPiece or Advant OCS platforms requiring MB300 communication modules.
- Manufacturing & Automation: Discrete/sequential control in distributed I/O setups where local CPU offloads processing.
Comparisons with Competing Products
- Vs. Siemens SIMATIC CP 443-1 or CP 443-2: ABB SC520 offers native Advant Master 300/300E protocol support and direct integration with Advant Controller 450; Siemens requires additional gateways or converters for legacy ABB systems.
- Vs. Emerson Ovation or Yokogawa Centum CS: SC520 provides better compatibility with existing ABB Advant Master infrastructure and lower cost for communication-only upgrades; competitors often demand full hardware replacement.
- Vs. Generic Ethernet/IP or Modbus TCP converters: SC520’s integrated local CPU and MasterBus 300/300E execution reduce latency and complexity vs. third-party fieldbus converters.
- Vs. ABB’s modern AC 800M equivalents: remains the optimal choice for legacy Advant Controller 450 systems where the newer platform is not yet deployed.
Selection Suggestions and Precautions
Selection Suggestions: Perfect for upgrading or maintaining existing Advant Controller 450 / Advant OCS systems needing enhanced MB300/MB300E communication. Pair with SC510 (no-CPU variant), CS513 submodules, PM511 redundant CPUs, and full Advant Controller 450 subrack assemblies. Ideal for applications requiring <10 ms cycle times and seamless legacy interoperability.
Precautions:
- Confirm compatible Advant Controller 450 subrack (RF533 series) and backplane slot capacity.
- Verify power supply (24 VDC, redundancy recommended for critical systems).
- Use only in non-hazardous areas (IP20); for marine applications, select SC520M version.
- Follow grounding, cable shielding, and IEC 60204 standards for signal isolation.
- For SIL safety applications, confirm configuration with ABB support.
Recent Hot Selling Models from the Same Brand (ABB Advant Master Series)
- 3BSE003816R1 – This submodule carrier with local CPU (top seller for legacy MB300/300E upgrades).
- SC510 3BSE002415R1 – Basic submodule carrier without local CPU (most popular for simple communication needs).
- SC520M 3BSE016237R1 – Coated marine-classified version (highly popular in offshore installations).
- CS513A – MasterBus 300/300E communication submodule (frequently paired and rising in demand).
- PM511 – Redundant CPU board (essential for high-availability Advant Controller 450).
