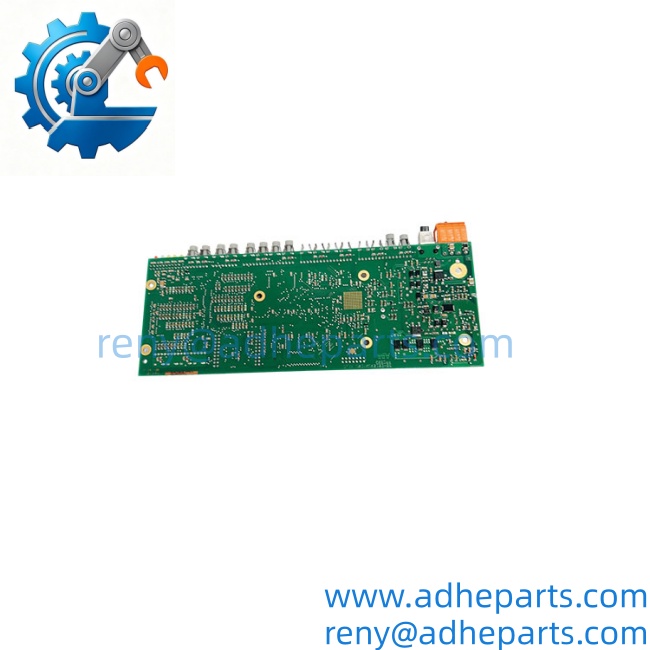

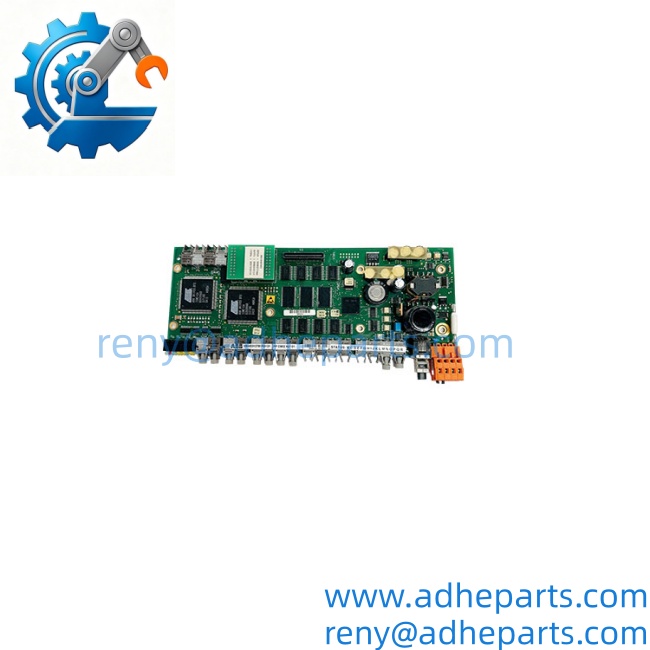

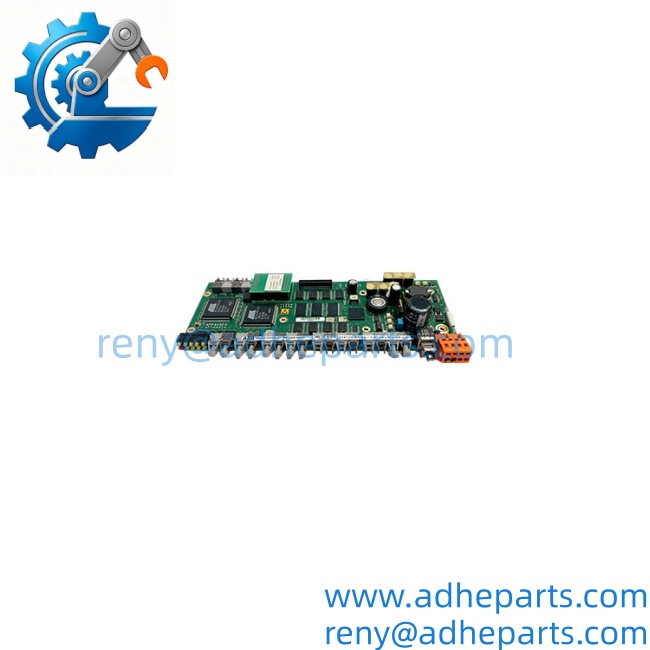

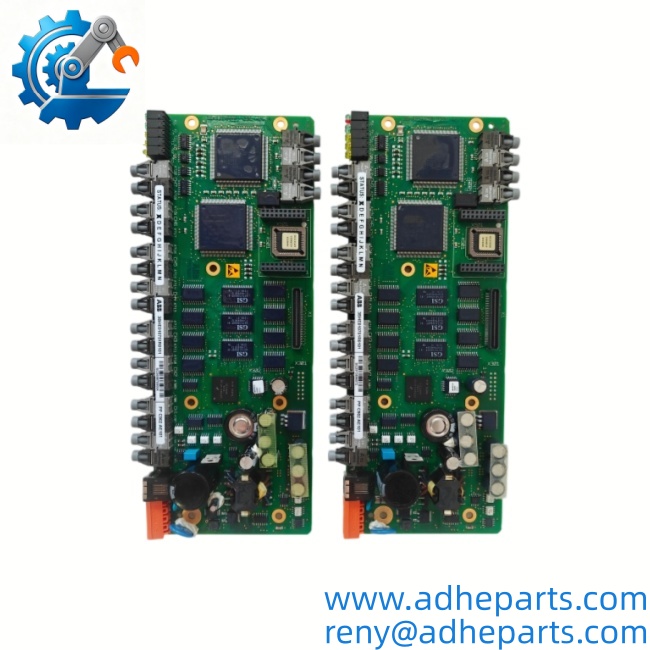

ABB PPC902AE101 3BHE010751R0101
ABB PPC902AE101 3BHE010751R0101
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Designation | PPC902AE101 / PP C902 AE101 |
| Ordering Number | 3BHE010751R0101 |
| Board Class | AMC-33 (Application & Motor Control) |
| Primary Application | Generator excitation systems (UNITROL) and MV drives |
| Processor | High-speed control processor (approx. 150 MHz class) |
| Supply | System backplane (+5 V / +24 V typical) |
| Software | Delivered without application software; requires loading by qualified personnel |
| Mounting | Sub-rack / plug-in PCB |
| Related Note | In some ACS5000 systems a matching dongle board may also be required |
| Upgrade Path | AMC-34 recommended where available |
4. Product Introduction (Anti-Template)
When an ABB excitation system or medium-voltage drive needs a high-performance application and motor control processor, the PPC902AE101 (3BHE010751R0101) provides the computational core. It belongs to the AMC-33 family of boards used in UNITROL excitation controllers and certain ACS5000-series drives.
The board handles real-time regulation tasks, including voltage and reactive-power control for synchronous generators or motor control functions in drive applications. It is supplied without application software; the correct firmware and parameter set must be loaded by a qualified ABB service engineer after installation. Because of its role as a central control element, exact hardware and software matching to the host system is critical.
ABB PPC902AE101 3BHE010751R0101
5. QC, Procurement & Logistics SOP

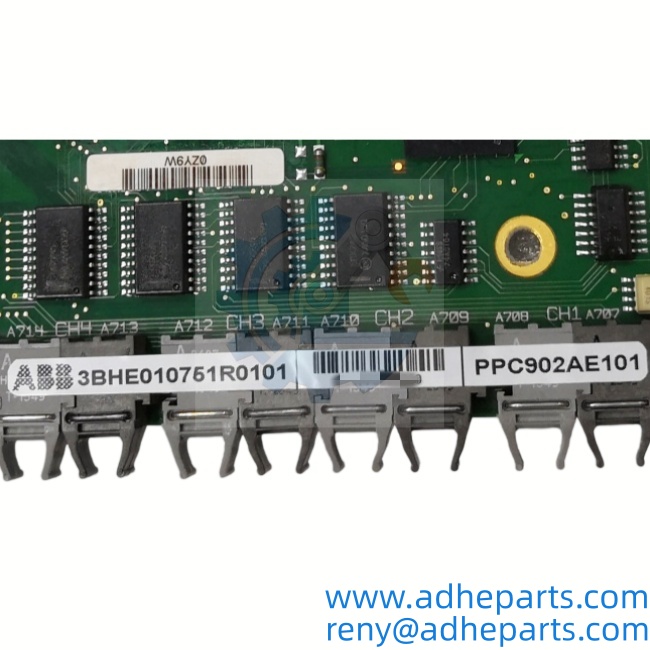

- Inbound Verification – Confirm full markings (PPC902AE101 and 3BHE010751R0101), board revision, connector condition, and absence of physical damage. Photograph all labels and any dongle-related notes.
- Live Rig Testing – Install in a compatible rack or test system only after confirming software compatibility. Basic power-up and communication checks are performed; full functional testing requires the correct application software.
- QA & Anti-Static Packaging – After inspection, protect edge connectors and any fiber/optical ports, clean the board, and seal in anti-static shielding with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial control processor boards. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
ABB PPC902AE101 3BHE010751R0101
6. Technical Pitfalls & Integration Warnings
Software Dependency – The board is delivered blank. Installing it without the correct application software and parameters will result in a non-functional system. Only qualified personnel should load the software.
Dongle / Companion Board Requirements – In certain ACS5000 configurations the AMC-33 must be paired with a specific dongle board (e.g., 3BHE015414R0101). Omitting or mismatching the dongle prevents operation.
Revision and Upgrade Path – AMC-33 boards have limited ongoing support. ABB recommends migration to AMC-34 where possible. Confirm long-term spare strategy before purchase.
Backplane and Power Integrity – Poor backplane contact or unstable auxiliary supplies can cause intermittent processor faults that appear as board failures.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified PPC902AE101?
As a specialized control board, availability depends on surplus stock. Typical lead time after verification is 3–10 business days plus standard air freight.
What is the full designation of this board?
PPC902AE101 with ordering code 3BHE010751R0101 (also referenced as PP C902 AE101 AMC-33).
Is software included?
No. The board is supplied without application software. A qualified ABB service engineer must download the correct firmware and parameters.
In which systems is it used?
Primarily ABB UNITROL excitation systems and certain medium-voltage drives (e.g., ACS5000 family).
Is there a recommended replacement?
ABB has indicated limited availability of AMC-33 boards and recommends upgrading to AMC-34 where the system allows.
Does it require any additional hardware?
In some drive configurations a matching dongle board must be replaced or ordered together with the .
Can it be tested without the full system?
Only basic power-up and communication checks are possible outside the host system. Full functional verification requires the correct software and system environment.
