Product Introduction
When your critical turbine machinery protection system cannot tolerate even a 1-second power interruption that would trigger a false protection trip, this power module acts as the stable power source for the entire VM600 rack.
It supports universal 100-240V AC wide voltage input, and can be directly installed in standard 19-inch VM600 racks or DIN rail TS-35 guide rails. Its built-in overvoltage, overcurrent and short-circuit protection functions ensure that all downstream vibration monitoring modules get clean and stable power supply even under harsh industrial power grid fluctuation conditions.

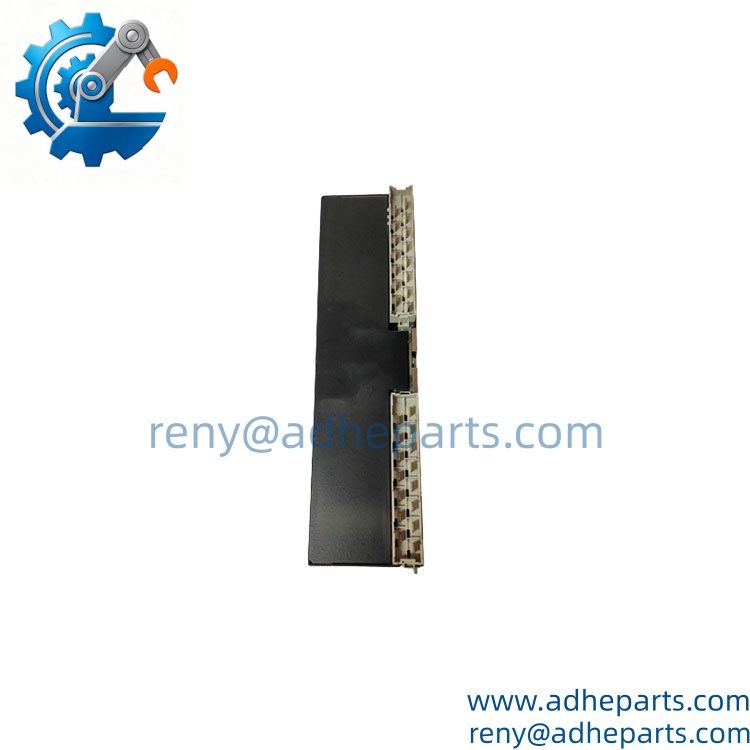

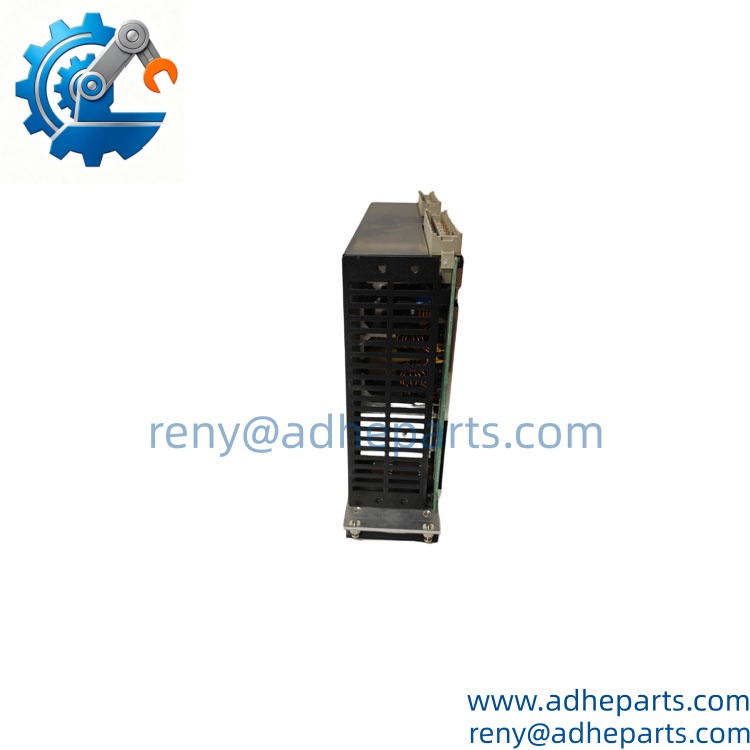

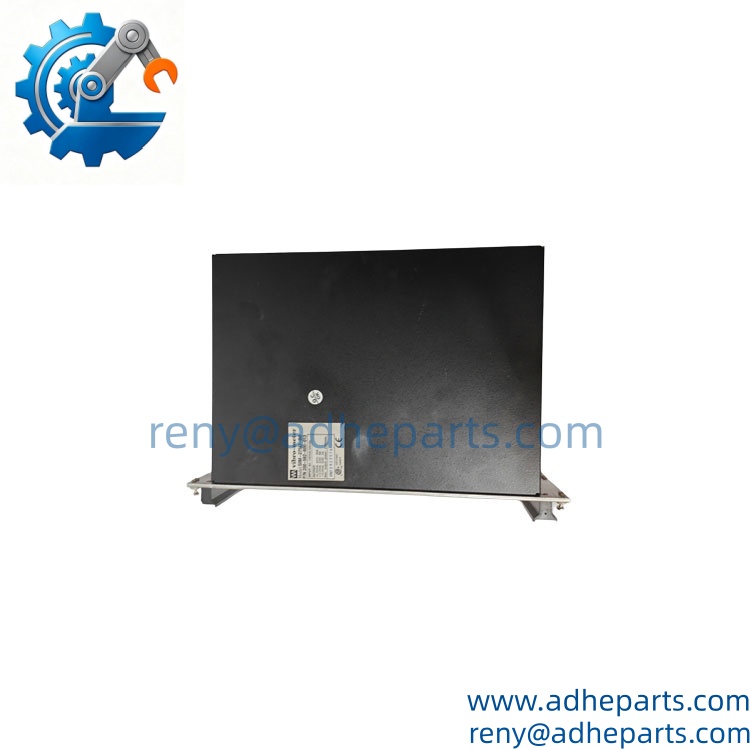

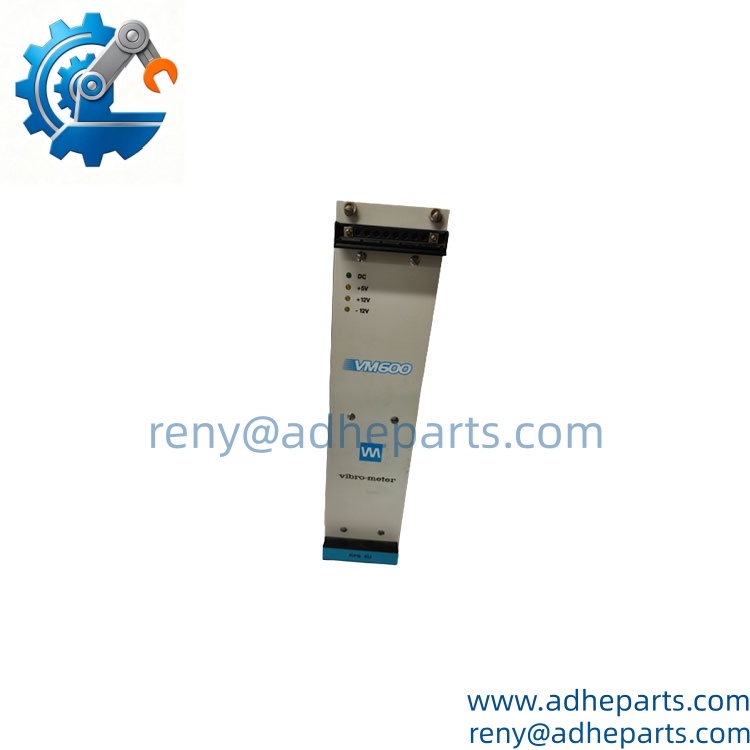

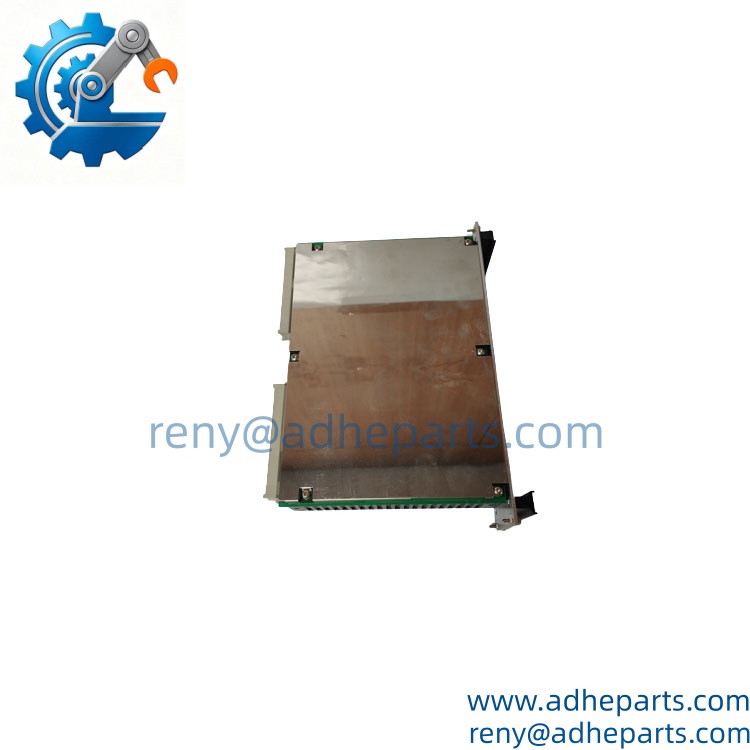

Vibro-Meter VM600 RPS6U 200-582-600-013
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 200-582-600-013 |
| Input Voltage | 100-240 VAC, 47-63 Hz universal industrial power grid |
| Output Voltage | 24 VDC regulated |
| Maximum Output Current | 4 A continuous |
| Dimensions | 62mm × 192mm × 262mm |
| Net Weight | 2.2 kg |
| Operating Temperature Range | 0°C ~ +55°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Relative Humidity | 5% ~ 95% non-condensing |
| Protection Features | Built-in overvoltage, overcurrent, short-circuit automatic protection |
| Installation Method | 19-inch standard VM600 rack / DIN rail TS-35 |
| Redundancy Support | Multiple units can be connected in parallel for redundant power configuration |
Vibro-Meter VM600 RPS6U 200-582-600-013
Vibro-Meter VM600 RPS6U 200-582-600-013
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Power Plant Steam Turbine Protection Systems: Provides stable redundant power supply for VM600 turbine vibration protection racks, avoiding protection system shutdown caused by power grid fluctuations.
- **Oil & Gas Centrifugal Compressor Monitoring: Acts as the dedicated power source for VM600 compressor condition monitoring systems, ensuring continuous 24/7 operation of all vibration monitoring points.
- **Offshore Platform Gas Turbine Control: Delivers reliable power supply for offshore platform VM600 machinery protection racks, adapting to high humidity and high salt spray harsh working conditions.
Vibro-Meter VM600 RPS6U 200-582-600-013
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect the output of two non-synchronized RPS6U modules directly in parallel. The third unit will experience current backflow that burns out the internal power rectifier circuit.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable the current sharing function. This unit requires system firmware v4.0+; it will not support redundant parallel current sharing operation on v3.x legacy racks.
- ⚠️ Bold Warning 3: Skipping the 10-minute post-installation full-load power test will leave you with uncaught hidden output voltage drop faults. The issue will only surface when all modules in the rack are fully loaded, leading to sudden system power failure.
A refinery maintenance team once swapped a RPS6U power module and skipped the full-load test. When all 8 vibration monitoring modules in the rack were fully loaded, the output voltage dropped to below 18V, causing the entire protection system to shut down unexpectedly, resulting in a 2-hour compressor unplanned shutdown that cost over $18,000 in lost production.
Vibro-Meter VM600 RPS6U 200-582-600-013
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Bently Nevada’s official part registry, confirm the part number 200-582-600-013 matches the factory label, and inspect no bent pins on the AC input and DC output terminals.
- Live Rig Testing: Power the unit with 220V AC input, connect to a calibrated electronic load, and confirm 24V DC 4A full-load output stability for 2 continuous hours.
- Parameter Testing: Verify output voltage accuracy stays within ±1% of 24V DC, confirm overvoltage/overcurrent/short-circuit protection functions trigger correctly, and validate parallel redundant current sharing performance meets factory specifications.
- Final QA & Packaging: Seal the tested power module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this power module while the system is running? Yes, but only if your system is configured with dual redundant RPS6U power supplies. Single-power configurations will cause the entire rack to lose power when you pull the unit.
- What exact Vibro-Meter systems is this module compatible with? It works natively with all Vibro-Meter series machinery protection racks. It will not operate correctly with older VM300 systems without a custom power adapter.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or long-term over 4A overload operation.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine Vibro-Meter RPS6U units have a laser-etched part number on the metal housing, not a printed sticker. Clone units almost always fail the 4A full-load output stability test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Bently Nevada factory power supply calibration documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older RPS6 legacy 3A power unit? Well, technically it is fully pin-compatible, but you will need to reconfigure the redundant power current sharing parameters in the engineering software to unlock the full 4A output capacity.
