Product Overview
The HIMA F7126 is a safety‑rated DC‑DC power supply module built for HIMA H41q / H51q HiQuad safety instrumented systems (SIS). It converts 24 VDC system input to regulated 5 VDC backplane power for safety CPU and I/O racks, certified for SIL‑3 functional‑safety deployments in process‑critical environments. Redundant parallel operation is supported for no‑single‑point‑of‑failure power architectures, a core requirement for ESD, BMS and turbine protection systems.
Key Technical Specifications
- Model: F7126
- Function: Rack power supply module for H41q / H51q safety system racks
- Input: 24 VDC ±15%
- Output: 5 VDC ±0.5 V, adjustable; rated 10 A, hardware current limit ~13 A
- Efficiency: ≥77 %
- Protections: Over‑voltage shutdown, current limiting, short‑circuit output protection, primary 6.3 A slow‑blow fuse
- Redundancy requirement: For parallel redundant setup, output voltage mismatch must stay ≤0.025 V to avoid load‑sharing drift
- Operating temperature: ‑40 °C ~ +70 °C
- Mounting: 8‑TE standard DIN‑rack form‑factor
- Certifications: CE, UL, IECEx, IEC 61508 SIL 3 capable when applied per system safety manual
- Weight: ~0.2 kg

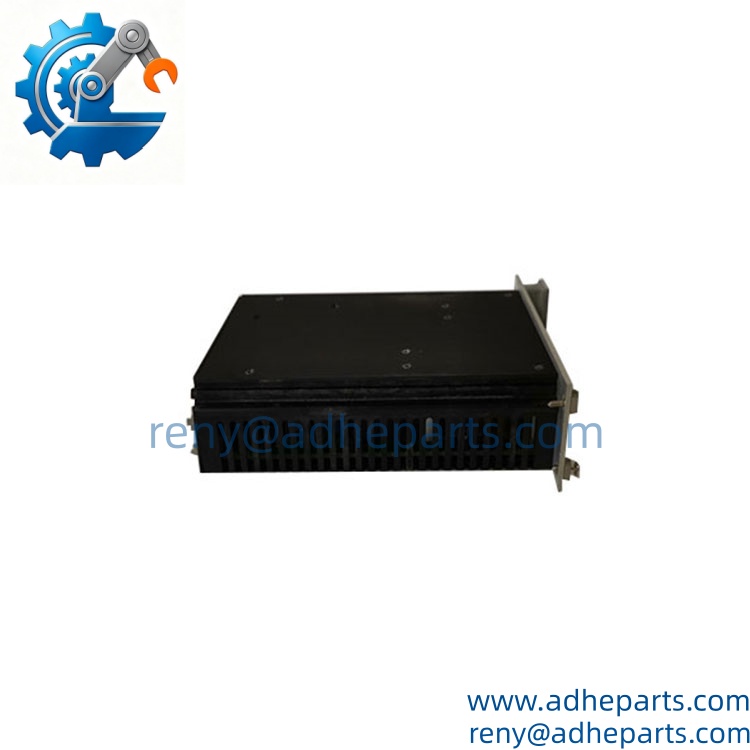

HIMA-F7126-sideview
CLICK TO OPEN THE HIMA F7126 DATA SHEET OR DOWNLOAD:
HIMA F7126 Datasheet

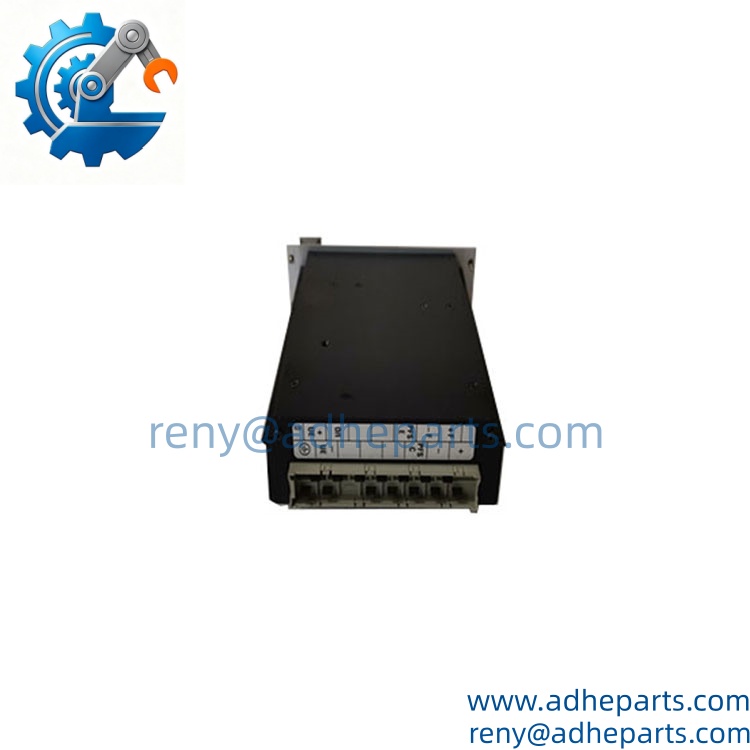

HIMA-F7126-backside
Typical Application Scope
- Emergency Shutdown (ESD) systems for refineries, petrochemical plants
- Burner Management Systems (BMS), gas‑turbine safety controls
- Fire & Gas safety racks in hazardous‑area installations
- Retrofit and spare‑part replacement for legacy H41q / H51q installed base
HIMA-F7126-sideview
Maintenance & Inventory Manager Practical Notes
- Common field failure modes: Input‑side surge damage, electrolytic capacitor aging under continuous high‑temperature cabinet conditions, blown primary fuse caused by backplane short‑circuit faults.
- Redundancy best practice: Do not mix used / refurbished and brand‑new F7126 units in the same redundant power pair; voltage offset may break proper load‑balancing.
- Pre‑shipment test checklist: Verify adjustable output voltage, trigger over‑current protection test, inspect front‑panel test socket function, run multi‑hour thermal burn‑in before dispatch for spare‑part stock.
- Spare‑parts stocking strategy: For sites running multiple H41q/H51q racks, hold at least one spare unit on‑site; long‑term lead times apply for original factory orders as this is a mature‑generation safety component.
HIMA-F7126-backside
Critical Installation Pitfalls
- Do not use general‑purpose industrial 5 V power supplies as drop‑in substitutes; safety‑rated isolation and fault‑diagnostic behaviors are unique to the F7126.
- Always follow HIMA system documentation for voltage trimming when configuring redundant parallel power modules. Improper adjustment will cause unequal load sharing and premature module wear.
- Handle with anti‑static protection; static discharge can degrade safety‑circuit components without immediate visible failure.
