GE H201Ti | Hydran 201Ti Transformer Gas Monitor

Product Introduction (Anti-Template)

When a power transformer develops an internal fault, waiting for a periodic oil sample can leave a maintenance team with too little warning. The GE Hydran H201Ti is an intelligent transmitter designed for continuous dissolved-gas monitoring, providing an early indication of abnormal transformer conditions through online measurement of fault-gas concentration.

Rather than identifying every gas individually, the Hydran 201Ti provides a composite gas reading and can communicate with associated controllers through an RS-485 network. Up to 32 units can be daisy-chained in the configuration described by GE’s current documentation, with a maximum total cable distance of 1,200 m.

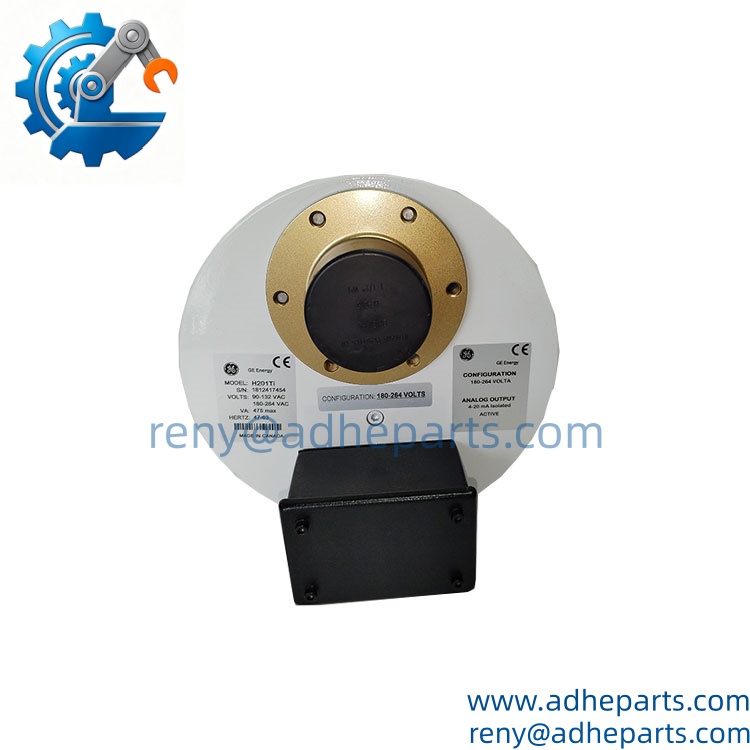

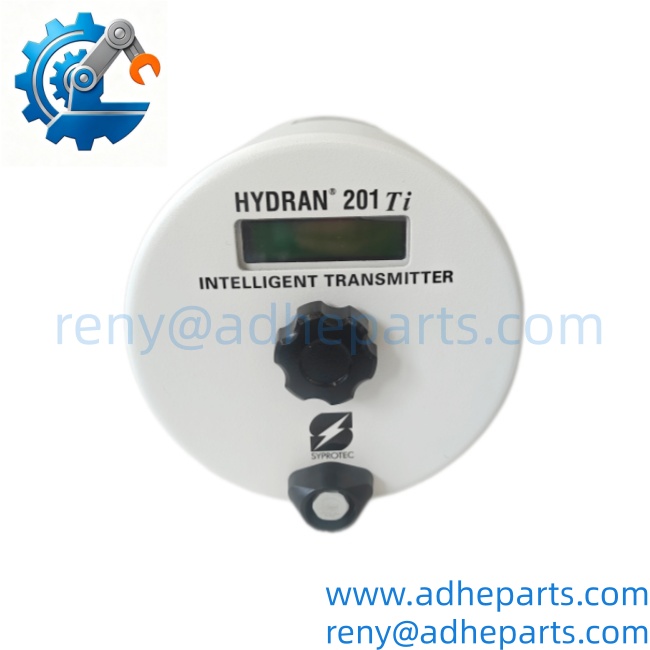

GE HYDRAN 201Ti FRONT

Key Technical Specifications

GE documentation identifies the H201Ti as part of the Hydran 201i system and shows it communicating through RS-485 with optional H201Ci controllers. The system can also provide gas-level data, alarm information, and analog outputs for integration into a station monitoring system.

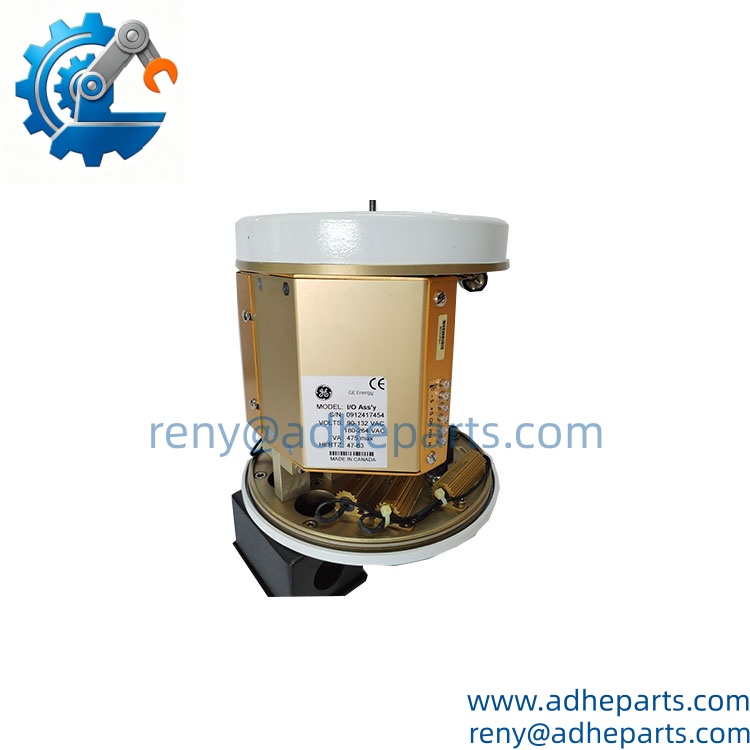

One specification needs special care: secondary listings often publish conflicting power, dimensions, weight, and measurement figures for H201Ti. The official documentation confirms the model and system architecture, but the exact electrical configuration should be checked from the unit’s nameplate and revision before installation. A recent procurement specification, for example, lists 100/115/230 VAC, 50/60 Hz and a 0–2000 ppm analog range, illustrating why the exact configuration matters.

File Download：

Field Application & Technical Pitfalls (The Engineer’s Guide)

The H201Ti is a transformer-condition monitoring device, not a conventional PLC I/O module. Its economic value comes from giving maintenance personnel an earlier indication that transformer insulation or internal components may be deteriorating.

1. Power transformer condition monitoringThe Hydran system continuously monitors dissolved gases in transformer oil. Rising gas levels can provide an early warning of abnormal internal activity before a more serious transformer failure develops.
2. Substation transformer protectionH201Ti units can work with H201Ci controllers, allowing several transformer monitors to be supervised through a common monitoring arrangement. GE documents configurations supporting multiple H201Ti units through the controller architecture.
3. Remote transformer monitoringThe RS-485 communication capability allows H201Ti devices to form a network, making the system useful where several transformers need centralized monitoring rather than individual local inspection.

Three replacement pitfalls deserve particular attention:

• Sensor and transmitter compatibility: Do not treat H201Ti as a generic gas transmitter. The electronics work with the Hydran sensing arrangement and associated transformer installation. Confirm the sensor assembly and mechanical connection before replacing the electronic unit.
• Power configuration: Different documentation sources show different supply configurations. Verify the nameplate voltage of the actual H201Ti before energizing it. Never assume a generic 24 VDC specification from an unrelated listing.
• Grounding and high-voltage testing: GE’s installation instructions specifically warn against applying high-voltage Megger tests to cables connected to the H201Ti or Hydran controller because surge-protection components can be damaged.

Do not use a Megger on an energized or connected Hydran installation. This is one of those small maintenance details that can turn a routine insulation test into an electronics replacement.

Lesson learned: A technician suspects a transformer-monitoring fault and performs a conventional high-voltage insulation test without disconnecting the Hydran equipment. The transformer itself is fine, but the surge-protection components in the monitoring circuit are damaged. The diagnostic procedure created a second failure.

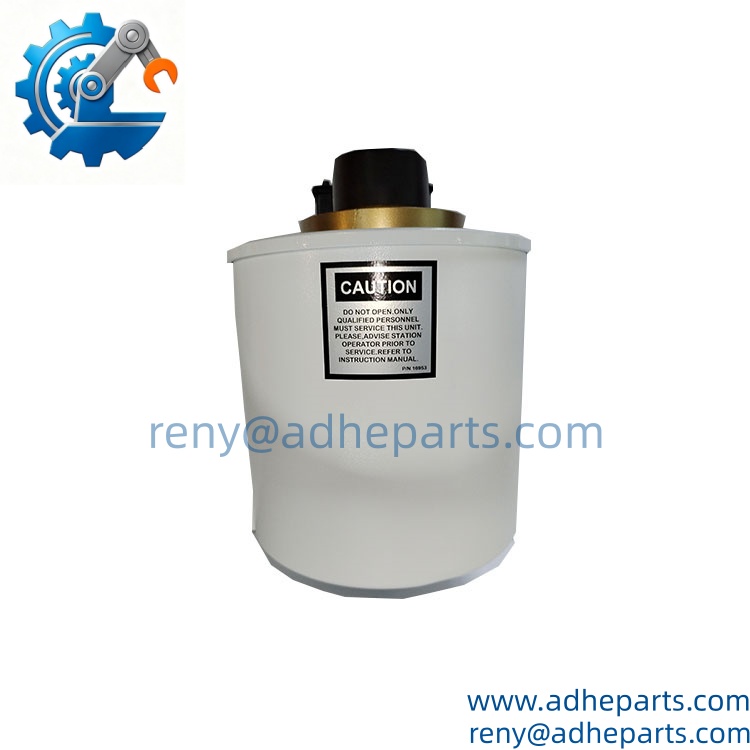

GE HYDRAN 201Ti SIDEVIEW

Quality Control (QC) SOP & Transparency

1. Inbound Verification
   • Verify the complete marking GE Hydran H201Ti.
   • Check the nameplate, serial number, hardware revision, and electrical rating.
   • Inspect the enclosure, display, keypad, connectors, terminals, and sensor connection.
   • Check for corrosion, moisture ingress, damaged terminals, or evidence of previous repair.
   • Confirm whether the unit is New Original, New Surplus, or Refurbished.
2. Live Rig Testing
   • Use an approved Hydran test environment or GE-compatible H200i calibration equipment where available.
   • Apply the verified nameplate power supply.
   • Confirm normal startup and display operation.
   • Verify gas-reading response using the appropriate calibration/test procedure.
   • Check RS-485 communication with a compatible controller.
   • Test alarm and fail indications under controlled conditions.
3. Parameter Testing
   • Verify supply voltage and current behavior.
   • Check the displayed gas reading against a calibrated reference.
   • Test High and High-High alarm functions.
   • Verify fail-alarm behavior.
   • Check the analog output where fitted.
   • Verify RS-485 communication stability.
   • Record measured values and calibration results.
4. Final QA & Packaging
   • Record model, serial number, hardware revision, power configuration, and test results.
   • Apply a QC-passed identification label.
   • Protect the display, keypad, connectors, and sensor interface against impact.
   • Use appropriate electronic protective packaging.
   • Provide the applicable test record and a 12-month warranty under the agreed warranty terms.

Frequently Asked Questions (FAQ)

Q1. What is GE H201Ti?
The H201Ti is a Hydran 201Ti Intelligent Transmitter for continuous monitoring of dissolved gases in transformer oil. It is designed to provide early warning of developing transformer problems.

Q2. Does it measure individual gases such as hydrogen, methane, and acetylene separately?
Not in the same way as a full laboratory-style multi-gas DGA analyzer. The Hydran 201Ti is designed around composite dissolved-gas monitoring, producing a gas-level reading used for transformer condition assessment.

Q3. Can multiple H201Ti units communicate together?
Yes. GE documents RS-485 networking, with up to 32 controllers or 201Ti units in a daisy-chain arrangement and a maximum total cable distance of 1,200 m for the described configuration.

Q4. What happens when the gas level becomes abnormal?
The H201Ti provides configurable alarm functions, including High, High-High, and Fail states. The alarm relay condition can be checked through the unit’s relay/analog functions.

Q5. Can I replace the H201Ti while the transformer is operating?
Do not assume that you can. The H201Ti is connected to the transformer monitoring circuit and power supply, so replacement must follow the site’s approved maintenance procedure. More importantly, avoid disturbing the oil-side sensor connection unless the procedure specifically requires it.

Q6. Can I perform a Megger test on the H201Ti wiring?
No, not while the Hydran electronics remain connected. GE’s installation documentation explicitly warns against applying high-voltage Megger measurements to cables connected to an H201Ti or Hydran controller because the surge-protection components may be damaged.

Q7. What warranty is available?
A 12-month warranty can be provided under the agreed supply terms. For an H201Ti replacement, I recommend confirming the complete nameplate, power rating, hardware revision, sensor arrangement, and existing Hydran system configuration before shipment.
