3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | 5SHY4045L0004 |
| Device Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Package | Press-pack |
| Typical Related Assembly | Often supplied/used with 3BHB021400R0002 |
| Application Domain | Medium-voltage drives and power converters |
| Key Characteristics | High blocking voltage, high current turn-off capability, low on-state losses |
| Cooling | Double-sided cooling (press-pack design) |
| Manufacturer | ABB |
4. Product Introduction (Anti-Template)

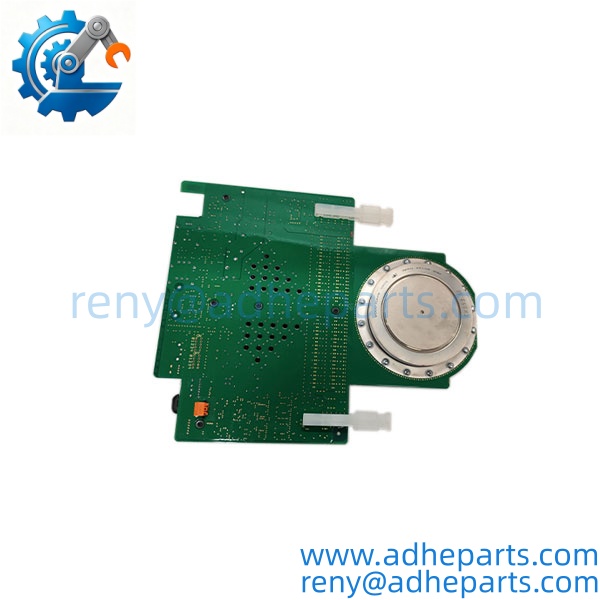

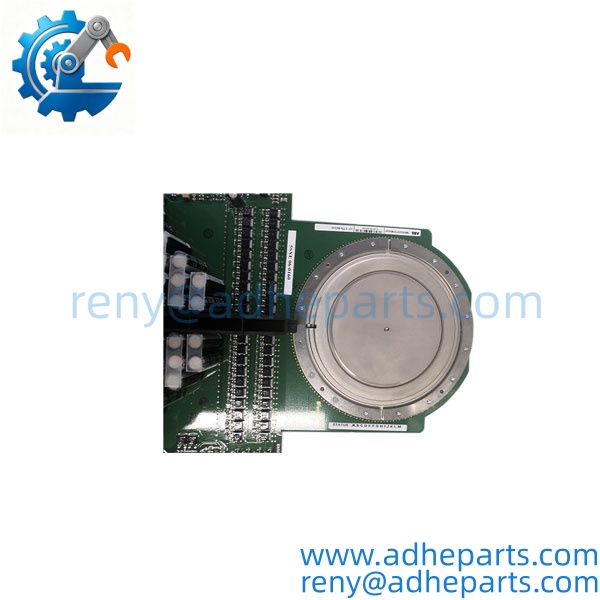

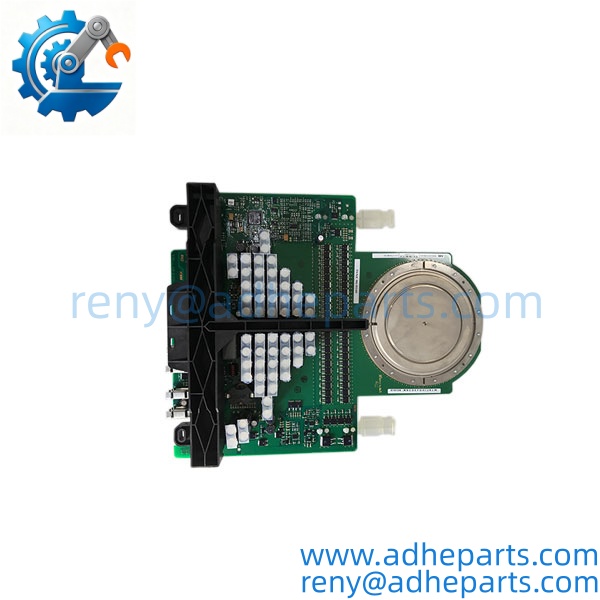

The ABB 5SHY4045L0004 is an Integrated Gate-Commutated Thyristor (IGCT) designed for high-power medium-voltage applications. IGCTs combine the low conduction losses of a thyristor with the fast, gate-controlled turn-off capability of a transistor, making them well suited for multi-megawatt converters.

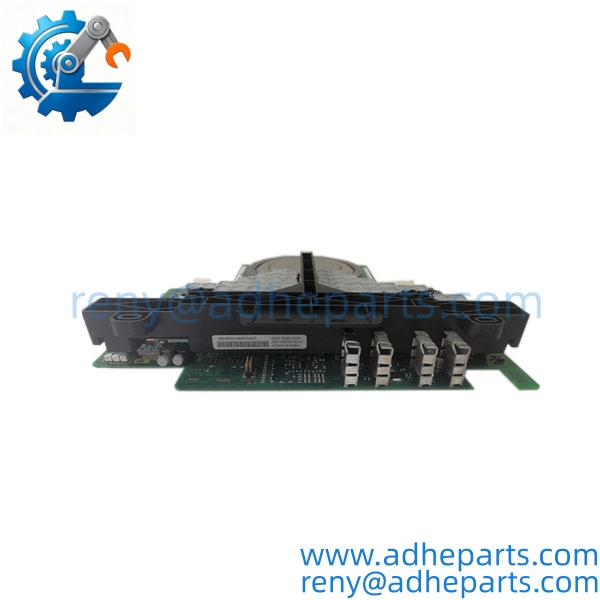

The device uses a press-pack package that enables efficient double-sided cooling and high reliability under thermal cycling. It is commonly found in ABB medium-voltage drive systems and related power electronic equipment. In practice the 5SHY4045L0004 is frequently handled together with its associated gate unit or power assembly (commonly referenced as 3BHB021400R0002). Correct gate drive, clamping force, and cooling are essential for reliable operation.
5SHY4045L0004
5SHY4045L0004
5SHY4045L0004
5SHY4045L0004
5SHY4045L0004ABB | ADHE Parts
5. QC, Procurement & Logistics SOP

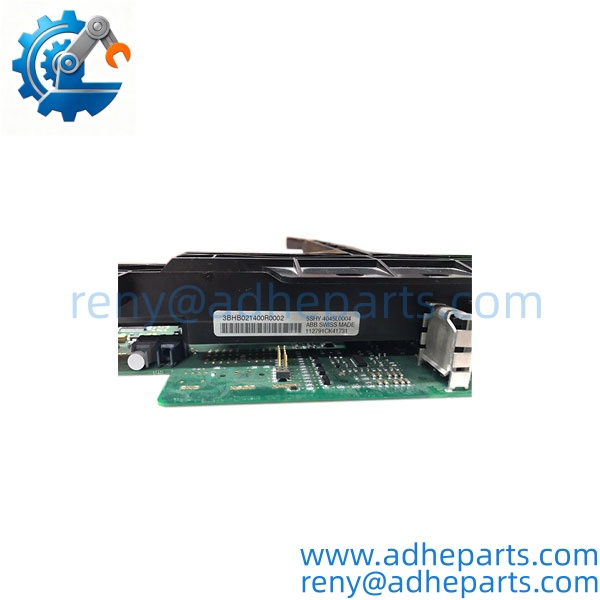

- Inbound Verification – Confirm full part number (5SHY4045L0004), package condition, and any associated assembly markings (e.g., 3BHB021400R0002). Photograph all identifiers.
- Visual / Mechanical Inspection – Check contact surfaces, ceramic, and overall mechanical integrity. Full electrical testing requires specialized high-power equipment.
- QA & Packaging – Protect the press-pack surfaces, clean the device, and pack in protective packaging suitable for high-power semiconductors.
- Global Logistics & Export Compliance – Classify under the correct HS code for power semiconductor devices. Packaging must protect against mechanical shock and moisture; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Gate Unit Compatibility – The IGCT must be driven by the correct ABB gate unit. Incorrect gate drive will destroy the device.
Clamping Force – Press-pack devices require precise mounting pressure. Both under- and over-clamping lead to premature failure.
Cooling – Adequate double-sided cooling and proper thermal interfaces are mandatory. Inadequate cooling severely limits lifetime and current capability.
Handling & ESD – Protect the gate structure from electrostatic discharge and mechanical shock during handling and installation.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 5SHY4045L0004?
As a high-power semiconductor, availability depends on genuine surplus stock. Typical lead time after verification is 5–20 business days plus specialized shipping.
What type of device is the 5SHY4045L0004?
It is an Integrated Gate-Commutated Thyristor (IGCT) in press-pack housing.
What is the related assembly number often seen with it?
It is frequently paired with 3BHB021400R0002 (complete module / power unit reference).
What systems is it used in?
ABB medium-voltage drives and high-power converters that utilize IGCT technology.
Does it require a special gate unit?
Yes. A matching ABB gate unit is required for proper triggering and protection.
Is it still in active production?
It remains part of ABB’s high-power semiconductor portfolio for medium-voltage applications, available both as new and through specialist channels.
What should be confirmed before ordering a replacement?
Exact part number (5SHY4045L0004), matching gate unit, clamping and cooling hardware, and the specific drive or converter model.
