Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 5SHY3545L0020 |
| Related ABB Part Number | 3BHE014105R0001 |
| Product Type | Asymmetric IGCT Module |
| Technology | Integrated Gate-Commutated Thyristor |
| Voltage Class | 4500 V |
| Current Capability | 4000 A class |
| Switching Type | High-power turn-on / turn-off semiconductor switching |
| Package Style | Press-pack semiconductor package |
| Cooling Method | Double-sided cooling design |
| Gate Interface | Compatible ABB IGCT gate-drive assembly |
| Typical Applications | Medium-voltage drives, SVC, industrial converters |
| Product Family | ABB High-Power Semiconductor Devices |
| Condition | New Surplus / Used / Refurbished |
| Warranty | 1 year |
The ABB product description identifies 5SHY3545L0020 as an asymmetric thyristor IGCT, with the product ID 5SHY35L4520 and model name 4500V 4000A.
The related assembly 3BHE014105R0001 is frequently listed together with 5SHY3545L0020 as an IGCT module/gate-drive combination. The exact driver pairing should be confirmed against the installed converter design before replacement.
Product Introduction (Anti-Template)
Operating inside a medium-voltage converter where switching losses directly affect system performance, the ABB 5SHY3545L0020 handles extremely high electrical stress as a power switching component. It is an asymmetric IGCT module designed for applications requiring high voltage blocking capability and large current handling, including industrial converters and power-electronic systems.
This is not a standard replacement semiconductor that can be selected by voltage rating alone. The mechanical clamping system, gate-drive unit, cooling arrangement, and converter topology all need to match. Honestly, checking the complete stack design before installation saves hours of troubleshooting because an incorrect semiconductor match can damage much more than the module itself.

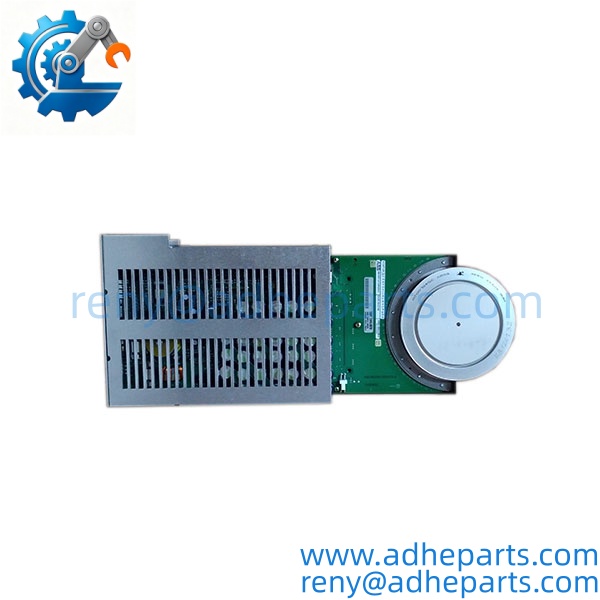

5SHY3545L0020

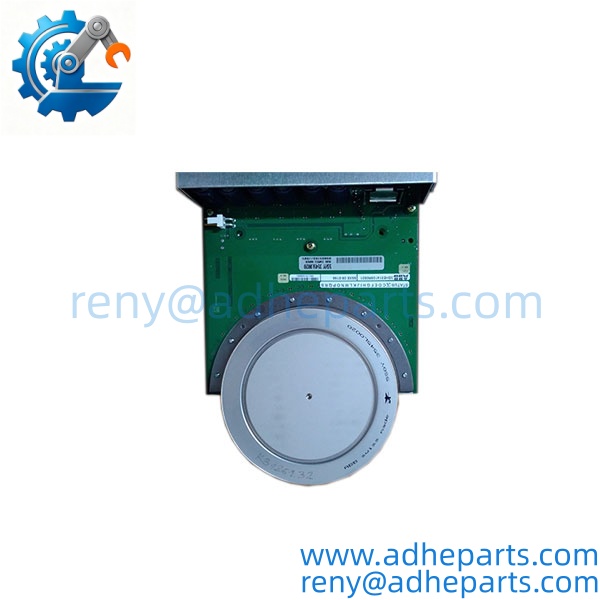

5SHY3545L0020

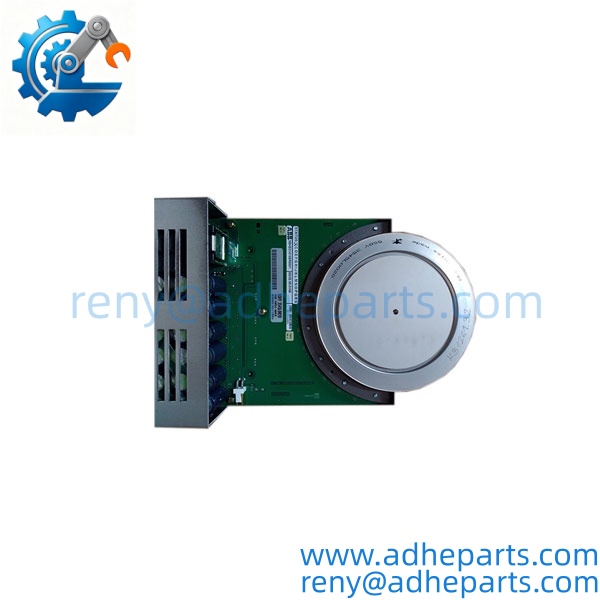

5SHY3545L0020

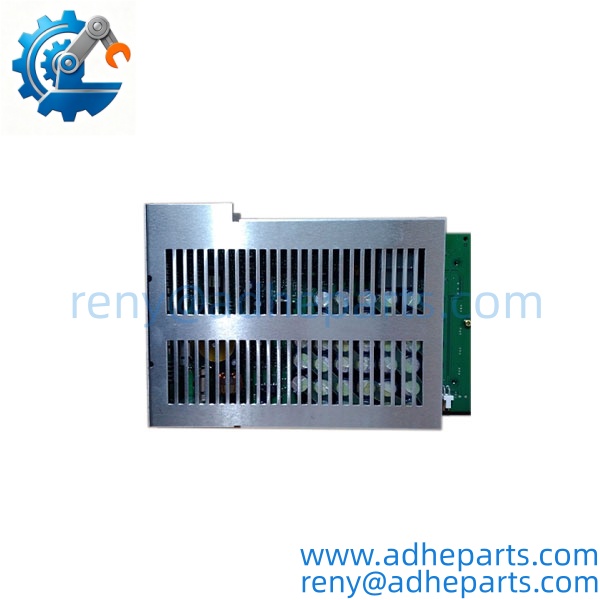

5SHY3545L0020
QC, Procurement & Logistics SOP
1) Inbound Verification
Before accepting an ABB 5SHY3545L0020 into inventory, verify:
- ABB marking.
- Complete model number: 5SHY3545L0020.
- Related part number: 3BHE014105R0001 if supplied as an assembly.
- Serial number.
- Manufacturing label.
- Housing condition.
- Press-pack contact surfaces.
- Signs of mechanical impact.
- Previous installation marks.
Photograph:
- Nameplate.
- Semiconductor body.
- Connection surfaces.
- Packaging condition.
For high-power semiconductor devices, physical inspection is only the first step.
2) Live Rig Testing
Where suitable semiconductor test equipment is available, verify:
- Electrical characteristics.
- Gate-drive response.
- Blocking capability.
- Switching behavior.
- Leakage condition.
- Temperature-related performance.
Do not apply uncontrolled bench power. IGCT devices require correct gate-drive and test procedures.
3) QA & Anti-Static Packaging
Before shipment:
- Use ESD-safe handling procedures.
- Avoid touching sensitive terminals.
- Protect gate connections.
- Prevent mechanical shock.
- Use antistatic packaging.
- Add rigid internal support.
Press-pack devices also require mechanical protection because improper handling can affect internal semiconductor contact pressure.
4) Global Logistics & Export Compliance
Prepare:
- Commercial invoice.
- Packing list.
- Correct technical description.
- HS classification.
- Country of origin documentation when required.
- Customer import requirements.
The product should be declared according to its actual semiconductor function. Final HS classification should follow destination customs requirements.
5) Secure Air/Sea Packaging
Recommended packing:
- Antistatic protection
- Moisture protection
- Shock-resistant inner support
- Rigid export carton
- External protection against impact
- Shipping documentation
- Tracking after dispatch
For one IGCT module, air freight is commonly selected because these components are often required during critical converter maintenance.
Technical Pitfalls & Integration Warnings
1) Incorrect Gate Driver Matching
Scenario:
A maintenance team installs the IGCT device but keeps an incompatible gate-drive unit.
The semiconductor may physically fit while failing to switch correctly.
Always confirm the IGCT and gate-drive combination together.
2) Mechanical Clamping Problems
Scenario:
The electrical ratings appear correct, but the module is installed with incorrect pressure or mounting hardware.
Press-pack devices depend on correct mechanical installation. Uneven pressure can affect reliability.
3) Cooling System Issues
Scenario:
A replacement IGCT passes initial checks but overheats during operation because the cooling interface was not restored correctly.
Inspect cooling surfaces, thermal interfaces, and mounting conditions before commissioning.
4) Similar Part Number Confusion
Scenario:
A buyer orders a similar ABB 5SHY series device because the voltage class looks close.
High-power semiconductor modules are application-specific. Confirm the exact model, converter platform, and revision before substitution.
5) ESD and Handling Damage
Scenario:
A module is removed from packaging without proper protection and later shows abnormal behavior.
Use controlled handling procedures from storage through installation.
Frequently Asked Questions (FAQ)
Q1: What is ABB 5SHY3545L0020?
It is an ABB asymmetric IGCT (Integrated Gate-Commutated Thyristor) module used in high-power electrical conversion applications.
Q2: What is the voltage and current rating of 5SHY3545L0020?
ABB-related product records identify this model as a 4500 V, 4000 A class IGCT device.
Q3: Is 5SHY3545L0020 the same as 3BHE014105R0001?
No. They are commonly listed together, but they represent different references within the IGCT assembly. The exact relationship depends on the supplied configuration.
Q4: Where is ABB 5SHY3545L0020 used?
Typical applications include medium-voltage drives, static var compensation systems, and industrial power converters.
Q5: Can I replace it with another ABB IGCT module?
Not without engineering verification. Check voltage class, current capability, gate driver compatibility, mechanical mounting, cooling method, and converter design.
Q6: Can you provide photos before shipment?
Yes. Actual-stock photos can include the ABB label, module body, connection surfaces, serial information, and packaging condition.
Q7: How is an IGCT module shipped internationally?
The module should be packed with antistatic protection, mechanical support, and impact protection. Shipping method depends on urgency, destination, and customer import requirements.
Q8: Does the replacement require system commissioning?
Yes. After replacement, converter inspection and commissioning procedures should be completed according to the original equipment manufacturer’s requirements.
