ABB 5SHY4045L0001 | Direct Replacement for ACS6000 Four‑Quadrant Power Stacks

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction

When regenerative medium‑voltage drives experience commutation failure during power feedback back to the grid, press‑pack mechanical contact often sits at the root of trouble. This symmetric IGCT fits within ACS6000 regenerative power assemblies, handling both motor‑driving and energy‑return operating modes. Fiber‑optic links isolate low‑voltage gate electronics from high‑potential power circuits; uneven mounting pressure will create localized hot‑spots that do not reveal themselves during cold static testing, —though your mileage may vary depending on coolant cleanliness and actual site load cycles.

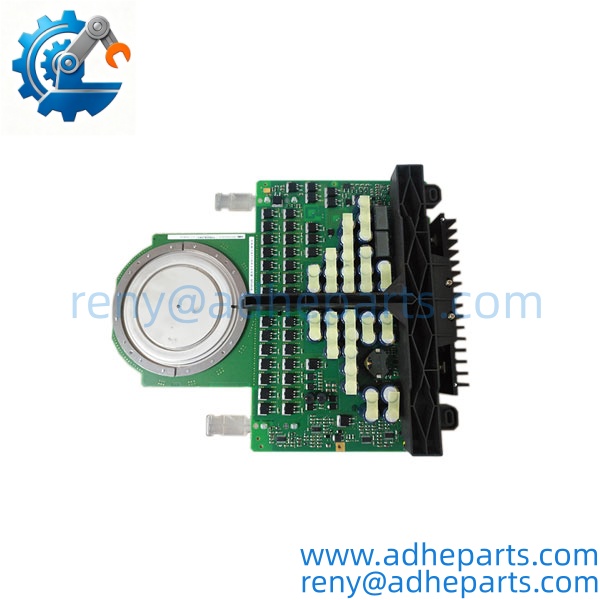

5SHY4045L0001

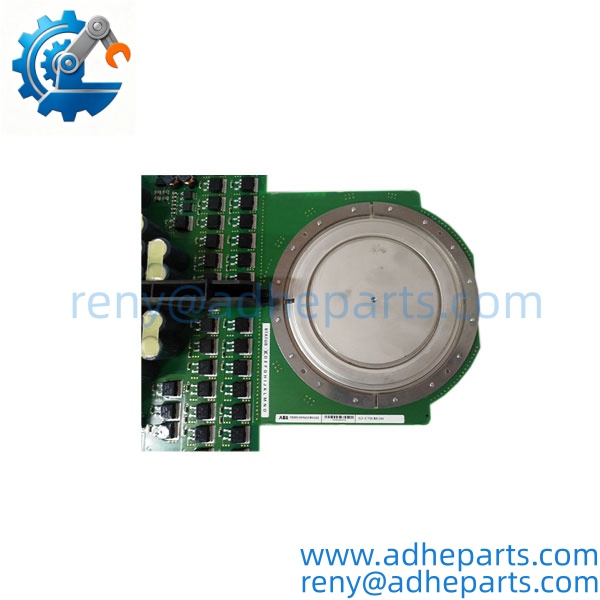

5SHY4045L0001

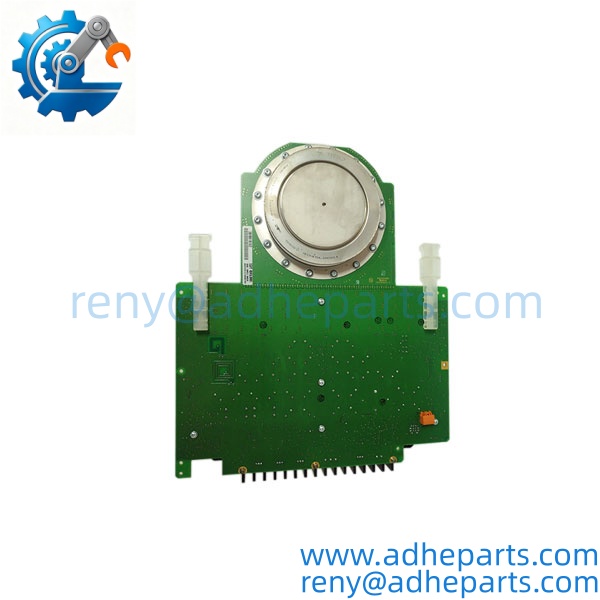

5SHY4045L0001

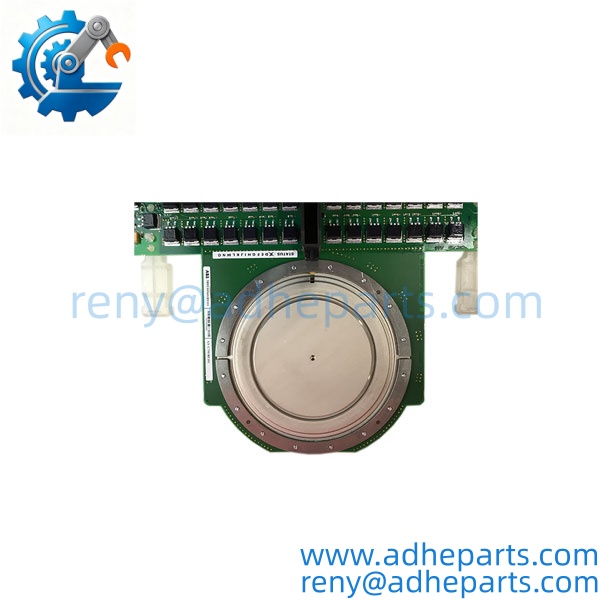

5SHY4045L0001

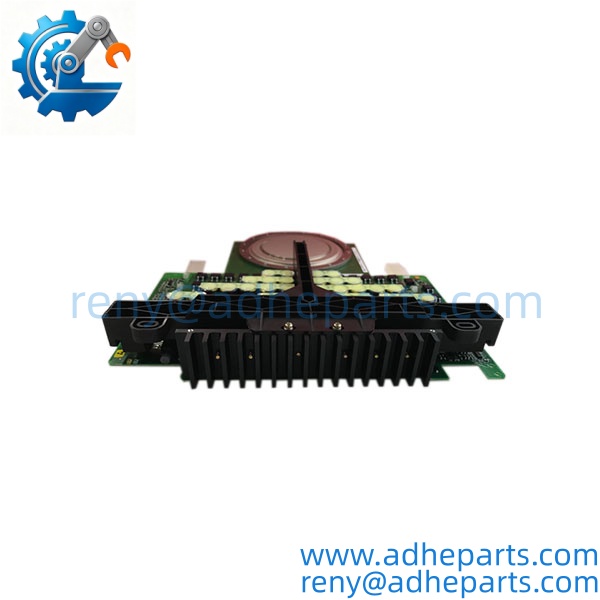

5SHY4045L0001

Key Technical Specifications

Field Application & Technical Pitfalls (The Engineer’s Guide)

Critical industrial scenarios:

• Metal‑industry rolling‑mill regenerative medium‑voltage drives where braking energy feeds back to plant grid.
• Large mine hoist MV converter stacks requiring full four‑quadrant torque control under heavy cyclic loads.
• Pump and fan regenerative retrofit projects using ACS6000 power hardware.

Technical pitfalls to avoid

1. Deviation from 40 kN clamping specification: Clamping below 36 kN creates poor thermal transfer; force above 44 kN risks permanent ceramic package fracture. Well, technically the device may pass cold continuity checks, but thermal cycling under real load produces progressive internal degradation. Watch torque output on the third clamping bolt from the left to maintain even face pressure across the press‑pack surface.
2. Mismatched gate‑driver hardware: Pairing this IGCT with GVC736CE101 without applying required current derate causes premature commutation failures. The physical connector mates, yet gate energy delivery falls short for full‑load regenerative operation.
3. Mixing different silicon revisions within one power stack: Multiple 5SHY4045L0001 units with differing revision codes inside the same converter create unequal current sharing. One device absorbs excess stress and fails early even with good idle‑state readings.

Hypothetical field anecdote: A mill maintenance crew replaced a shorted 5SHY4045L0001 during scheduled downtime. They used old torque hardware and set clamping force near the lower 36 kN limit. For three weeks the regenerative drive operated fine under light load. During a heavy rolling sequence with high power feedback, thermal resistance spiked inside the new IGCT. The device went short‑circuit, triggering converter main protection and halting mill production. No obvious external damage could be seen on the press‑pack after removal.

Quality Control (QC) SOP & Transparency

1. Inbound Verification: Match laser‑etched part marking to 5SHY4045L0001 / 3BHE009681R0101 reference; full visual inspection of copper contact faces for scratches, dents or corrosion; inspect fiber‑optic window condition; review OEM packaging for new‑surplus stock.
2. Live Rig Testing: Mount device inside calibrated IGCT test fixture applying 40 kN clamping force; validate fiber‑optic gate trigger, turn‑off and status feedback signals; capture static blocking‑voltage and on‑state conduction measurement points.
3. Parameter Testing: Measure forward and reverse blocking characteristics; screen for internal leakage that points to latent silicon damage; verify gate optical‑path continuity.
4. Final QA & Packaging: Second visual pass over contact surfaces and optical ports; place unit inside static‑shield anti‑static container; affix QC‑passed physical label including test date; add heavy shock‑absorbent padding to protect flat press‑pack faces for transit.

Frequently Asked Questions (FAQ)

Q: Can I hot‑swap 5SHY4045L0001 while the converter stack stays energized? A: Never. Full de‑energization, DC‑bus discharge and formal lock‑out‑tag‑out procedures must complete. Press‑pack removal under potential exposes personnel to lethal high‑voltage and ruins contact surface geometry.

Q: Will every 5SHY4045L0001 work in my existing ACS6000 regenerative stack? A: Physical fit is consistent, but silicon revision and paired gate‑driver unit must align. Mismatched combinations raise commutation‑fault risk. Verify exact load capacity with the OEM datasheet.

Q: What warranty terms apply for this symmetric IGCT device? A: Standard 12‑month warranty covers test‑verified semiconductor defects. Warranty excludes mechanical damage to press‑pack faces, incorrect clamping‑force damage, gate‑driver mismatch faults, and field‑induced thermal or over‑current stress events.

Q: After swapping this press‑pack IGCT, which commissioning steps cannot be skipped? A: Apply 40 kN calibrated clamping force, inspect and clean all fiber‑optic interfaces, run static stack leakage checks, and perform controlled low‑voltage ramp‑up before allowing full regenerative operating mode.

Q: How do I tell genuine OEM 5SHY4045L0001 apart from rebuilt or counterfeit stock? A: Authentic units carry permanent laser‑etched part and revision codes on metal housing. Rebuilt devices often show machining marks on press‑pack copper faces. Counterfeit stock commonly uses adhesive sticker labels instead of permanent laser marking.

Q: My regenerative converter logs intermittent commutation alarms, should I replace the IGCT right away? A: Hold off on device replacement. First inspect fiber‑optic cable cleanliness, check actual clamping‑force records, and confirm gate‑driver model compatibility. A large share of commutation‑related alarms stem from mechanical or gate‑signal issues rather than semiconductor failure.
