ABB 5SHX1060H0003 | Direct Replacement Medium-Voltage IGCT

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

4. Product Introduction (Anti-Template)

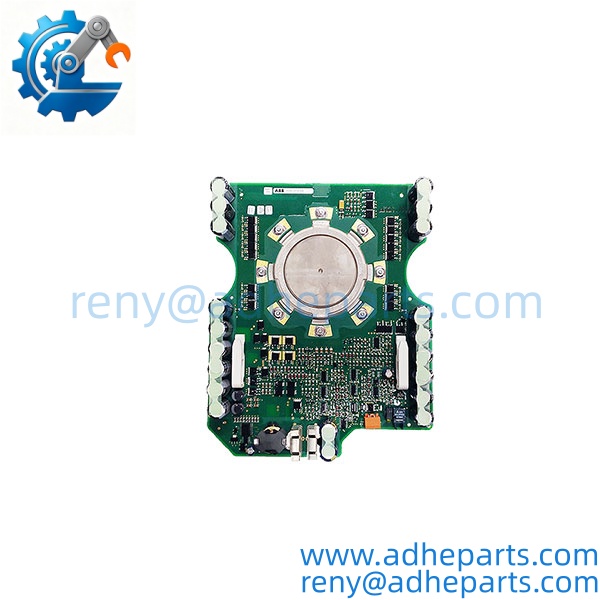

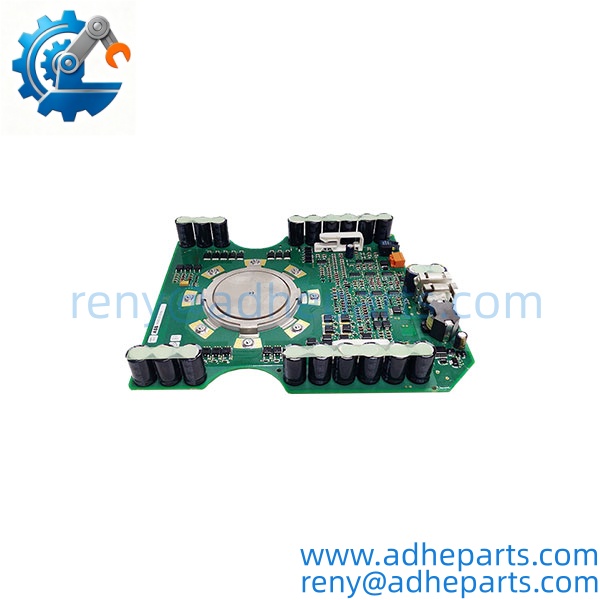

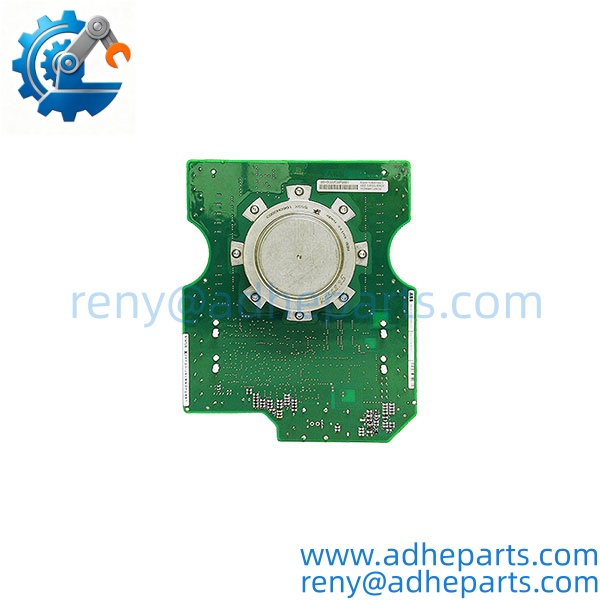

The ABB 5SHX1060H0003 is a reverse-conducting Integrated Gate-Commutated Thyristor (RC-IGCT) designed for high-power medium-voltage applications. It combines a gate-commutated thyristor with an integrated anti-parallel diode in a robust press-pack package.

IGCTs are widely used in ABB medium-voltage drives such as the ACS 6000 series because they offer low conduction losses, high turn-off current capability, and snubberless operation. The press-pack construction provides excellent thermal performance through double-sided cooling and high reliability under thermal cycling. The 5SHX1060H0003 is typically installed as part of a complete phase module or power unit and requires a matching gate unit for proper triggering and protection.

5SHX1060H0003

5SHX1060H0003

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full part number (5SHX1060H0003), package condition, and any associated gate-unit or assembly markings. Photograph all identifiers.
2. Functional / Visual Inspection – Check for mechanical damage, contact surface condition, and proper sealing. Full electrical testing normally requires specialized high-power equipment.
3. QA & Packaging – Protect the press-pack surfaces, clean the device, and pack in original-style protective packaging suitable for high-power semiconductors.
4. Global Logistics & Export Compliance – Classify under the correct HS code for power semiconductor devices. Packaging must protect against mechanical shock and moisture; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

Gate Unit Matching – The IGCT must be used with the correct ABB gate unit. Incorrect or mismatched gate drive will destroy the device.

Clamping Force – Press-pack devices require precise mounting force. Insufficient or excessive force leads to thermal or mechanical failure.

Cooling – Proper double-sided cooling and thermal interface are mandatory. Inadequate cooling drastically reduces lifetime.

Handling – Never apply voltage without proper gate control and protection circuits. Static discharge and improper handling can damage the gate structure.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified 5SHX1060H0003?
As a high-power semiconductor, availability depends on surplus stock of genuine ABB devices. Typical lead time after verification is 5–20 business days plus specialized shipping.

What type of device is the 5SHX1060H0003?
It is a Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) in press-pack housing.

What systems is it used in?
Primarily ABB medium-voltage drives such as the ACS 6000 series and similar high-power converters.

Does it include a freewheeling diode?
Yes. It is a reverse-conducting IGCT with an integrated anti-parallel diode.

Is special mounting equipment required?
Yes. Correct clamping force and cooling hardware are essential for reliable operation.

Is it still in active production?
It remains part of ABB’s high-power semiconductor portfolio for medium-voltage drive applications, available both as new and through specialist channels.

What should be confirmed before ordering a replacement?
Exact part number (5SHX1060H0003), matching gate unit, clamping/cooling hardware, and the specific drive or converter model it is intended for.
