Product Introduction
When your high-power industrial power conversion system needs ultra-reliable high-voltage high-current switching performance to ensure the stable operation of large medium-voltage drives, HVDC transmission and offshore wind power equipment, this module acts as the core power switching hub.
It is a flagship asymmetric IGCT RC module from ABB, adopting advanced press-pack mechanical design and hermetically sealed ceramic housing, which is highly resistant to moisture, dust and vibration. Its snubberless turn-off capability simplifies system design and reduces external component count, while the optimized low conduction loss design delivers 10-15% energy savings in demanding continuous-operation scenarios. It is widely recognized as a core replacement part for ABB high-power medium-voltage drive and new energy power conversion system maintenance projects.

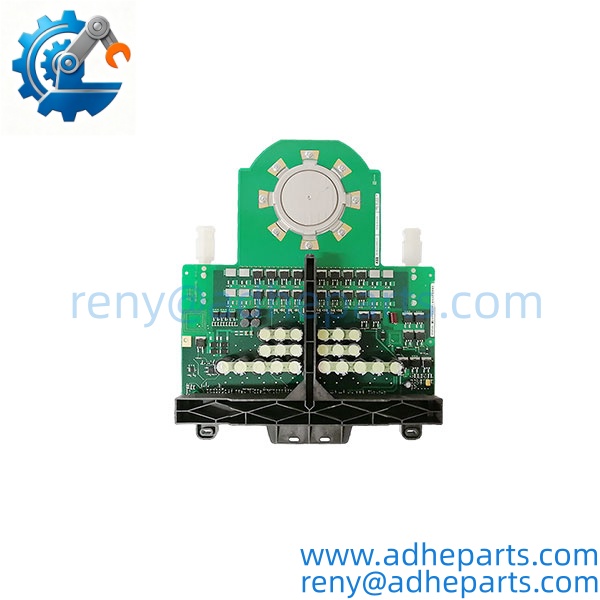

5SHX1445H0002

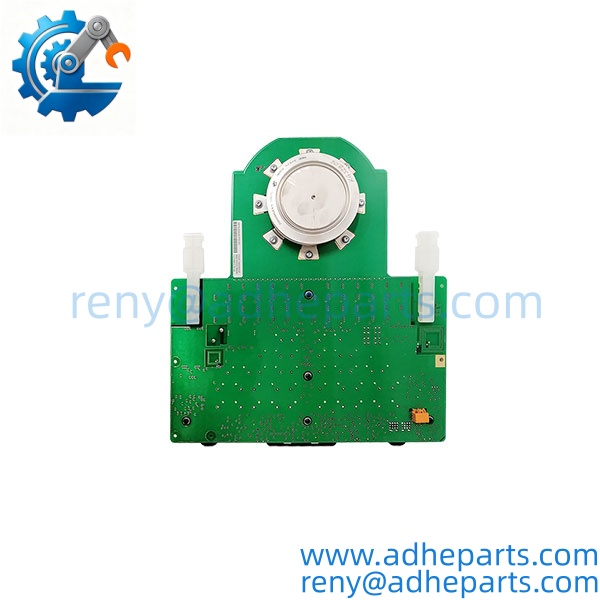

5SHX1445H0002

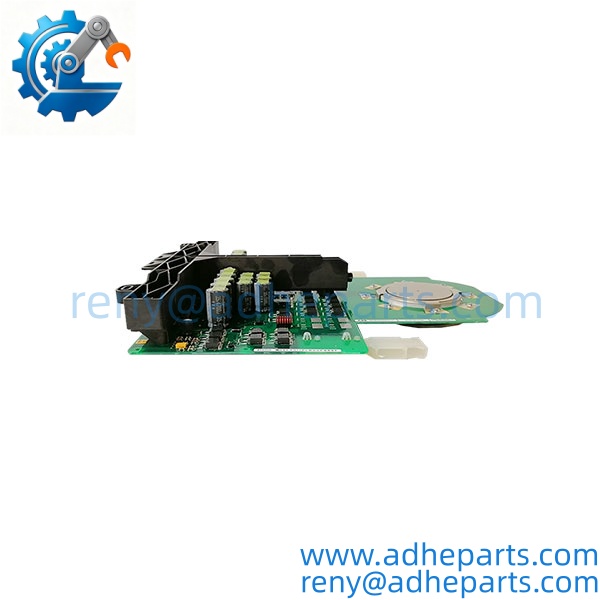

5SHX1445H0002
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 5SHX1445H0002 (3BHL000387P0101) |
| Product Type | Asymmetric IGCT RC Power Semiconductor Module |
| Brand | ABB |
| Country of Origin | Sweden (ABB European factory production) |
| Voltage Rating | 4.5 kV |
| Current Rating | 1445 A |
| Short-Circuit Withstand Capability | 10 kA |
| Thermal Resistance | 0.1°C/W |
| Maximum Operating Temperature | 150°C |
| Operating Temperature Range | -40°C ~ +85°C |
| Switching Frequency | Up to 20 kHz |
| Core Feature | Snubberless turn-off, no external snubber circuit required |
| Housing Design | Hermetically sealed ceramic housing, press-pack mechanical structure |
| Cooling Method | Water-cooled industrial grade design |
| Dimensions | 140 mm × 190 mm × 30 mm |
| Net Weight | ~1.5 kg |
| Compatible Systems | ABB ACS6000, PCS6000 series medium-voltage drives, HVDC converters, offshore wind power converters |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Mine Medium-Voltage Conveyor Drive Control: Acts as the core high-power switching unit inside ABB ACS6000 medium-voltage drive cabinets for mine conveyor systems, ensuring stable high-power variable-frequency speed regulation for mine main conveyor motors.
- **Offshore Wind Power Converter System Control: Delivers reliable power conversion performance for offshore wind turbine ABB PCS6000 converters, adapting to high-humidity high-salt-spray offshore environments, meeting the 24/7 continuous operation requirements of new energy power generation.
- **HVDC Transmission System Power Conversion: Adapts to high-voltage high-current HVDC transmission system scenarios, providing stable high-power switching performance for the core converter units of long-distance DC transmission projects.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily install this module in a non-matching revision ABB high-power converter system. The third gate drive channel will experience parameter mismatch that causes the module to trigger overcurrent damage during switching.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full gate drive signal test will leave you with hidden switching dead zones. This unit must confirm the gate drive signal waveform fully meets factory specifications before applying high-voltage power.
- ⚠️ Bold Warning 3: Do not perform hot-swap operation while the high-power converter system is running. Unexpected power interruption during the swap will cause the entire high-power conversion system to shut down, resulting in unplanned downtime of the connected industrial equipment.
A large offshore wind farm maintenance team once swapped a 5SHX1445H0002 module without verifying the gate drive signal. The hidden abnormal gate signal caused the module to experience overcurrent burnout during high-power switching, resulting in a 3-hour unplanned shutdown of the wind turbine.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official high-power IGCT part registry, confirm the part number 5SHX1445H0002 matches the factory label, and inspect no damage or deformation on all power electrodes and gate signal connectors.
- Live Rig Testing: Power the unit in a calibrated ABB IGCT test bench, apply standard gate drive signals, and confirm full 2-hour continuous stable switching operation under rated current conditions.
- Parameter Testing: Verify all switching performance parameters meet factory specifications, confirm snubberless turn-off function operates correctly, and validate all insulation performance indicators meet industrial safety standards.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the high-power converter system is running? No. You must first shut down the high-voltage main circuit, confirm the DC bus is fully discharged, and cut off all gate drive power supplies before removing the unit, otherwise you will trigger unexpected high-voltage arc and equipment damage risks.
- What exact systems is this module compatible with? It works natively with ABB ACS6000, PCS6000 series medium-voltage drives, corresponding HVDC converters and offshore wind power converter systems.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, improper gate drive signal matching, or overvoltage in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB 5SHX1445H0002 modules have a laser-etched part number on the ceramic housing, not a printed sticker. Clone units almost always fail the full 1445A rated current switching performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this module directly replace the older ABB legacy IGCT power unit? Well, technically it fits the same standard press-pack installation footprint, but you must confirm the gate drive system parameters fully match the target system before replacement to ensure 100% system compatibility.
