Advantages and Features
- Precise Bus Termination: Ends the CEX-Bus line with no stubs or open ends, eliminating reflections and ensuring clean signal integrity across the entire network.

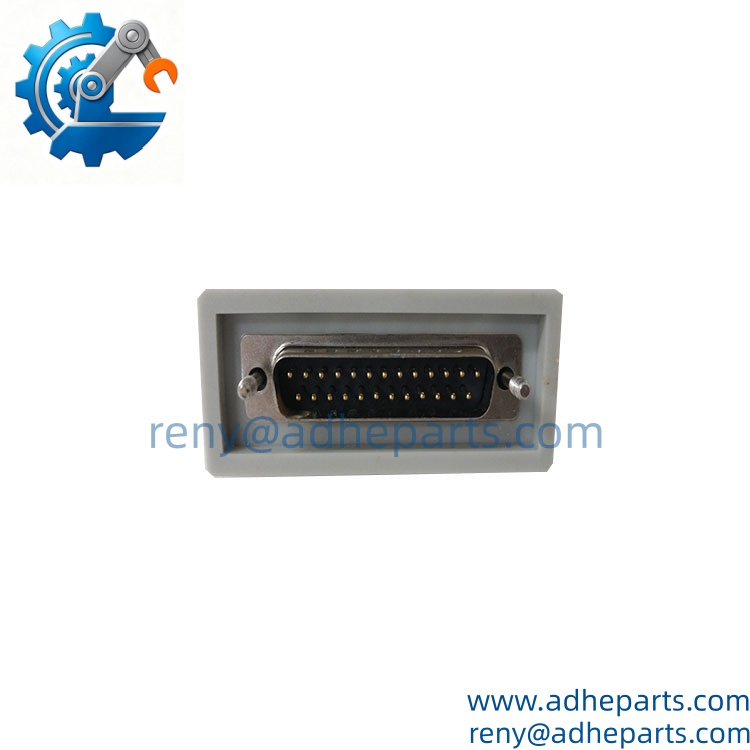

- Standard Connector: 25-pin DB25P male connector with screw fixing for secure, tool-free installation.
- Compact & Lightweight: Slim 55 mm (L) x 50 mm (W) x 16 mm (H) dimensions, net weight only 0.04 kg — ideal for tight cabinets or modular backplanes.
- High Reliability & RoHS Compliant: No RoHS declaration needed; fully compatible with ABB AC 800M hardware and 800xA software (Version 4.0+); long lifecycle support in legacy and modern installations.
- Easy Integration: Plug-and-play module that integrates seamlessly with AC 800M controllers, CI801/CI840 communication interfaces, and prefabricated CEX-Bus cables.
- Proven Performance: Mandatory termination ensures zero bus errors, reduced downtime, and reliable operation in harsh industrial environments.
Application Cases in Application Fields
- Process Industry (Chemical, Oil & Gas, Power Plants): Reliable fieldbus communication in AC 800M-based DCS for real-time control of valves, pumps, and sensors.
- Manufacturing & Automation: Discrete/sequential control in 800xA systems for packaging lines, conveyors, and material handling where CEX-Bus stability is critical.
- Marine & Offshore: Coated or marine-rated applications requiring noise-free bus termination for safety-critical systems.
- Legacy System Upgrades: Modernization of AC 800M or 800xA installations while maintaining existing CEX-Bus infrastructure.
- Any AC 800M Network: Essential for every CEX-Bus segment to achieve full bus performance and prevent intermittent faults.
Comparisons with Competing Products
- Vs. Siemens SIMATIC CP or Emerson Ovation fieldbus terminators: ABB TB850 offers native AC 800M / 800xA protocol compatibility and exact 25-pin DB25P termination without adapters; competitors often require additional gateways or converters for legacy ABB systems.
- Vs. Yokogawa or generic Ethernet/fieldbus terminators: TB850 provides zero-configuration plug-and-play termination tailored for CEX-Bus, reducing setup time and system complexity vs. third-party solutions.
- Vs. ABB’s own AC 800M communication modules (e.g., CI801 without terminator): TB850 is the mandatory final step to complete the bus topology and prevent reflection issues that generic modules cannot address.
- Vs. Non-ABB DCS terminators: Superior long-term reliability, RoHS status, and direct 800xA integration deliver lower long-term drift and higher uptime in ABB ecosystems.
Selection Suggestions and Precautions
Selection Suggestions: Essential for every AC 800M installation using CEX-Bus. Pair with CI801/CI840 communication interfaces, TU series termination units, and full AC 800M controller modules (e.g., AI860, DI920). Recommended for applications requiring maximum bus stability and <1 ms cycle times.
Precautions:
- Install only on the last unit of the CEX-Bus network (no further modules beyond TB850).
- Use with compatible 24 VDC CEX-Bus voltage and shielded twisted-pair cables.
- Avoid installation in hazardous areas without proper ATEX/IECEx certification (standard version is non-incendive).
- Proper grounding and cable shielding per IEC 61000-4-4 and ABB guidelines required.
- Confirm compatibility with 800xA software version before deployment.
Recent Hot Selling Models from the Same Brand (ABB AC 800M Series)

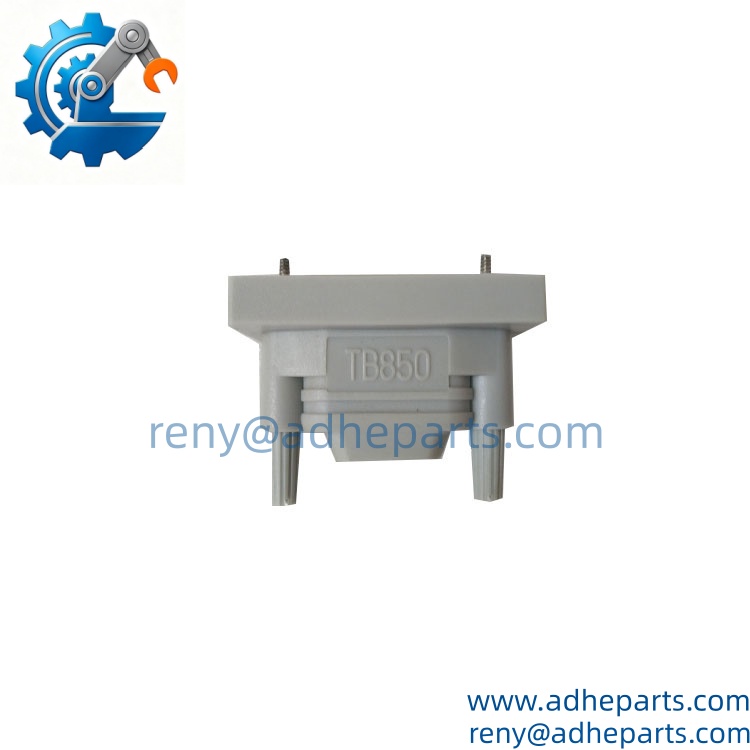

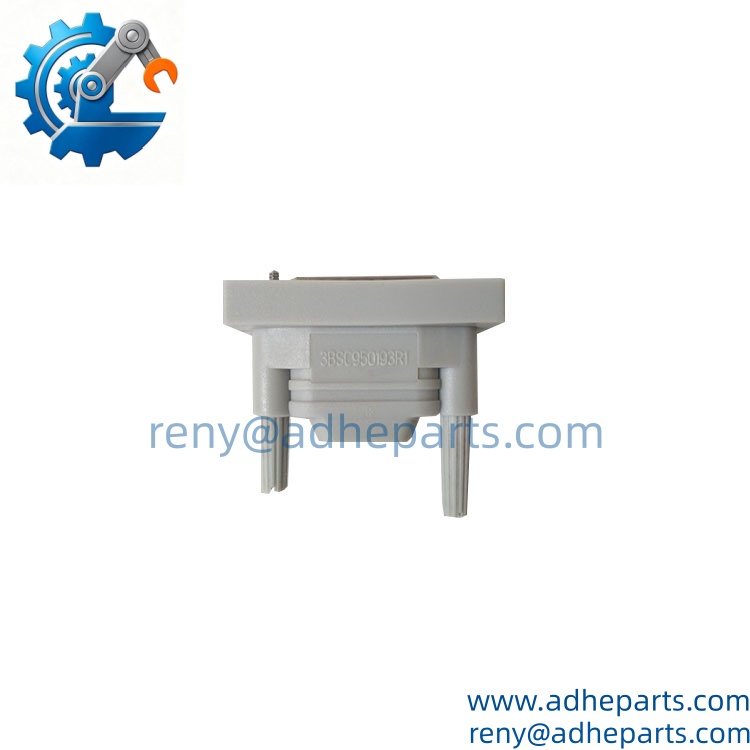

- TB850 3BSC950193R1 – This CEX-Bus Terminator (top seller for network completion).
- BC810 – CEX-Bus Interconnection Unit (frequently paired for network expansion).
- CI801 – Communication Interface 801 (essential for CEX-Bus master/slave operation).
- CI840 – Communication Interface 840 (modern redundant version rising in new 800xA installs).
- TU837 – Extended Module Termination Unit (popular companion for I/O clusters).
