GE IS420UCSBH4A | UCSB Turbine Control Processor

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

The IS420UCSBH4A is a UCSB controller used in GE Mark VIe control-system applications. GE documentation identifies the H4A variant with a 1066 MHz Intel EP80579 processor. The same controller family is used across Mark VIe-related applications, including EX2100e and LS2100e configurations.

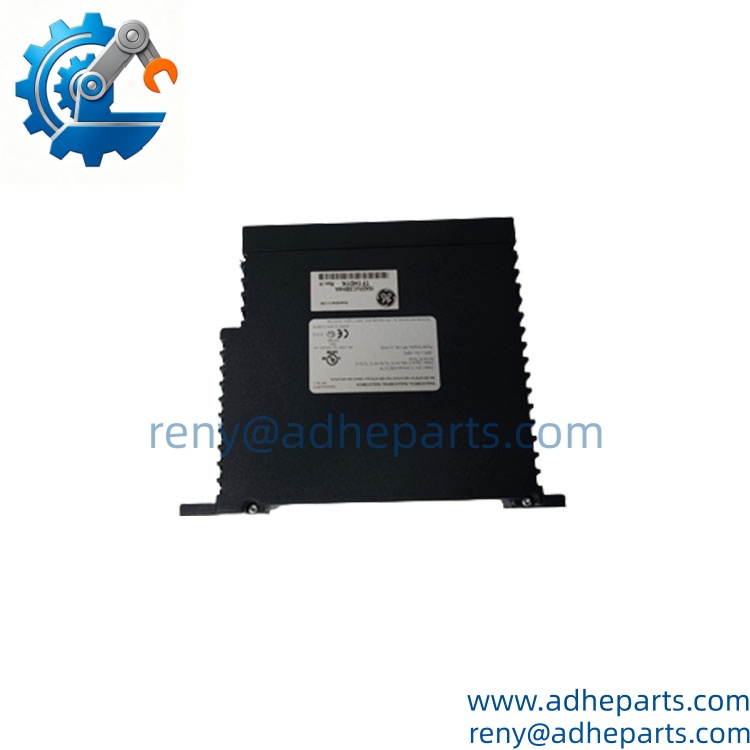

GE–IS420UCSBH4A label

Key Technical Specifications

GE’s technical material specifies 256 MB ECC DDR2 SDRAM, 2 GB NAND flash, QNX Neutrino, one primary Ethernet interface, one secondary Ethernet interface, and three dedicated IONet Ethernet ports for the UCSB platform.

The H4A version is specifically identified with a 1066 MHz EP80579 Intel processor. GE certification documents also list IS420UCSBH4A among the Mark VIe controller models covered by applicable control-system certifications.

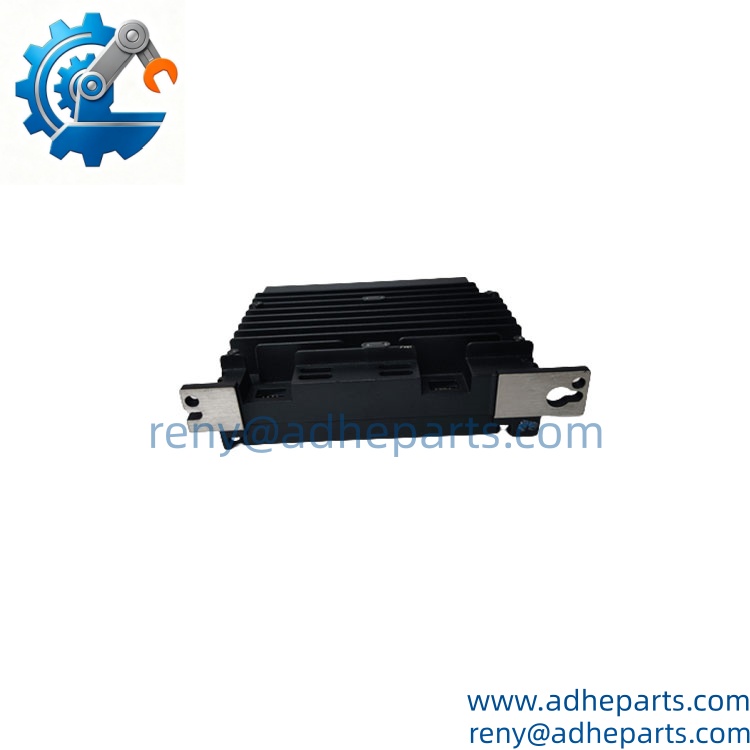

GE–IS420UCSBH4A backside

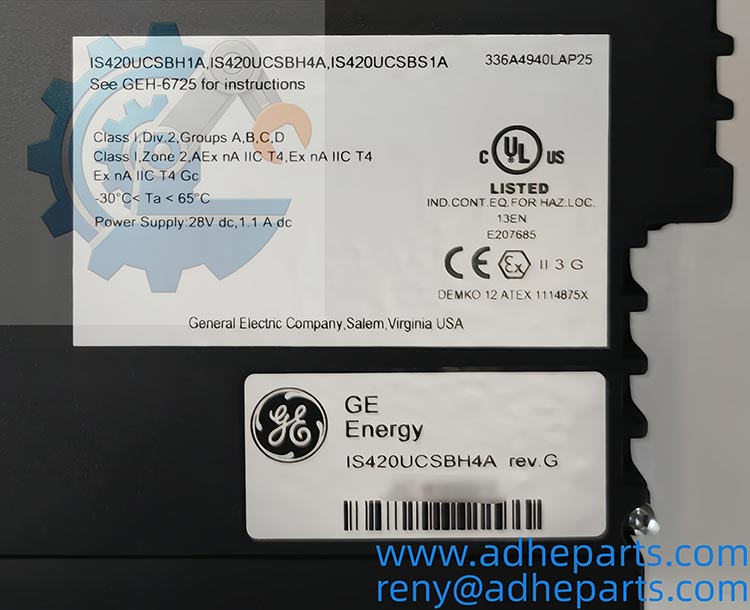

GE–IS420UCSBH4A label

Product Introduction (Anti-Template)

Operating as the processing unit of a Mark VIe control architecture, the GE IS420UCSBH4A executes the controller application while maintaining communication with the system’s I/O network. The H4A version uses a 1066 MHz Intel EP80579 processor, QNX Neutrino operating system, ECC-protected memory, and dedicated IONet interfaces for Mark VIe I/O communication.

This is a controller, not an ordinary I/O card. The application software, controller configuration, IONet topology, and system revision all matter when replacing it. The three IONet ports are specifically intended for communication with Mark VIe I/O modules, while the primary Ethernet connection handles controller/tooling and other system-level communications.

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete part number IS420UCSBH4A, serial number, hardware revision, processor identification, connector condition, and nameplate markings. Photograph the controller before stock entry.
2. Controller Revision Check
   Record the hardware revision and compare it with the customer’s installed controller. For Mark VIe systems, the controller hardware should be considered together with the applicable ControlST/ToolboxST and system revision.
3. Live Rig Testing
   Where a compatible test environment is available, verify controller startup, diagnostics, Ethernet communication, IONet communication, memory operation, and controller status. A simple power-on test is not enough for a CPU/controller.
4. Application & Configuration Verification
   Before replacement, record the existing controller configuration, application software revision, IP parameters, IONet topology, and controller role. A physically compatible controller may still require the correct application and configuration before it can return to service.
5. QA & Anti-Static Packaging
   Use ESD precautions when handling the controller. Protect all RJ-45 connectors, exposed interfaces, and the PCB assembly from static discharge and mechanical shock.
6. Global Logistics & Export Compliance
   Export documentation should identify the product as a GE IS420UCSBH4A UCSB Controller Module for Mark VIe Control Systems. HS classification should be reviewed against the actual controller function and destination customs requirements. For urgent turbine-maintenance requirements, air freight is generally preferable; use rigid internal cushioning to prevent connector and PCB damage.

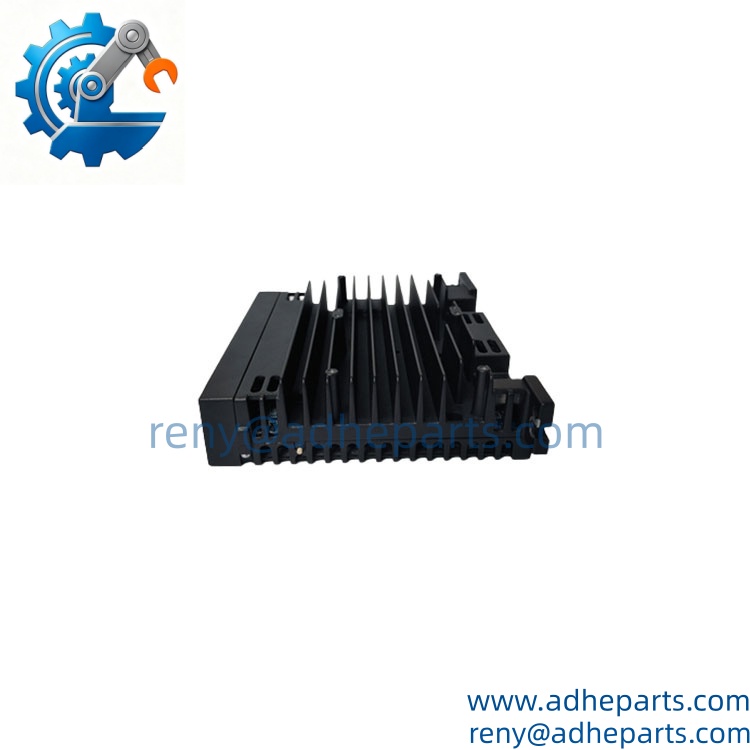

GE–IS420UCSBH4A sideview

Technical Pitfalls & Integration Warnings

1. Processor Variant Mismatch
   The UCSB family contains several processor variants. GE documentation identifies H1A/S1A at 600 MHz, H3A at 1200 MHz, and H4A at 1066 MHz. Do not substitute another UCSB variant solely because the physical form appears similar.
2. IONet vs. Standard Ethernet

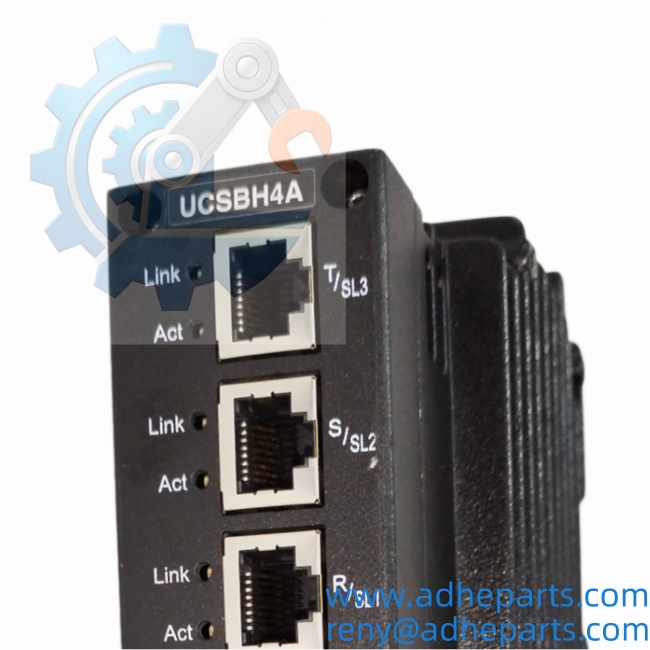

   The three IONet ports are not simply spare Ethernet ports. They are dedicated to communication between controllers and Mark VIe I/O modules. Connecting or configuring these ports as ordinary plant-network interfaces can create serious communication problems.
3. Software / Firmware Compatibility
   A replacement controller may boot normally but still fail to assume the original control function if the application, ControlST/ToolboxST version, configuration, or controller role does not match. Check the software environment before shipping a replacement.
4. Hazardous-Area Certification
   If the controller is installed in a classified location, certification conditions must match the actual installation. GE documentation identifies specific hazardous-location certifications for applicable UCSB controllers. Do not assume that an H4A with the same basic part number is automatically approved for every hazardous-area installation.

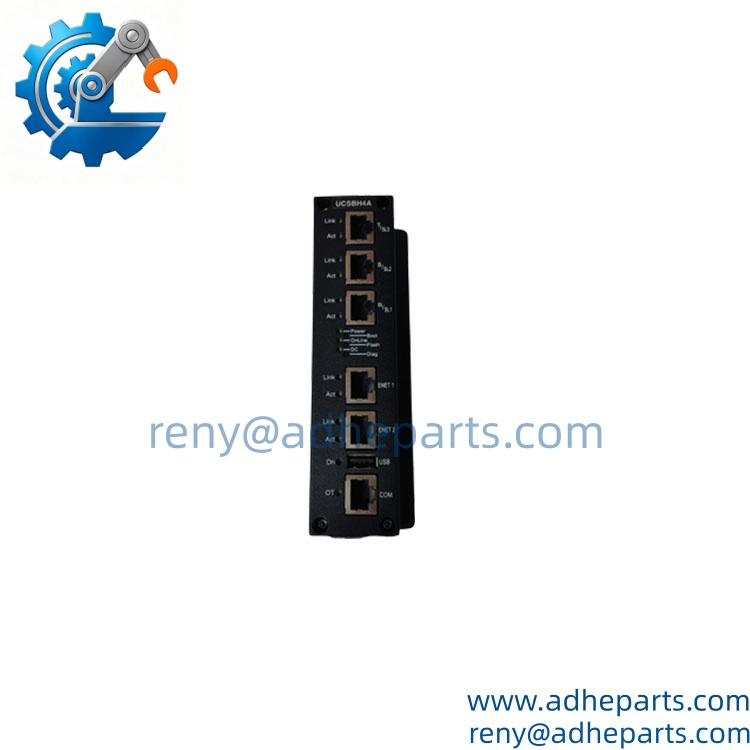

GE–IS420UCSBH4A sideview

Frequently Asked Questions (FAQ)

Q1: “What is GE used for?”

It is a UCSB controller module for GE Mark VIe control systems. It executes the control application and communicates with Mark VIe I/O through the dedicated IONet network. It is also associated with EX2100e and LS2100e applications.

Q2: “What processor does the H4A version use?”

The uses a 1066 MHz Intel EP80579 processor. This is an important distinction because other UCSB variants use different processor speeds.

Q3: How many Ethernet ports does it have?

The UCSB technical documentation identifies:

• 1 × primary Ethernet interface
• 1 × secondary Ethernet interface
• 3 × dedicated IONet Ethernet interfaces

The IONet ports have a specific Mark VIe control-network function and should not be treated as ordinary Ethernet switch ports.

Q4: “Can I replace H4A with another UCSB controller?”

Not automatically.

For example, an IS420UCSBH3A and belong to the same UCSB family, but the H3A uses a 1200 MHz EP80579 processor while the H4A uses 1066 MHz. The application, hardware revision, certification, and software environment must all be checked before approving a substitute.

Q5: Can the be hot-swapped?

Do not assume so. This controller executes active control logic and communicates with I/O modules. Removing it can affect the control system immediately unless the architecture provides an approved redundancy or maintenance procedure.

Before replacement, confirm:

• Controller redundancy status
• Active/backup role
• IONet topology
• Application state
• Maintenance/bypass requirements
• Site-approved replacement procedure

Q6: “What happens if the replacement powers on but the turbine system does not run?”

Check the controller software and configuration before declaring the hardware defective. Typical causes include:

• Incorrect application revision
• Wrong controller configuration
• Incorrect IP parameters
• IONet configuration mismatch
• Controller role not assigned correctly
• Software compatibility issue
• Missing or incorrect application download

A controller that passes a bench power-on test is not necessarily ready for immediate field commissioning.

Q7: What information should I send when ordering ?

Please provide:

• Controller nameplate photo
• Complete part number
• Hardware revision
• Serial number
• Current ControlST/ToolboxST version
• Application/system model
• Controller redundancy arrangement
• IONet configuration
• Existing software/application backup, if available
• Quantity required
• Destination country
• Required delivery date

For this GE controller, the hardware number is only the first verification point. If the customer can provide the controller label plus the existing Mark VIe system/software revision, the replacement can be evaluated much more accurately.
