Description
Key Technical Specifications
- Operating Power: 24 VDC ±10%
- Serial Ports 1 & 2: Fixed RS-232 interfaces
- Serial Ports 3 & 4: Software selectable RS-232 / RS-422 / RS-485
- Supported Protocols: Modbus RTU, Modbus ASCII
- Maximum Baud Rate: 115.2 kbps
- Local Digital I/O: 12 × 24 VDC digital inputs; 8 × 2 A relay outputs
- Front Panel: 24-character alphanumeric LED display, status indicator LEDs
- Operating Temperature Range: -40 °C to +70 °C
- Humidity Rating: 5% to 90% non-condensing, non-condensing
- Rack Compatibility: MicroNet Plus, MicroNet Simplex and MicroNet TMR chassis
- Direct Compatible Unit: Drop-in replacement for Woodward 5501-470
Product Introduction

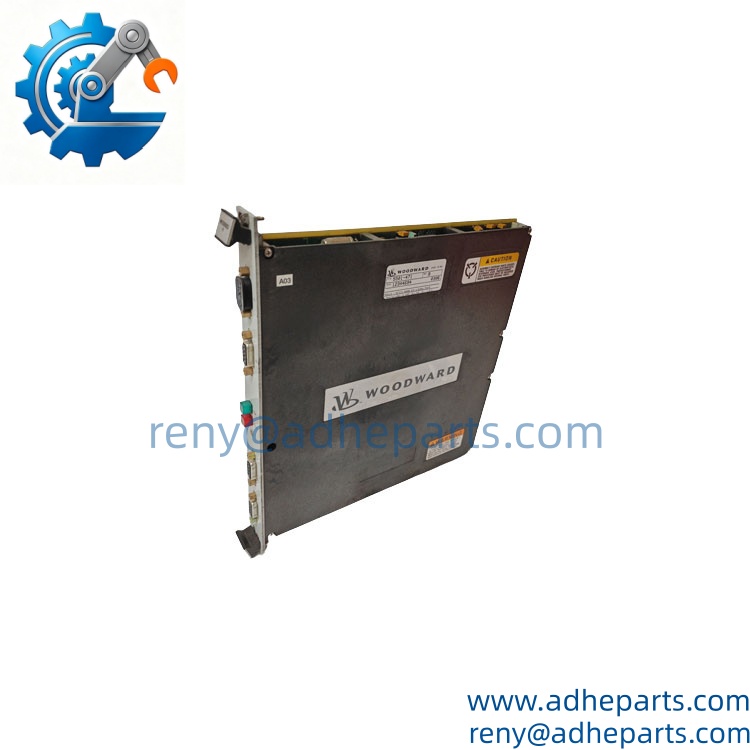

When serial communication links between turbine control racks and remote monitoring systems cut out, operators lose real-time visibility of critical machine parameters. The Woodward 5501-471 acts as a dedicated serial gateway bridging the MicroNet backplane and external Modbus peripherals. Each serial channel requires independent configuration; mismatched port settings will block data transmission entirely. Honestly, saving port configuration files before swapping hardware prevents hours of rework after module installation.
QC, Procurement & Logistics SOP

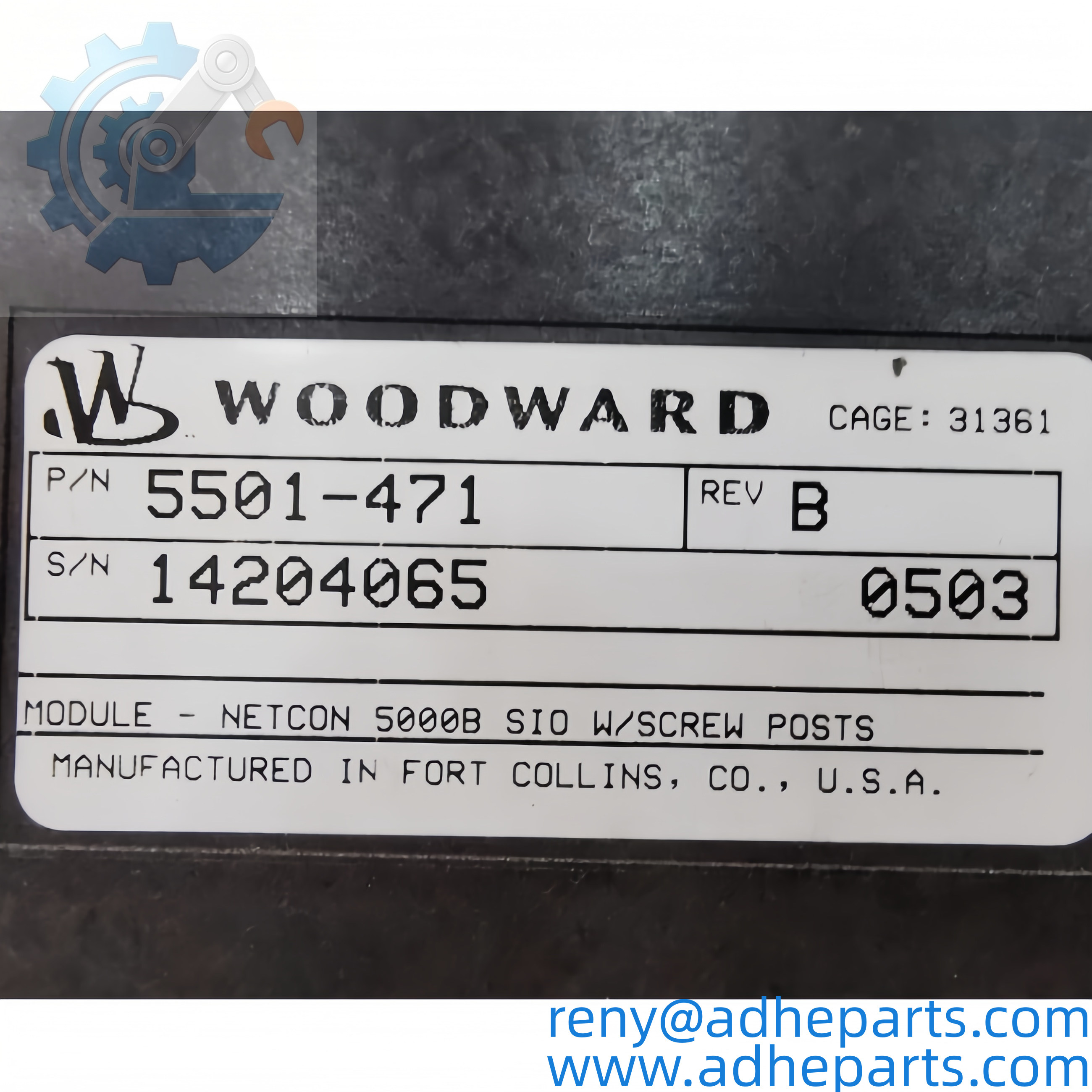

- Inbound Verification: Inspect factory Woodward labeling, cross-reference serial identifiers for origin tracing, and check the module housing for dents or evidence of prior disassembly.
- Live Rig Testing: Complete power-on initialization, verify communication function on all four serial ports, and confirm digital input and relay output channels operate as expected.
- QA & Anti-Static Packaging: Seal each module inside static shielding bags, cushion with shock-absorbent foam, and label cartons for sensitive turbomachinery communication hardware.
- Global Logistics & Export Compliance: Assign accurate HS classification for industrial serial communication modules. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older MicroNet chassis firmware cannot fully support all serial port features on newer batches of 5501-471. One gas compression facility installed the module without updating system software, and RS485 multi-drop networks failed to establish stable connections.
- Serial Port Configuration Errors: Ports 3 and 4 default to RS232 mode. A technician neglected to reconfigure hardware mode, leading to constant communication timeouts on long-distance field wiring.
- Relay Load Overload: Onboard relay outputs carry a maximum 2 A rating. Driving heavy inductive loads without external contactors burns internal relay contacts gradually.
- ESD destruction during unboxing: Removing the unit from shielding packaging without a grounded wrist strap risks damaging serial transceiver circuits. Static damage often causes intermittent communication faults that only surface under full operating load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 5–8 weeks subject to factory production schedules.Q: Can I select air freight or sea freight for this Woodward NetCon SIO module?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 5501-471 support hot-swap while the MicroNet rack remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks backplane communication faults and permanent damage to adjacent rack modules.Q: Is the 5501-471 backward compatible with systems running 5501-470?A: Physical slot fit matches, and it serves as a direct hardware replacement. Full feature compatibility depends on matching controller firmware versions; bench testing is recommended before site deployment.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and multi-port communication validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this SIO module?A: Persistent cabinet dust buildup, unshielded serial wiring exposed to electrical noise, and sustained operation above 65 °C accelerate degradation of serial transceiver components. Maintain regular cabinet air filter replacement cycles.
