Product Introduction
When your Triconex SIS safety instrumented system needs ultra-reliable fault-tolerant digital safety output performance to ensure that the safety interlock action can be executed correctly when a dangerous process condition occurs, this module acts as the core safety execution hub.
It is a flagship TMR redundant digital output module for Triconex Tricon safety instrumented systems, adopting triple modular redundancy architecture, all output signal paths are triplicated, and the mid-value selection algorithm is used for signal voting processing. It provides 32 commoned digital output channels, with a nominal 24VDC working voltage, each point can carry 1.7A continuous current and 5A 7ms surge current, and the minimum load current requirement is 10mA. It maintains 1500VDC minimum electrical isolation between the system side and the field side, and the output diagnostic fault coverage rate is as high as 99.9%, with a maximum fault diagnosis toggle rate of 60ms. It has built-in reverse polarity protection and overcurrent automatic protection, and the total output current of the module through the external terminal panel does not exceed 10A. It is a core replacement part for Triconex SIS safety system maintenance and retrofit projects.

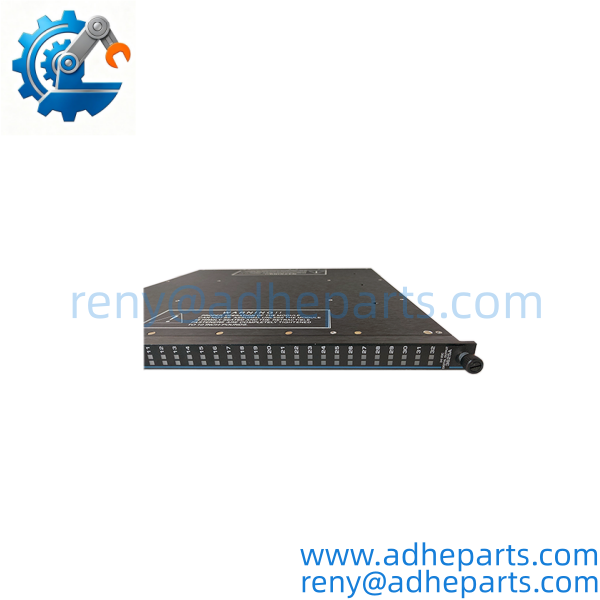

Triconex 3625A

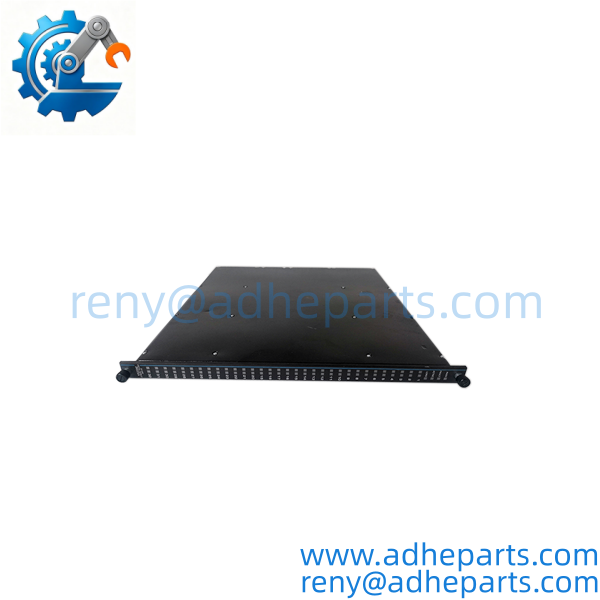

Triconex 3625A

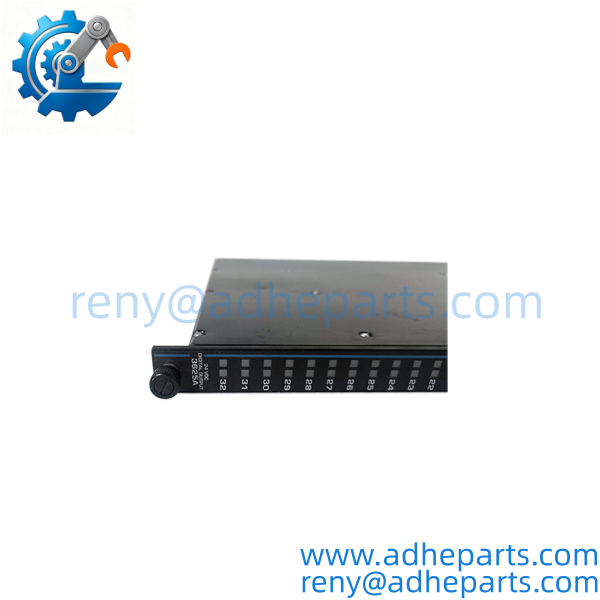

Triconex 3625A
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3625A |
| Product Type | TMR Digital Output Module |
| Manufacturer | TRICONEX (Invensys/Schneider Electric) |
| Architecture | Triple Modular Redundancy (TMR) |
| Total Digital Output Channels | 32 commoned channels |
| Nominal Working Voltage | 24 V DC (19V ~ 31.2V) |
| Recommended Voltage Range | 16 VDC ~ 32 VDC |
| Maximum Withstand Voltage | 36 VDC |
| Per-Point Continuous Current Rating | 1.70 ±10% A |
| Per-Point Surge Current Rating | 5 A / 7 ms |
| Minimum Required Load Current | 10 mA |
| Maximum Output Leakage Current | 2.0 mA @ 24 VDC; 2.5 mA @ 32 VDC |
| System-Field Isolation | ≥ 1500 VDC |
| Diagnostic Fault Coverage | 99.9% |
| Maximum Fault Diagnosis Toggle Rate | 60 ms |
| Total Module Output Current | ≤ 10 A (per termination panel) |
| Logic Power Consumption | < 13 W |
| Operating Temperature Range | -20°C ~ +70°C |
| Safety Integrity Level | SIL 3 certified |
| Installation Method | Standard Tricon SIS chassis slot mounting |
| Net Weight | ~2.06 kg |
| Compatible Systems | Triconex Tricon series safety instrumented systems |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Petrochemical Plant SIS System Safety Interlock Execution: Acts as the core digital output unit for Triconex SIS systems in petrochemical production plants, outputting emergency shutdown (ESD) signals, fire and gas protection interlock signals, ensuring that the safety protection system can trigger the shutdown action correctly when a dangerous situation occurs.
- **Offshore Oil Platform Safety Control System: Delivers reliable TMR fault-tolerant performance for offshore oil platform safety instrumented systems, adapting to strong electromagnetic interference and high-corrosion offshore environments, meeting the zero-misoperation safety operation requirements of offshore oil production.
- **Chemical Plant High-Risk Reaction Kettle Emergency Shutdown System: Adapts to high-risk flammable and explosive chemical production environments, providing 100% fault-tolerant safety output support for the emergency shutdown system of large chemical reaction kettles.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily use non-matching non-Triconex standard external terminal panels for signal wiring. The third output channel will experience overcurrent that causes the module to burn out.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full channel TMR voting test will leave you with hidden safety protection misoperation/refusal risks. This module must confirm all 32 channels’ mid-value selection voting functions fully meet SIL 3 safety specifications before putting into operation.
- ⚠️ Bold Warning 3: Do not perform hot-swap operation while the SIS safety system is running. Unexpected safety output interruption during the swap will cause the safety interlock function to fail, resulting in serious industrial safety hazards.
A large petrochemical plant maintenance team once swapped a Triconex 3625A module and skipped the TMR voting test. The hidden single-channel output failure caused the SIS system to fail to trigger the emergency shutdown action when the reactor temperature exceeded the limit, resulting in a 4-hour emergency shutdown of the production unit.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Triconex’s official SIS part registry, confirm the part number 3625A matches the factory label, and inspect no bent pins or corrosion on all backplane and signal connectors.
- Live Rig Testing: Power the unit in a calibrated Triconex SIS test bench, apply standard 24VDC power, and confirm full 2-hour continuous stable digital output operation.
- Parameter Testing: Verify all 32 digital output channels operate correctly, confirm TMR mid-value selection voting function meets factory specifications, and validate all status LED indicators and fault diagnosis functions work properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial safety-grade shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the SIS safety system is running? No. You must first set the corresponding safety protection function to maintenance blocking state and confirm the redundant safety output channel is operating normally before removing the unit, otherwise you will trigger unexpected safety protection function failure risks.
- What exact systems is this module compatible with? It works natively with TRICONEX Tricon series safety instrumented systems, and cannot be directly used in non-TMR architecture SIS systems without custom adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, improper non-Triconex terminal panel matching, or overcurrent in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine TRICONEX 3625A modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full TMR triple modular redundancy voting performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Triconex factory SIL 3 safety performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older Triconex legacy digital output unit? Well, technically it fits the same standard Tricon SIS chassis slot footprint, but you must confirm the SIS system firmware version fully matches the target safety system before replacement to ensure 100% system compatibility.
