Product Introduction
When a 6-axis welding robot throws an unplanned axis fault mid-cycle, this module is the most common root cause. It sits at the core of the IRC5 drive architecture, processing position feedback and coordinating motion so joint paths stay within 0.1mm repeatability. It mounts directly to the controller cabinet backplane, no extra wiring harnesses needed.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | ACU-01B / 3HNA024871-001/03 |
| Compatible Platform | ABB IRC5 Single-Cabinet Robot Controller |
| Installation | IRC5 controller cabinet backplane slot mount |
| Operating Temperature | 0°C to +55°C (standard IRC5 cabinet environment) |
| Extended Temp Range | -10°C to +55°C (ventilated non-condensing) |
| Humidity Rating | ≤95% non-condensing |
| Input Voltage | 110-230V AC single-phase / 230V AC three-phase |
| Grounding Resistance Requirement | <0.1Ω |
| Safety Compliance | EN 60204-1, EN 61800-5-2 STO circuit standard |
| Communication Protocol | EtherCAT / Modbus TCP (Cat6 shielded cabling required) |
| Core Function | Servo axis coordination, encoder feedback processing, real-time motion control |
| Weight | 0.38kg |
Field Application & Technical Pitfalls (The Engineer’s Guide)
This part is mission-critical in three high-throughput plant scenarios. It runs continuous path motion on automotive spot welding robots, it maintains precise speed control on paint spraying manipulators, and it prevents position drift on material handling palletizing cells.
Three non-negotiable pitfalls to avoid on swap-out:
- ⚠️ STO circuit bypass during replacement: If you do not cut the Safe Torque Off circuit within 10ms before touching the slot, residual drive voltage can lock the controller in a fault state that takes 30+ minutes to clear.
- ⚠️ Encoder alignment skip after install: Failing to re-sync encoder offsets in the HMI will cause erratic joint movement that looks like a motor fault, not a new module issue.
- ⚠️ 30-second power cycle delay ignored: Cycling power immediately after a fault reset leaves residual charge on the board, and the new unit will not initialize properly.
I watched a third-party maintenance team rush this swap last month. They skipped the 30-second power delay, booted the controller right away, and got no visible alarms. Two hours later, robot axis 3 drifted 12mm off its programmed path and crashed into a fixed fixture, taking the cell down for 4 hours.
Quality Control (QC) SOP & Transparency

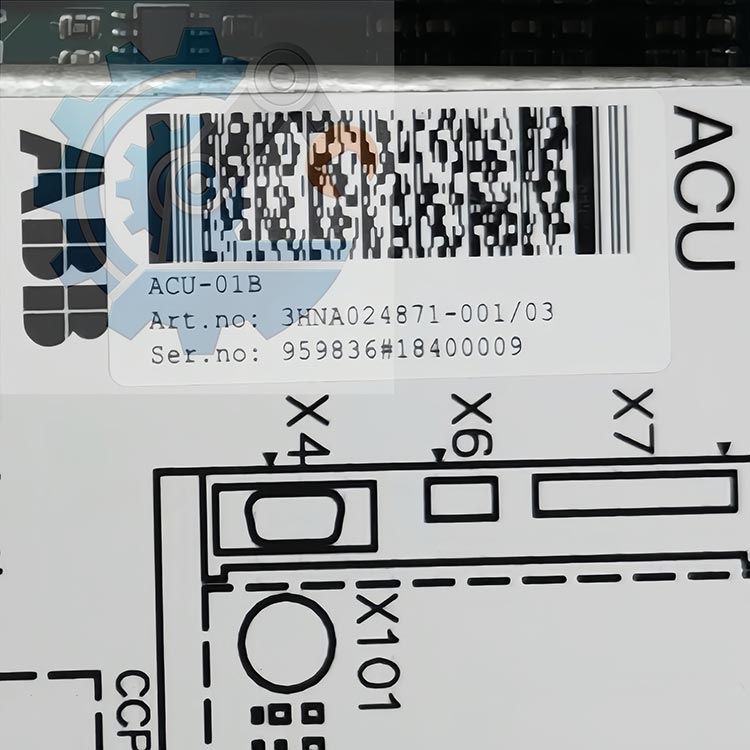

- Inbound Verification: Cross-reference the OEM part number and serial label against ABB’s official component database, run visual anti-counterfeit checks on the board’s solder points and laser markings.
- Live Rig Testing: Mount the unit in a stock IRC5 test cabinet, run 100 full motion cycles across 6 simulated axes, confirm EtherCAT and Modbus TCP handshakes complete without dropped packets.
- Parameter Testing: Verify grounding resistance stays below 0.1Ω, run 500V DC insulation resistance test to confirm values exceed 100MΩ, validate STO circuit triggers within 10ms.
- Final QA & Packaging: Seal the unit in a static-shielded anti-static bag, apply a scannable QC passed label, and include a printed full test report inside the ESD-safe shipping carton.
Frequently Asked Questions (FAQ)
- Can I replace this unit without powering down the entire controller? No, the backplane slot is not hot-swappable. You must isolate all power via an external contactor per EN 60204-1 before touching the module.
- What exact IRC5 controller versions does this unit work with? It is fully validated for all single-cabinet generations. Verify exact load capacity with the OEM datasheet for older dual-cabinet variants.
- How long does the standard warranty last? All units carry a full 12-month warranty. Pre-tested refurbished units get the same coverage as new surplus stock.
- How do I spot a genuine OEM unit vs a third-party reworked one? Genuine boards have a matte conformal coating across all components, no hand-soldered jumper wires near the encoder port. Cloned units usually have a glossy spray-on coating.
- My robot shows “axis position lost” fault. Is this always a bad ACU-01B? No. First check encoder cable continuity. If the cable tests good, the ACU-01B is the next most likely root cause.
- Do I need special software to configure this module after install? You will need MINT Workbench v4.2 or newer to load the correct motor parameter profile. Older software versions will not recognize the module’s full feature set.
- What is the fastest way to restore full functionality after a failure? Swap in a pre-tested spare unit, clear the fault code in the HMI, wait 30 seconds before cycling power, then re-verify encoder alignment.
