Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CC‑TDIL01 |
| Type | Digital Input IOTA Terminal Assembly |
| Channel Count | 16 digital input channels |
| Field Signal | 24 VDC discrete dry contact / voltage input |
| Isolation | Galvanic isolation between field side and I/O module |
| Compatible I/O Module | CC-PDIS01 DI-SOE module |
| Controller Platform | Experion PKS C300 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Mounting | Series C I/O cabinet rack mount |
| Weight | ~0.7 kg |
| HS Code | 8537101190 |
Product Introduction (Anti-Template)
Operating as the backbone of the Series C I/O marshalling setup, the CC‑TDIL01 sits between field contact devices and the CC-PDIS01 DI-SOE module. It absorbs transients from field wiring and isolates noisy 24VDC discrete signals before they pass to the DCS I/O card. Honestly, this IOTA takes the brunt of field surges, so replacing only the terminal assembly often saves you from swapping the more expensive core I/O module.

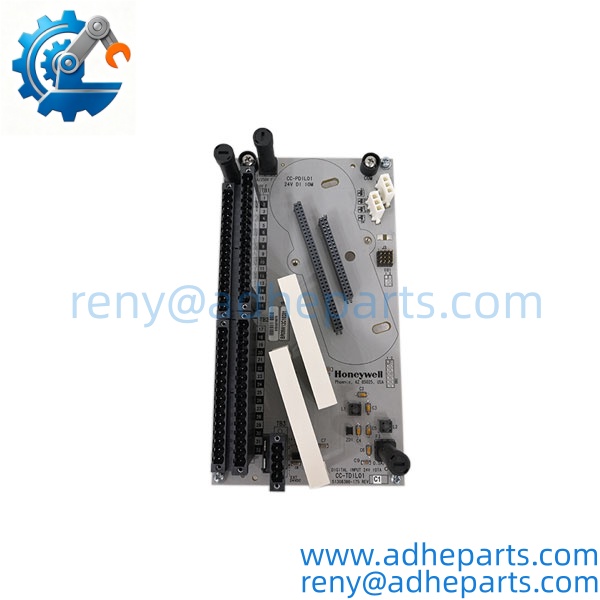

CC‑TDIL01

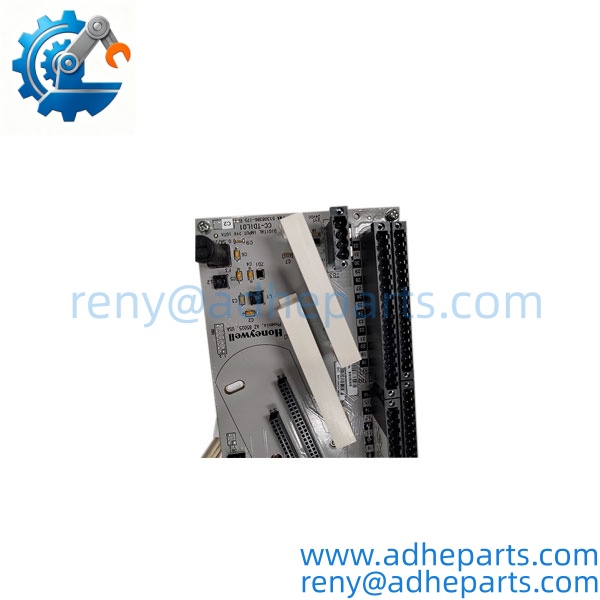

CC‑TDIL01

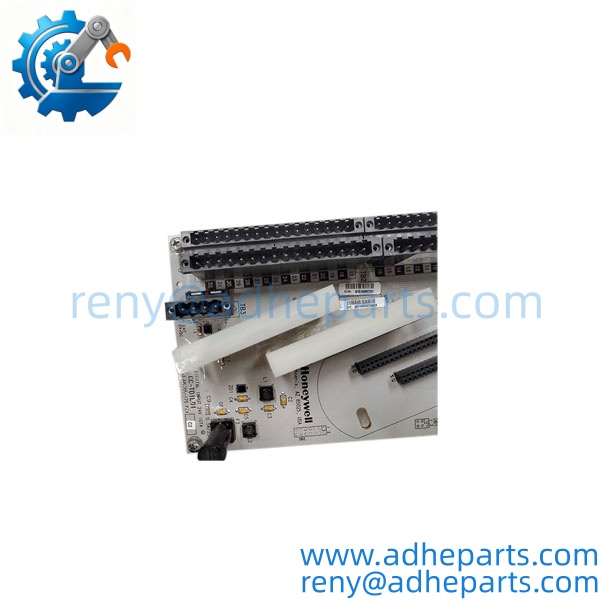

CC‑TDIL01

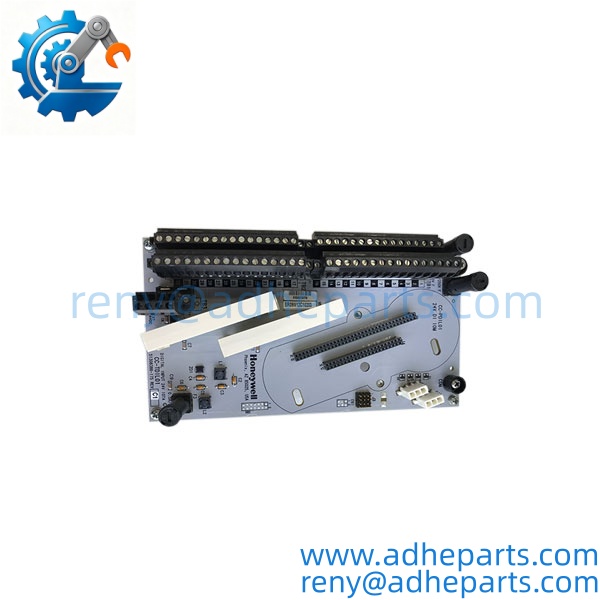

CC‑TDIL01

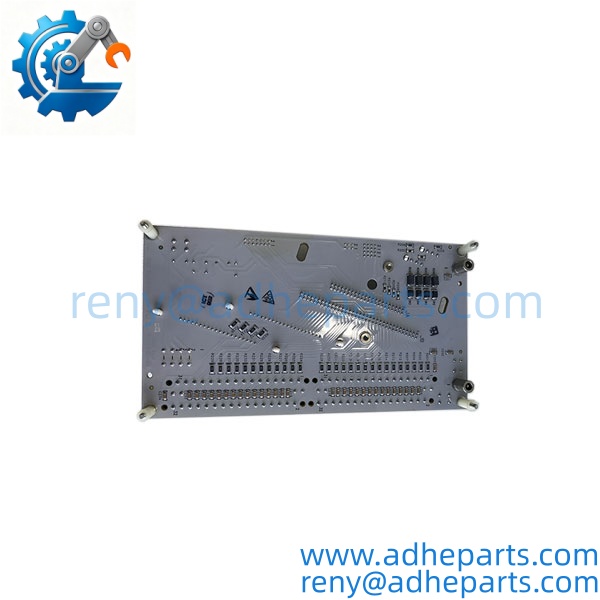

CC‑TDIL01
QC, Procurement & Logistics SOP
- Inbound Verification: Origin trace review and OEM part marking validation. Visual inspection for burned terminal points, cracked PCB or corrosion on screw terminals.
- Live Rig Testing: Power-on continuity test, channel isolation check, 24VDC signal injection across all 16 channels and wiring terminal resistance validation. Full test report packaged with each unit.
- QA & Anti-Static Packaging: Unit cleaned and inspected, sealed inside ESD shielding bag, fitted inside rigid shock-resistant carton.
- Global Logistics & Export Compliance: Apply optimized HS code classification to reduce customs hold risk. Secure packaging rated for air or sea freight; commercial invoice and certificate of origin prepared for customs databases.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. The IOTA itself has no firmware, but mismatched C300 controller firmware revisions can prevent the system from recognizing the IOTA channel mapping. One refinery swapped the CC‑TDIL01 and spent 8 hours troubleshooting missing DI tags after a controller firmware upgrade.
- DIP Switch / Configuration errors. Incorrect channel type jumpers on the IOTA will misread dry contact vs powered 24VDC inputs. A chemical plant left jumpers set for powered input and saw permanently high readings on all field contact switches.
- Wiring/Terminal incompatibility. Reverse polarity on field 24VDC wiring can blow individual channel protection circuits. A power plant crossed positive and negative on one pair and lost three input channels on the IOTA.
- ESD destruction during unboxing. The onboard signal conditioning chips are sensitive. A technician touching the gold backplane connector without a grounded wrist strap can create latent faults that trigger random channel dropout during cabinet temperature swings.
Frequently Asked Questions (FAQ)
Q: What lead times apply for international shipments? A: Stocked units ship within 1–3 business days. Air freight transit runs 3–7 days; sea freight takes 25–45 days, though customs clearance in the Middle East might add 2–3 days. Q: What export documentation can you provide? A: We prepare commercial invoice, packing list and certificate of origin for customs filing. All documentation matches the declared HS classification. Q: Can I hot-swap this IOTA while the C300 controller rack remains online? A: Hot swapping is not permitted. Removing the IOTA while powered cuts all 16 digital input signals and can trigger unexpected process interlocks. Q: Will this CC‑TDIL01 pair with other Series C I/O modules besides CC-PDIS01? A: No. It is engineered exclusively for the CC-PDIS01 DI-SOE module; it will not function with standard CC-PDIL51 digital input hardware. Q: What is covered under the standard warranty? A: Warranty runs 12 months from shipment date, covering factory-verified hardware defects. Damage from ESD, miswiring or overvoltage surges falls outside coverage. Q: Does this IOTA include the matching CC-PDIS01 I/O module? A: No. The CC‑TDIL01 is only the terminal assembly. The DI core module must be sourced separately. Q: Can individual damaged channels be bypassed on this IOTA? A: You can reassign unused channels in the DCS logic, but damaged hardware channels on the IOTA cannot be repaired on site; the full assembly needs replacement.
