Emerson Ovation 1C31124G01 | Digital Input Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The 1C31124G01 reference is associated with the Emerson Ovation I/O platform. Ovation systems use separate electronics and personality or field-termination assemblies, so the complete input configuration must be checked before replacement. Do not assume that a visually similar Ovation card has the same voltage range, channel arrangement, or field wiring.

Product Introduction (Anti-Template)

Operating within the Emerson Ovation distributed control system, the 1C31124G01 is used for discrete field-signal acquisition and equipment-status monitoring. Typical applications include permissive circuits, alarm contacts, breaker feedback, interlocks, and auxiliary equipment indications. The electronics module must be matched with the correct personality or field-termination assembly, signal voltage, and carrier configuration. Honestly, the personality-module match matters just as much as the electronics-card part number when replacing an Ovation I/O assembly.

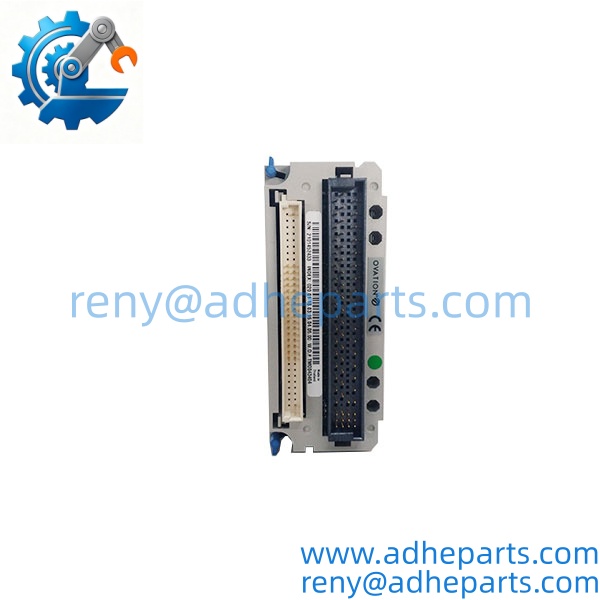

1C31124G01

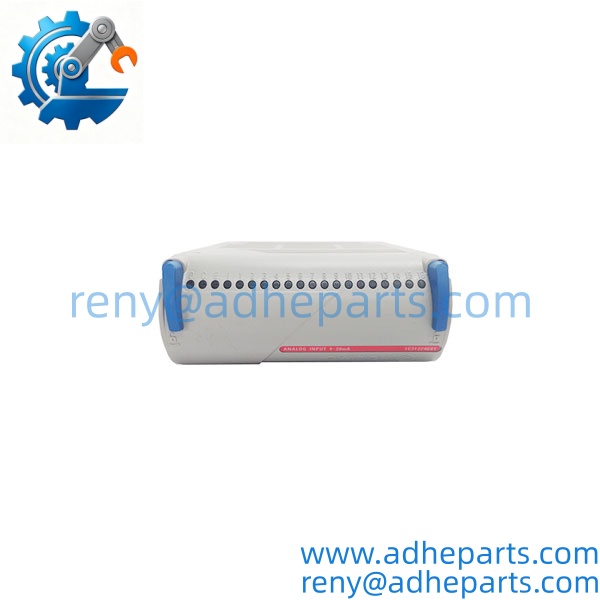

1C31124G01

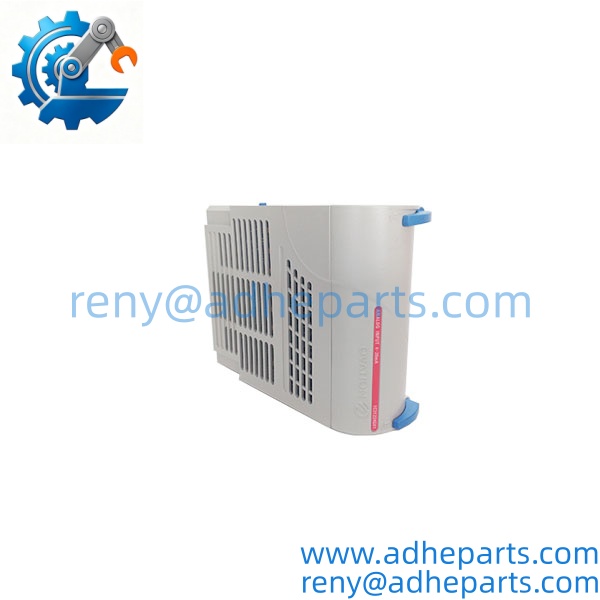

1C31124G01

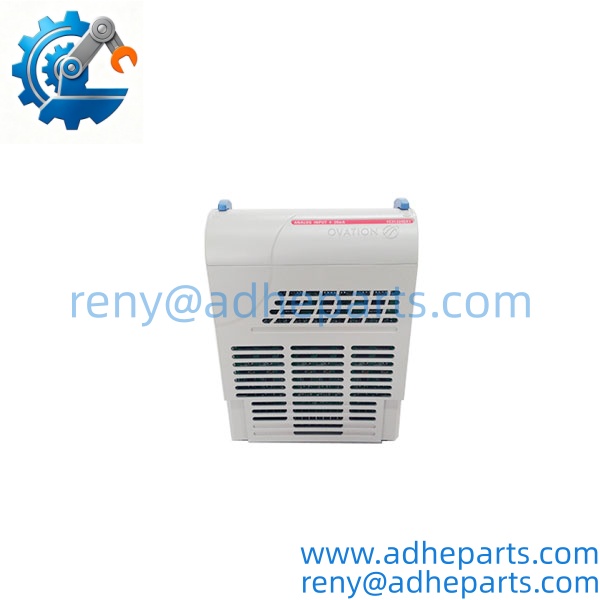

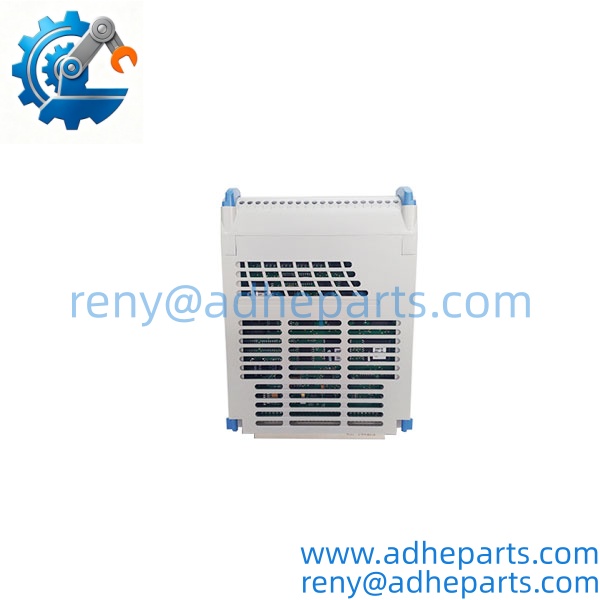

1C31124G01

QC, Procurement & Logistics SOP

1. Inbound Verification
   Check the Emerson and Ovation markings, complete 1C31124G01 part number, hardware revision, serial number, connector condition, and any evidence of previous repair. Compare the physical card with the buyer’s photographs and installed system documentation.
2. Live Rig Testing
   Install the module in a compatible Ovation I/O carrier with the correct personality or termination assembly. Check power-up behavior, status indicators, carrier recognition, input-channel response, and communication with the Ovation controller.
3. QA & Anti-Static Packaging
   Inspect the PCB, edge connectors, terminal interface, mounting hardware, and solder joints. Package the module in an anti-static bag with shock protection and moisture-resistant outer packaging.
4. Global Logistics & Export Compliance
   Confirm the actual product description and HS classification according to the destination customs requirements. Prepare the commercial invoice, packing list, origin information, and warranty or inspection documents. Use secure packaging for air or sea freight to protect the PCB and connectors.

Technical Pitfalls & Integration Warnings

1. Firmware or Configuration Revision Mismatch
   An Ovation controller configuration may require a specific I/O hardware revision. For example, a system configured for V3.1 may not recognize or correctly process a module associated with a V2.8 configuration. Verify the controller software, I/O database, module revision, and approved replacement list.
2. DIP Switch or Address Configuration Errors
   Some Ovation assemblies use carrier, address, or configuration settings that depend on the hardware revision. Incorrect settings can prevent module recognition or cause channel mapping errors. Record the original configuration before removal.
3. Wiring and Personality-Module Incompatibility
   The electronics module and personality or field-termination module must be compatible. A mismatch in input voltage, common-return arrangement, isolation, or terminal assignment can produce false status signals or damage the field circuit. Confirm the complete assembly, not only the electronics-card number.
4. ESD Damage During Unboxing
   The module contains exposed electronic components and edge connectors that can be damaged by static discharge. Use a grounded ESD workstation, wrist strap, and anti-static packaging during inspection and installation.

Frequently Asked Questions (FAQ)

1. What is the Emerson Ovation 1C31124G01 used for?
It is an Ovation I/O electronics module intended for discrete field-signal acquisition and equipment-status monitoring. The exact signal type and channel arrangement must be confirmed from the complete assembly.

2. Is 1C31124G01 a complete field I/O assembly?
Not necessarily. Ovation systems commonly separate the electronics module from the personality or field-termination module. Confirm whether the quotation includes only the electronics card or the complete I/O assembly.

3. What input voltage does this module support?
The input voltage must be verified from the exact module revision and compatible personality module. Do not apply field voltage based only on the 1C31124G01 part number.

4. Can it replace another Ovation digital input module?
Only if the replacement is approved for the same controller, carrier, personality module, field voltage, channel arrangement, and software configuration. Similar-looking cards are not automatically interchangeable.

5. Can the module be hot-swapped?
Do not hot-swap it unless the specific Ovation carrier and system documentation explicitly support live replacement. Follow the plant’s isolation and maintenance procedures before removing the card.

6. What information is needed for compatibility confirmation?
Provide the complete part number, hardware revision, front and rear photographs, carrier model, personality or termination module number, field input voltage, rack or slot position, and the original equipment application.

7. What are the usual lead time and shipping options?
Lead time depends on actual stock condition and inspection requirements. Express air shipment or scheduled freight may be available, subject to destination, customs requirements, packaging, and the selected shipping method.
