Bently Nevada 125720-01 | Spare 4-Channel Relay Output Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The Bently Nevada 3500 system uses the 3500/32M 4-Channel Relay Module as an optional rack component. The 125720-01 is identified by multiple technical references as the spare four-channel relay output/I/O module associated with this system.

The four relay channels can be independently programmed to perform required voting logic based on alarm conditions from monitor channels in the rack. Each relay can be configured for normally energized or normally de-energized operation.

Product Introduction (Anti-Template)

Operating as the field-output section of the Bently Nevada 3500/32 relay system, the 125720-01 provides four relay channels for converting configured machinery-monitoring alarm logic into physical contact outputs. These outputs can be used for annunciation, interlocking, shutdown circuits, and other external control functions. The associated 3500/32 architecture allows each relay to use alarm-drive logic based on Alert, Danger, or other configured monitor conditions.

The 125720-01 is important to distinguish from the complete 3500/32 assembly. Some ordering configurations combine a relay-control module with the rear I/O module, while 125720-01 is specifically referenced as the spare relay output/I/O component. For an installed-system replacement, verify whether the requirement is for the rear I/O module alone or the complete 3500/32 configuration.

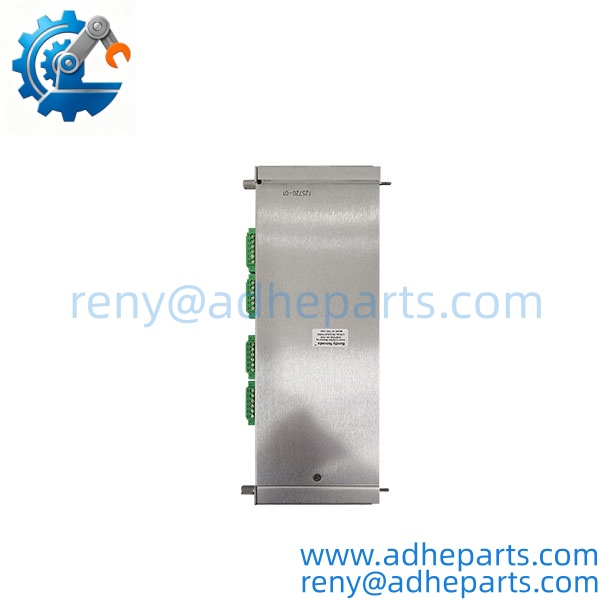

125720-01

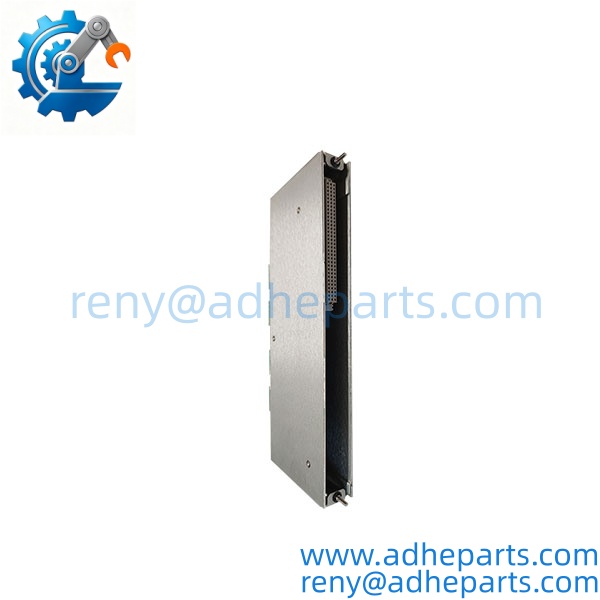

125720-01

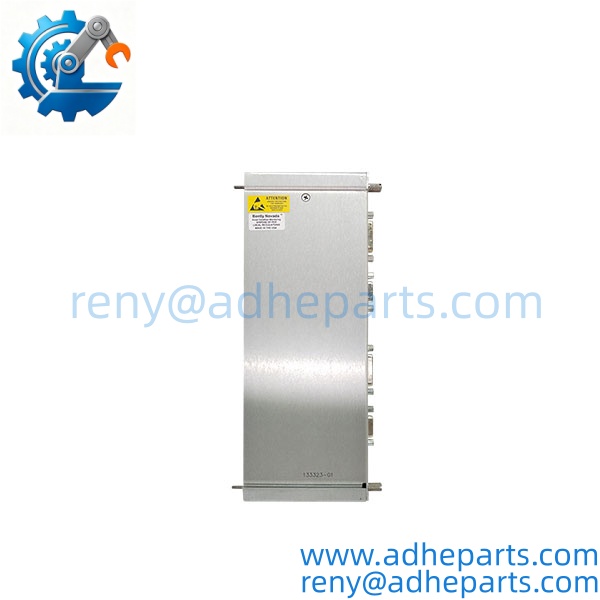

125720-01

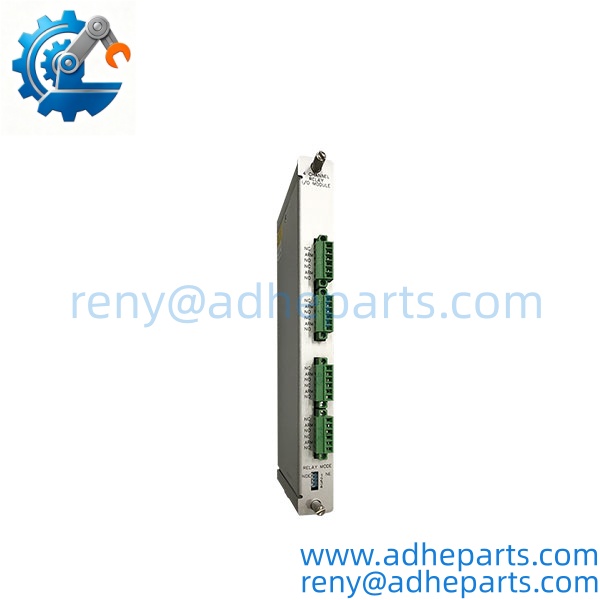

125720-01

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete part number 125720-01, manufacturer markings, revision information, connector condition, relay/I/O interface, and physical condition. Confirm that the unit is the required relay I/O component rather than the complete 3500/32 front control module.
2. Live Rig Testing
   Where a compatible 3500 test rack is available, verify module recognition, relay operation, configured alarm-drive behavior, and output contact switching. For critical machinery protection applications, test each relay channel against the intended logic rather than relying only on a power-on check.
3. QA & Anti-Static Packaging
   Protect the module against ESD, impact, vibration, and moisture. Inspect the rear terminal interface for bent contacts, contamination, or oxidation. Record the part number and physical condition with photographs before shipment.
4. Global Logistics & Export Compliance
   Confirm the applicable HS classification according to the actual product and destination requirements. Use antistatic protection and shock-resistant export packaging. Keep the exact 125720-01 identification consistent across the quotation, invoice, packing list, and shipping documents.

Technical Pitfalls & Integration Warnings

1. Firmware / Configuration Revision Mismatch
   The relay output hardware depends on the configuration of the associated 3500 system. The 3500/32M requires compatible rack configuration software, and Bently Nevada documentation identifies software/configuration requirements for the relay module. Verify the installed rack configuration before replacement.
2. Relay Logic Configuration Errors
   The four outputs can be independently programmed using Alarm Drive Logic with AND/OR logic. A replacement configured incorrectly could cause an alarm or shutdown output to behave differently from the original system. Do not copy wiring alone without confirming the programmed logic.
3. Wiring / Terminal Incompatibility
   Verify whether the purchase requirement is 125720-01 alone or a complete 3500/32 assembly. Technical ordering references distinguish the relay control/front module from the rear relay I/O module. Mixing the two ordering requirements can result in receiving only part of the required assembly.
4. ESD During Unboxing
   Handle the module using appropriate ESD precautions and avoid touching exposed contacts. For a machinery-protection system, also isolate external AC/DC field sources before working on relay wiring. The relay outputs may interface directly with external trip, annunciation, or interlock circuits.

Frequently Asked Questions (FAQ)

1. What is the Bently Nevada 125720-01?
The 125720-01 is a spare four-channel relay output/I/O module associated with the Bently Nevada 3500/32 relay system.

2. How many relay channels does the 125720-01 provide?
It provides four independent relay channels. Each channel can be configured according to the required alarm-drive logic.

3. What is the difference between 125720-01 and 125720-02?
They are different relay-output module versions. The 125720-02 is associated with hazardous-area and functional-safety system configurations, so the correct suffix should be matched to the installed 3500 system and approval requirements.

4. Is 125720-01 the complete 3500/32 module?
Not necessarily. Ordering references distinguish the 125720-01 relay I/O component from the associated relay-control/front module. A complete 3500/32 configuration may therefore require more than the 125720-01 alone.

5. Can the relay outputs be used for shutdown signals?
Yes. The 3500 relay architecture can provide physical outputs for alarm, trip, interlock, and annunciation functions, depending on the configured application and external circuit design.

6. Is the 125720-01 still a current product?
Current product references identify the 125720-01 as a legacy/retired product, with the 125720-02 identified as a suggested replacement in some current catalogs. For an existing 3500 installation, however, an exact 125720-01 replacement may be required to maintain the installed configuration.

7. What information should I provide when requesting a replacement?
Provide the complete 125720-01 part number, a photo of the existing module, the associated 3500/32 or 3500/32M configuration, quantity, and destination. If the application involves hazardous-area or functional-safety requirements, provide those requirements as well so the correct relay version can be verified.
