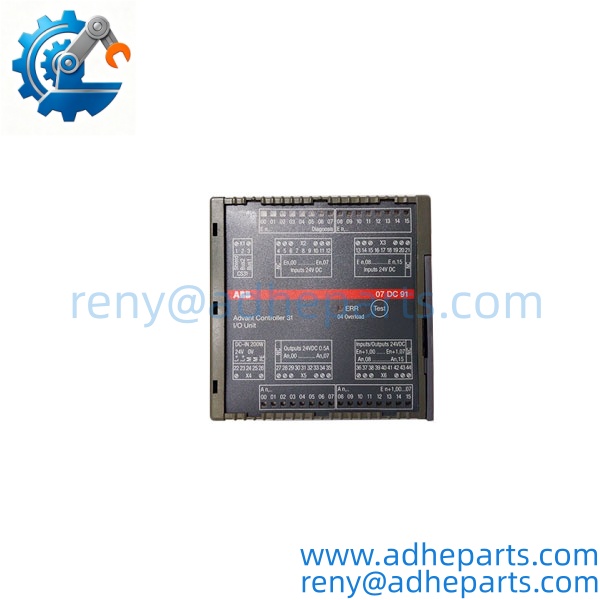

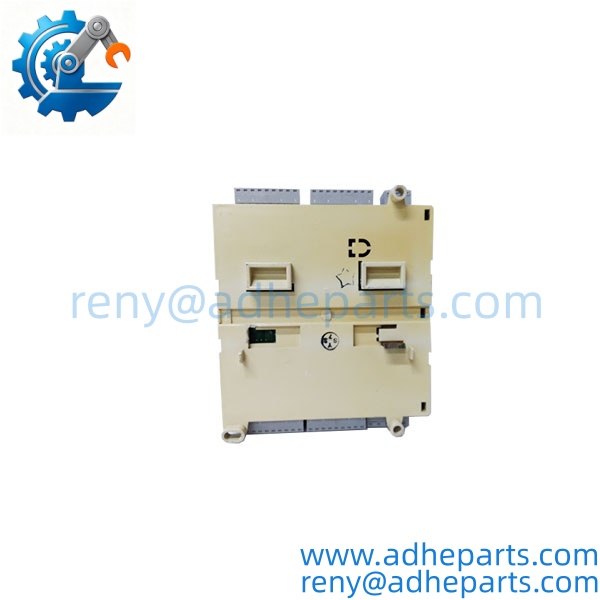

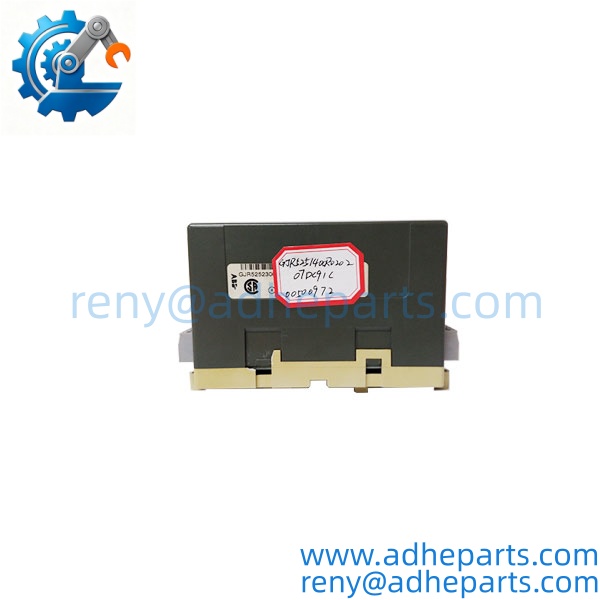

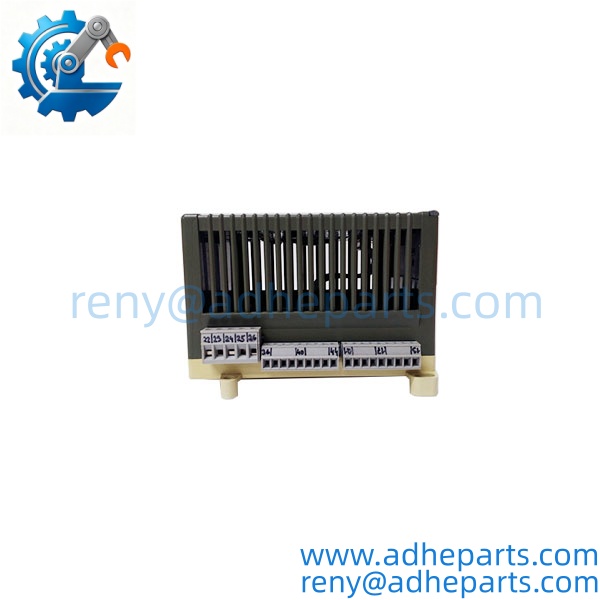

ABB 07DC91C | ABB PLC CS31 System Bus Interface I/O Expansion Card

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction

When your ABB Advant CS31 distributed automation system needs a reliable remote digital signal acquisition and control output unit to expand the system’s field signal processing capability, this module acts as the core remote I/O extension hub.
It is a dedicated digital I/O module for ABB’s classic Advant CS31 distributed automation platform, with a total of 32 digital signal channels, supporting 16 fixed 24V DC digital inputs, 8 fixed 0.5A 24V DC digital outputs, and 8 freely configurable I/O channels. Its built-in output overload and short-circuit protection functions effectively avoid field signal anomalies causing module damage. The 33 integrated LED diagnostic indicators can clearly display the operating status of each channel, helping maintenance teams quickly locate on-site signal faults. It supports standard DIN rail or screw fixed installation, perfectly adapting to various industrial control cabinet installation scenarios.

07DC91C

07DC91C

07DC91C

07DC91C

Key Technical Specifications

Field Application & Technical Pitfalls

Critical Industrial Scenarios

• **Large Petrochemical Plant Distributed Automation System Signal Processing: Acts as the core remote digital I/O unit for ABB Advant CS31 systems in petrochemical production plants, collecting on-site switch signals and outputting control commands to field valves and motors, ensuring the stable operation of the distributed control system.
• **Thermal Power Plant Auxiliary Equipment Automation Control: Delivers reliable digital signal processing performance for thermal power plant auxiliary equipment automation systems, adapting to high-electromagnetic-interference power plant environments, meeting the 24/7 continuous operation requirements of power production.
• **Metallurgical Workshop Production Line Automation Control: Adapts to high-vibration metallurgical workshop environments, providing stable digital signal acquisition and control output support for the metallurgical production line automation system.

Non-Negotiable Technical Pitfalls

• ‌⚠️ Bold Warning 1‌: Never arbitrarily connect non-matching high-current field loads directly to the fixed digital output channels. Excessive current will cause the output circuit to trigger overcurrent protection or even permanent burnout.
• ‌⚠️ Bold Warning 2‌: Skipping the pre-commissioning full channel continuity test will leave you with hidden signal dead zones. This unit must confirm all 32 digital channels conduct normally before accessing the CS31 system bus.
• ‌⚠️ Bold Warning 3‌: Do not arbitrarily modify the configuration attributes of the 8 configurable I/O channels during system operation. Unreasonable configuration changes will cause the corresponding field control equipment to malfunction unexpectedly.

A large petrochemical plant maintenance team once swapped a 07DC91C module and skipped the channel continuity test. The hidden poor contact of one digital input channel caused the system to fail to collect the valve position feedback signal, resulting in a 1-hour partial production control system abnormal alarm.

Quality Control (QC) SOP & Transparency

1. ‌Inbound Verification‌: Cross-check the OEM serial number against ABB’s official Advant part registry, confirm the part number 07DC91C matches the factory label, and inspect no bent pins or corrosion on all bus and field signal wiring terminals.
2. ‌Live Rig Testing‌: Power the unit in a calibrated ABB Advant system test bench, apply 24V DC power, and confirm full 2-hour continuous stable signal processing operation.
3. ‌Parameter Testing‌: Verify all 32 digital channels operate correctly, confirm output overload and short-circuit protection functions trigger correctly, and validate all 33 status LED indicators function properly.
4. ‌Final QA & Packaging‌: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

Frequently Asked Questions (FAQ)

• ‌Can I hot-swap this module while the system bus is running?‌ No. You must first set the corresponding I/O station to maintenance blocking state in the upper-level control system, otherwise you will trigger unexpected signal interruption and control equipment misoperation risks.
• ‌What exact systems is this module compatible with?‌ It works natively with ABB Advant distributed automation systems, and cannot be directly used in non- architecture ABB PLC systems without custom adaptation.
• ‌How long is the standard warranty for this new surplus unit?‌ 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overloading, or improper channel configuration in the field.
• ‌How do I tell a genuine OEM unit apart from a refurbished clone?‌ Genuine ABB 07DC91C modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 32-channel signal processing performance test.
• ‌What is the typical lead time for shipment?‌ In-stock units ship within 48 hours. If you require official ABB factory performance test documentation, add 2 extra business days to the turnaround window.
• ‌Can this module replace the older ABB legacy digital I/O unit?‌ Well, technically it fits the same standard DIN rail installation dimensions, but you must confirm the system bus communication parameters fully match the target system before replacement to ensure 100% system compatibility.
