Product Introduction
When a process safety system loses its logic execution core, ESD and fire-gas interlocks cannot execute on demand to mitigate hazardous releases. This rack-mounted controller runs safety logic programmed in IEC 61131-3 subsets and exchanges deterministic safety data across redundant SafetyNet peer links.
Well, technically it supports bumpless transfer on redundant controller pairs, but only if both units load identical safety application firmware, —though your mileage may vary depending on network cable shielding and switch port storm protection in the control cabinet.

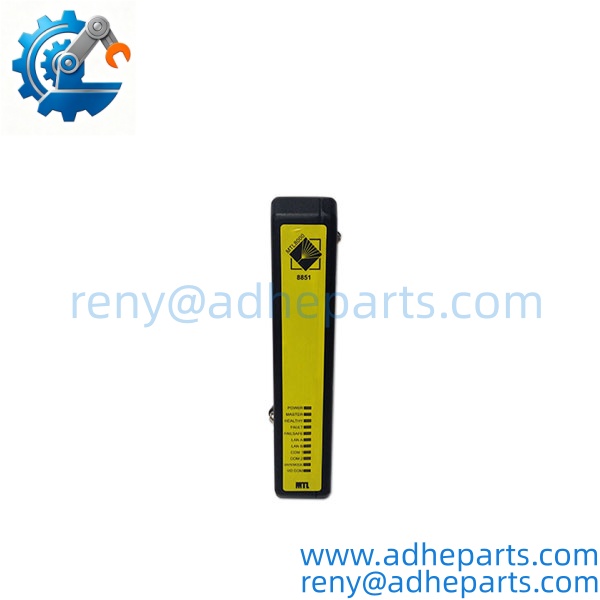

8851-LC-MT

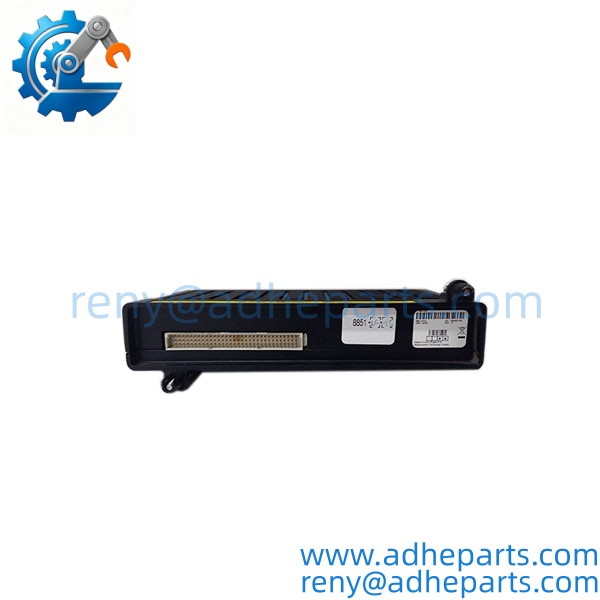

8851-LC-MT

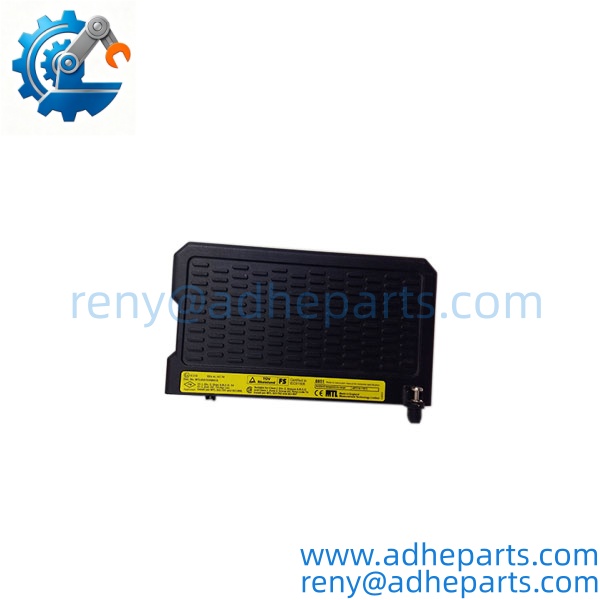

8851-LC-MT

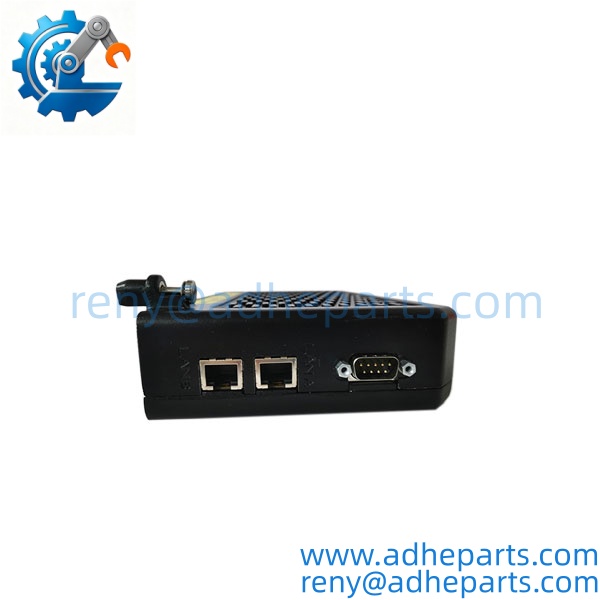

8851-LC-MT

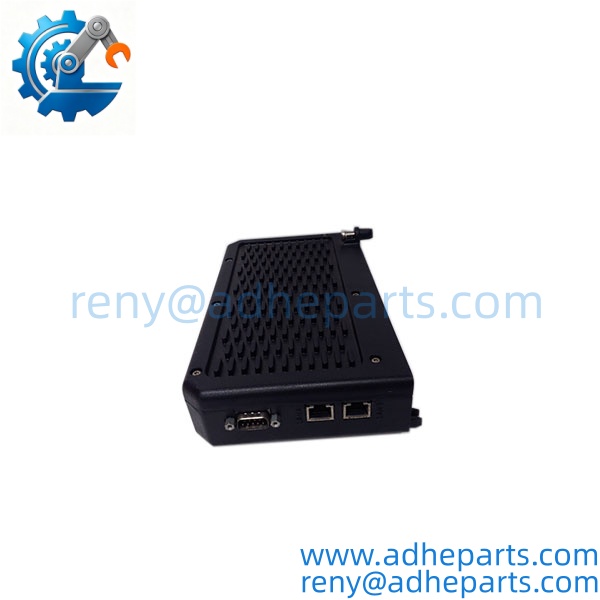

8851-LC-MT
Key Technical Specifications
| Parameter | Value |
|---|---|
| Safety Rating | SIL2 certified to IEC 61508 |
| System Platform | PAC8000 SafetyNet |
| Power Input | 12 VDC, sourced from 8913-PS-AC power supply |
| Typical Current Draw | 0.4 A @12 VDC |
| SafetyNet Interface | Dual 10/100 BaseTX Ethernet, RJ45 |
| SafetyNet Protocol | P2P SafetyNet protocol |
| Serial Ports | Dual RS485 half-duplex COM ports, 1.2–115.2 kbps |
| Hazardous Area Rating | Class I Div 2, Groups A,B,C,D T4; EEx nL IIC T4 |
| Programming Languages | IEC 61131-3 subset for safety logic |
| Operating Temperature | 0 °C to +60 °C |
| Relative Humidity | 5%–95% non-condensing |
| Diagnostic Features | Comprehensive self-test, fault logging, watchdog supervision |
Field Application & Technical Pitfalls (The Engineer’s Guide)
Critical Industrial Scenarios
- Refinery ESD systems: runs safety trip logic for process shutdown valves and pressure interlocks in classified process areas.
- Chemical plant reactor protection: monitors temperature and pressure safety limits to trigger controlled shutdown before overpressure events.
- Offshore platform safety systems: pairs with redundant SafetyNet peers to maintain continuous safety supervision in limited cabinet space.
Technical Pitfalls (Bold Warnings)
- Mismatched safety firmware versions between redundant controller pairs: Version divergence breaks bumpless transfer and triggers persistent SafetyNet communication faults without clear hardware failure codes. Always synchronize firmware across both controllers before commissioning.
- Unshielded Ethernet cabling for SafetyNet links: Electrical noise from variable speed drives can corrupt safety peer messages, causing nuisance SIS trips. Inspect the second RJ45 port terminal area for proper cable grounding.
- Incorrect power supply module pairing: This controller requires the matching 8913-PS-AC power unit. Using alternate PAC8000 power hardware creates unstable 12 VDC rails and intermittent watchdog resets.
Lesson-Learned Anecdote One chemical site swapped a spare 8851-LC-MT during a planned turnaround. The technician downloaded the latest firmware to the replacement unit and left the standby controller on the older factory revision. For two weeks, intermittent peer sync errors appeared in event logs. Operators ignored the degraded warning until a process upset tested the redundant pair; the system failed to transfer control, forcing manual emergency valve intervention.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-reference part number and serial number against OEM nameplate; visual anti-counterfeit inspection for reworked RJ45 or D-sub connectors; capture nameplate photo for internal inventory records.
- Live Rig Testing: Install controller inside PAC8000 test rack; apply 12 VDC from matching 8913-PS-AC supply; run power-on self-test; validate dual SafetyNet Ethernet peer communication; test RS485 serial port handshakes.
- Parameter Testing: Verify watchdog timer operation; execute safety logic simulation to confirm trip response; log current draw under full network load; confirm no persistent fault flags across repeated test cycles.
- Final QA & Packaging: Clean edge connector contacts with static-safe cleaner; place unit inside conductive anti-static bag; attach QC-passed sticker printed with test date; pack inside rigid shock-resistant shipping container.
Frequently Asked Questions (FAQ)
Can I hot-swap the MTL 8851-LC-MT while the SIS rack remains energized? This controller supports hot removal and insertion within the PAC8000 rack. Even so, isolate safety logic execution and lock out associated safety trips before removal. Uncontrolled hot-swap may trigger transient bus faults into the safety event log.
What safety level does MTL 8851-LC-MT support? It carries SIL2 certification under IEC 61508 for safety instrumented functions. It cannot meet SIL3 requirements. Verify exact safety requirement specification with the OEM datasheet for your site’s safety loop calculations.
What warranty applies for stocked MTL 8851-LC-MT units? All units carry a 12-month warranty. New-surplus coverage applies for factory-origin defects. Refurbished units cover faults related to our test and rebuild workflow; field surge, wiring damage or incorrect firmware configuration falls outside warranty scope.
How do I distinguish genuine OEM hardware from rebuilt counterfeit copies? Genuine MTL PAC8000 controllers carry crisp front panel silkscreen, original factory serial plate, and intact conformal PCB coating. Rebuilt hardware will often show reflow solder around RJ45 jacks or aftermarket adhesive serial labels.
My replacement 8851-LC-MT reports SafetyNet peer communication faults after installation. Is the controller defective? Do not mark it faulty immediately. Check Ethernet cable shielding, verify matching firmware revisions on both redundant controllers, and inspect switch port configuration. Most peer link faults stem from network or firmware mismatch rather than hardware failure.
Does MTL 8851-LC-MT include the required 8913-PS-AC power supply? No. The 8913-PS-AC power supply is a separate rack module sold independently. This controller draws regulated 12 VDC exclusively from that specific power unit.
What cabinet environmental constraints apply to this safety controller? Maintain ambient cabinet temperature between 0 °C and +60 °C with non-condensing humidity. Sustained high cabinet heat accelerates capacitor degradation and shortens service life of this safety-critical controller.
