Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CI855K01 / 3BSE018106R1 |
| Protocol | MasterBus 300 (MB300) |
| Physical Ports | 2 × RJ45 (10 Mbps Ethernet) |
| Backplane Bus | AC800M CEX‑bus |
| Max Throughput | 200 datasets per second |
| Typical Current Draw | 150 mA @24 VDC |
| Operating Temperature | 0 °C … +55 °C (no forced air) |
| Storage Temperature | -40 °C … +70 °C |
| Relative Humidity | 5 %‑95 %, non‑condensing |
| Protection Class | IP20 |
| Weight | ~0.6 kg |
| HS Code | 8537101190 |
Product Introduction (Anti‑Template)
Unlike entry‑level fieldbus cards, the CI855K01 isolates legacy Advant system traffic from modern 800xA control networks. It mounts on the AC800M CEX‑bus and uses the proprietary MasterBus300 protocol to pass interlock signals, setpoints and process datasets between new controllers and older Advant‑series racks. Honestly, this module lets sites delay full‑scale legacy hardware replacement without ripping out proven interlock wiring.

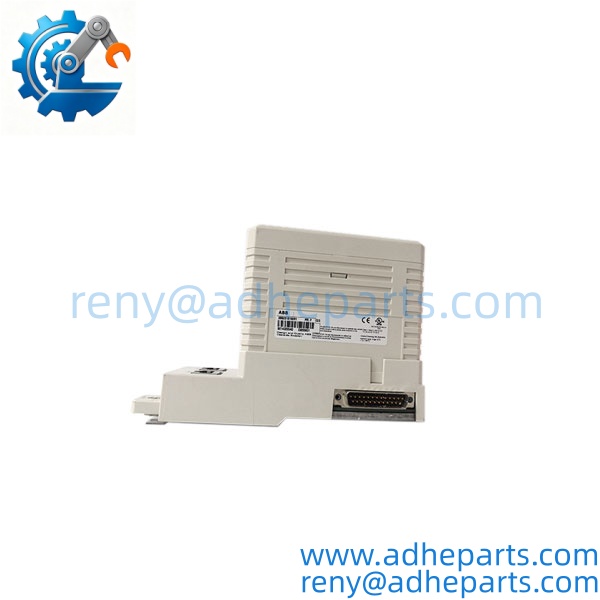

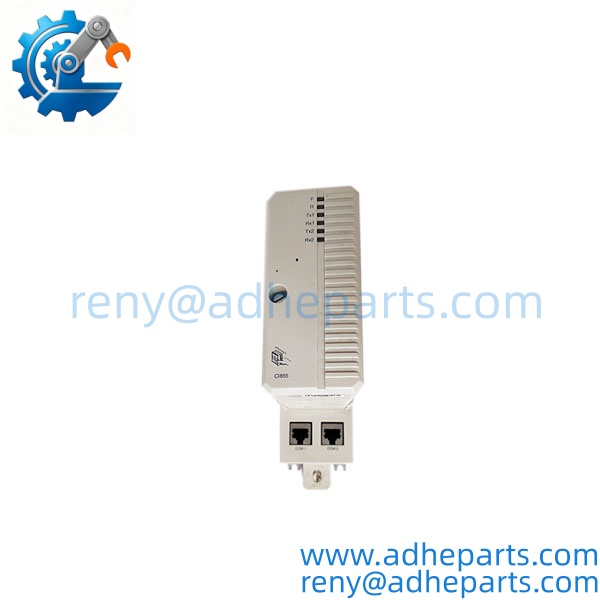

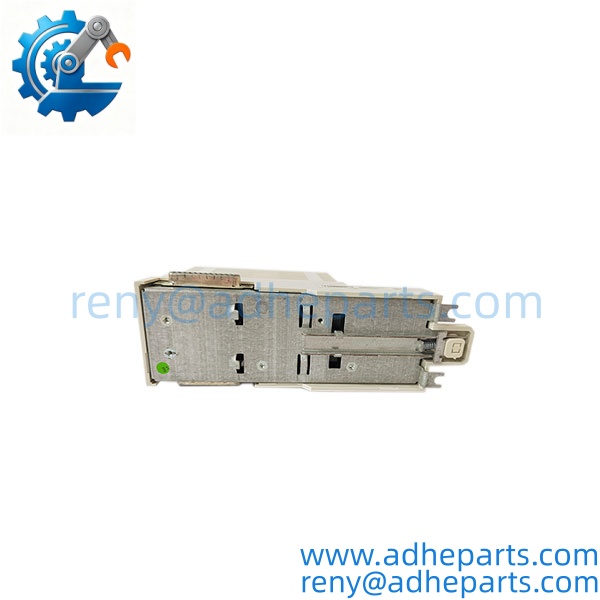

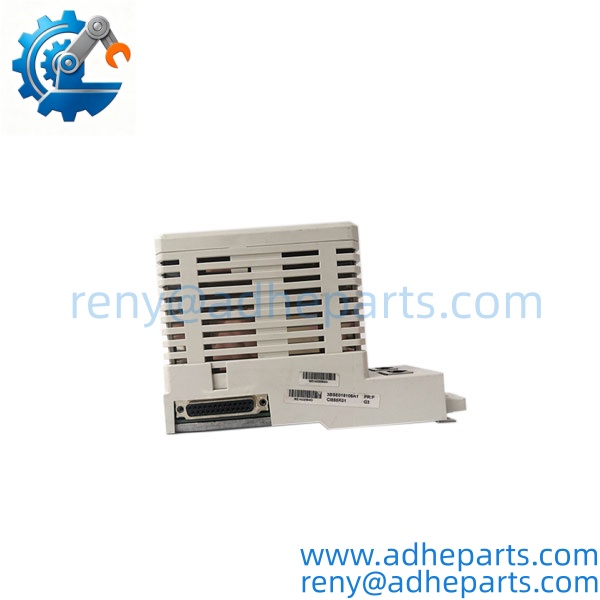

CI855K01
CI855K01
CI855K01
QC, Procurement & Logistics SOP
- Inbound Verification: Confirm OEM marking for CI855K01 / 3BSE018106R1. Inspect RJ45 connector pins for bending or corrosion; check backplane gold fingers for wear or oxidation.
- Live Rig Testing: CEX‑bus initialization check, link handshake simulation against a MasterBus300 partner device, dataset read‑write validation, LED status verification. Full test report included.
- QA & Anti‑Static Packaging: Clean module surface, place inside static‑shield bag, foam‑supported rigid carton to protect edge connectors in transit.
- Global Logistics & Export Compliance: Apply correct HS classification to reduce customs hold risk. Packaging built for air or sea transport; commercial invoice and certificate of origin prepared for customs databases.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. Mismatched Control Builder library version on the AC800M will cause partial dataset corruption over MasterBus300. One pulp mill swapped a module without updating hardware library files and spent 11 hours diagnosing sporadic interlock misfires.
- DIP Switch / Configuration errors. Incorrect MasterBus300 node address setup creates bus collisions. A power‑plant engineer reused an old saved configuration and took down cross‑controller interlocks during commissioning.
- Wiring/Terminal incompatibility. This unit runs 10 Mbps only; standard 100 Mbps auto‑negotiating switches can force link instability. One site plugged it straight into a gigabit switch and saw random communication drop‑outs.
- ESD destruction during handling. Backplane and Ethernet PHY chips are ESD‑sensitive. A technician handled the card without wrist strap during rack swap and caused intermittent link failures that only appeared under cabinet temperature swings.
Frequently Asked Questions
Q: What lead times apply for international shipments? A: Stocked units ship within 1‑3 business days. Air freight transit runs 4‑8 days; sea freight takes 28‑42 days, though customs clearance in Eastern Europe might add 2‑4 extra days. Q: What export documentation can be supplied? A: Commercial invoice, packing list and certificate of origin can be prepared for customs databases. Q: Can this module be hot‑swapped inside an active AC800M rack? A: Hardware supports hot‑insertion, but live swap can interrupt MasterBus300 interlock traffic. Always suppress dependent interlock logic before removal or insertion. Q: Will CI855K01 work with S100 I/O racks? A: No. S100 I/O requires CI856 module; CI855K01 is strictly for MasterBus300 controller‑to‑controller linksABB Group. Q: What is covered by standard spare‑unit warranty? A: 12‑month warranty covers verified hardware faults. Damage from mis‑wiring, ESD or incorrect configuration falls outside warranty scope. Q: Does dual‑RJ45 port mean full network redundancy? A: Dual ports support MasterBus300 redundant cabling topology, but the module itself is not hardware‑redundant. You still need two physical CI855K01 cards for full redundant channel operation. Q: Can I mix CI855 and ? A: Confirm hardware revision and Control Builder library; older non‑K variants have limited dataset capacity and may not interoperate at full throughput.
