Triconex 3805E | Safety System Analog Output, Replacement Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the label on your existing module before ordering. The terminal panel part number and the channel count must be verified for your specific configuration.

4. Product Introduction

The Triconex 3805E is an analog output module for the Tricon safety system. It drives 4–20mA field devices — valve positioners, I/P transducers, variable speed drives, and analog signal panels — from a triple-modular-redundant architecture that keeps the output correct even when one of the three internal channels faults. It is the module that executes the final analog control action in a safety instrumented function.

The engineering value is the TMR output voting. Each output point has three independent drive circuits, and the module votes the result before it reaches the field terminal. If one channel drifts or fails, the other two carry the command and the module reports the degraded channel to the controller. That is what allows a Tricon system to reach SIL 3 without a shutdown for every single internal fault.

Two things decide whether a swap works. First, the terminal panel. The 3805E does not land field wiring directly — it mates with an external terminal panel that carries the marshalling and the field connections. If the panel is wired for a different module type or a different channel count, the replacement will not work. Second, the chassis revision. Verify the chassis supports the module revision before you install it.

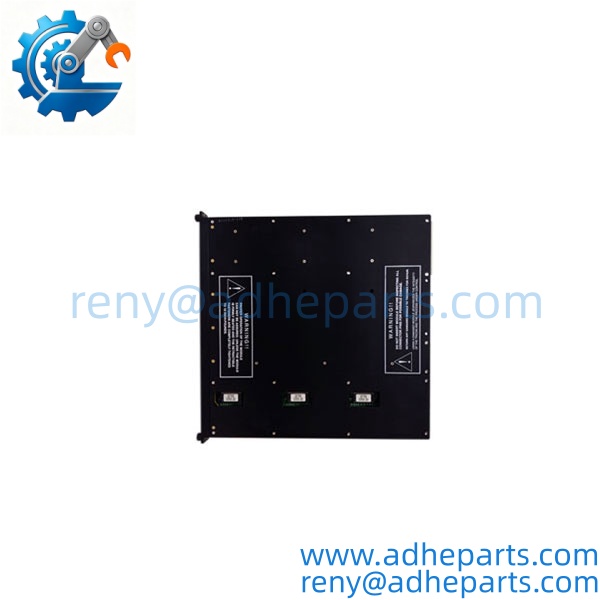

Triconex 3805E

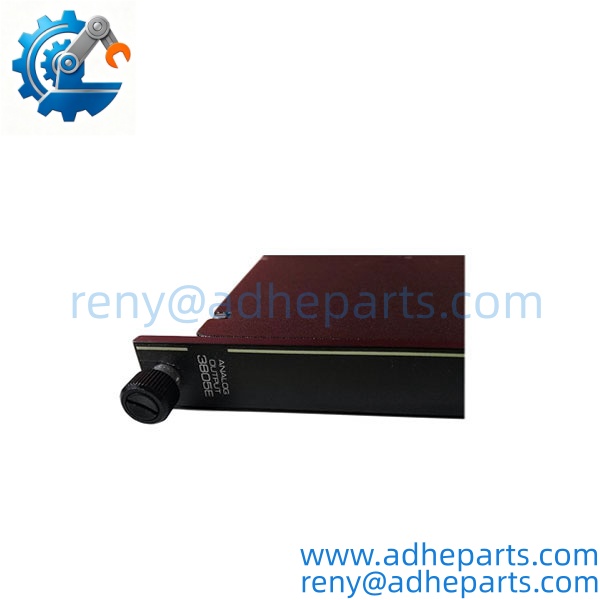

Triconex 3805E

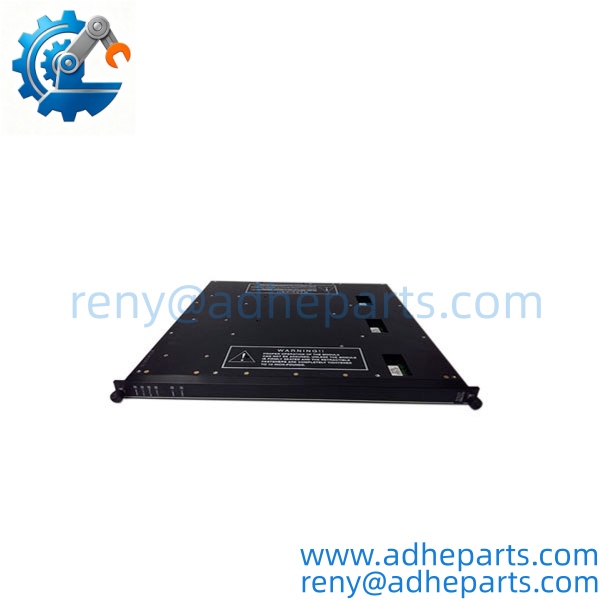

Triconex 3805E

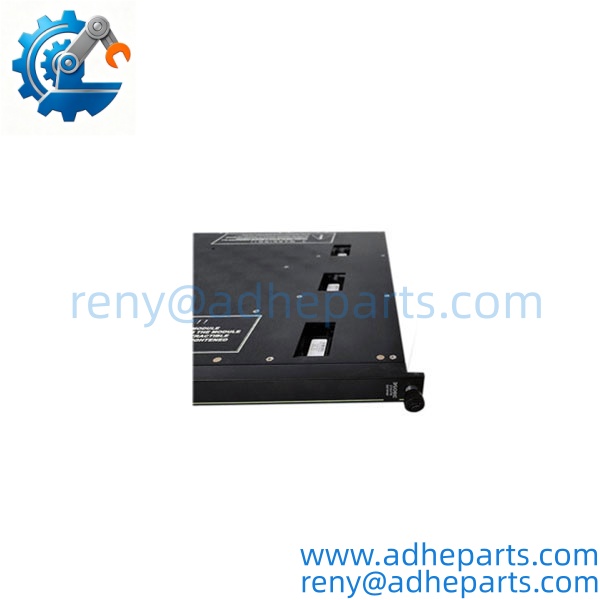

Triconex 3805E

Triconex 3805E

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that hurts most on a safety analog output module is not a dead channel — it is a channel that reads healthy and still drifts out of tolerance. The controller sees the command, the module reports no fault, and the field device sits at the wrong position. I have seen that on a control valve where the analog output module was passing its loopback test but the field terminal was reading 3.8mA instead of 4.0mA. The root cause was a drifted output driver that the diagnostic circuit could not see because the drift was within the module’s internal test tolerance. On a safety system, that is the failure mode that defeats the loop. When you replace a Tricon analog output module, verify the output at the field terminal with a calibrated meter — not just at the module — before you return the loop to service.

Part 2 – Numbered List (Application Scenarios)

1. Oil & Gas – Emergency Shutdown Valve Positioners – The module drives 4–20mA signals to valve positioners on ESD valves. The TMR architecture keeps the position command correct through a single channel fault, and the diagnostics report the degraded channel to the operator.
2. Chemical – Reactor Feed Control – Used to command control valves and dosing pumps on exothermic reactor systems. The open-loop detection helps isolate a failed output before it defeats the safety function.
3. Power Generation – Burner Management System Actuators – Drives fuel control valve positioners and actuator commands. The SIL 3 rating meets the burner management safety requirements.
4. Pipeline – Compressor Station Control – Commands the speed reference to variable speed drives and the position of recycle valves at remote compressor stations. The module’s diagnostics log the fault to the safety controller for maintenance follow-up.

Part 3 – Short Field Story

A Gulf Coast refinery had a control valve on a hydrogen unit that would not hold position during a proof test. The controller commanded 50%, the output module showed the point as active, and the valve sat at 42%. The maintenance team replaced the positioner and recalibrated the loop, and the valve still would not track. We asked them to measure the current at the field terminal with the output commanded to 50%. It read 13.8mA — enough to register as “active” in the loopback circuit but not enough to drive the valve to mid-position. The output driver had drifted, and the diagnostic circuit could not see it because the module’s internal test load was lighter than the field load. The plant replaced the 3805E module, re-ran the proof test, and the valve tracked within 0.5%. The module had been reporting healthy the entire time.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the Triconex marking, the 3805E model string, and the date code. We inspect the backplane connector for bent pins and the module housing for cracks or moisture ingress. A module with a damaged connector or evidence of rework is rejected.
• Revision and Firmware Documentation – We read and photograph the full model string, the firmware revision, and the module revision letter. That record ships with the module so you can compare it against the unit you are replacing.
• Chassis Fit Verification – Each module is seated in a Tricon test chassis to confirm the connector engages fully and the retention mechanism holds. A module that fits loosely will cause intermittent backplane faults in the field.
• Power-Up and Self-Test – The module is powered in a live chassis and we verify it completes its boot sequence and that the controller recognizes the module type without a fault.
• Output Channel Verification – We command each output point to 4mA, 12mA, and 20mA into a calibrated precision resistor. We measure the actual current and confirm accuracy and linearity against the OEM specification. We test at the rated load and at a light load to catch the drifted-driver failure mode.
• Diagnostic Function Test – We simulate an open field loop and verify the module reports the fault to the controller. A module that drives current correctly but does not report faults is not acceptable for safety service.
• Isolation Test – We apply the rated isolation voltage between the field side and the logic side. Leakage current must stay below the datasheet limit.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected by rigid shrouds, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Does the 3805E include the terminal panel?

A: No. The 3805E is the module only. Field wiring lands on an external terminal panel that mates with the module through the chassis. The terminal panel is a separate part number, and you must verify it matches your module type, channel count, and chassis. If you send us the terminal panel part number and the chassis model, we can confirm the match before you order.

Q2: Can I hot-swap the 3805E in a running Tricon system?

A: The Tricon architecture supports module replacement in a redundant configuration, but you must follow the OEM procedure exactly. Do not pull the module under load without verifying the system is in the correct state and the associated output circuits are in a safe condition. On a safety system, an incorrect hot-swap can drop the output and trip the process. Read the OEM procedure for your specific chassis and revision before you touch the module.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers output driver failure, backplane connector failure, and diagnostic circuit failure under normal operating conditions. It does not cover damage from hot-swapping outside the OEM procedure, bent pins from forced insertion, or field wiring faults that cause an output to fail. We test every module in a live Tricon chassis and at the rated load before it ships.

Q4: Do you have this in stock?

A: Triconex inventory moves quickly, and stock varies by revision. Confirm availability before you plan an outage. If we are out of the revision you need, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, verify the terminal panel part number matches the module and the chassis before you install. Second, verify the field load resistance against the module’s loop capability — an oversized resistance causes the output to clip and the valve to misposition. Third, check the field wiring for a short or a ground fault before you install the replacement; a field fault will damage the new module. Fourth, after the swap, measure the output at the field terminal under load with a calibrated meter, not just at the module, and run a proof test of the safety function before you return the loop to service. A module that reports healthy is not necessarily driving the loop correctly.
