Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Number | F6706 |
| Supported Platforms | H41q‑H, H51q‑H, HIMax safety racks |
| Channel Count | 8 differential analog input channels |
| Signal Ranges | 4‑20 mA (requires external 250 Ω shunt), 0‑5 VDC |
| A‑D Resolution | 12‑bit |
| Safety Certification | SIL3 IEC 61508, TÜV AK6 |
| Galvanic Isolation | Input‑to‑backplane 2500 V AC isolation |
| On‑board Diagnostics | Wire‑break, short‑circuit, over‑range detection |
| Rack Supply | 5 VDC max 150 mA; 24 VDC max 100 mA |
| Hot‑Swap | Supported in powered safety rack |
| Operating Temperature | ‑20 °C … +60 °C |
| Approximate Weight | 0.36 kg |
Product Introduction (Anti‑Template, Hook‑B)
Operating as the backbone of analog field signal acquisition within HIMA safety racks, the F6706 feeds pressure, flow and transmitter readings to SIS safety logic for ESD and burner‑management functions. Every channel runs continuous built‑in self‑tests to catch broken wiring or internal component drift during live plant operation.
Original manufacturing has stopped. Many chemical and oil‑gas sites hold one spare on‑site. Honestly, mis‑fitted external shunt resistors account for a large share of field trouble calls on these cards.

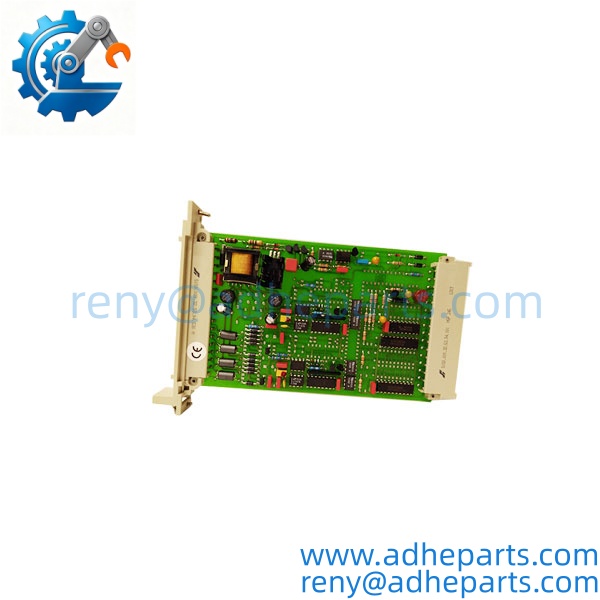

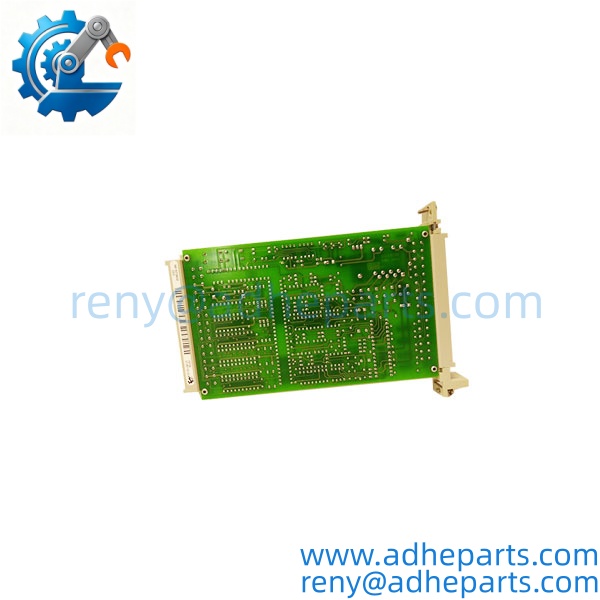

F6706
F6706

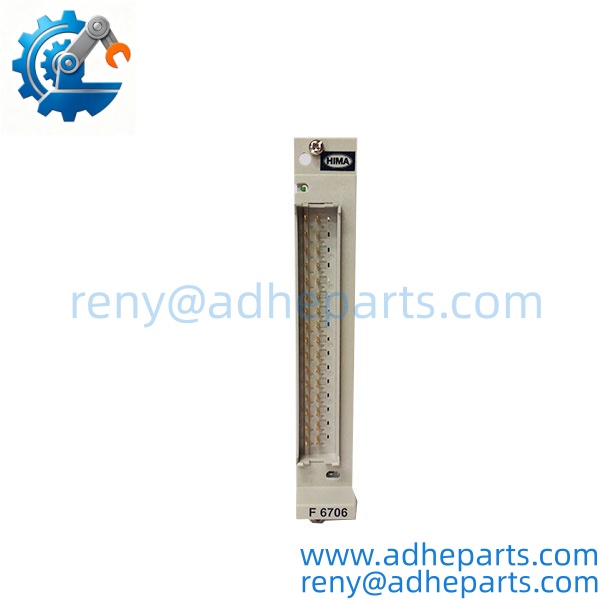

F6706
QC, Procurement & Logistics SOP
- Inbound Verification: Confirm silkscreen marking F6706. Inspect backplane gold fingers for oxidation or physical damage. Match hardware revision against site safety‑system bill‑of‑materials; reject units with burnt PCB traces.
- Live Rig Testing: Mount module on compatible HIMA test rack. Inject calibrated 4‑20 mA and 0‑5 V reference signals across all eight channels. Validate break‑wire diagnostic trigger and log full test report.
- QA & Anti‑Static Packaging: Place verified module inside static‑shield bag. Add foam padding to protect edge connector. Insert printed bench‑test log inside shipping carton.
- Global Logistics & Export Compliance: Apply correct HS commodity code for safety‑system I/O spares. Use shock‑absorbent packaging for sea or air transit. Fill out full part identifier for customs paperwork —though customs clearance for safety‑certified automation hardware in some territories may add 2‑3 working days.
Technical Pitfalls & Integration Warnings
- Firmware and hardware‑revision mismatch: Installing an F6706 of newer hardware revision into an older H41q rack running outdated firmware produces intermittent channel freeze‑ups. One site saw random loss of pressure‑transmitter readings after untested spare swap‑out. Always cross‑validate revision numbers.
- Missing or wrong‑value external shunt resistors: 4‑20 mA loop input requires external 250 Ω shunt. A technician omitting these resistors yields zero readings despite fully functional hardware. No fault alarm will trigger under that specific failure mode.
- Ground‑loop interference due to poor field‑cable earthing: Even with module galvanic isolation, multiple grounding points on transmitter cabling create drifting noisy values. Technicians may misdiagnose signal drift as a defective F6706 card. Review field earthing before swapping hardware.
- ESD damage during maintenance swap: Removing or inserting module without proper grounding wrist strap can damage sensitive analog front‑end circuits. The unit may pass power‑on self‑test yet show noisy or offset channel readings only under live process load. Complete all work inside static‑controlled cabinet conditions.
Frequently Asked Questions (FAQ)
What lead times should I budget if I need F6706 for urgent SIS maintenance? Bench‑tested refurbished stock can ship within several business days. Genuine new‑surplus stock is scarce and may stretch multi‑week lead times. Never schedule safety‑system shutdown work before confirming real stock position.
Can I hot‑swap inside a live powered HIMA safety rack? Hot‑swap hardware capability exists. Still, always follow site SIS work‑permit rules. Even with hot‑swap enabled, affected channels go offline briefly during module insertion.
Will drop‑in replace older F6704 analog‑input cards? Physical slot fit works, but full functional compatibility depends on controller firmware version. Direct plug‑and‑play cannot be assumed. Run full channel calibration after replacement.
What shipping alternatives exist for cross‑border delivery of safety spares? Air freight suits urgent breakdown events. Sea freight cuts cost for planned spare‑part stocking. All commercial documents must carry full model identifier to reduce customs inspection hold risk.
What signs tell me an is developing internal failure? Common symptoms: sporadic channel offset, intermittent wire‑break fault flags with healthy field wiring, inconsistent readings under cabinet temperature swings. Perform full loop‑test before condemning the module.
Do I need to re‑configure safety logic software after installing replacement ? No new logic download is normally needed. Channel scaling parameters live within the controller project. You must perform post‑swap transmitter loop calibration to validate each input channel.
Can be deployed in non‑HIMA third‑party safety racks? No. It is built exclusively for HIMA H‑series backplane racks and will not operate on other vendor hardware platforms.
