Product Introduction
When Ovation racks suffer random partial I/O dropout without controller fault codes, many technicians overlook the intermediate power‑distribution layer. This fan‑less unit mounts inside standard Ovation cabinet back‑plates, accepting either AC or DC mains‑side input and delivering stabilized 24 VDC to downstream rack hardware. Its internal diode auctioneering circuit allows pairing two separate supply sources for redundancy; loose high‑power screw terminals can create resistive heating that only surfaces under peak cabinet load, —though your mileage may vary depending on total connected I/O‑module current draw. No processing logic resides on this unit; it handles power routing and over‑current protection only.

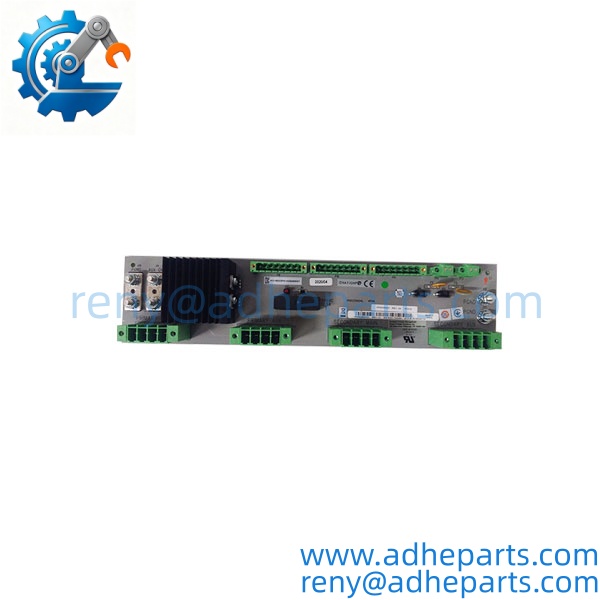

5X00489G01

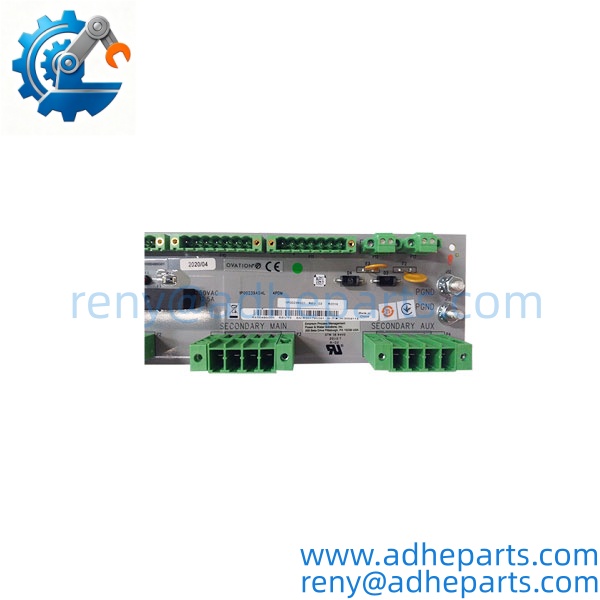

5X00489G01
Key Technical Specifications
| Parameter | Value |
|---|---|
| OEM Model | 5X00489G01 |
| Input Voltage Range | 85‑264 VAC / 90‑375 VDC universal input |
| Input Frequency | 43‑67 Hz for AC feed |
| Nominal Output | Dual regulated 24 VDC (23.5‑28.5 VDC adjustable) |
| Rated Output Current | 10 A / 20 A configuration variants |
| Redundancy Scheme | Diode auctioneering for dual power‑source inputs |
| Cooling Method | Fan‑less, passive convection cooling |
| Operating Ambient Temperature | 0 °C … +55 °C |
| Humidity | 5‑95 % RH non‑condensing |
| Mounting | Ovation cabinet back‑plate / DIN‑rail compatible |
| Protection Features | Internal over‑current, over‑voltage shutdown |
Field Application & Technical Pitfalls (The Engineer’s Guide)
Critical industrial scenarios:
- Fossil‑power plant Ovation control cabinets feeding mixed controller and remote‑node I/O racks for boiler and turbine interlock logic.
- Combined‑cycle plant distributed DCS enclosures where redundant 24 VDC feeds are mandatory for safety‑related I/O.
- Water‑treatment large‑scale DCS installations running continuous 24‑7 cabinet‑load profiles.
Technical pitfalls to avoid
- Improper high‑current terminal torque: The heavy‑duty power terminals near the third terminal block from the left demand defined torque values. Under‑torque creates rising contact resistance and thermal drift under full‑load; over‑torque cracks the plastic terminal housing. Well, technically the system may pass idle‑state voltage checks, yet heating develops once many I/O modules draw real operating current.
- Mismatched PDM current‑rating variant mixing: Do not swap a 10 A variant into a cabinet sized for 20 A total load. Physical form factor matches completely, yet over‑current shutdowns trigger randomly under peak process conditions. Always cross‑check silkscreen rating marking before installation.
- Ignoring diode‑auctioneering polarity during redundant setup: Reversed auxiliary‑supply input polarity will disable redundancy function without throwing obvious hardware fault LEDs. Redundancy sits silent; single‑source failure will take down the whole rack with no advance warning.
Hypothetical field anecdote: A power‑plant crew swapped a failing 5X00489G01 PDM during a scheduled unit shutdown. They tightened high‑power input terminals by hand feel and skipped torque‑tool use. For two weeks, the DCS cabinet operated with light I/O loading. During a high‑demand turbine startup sequence, total rack current climbed. Loose terminals generated heat, output 24 VDC sagged, and subsets of analog input cards reset spontaneously. Operators saw scattered bad process points, and maintenance spent multiple hours chasing I/O‑module faults before identifying thermal‑related voltage drop at the PDM terminals. No permanent hardware damage occurred, yet critical startup monitoring became unstable.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Match physical silkscreen marking to 5X00489G01 OEM reference; inspect high‑current screw terminals for thread wear or plastic cracking; check power‑stage heat sink for burn discoloration; review OEM packing documentation for new‑surplus stock.
- Live Rig Testing: Mount unit inside Ovation test back‑plate; apply universal‑range AC input source; verify regulated dual 24 VDC output stays within specified adjustment window; simulate dual‑source redundant feed to validate diode auctioneering hand‑off behavior.
- Parameter Testing: Apply resistive load up to full rated output current; monitor output voltage stability and temperature rise; trigger over‑current test to confirm internal protection activates correctly.
- Final QA & Packaging: Second visual pass of terminals and heat‑sink assembly; place unit inside static‑shield anti‑static bag; affix QC‑passed sticker stamped with test date; add rigid foam padding to protect heavy‑duty terminal blocks during transit.
Frequently Asked Questions (FAQ)
Q: Can I hot‑swap 5X00489G01 while the Ovation cabinet remains powered? A: No. This unit carries mains‑level input power. Full lock‑out‑tag‑out on both primary and auxiliary input feeds is required before removal. Hot removal creates arc hazards and full rack power loss.
Q: Are 10 A and 20 A versions of 5X00489G01 mechanically interchangeable? A: Yes, form‑factor is identical. You must match rated current to the cabinet’s total calculated I/O load. Undersized variants trigger unplanned over‑current shutdowns. Verify exact load capacity with the OEM datasheet.
Q: What warranty coverage applies for this power‑distribution module? A: Standard 12‑month warranty covers test‑verified hardware defects. Warranty excludes thermal damage from improper terminal torque, reversed input polarity, and over‑load events caused by site‑side design mismatch.
Q: After replacing 5X00489G01, must I re‑download Ovation controller application logic? A: No. Application logic lives within the Ovation controller hardware. After swap‑out, measure 24 VDC rail voltages across multiple rack slots and confirm all I/O modules show normal run status.
Q: How do I tell genuine OEM 5X00489G01 apart from rebuilt units? A: Authentic units carry crisp silkscreen part number and current‑rating marking on PCB and housing. Rebuilt units often show discoloration on heat‑sink surfaces or reworked solder joints around high‑power components. Avoid units relying purely on adhesive sticker labels.
Q: My Ovation rack sees intermittent 24 VDC rail sag under heavy process load, what should I check before replacing PDM? A: First inspect input and output high‑current screw‑terminal torque. Measure voltage directly at PDM output terminals versus far‑end rack back‑plane terminals. Many sag issues stem from bad termination rather than internal PDM failure.
