Allen-Bradley 1746SC-INO4I | SLC 500 AO Module, Fast Shipping

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing module before ordering. The SC specialty line has multiple build variants.

4. Product Introduction

The Allen-Bradley 1746SC-INO4I is a four-channel isolated analog output module for the SLC 500 platform, built by Spectrum Controls under the specialty I/O (SC) line. It drives 4–20mA and voltage signals to field devices — valve positioners, I/P transducers, variable speed drives, and analog panels — and each channel is isolated from the others and from the backplane.

The engineering value is the isolation. Standard analog output cards share a common ground across all channels, which means a ground loop between two field devices at different potentials can corrupt both signals. The 1746SC-INO4I breaks that path. In my experience, that is the difference between a loop that holds tuning and one that drifts every time a nearby drive cycles.

One thing to verify before you order: your SLC processor must support specialty I/O modules. Not every SLC firmware revision recognizes the SC line, and the module will not appear in the processor’s I/O configuration if it does not.

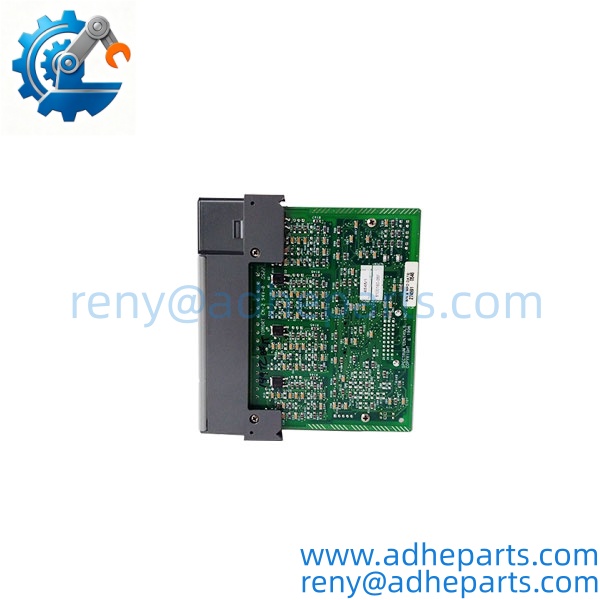

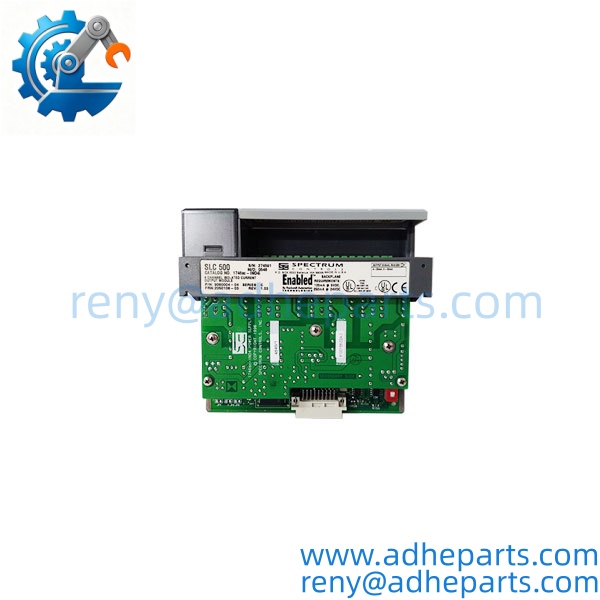

1746SC-INO4I

1746SC-INO4I

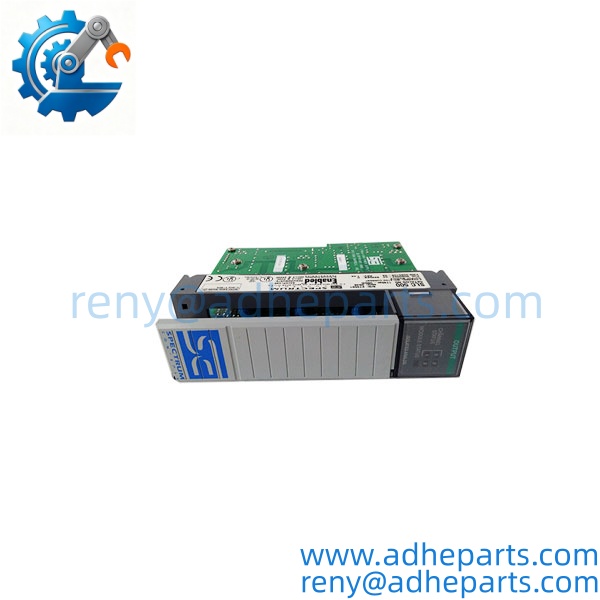

1746SC-INO4I

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that wastes the most time on an analog output card is a channel that drifts instead of dying. The valve still moves, but the position no longer matches the command, and the loop tuning that worked last month no longer holds. Operators see it as a process problem. In my experience, the card is rarely the first suspect, and by the time it is pulled, the crew has already retuned the loop twice. When you replace a 1746SC-INO4I, record the channel scaling and the field device calibration first. A new module with the same scaling but a different field device calibration will introduce a fresh error that looks like a bad card.

Part 2 – Numbered List (Application Scenarios)

1. Packaging Machinery – Film Tension Control – The module drives 4–20mA setpoints to a tension brake controller. The isolated channels prevent a ground loop between the brake controller and the adjacent drive from corrupting the tension signal.
2. Chemical Processing – Valve Positioner Control – Used to drive I/P transducers on control valves. The channel-to-channel isolation protects the module from a ground fault on one valve loop affecting the others.
3. Water Treatment – Chemical Dosing Pumps – Drives analog setpoints to dosing pumps. The isolation protects the module from a ground fault on a pump in a wet pit.
4. Material Handling – Variable Speed Conveyor Drives – The module provides speed references to VFDs. The isolated outputs keep the reference clean when the drive’s power stage injects noise onto the common.

Part 3 – Short Field Story

A food plant in the Midwest had a packaging line where the film tension would drift every afternoon when the adjacent case sealer started running. The crew had replaced the tension controller, the brake, and the analog output card. The drift came back every day. We asked them to check the isolation on the replacement card — the card they had installed was a standard non-isolated analog output module, not the SC isolated version. The drive on the case sealer was injecting a ground current that rode the common back to the analog card. We supplied a 1746SC-INO4I, they installed it, and the afternoon drift stopped.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the Spectrum Controls and Allen-Bradley markings, the 1746SC-INO4I model string, and the date code. We inspect the edge connector for bent pins and the terminal block header for cracked plastic. A module with a damaged connector or evidence of moisture ingress is rejected.
• Revision Documentation – We read and photograph the full model string, the series letter, and the date code. That record ships with the module so you can compare it against the unit you are replacing.
• Chassis Fit Verification – Each module is seated in a 1746 test chassis to confirm the edge connector engages fully and the retention screw holds. A module that fits loosely will cause intermittent backplane faults.
• Output Channel Verification – We command each of the four channels to 4 mA, 12 mA, and 20 mA into a calibrated precision resistor. We measure the actual current and confirm accuracy and linearity against the OEM specification.
• Isolation Test – We apply the rated isolation voltage between channels and between each channel and the backplane. Leakage current must stay below the datasheet limit.
• Processor Recognition Test – The module is installed in a live SLC 500 chassis with a known-good processor. We verify the processor recognizes the module type and can read and write the channel data.
• Fault Reporting Test – We simulate an open output loop and verify the module reports the fault to the processor. A module that drives current correctly but does not report faults is not acceptable.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the edge connector protected by a rigid shroud, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Will my SLC 5/03 processor recognize this specialty I/O module?

A: Not necessarily. The SC specialty I/O line requires processor firmware support. Older SLC firmware revisions may not recognize the module, and it will not appear in the processor’s I/O configuration. Check your processor’s firmware revision against the OEM compatibility list before you order. If you send us the processor model and firmware revision, we can confirm the match.

Q2: What is the difference between the 1746SC- and the standard 1746-NO4I?

A: The standard 1746-NO4I is a non-isolated analog output module — all channels share a common ground. The 1746SC- provides channel-to-channel isolation, which prevents ground loops between field devices at different potentials. If your application has drives or other noise sources in the same panel, the isolated version is the safer choice.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers channel failure, isolation breakdown, backplane communication failure, and connector failure under normal operating conditions. It does not cover damage from connecting field supply voltage to the output terminals, reversed field wiring, or ESD damage from handling without a wrist strap. We test every module on a live SLC chassis before it ships.

Q4: Do you have this in stock?

A: The 1746SC specialty line is out of active production and available only through surplus and refurbished channels. Stock varies week to week. Confirm availability before you plan an outage. If we are out, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the chassis before inserting or removing the module — the 1746 backplane is not hot-swap capable. Second, record the channel scaling and field device calibration before you pull the old module. Third, verify the field supply voltage and the loop resistance before you connect the load — the module drives current, not voltage, and an open loop will fault. Fourth, after the swap, command each channel through its range and measure the actual current at the field device before you return the loop to service. A module that powers up is not necessarily driving the loop correctly.
