Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | AI620 |
| Article Number | 3BHT300005R1 |
| Product Family | Advant OCS / S600 I/O |
| Product Type | Analog Input Module |
| Number of Channels | 16 |
| Resolution | 12-bit |
| Input Configuration | Differential |
| Current Input Ranges | 0–20 mA, 4–20 mA, ±20 mA |
| Voltage Input Range | ±10 V |
| Shunt Resistance | 250 Ω |
| Common-Mode Voltage | 100 V |
| CMRR | >80 dB at 16 2/3, 50, or 60 Hz |
| I/O System | S600 I/O |
| Controller Compatibility | Advant Controller 160 and compatible S600 I/O configurations |
| Mounting | S600 I/O station / compatible subrack |
| Country of Origin | Sweden, subject to actual product documentation |
| HS Classification | Confirm according to the actual product and destination customs requirements |
ABB documentation identifies the AI620 as an S600 analog input module with 16 differential channels and 12-bit resolution. The documented signal ranges are 0–20 mA, 4–20 mA, ±20 mA, and ±10 V, with a 250 Ω shunt and 100 V common-mode voltage.
Product Introduction (Anti-Template)
Operating as a measurement interface in the ABB Advant OCS S600 I/O architecture, the AI620 converts field-level analog signals into process data for the control system. Its 16 differential channels support common industrial current and voltage ranges, including 4–20 mA and ±10 V. The differential configuration and documented 100 V common-mode capability are important when dealing with field wiring exposed to potential differences. Honestly, checking the signal range and I/O configuration before replacement can prevent a surprisingly simple wiring mismatch from becoming a commissioning problem.
AI620

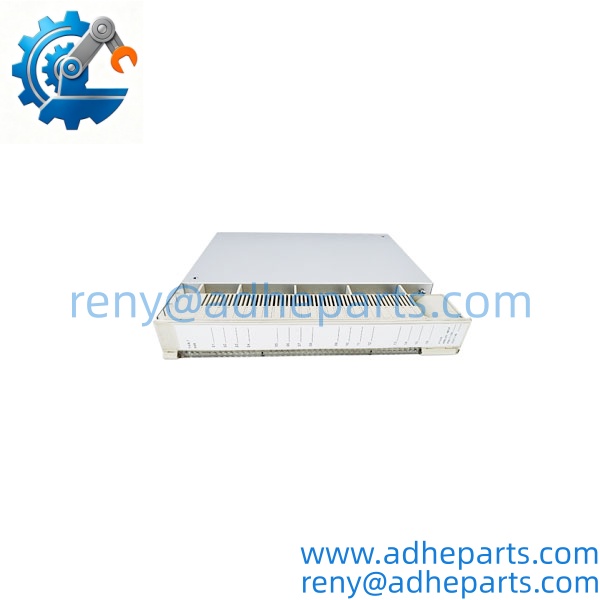

AI620

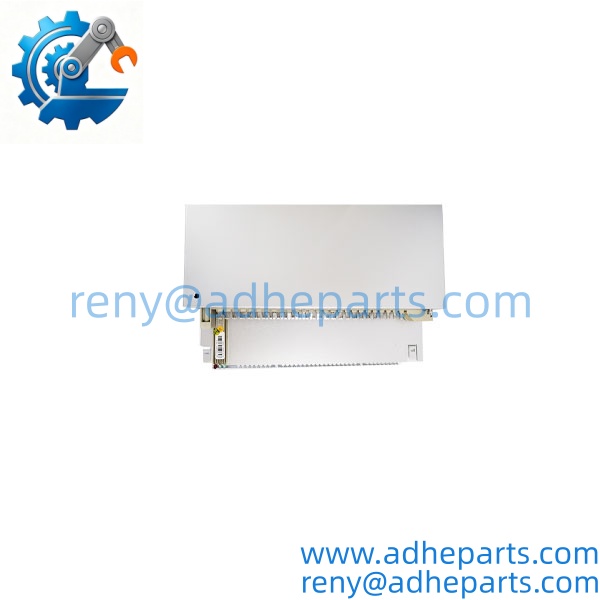

AI620
AI620
QC, Procurement & Logistics SOP
- Inbound Verification
Verify the ABB AI620 designation, 3BHT300005R1 article number, hardware revision, serial number, terminal interface, and PCB condition. Compare the physical module with the buyer’s installed unit and system documentation. - Live Rig Testing
Install the module in a compatible I/O station and verify power-up behavior, I/O bus communication, channel recognition, and analog signal acquisition. Test representative 4–20 mA and voltage signals within the approved input ranges. - QA & Anti-Static Packaging
Inspect the PCB, terminal interface, connectors, mounting points, and visible components. Package the module in an anti-static bag with shock protection and moisture-resistant outer packaging. - Global Logistics & Export Compliance
Confirm the final HS classification according to the actual module construction and destination customs requirements. Prepare the commercial invoice, packing list, origin information, and requested warranty or inspection documents. Use secure packaging for air or sea freight.
Technical Pitfalls & Integration Warnings
- Firmware or Configuration Revision Mismatch
The AI620 is part of a system-level I/O configuration, so controller and I/O configuration revisions must be checked together. For example, a system configured around V3.1 should not automatically be assumed compatible with a V2.8 configuration. Verify the installed controller software and I/O database before commissioning. - DIP Switch / Configuration Errors
Do not assume that configuration settings from another module can be copied directly. Record the original module position, channel configuration, and system parameters before replacement. - Wiring and Terminal Incompatibility
The AI620 uses differential analog inputs, so signal polarity and common connections matter. A 4–20 mA loop or ±10 V source must be wired according to the applicable terminal assignment. Never connect a voltage signal to a current-configured circuit without confirming the system design. - ESD Damage During Unboxing
The module contains exposed electronic circuitry and backplane connections. Use a grounded ESD workstation and anti-static packaging when handling the board. Keep the module protected until installation.
Frequently Asked Questions (FAQ)
1. What is the ABB used for?
The is a 16-channel analog input module for the ABB Advant OCS I/O system. It acquires differential analog signals for process monitoring and control.
2. What signal ranges does the support?
The documented ranges include 0–20 mA, 4–20 mA, ±20 mA, and ±10 V. The module provides 12-bit resolution.
3. What is the difference between AI610 and ?
AI610 is a 32-channel single-ended analog input module, while provides 16 differential analog input channels with support for current and voltage ranges. They should not be treated as direct substitutes.
4. Is compatible with every ABB Advant system?
No. Compatibility depends on the I/O station, controller version, bus configuration, terminal arrangement, and system software. Confirm the complete configuration before ordering.
5. Can the be hot-swapped?
Do not assume that it can. Follow the applicable ABB system maintenance procedure and isolate the relevant power sources before removing or replacing the module.
6. What information should be provided for compatibility confirmation?
Provide the complete 3BHT300005R1 marking, hardware revision, front and rear photographs, I/O station or subrack model, controller model, existing terminal arrangement, and the field signal type.
7. What shipping options are available?
Lead time depends on actual stock condition and inspection requirements. Express air shipment or scheduled freight can be arranged depending on destination, customs requirements, packaging, and the selected shipping method.
