ABB 3BHB045647R0011 | GV C707 AE01 Spare Kit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

The ABB 3BHB045647R0011 is identified as a PM Kit for 14 × 91 mm IGCTs, specifically associated with the GV C707 AE01 converter configuration. Current trade records also identify the item as a power-module kit for this exact IGCT arrangement.

Key Technical Specifications

Trade records specifically describe 3BHB045647R0011 as a PM Kit for 14 × 91 mm IGCTs – GV C707 AE01. A separate related part, 3BHB045668R0005, is listed as the UG Kit for 91 mm IGCTs for the same GV C707 AE01 configuration.

One customs-data record classified a shipment of the item under 8504909000 and described it as a gate-driver-board kit, so the final HS code should be confirmed against the actual kit contents and the destination country’s tariff rules rather than copied blindly from another shipment.

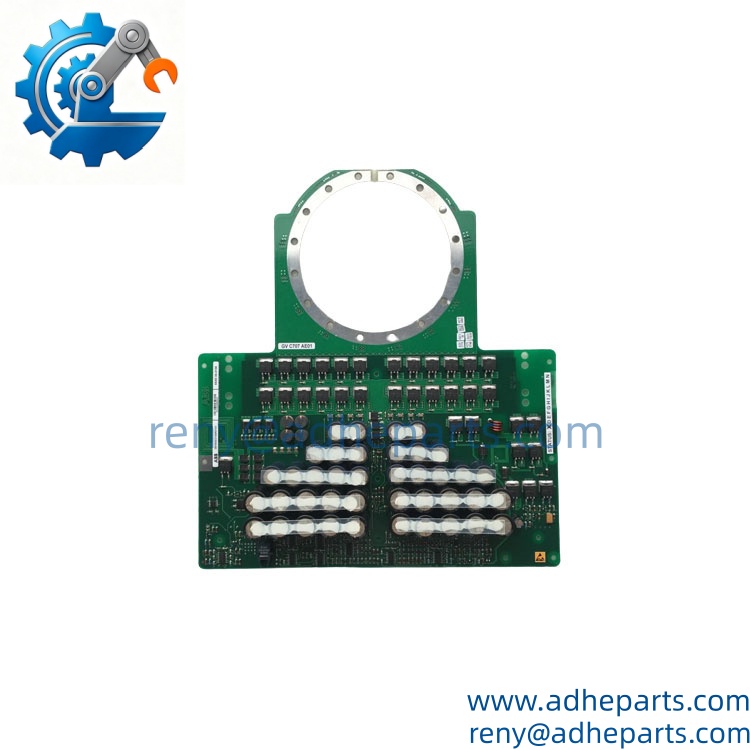

GV C707 AE01 3BHB045647R0011 front

Product Introduction (Anti-Template)

When a high-power converter reaches its scheduled maintenance interval, the semiconductor assembly is not the place for guesswork. The ABB GVC707 AE01 3BHB045647R0011 is a PM kit designed around a 14 × 91 mm IGCT configuration, making it a specific replacement package rather than a generic power-electronics spare.

The part belongs to the GV C707 AE01 hardware family and should be sourced together with the correct IGCT and associated mechanical/electrical components. ABB’s related parts list also identifies a dedicated 91 mm UG kit and gate-driver boards for this converter family.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the complete part number: 3BHB045647R0011.
   • Verify the marking GV C707 .
   • Check that the kit is intended for the 14 × 91 mm IGCT configuration.
   • Inspect all supplied components for corrosion, oxidation, cracks, contamination, or mechanical damage.
   • Count the kit components against the applicable packing list.
   • Confirm whether the customer requires the complete PM kit or individual IGCT-related components.
2. Live Rig Testing
   • Individual passive/mechanical PM-kit components may not be suitable for conventional powered functional testing.
   • Where the kit contains electrical assemblies, test the applicable components separately before installation.
   • Verify associated gate-driver interfaces when included in the customer’s replacement scope.
   • Check semiconductor identification and physical dimensions.
   • Record component markings and serial/lot information where available.
3. QA & Anti-Static Packaging
   • Photograph the complete kit before packing.
   • Use ESD-safe packaging for semiconductor and electronic components.
   • Protect IGCT mounting surfaces from scratches and contamination.
   • Prevent heavy components from shifting inside the carton.
   • Use moisture protection for international transportation.
   • Add rigid cushioning because mechanical shock can damage semiconductor assemblies even when no external damage is visible.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, origin information, and applicable HS classification.
   • Use a precise description such as ABB GV IGCT power module maintenance kit.
   • Air freight is practical for most individual kits.
   • Use rigid packaging for air or sea transportation.
   • Confirm the final HS classification with the destination customs broker because the exact kit contents can affect tariff treatment.

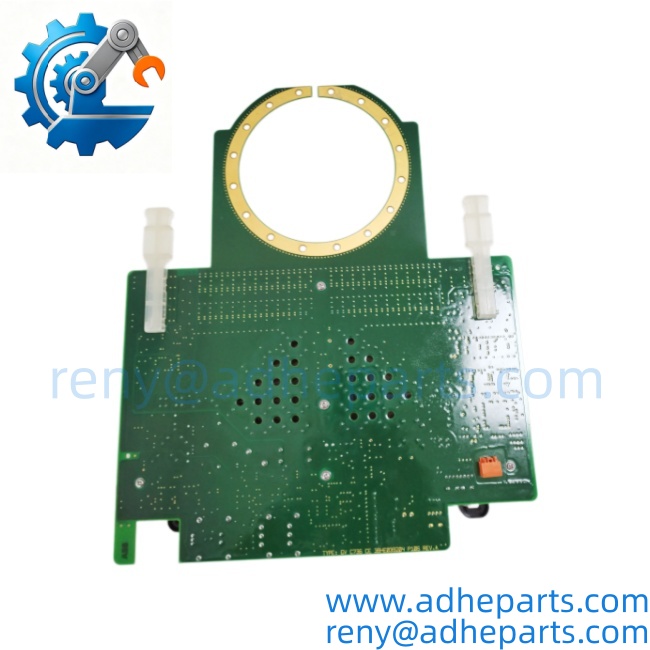

GV C707 AE01 3BHB045647R0011 backside

Technical Pitfalls & Integration Warnings

1. 91 mm vs. 51 mm IGCT Configuration

This is the first specification to check.

ABB’s related parts list distinguishes the GV kit for 14 × 91 mm IGCTs from other GV families using different IGCT sizes and quantities. For example, the C703 family has separate 51 mm configurations.

Scenario: A maintenance team orders a similar-looking ABB PM kit intended for 51 mm IGCTs. The part arrives, but the mechanical interface does not match the installed converter.

Do not substitute based on the ABB family name alone.

2. PM Kit vs. UG Kit

The 3BHB045647R0011 is the PM kit, while 3BHB045668R0005 is listed as the corresponding UG kit for 91 mm IGCTs on the GV .

These should not be treated as interchangeable names for the same item. Confirm exactly which maintenance kit the customer requires.

3. Gate Driver Compatibility

The power semiconductor assembly and its gate-driver circuitry work as a system.

ABB’s related component lists associate specific gate-driver boards with different IGCT configurations.

If a customer is replacing a complete converter power section, verify the gate-driver board part number at the same time. A physically compatible IGCT assembly can still be unsuitable if the driving circuitry does not match.

4. Mechanical Mounting and Torque

IGCT power assemblies require controlled mechanical mounting and electrical contact conditions.

Scenario: The correct 91 mm IGCT is installed, but mounting pressure or contact surfaces are incorrect. The converter initially starts normally, then develops abnormal thermal behavior.

Honestly, with high-power IGCT equipment, correct mounting is part of the electrical specification—not just mechanical housekeeping.

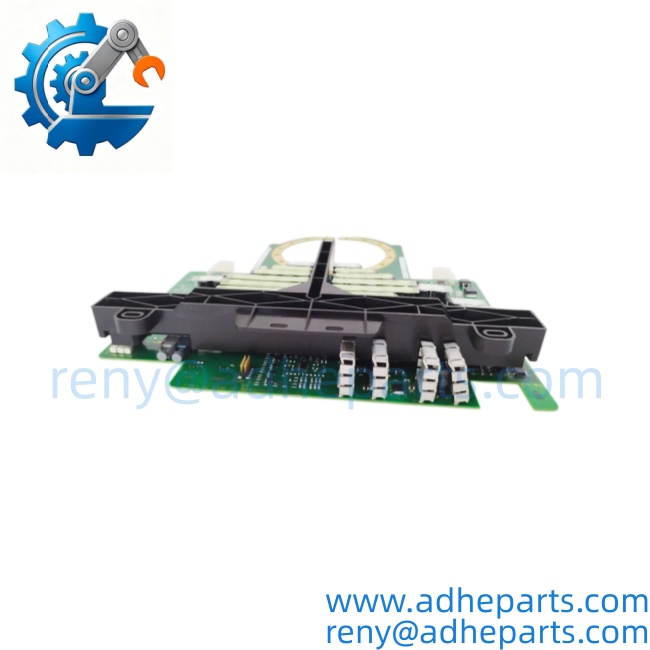

GV C707 AE01 3BHB045647R0011 sideview

Frequently Asked Questions (FAQ)

Q1: What exactly is ABB 3BHB045647R0011?

It is a PM Kit for 14 × 91 mm IGCTs, associated with the converter configuration.

Q2: Is 3BHB045647R0011 an individual IGCT?

No. The part is identified as a PM Kit, not simply a single 91 mm IGCT device. The kit should therefore be checked against the customer’s maintenance bill of materials before ordering.

Q3: What does “14 × 91 mm IGCT” mean?

It identifies the intended power-module configuration: 14 IGCT devices using the 91 mm device format. The number and physical device size are important when matching the converter hardware.

Q4: Is 3BHB045647R0011 compatible with the C703 configuration?

No direct substitution should be assumed. ABB’s related part listings show separate PM kits for C703, including configurations using 51 mm IGCTs, while 3BHB045647R0011 is specified for GV with 14 × 91 mm IGCTs.

Q5: What is the related UG kit?

The related UG kit is listed as 3BHB045668R0005, specified for 91 mm IGCTs – GV .

If the customer is asking for a complete maintenance package, clarify whether they need the PM kit, UG kit, IGCTs, gate-driver boards, or the complete assembly.

Q6: Can this kit be hot-swapped?

No. This is a power-module maintenance component, not a plug-in control card. Converter power sections must be isolated, discharged, and maintained according to the equipment’s approved electrical safety procedure before replacement.

Do not treat the kit like a standard low-voltage drive-control board.

Q7: What information should I send when ordering this part?

For a reliable compatibility check, provide:

• 3BHB045647R0011
• GV designation
• Existing converter model
• Number and diameter of installed IGCTs
• Existing IGCT part number
• Gate-driver board part number
• UG/PM kit information
• Clear photographs of the existing power-module assembly

For this part, the IGCT diameter and quantity are critical matching parameters. The part number alone should not be used to approve a substitute.

Q8: What HS code should be used for export?

Trade records show 8504909000 used for shipments identified as 3BHB045647R0011. However, because this is a kit and the exact contents can vary, the final classification should be confirmed based on the actual commercial invoice description and destination customs requirements.
