Description
Key Technical Specifications
- Operating Input Power: 20–32 VDC backplane supply
- Typical Power Draw: 25 W
- Safety Certification: IEC 61508 SIL 3, ATEX, IECEx, FM, CSA
- Network Interfaces: 2 × 10/100/1000 Mbps Trusted Ethernet Ports
- Diagnostic Port: RS-232 local service interface
- Supported Redundancy Modes: Simplex, dual, triple modular redundancy
- I/O Expansion Capacity: Up to 8 local and remote Trusted I/O racks
- Onboard Memory: 2 GB RAM, 8 GB non-volatile flash storage
- Operating Temperature Range: -40 °C to +70 °C
- Humidity Rating: 5% to 90% non-condensing
- Form Factor: Single slot rack-mounted AADvance chassis module
- Programming Standard: IEC 61131-3 compliant toolset
A typical system may include:AADvance System Rack Backplane → ICS TRIPLEX T9110 → Safety I/O Modules → Field Sensors & Emergency Trip Devices
Therefore, if the customer’s existing safety system relies on this TMR processor to execute safety interlock logic, hardware matching and program compatibility must be confirmed before purchasing the replacement module.
Product Introduction

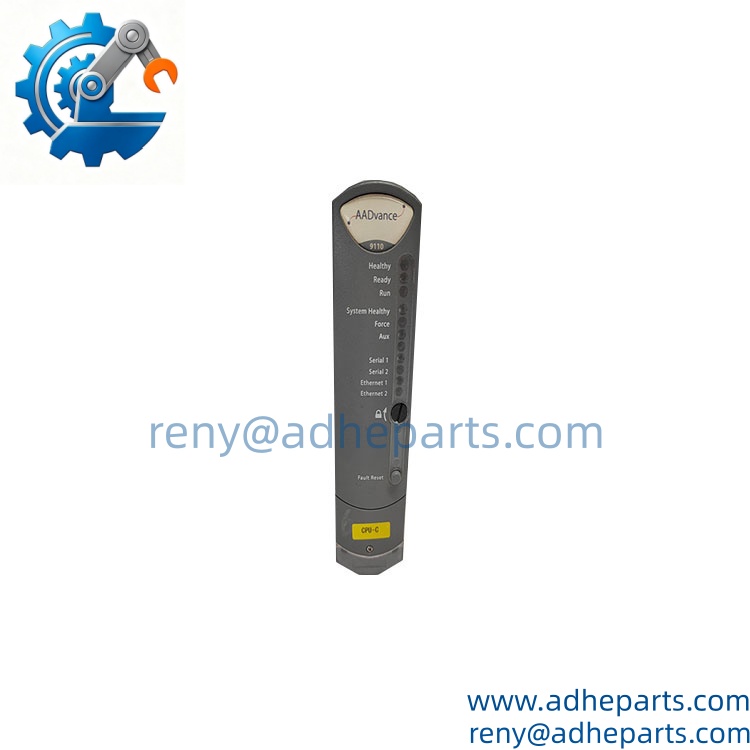

Operating as the backbone of the AADvance platform, the ICS TRIPLEX 9110 runs safety interlock, ESD and fire & gas logic for high-risk process facilities. Continuous internal voting routines detect component degradation before unsafe process conditions develop. Honestly, verifying matching configuration checksum values before swapping processors prevents accidental logic loss on live safety loops.
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect factory ICS TRIPLEX labeling, cross-reference serial identifiers for origin tracing, and check enclosure for impact damage or evidence of prior disassembly.
- Live Rig Testing: Complete power-on initialization, verify Ethernet communication stability, run built-in diagnostic self-tests, and confirm redundancy mode detection functions correctly.
- QA & Anti-Static Packaging: Seal each module inside static shielding bags, cushion with shock-absorbent foam, and label cartons for certified safety control hardware.
- Global Logistics & Export Compliance: Assign accurate HS classification for safety system processor assemblies. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older AADvance chassis firmware cannot fully enable all redundancy features on newer batches of 9110. One refinery installed the module without updating system firmware, and triple redundant voting failed to activate after commissioning.
- Configuration Checksum Mismatch: Loading an incompatible application program triggers continuous fault alarms. A field engineer swapped processors without backing up the logic, forcing a full site program reload.
- Network Topology Errors: Misconfigured trusted Ethernet cabling breaks redundant communication paths. Single cable faults will trigger full processor isolation instead of graceful failover.
- ESD destruction during unboxing: Removing the unit from shielding packaging without a grounded wrist strap risks damaging high-speed network transceivers. Static damage often causes intermittent communication dropouts under thermal load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 6–9 weeks subject to factory production schedules.Q: Can I select air freight or sea freight for this ICS TRIPLEX safety processor?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 9110 support hot-swap while the AADvance rack remains energized?A: Hot replacement is permitted only in dual or triple redundant configurations. Hot-swap on simplex racks forces full system shutdown and safety loop outage.Q: Is the 9110 backward compatible with early-generation AADvance chassis?A: Physical slot fit matches legacy AADvance racks, but full SIL3 functionality depends on aligned system firmware versions. Bench validation is recommended prior to site deployment.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling, network communication and diagnostic routine validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this safety processor?A: Persistent cabinet dust buildup, unshielded Ethernet wiring exposed to high electrical noise, and sustained operation above 65 °C accelerate degradation of internal memory and network components. Maintain regular cabinet air filter replacement cycles.
