GE 369-HI-R-M-0-0-0-E | 12-RTD Motor Protection Relay

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

A motor protection relay earns its value when it prevents a relatively small electrical fault from becoming an expensive motor or process failure. The GE Multilin 369-HI-R-M-0-0-0-E is a motor management relay designed for medium and large AC motors, combining electrical protection, thermal monitoring, metering, event information, and motor-management functions in a single non-drawout device. GE’s application material lists functions such as thermal overload, RTD-biased thermal protection, current unbalance, mechanical jam, overcurrent, undervoltage, overvoltage, and undercurrent.

This particular configuration is significant because the ordering code specifies HI control power, built-in RTD inputs, metering, no optional fiber-optic port, no additional protocol option, no harsh-environment option, and enhanced diagnostics. The 369 also provides RS-232/RS-485 communication and setpoint management, making configuration preservation an important consideration when replacing a unit in an operating plant.

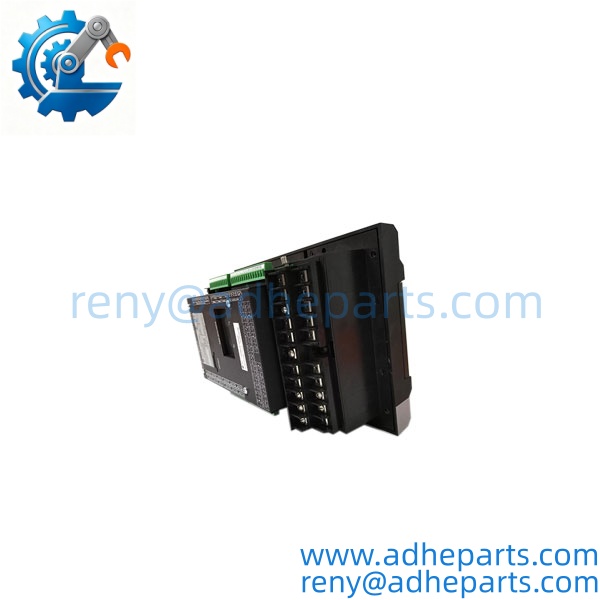

369-HI-R-M-0-0-0-E

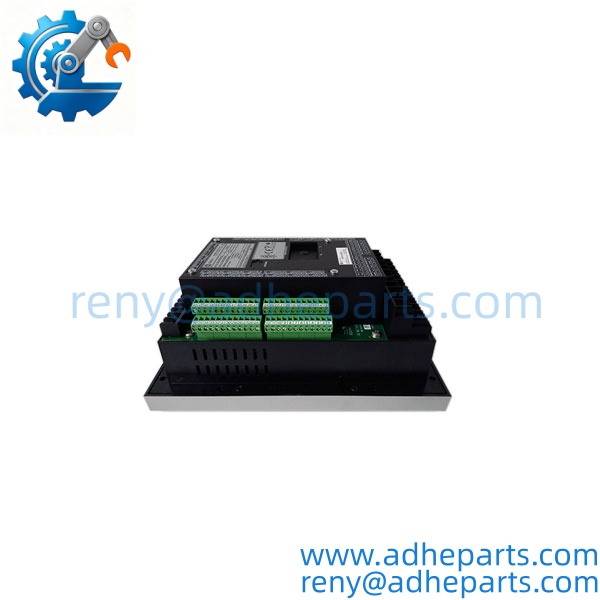

369-HI-R-M-0-0-0-E

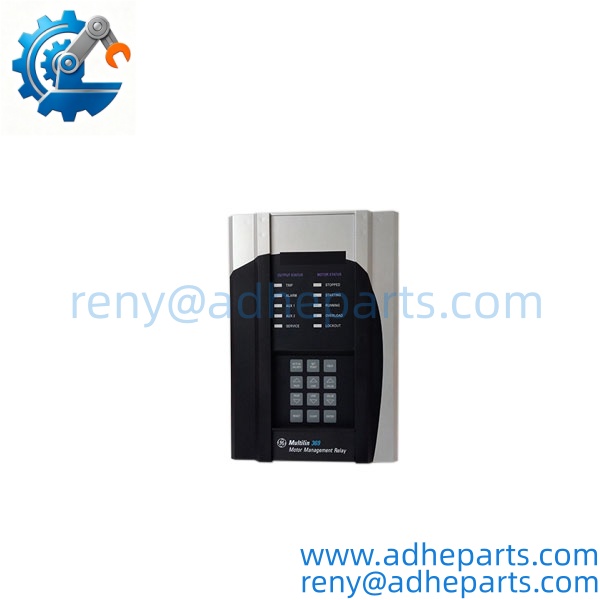

369-HI-R-M-0-0-0-E

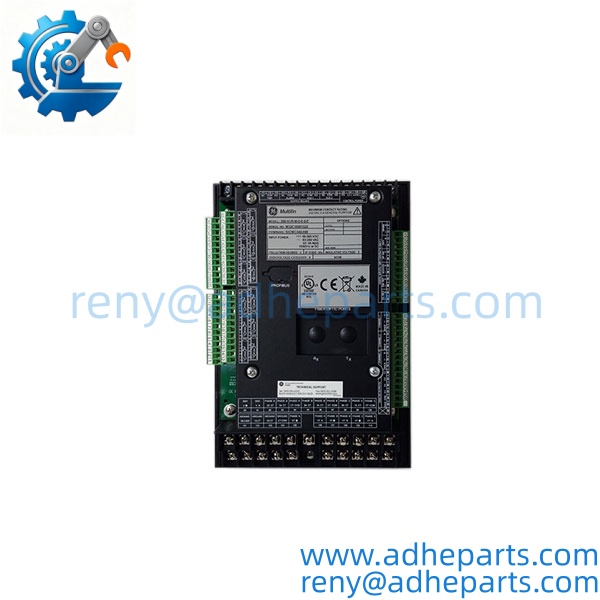

369-HI-R-M-0-0-0-E

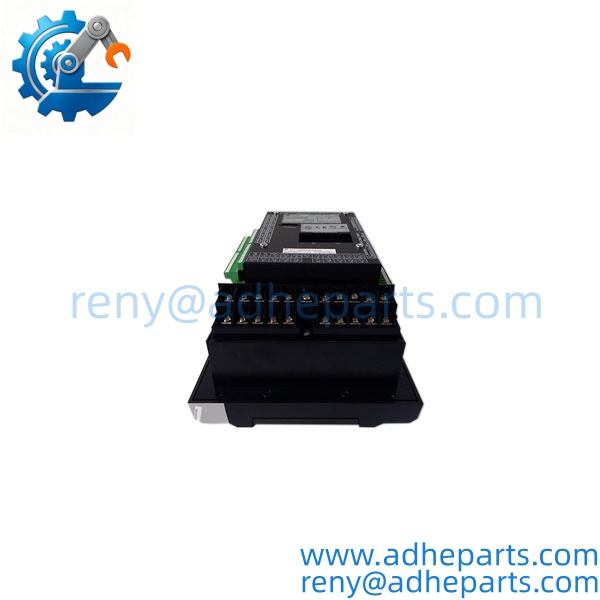

369-HI-R-M-0-0-0-E

Key Technical Specifications

The HI control-power range and 12-RTD configuration are defined in the 369 ordering documentation. The metering option provides additional measurement functionality, while the enhanced E option adds features including enhanced learned data, motor-start data logging, enhanced event recording, and security audit-trail events.

Field Application & Technical Pitfalls (The Engineer’s Guide)

Application 1 — Medium and Large AC Motors

The 369 is intended for motor applications where thermal, electrical, and operating-condition protection need to be coordinated. Typical protection functions include thermal overload, phase/current unbalance, mechanical jam, instantaneous and time overcurrent, undervoltage, overvoltage, and undercurrent.

Application 2 — Motors With Embedded Temperature Monitoring

The R option provides 12 built-in RTD inputs, allowing the relay to monitor temperature-related motor conditions in addition to electrical parameters. This is particularly useful where winding, bearing, or other motor temperatures form part of the protection strategy.

Application 3 — Motor Metering and Maintenance Diagnostics

The M option adds the metering package, while the final E identifies the enhanced functionality. The enhanced package includes motor health reporting, learned data, motor-start data logging, enhanced event recording, and security audit-trail events.

Pitfall 1 — Do not confuse the HI option with a 24 VDC supply.
The HI version accepts 50–300 VDC or 60–265 VAC. Several online listings incorrectly state a generic 24 VDC supply for this exact model. The installed control-power source must be checked before energization.

Pitfall 2 — The RTD option is part of the ordering code.
The R position identifies the optional 12-RTD hardware. A visually similar 369 without the R option should not be assumed equivalent where motor temperature monitoring is required.

Pitfall 3 — Do not assume every communication interface is installed.
The base 369 supports Modbus RTU, while optional Ethernet, DeviceNet, PROFIBUS, and fiber-optic configurations are represented by specific ordering-code positions. This particular 0-0-0 configuration should not be quoted as having optional Ethernet, PROFIBUS, or fiber hardware without additional evidence.

Pitfall 4 — Preserve the motor setpoints.
The relay stores application settings that determine how motor protection operates. Before replacing an installed unit, export or document the existing setpoints where possible. The front RS-232 port can be used with the 369 setup software for setpoint management.

Field lesson: A replacement relay can power up normally and still be unsuitable if its option configuration differs from the original. For the 369, checking the complete ordering code before shipment is especially important because RTD capability, metering, communications, control power, and enhanced functions are all represented by configuration positions.

Quality Control (QC) SOP & Transparency

1. Complete Model Verification — Confirm 369-HI-R-M-0-0-0-E from the nameplate rather than matching only the “369” family.
2. Control-Power Verification — Confirm the unit is the HI control-power version before testing.
3. Option-Code Verification — Check the R, M, 0, 0, 0, and E configuration positions against the customer’s required specification.
4. Physical Inspection — Examine the enclosure, LCD, keypad, connectors, terminals, labels, and mounting points for damage or corrosion.
5. RTD Hardware Check — Verify the presence and condition of the 12-RTD interface associated with the R configuration.
6. Communication Inspection — Check the front RS-232 and rear RS-485 interfaces and verify that no unrequested optional communication card has been substituted.
7. Power-Up Test — Apply the correct HI-range control power under controlled test conditions and verify startup, display, and diagnostic status.
8. Functional Testing — Where suitable test equipment is available, verify representative current inputs, digital inputs, RTD channels, relay outputs, metering functions, and communication.
9. Configuration Review — Where the customer’s original relay is available, compare the replacement configuration and preserve the original setpoints.
10. Final QA & ESD Packaging — Record the model, serial information, option configuration, test results, and photographs before anti-static packaging.

FAQ

Q1: What is GE 369-HI-R-M-0-0-0-E?
It is a GE Multilin 369 Motor Management Relay configured for motor protection, monitoring, metering, and enhanced diagnostics.

Q2: What does HI mean?
HI identifies the high-range control-power version: 50–300 VDC or 60–265 VAC at 50/60 Hz.

Q3: What does the R option provide?
The R option provides 12 built-in RTD inputs for motor temperature monitoring.

Q4: What does the M option mean?
M identifies the metering option. It adds electrical measurement capabilities beyond the basic motor-protection functions.

Q5: Does this exact model have Ethernet or PROFIBUS?
Do not assume so. GE’s ordering structure assigns separate positions for optional communication interfaces. The 369-HI-R-M-0-0-0-E configuration has zeros in those optional positions, so optional Ethernet, PROFIBUS, DeviceNet, or fiber hardware should not be represented as included without checking the physical unit.

Q6: What does the final E indicate?
E identifies the Enhanced option. GE lists enhanced faceplate functions, motor health reporting, enhanced learned data, motor-start data logging, enhanced event recording, and security audit-trail events among its features.

Q7: Can another GE 369 replace this model?
Not automatically. The control-power range, RTD hardware, metering option, communication interfaces, environmental option, and enhanced functionality should all be compared.

Q8: What information should I provide when requesting a replacement?
Provide the complete model number, a clear photo of the nameplate, the motor’s rated current and CT ratio, control-power source, existing RTD configuration, communication requirements, and—if replacing an installed relay—the existing setpoint/configuration file.
