Bently Nevada 3500/42M Machinery Protection Monitor

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The 3500/42M is more than a simple four-channel vibration input. Depending on configuration, its channels can perform different measurement functions, including radial vibration, thrust position, eccentricity, differential expansion, acceleration, velocity, shaft absolute, and REBAM. Channels are configured in pairs, allowing Channels 1–2 and 3–4 to be assigned different or identical functions.

Product Introduction (Anti-Template)

A vibration monitor becomes useful when the raw transducer signal is turned into something the protection system can actually act on. That is the role of the Bently Nevada 3500/42M. It accepts up to four proximity, velocity, or acceleration inputs and processes them into configured vibration and position measurements for machinery protection.

The module can be configured for applications such as radial vibration, thrust position, eccentricity, differential expansion, acceleration, velocity, and shaft absolute measurements. Its alarm functions are configured through the 3500 Rack Configuration Software, so the exact setup—not just the model number—needs to be checked when replacing an installed unit.

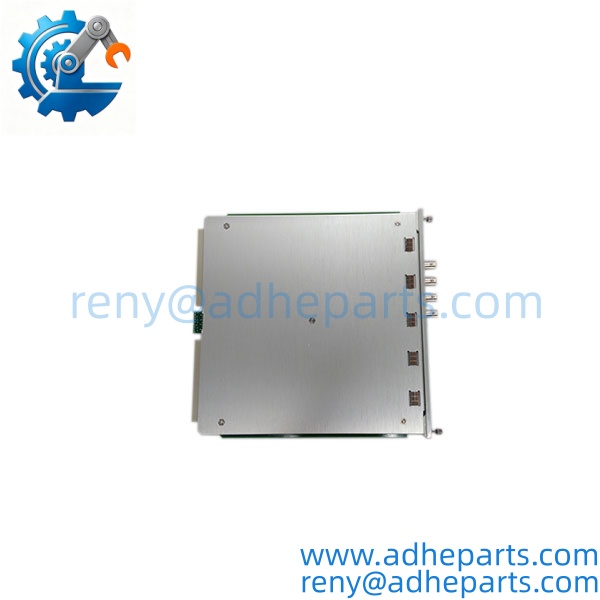

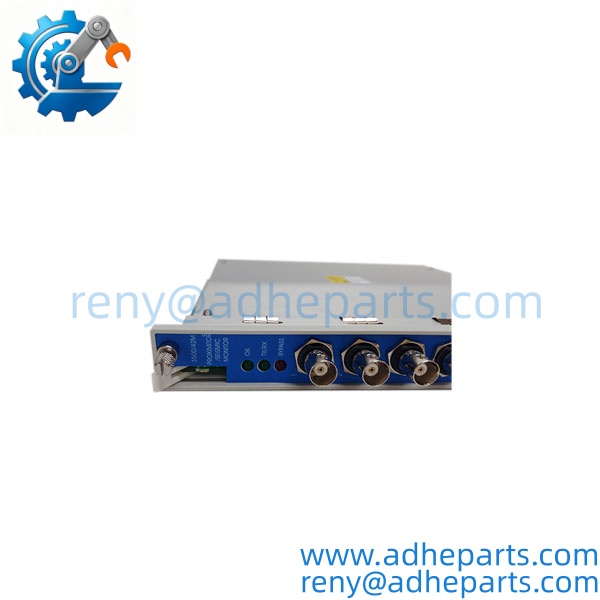

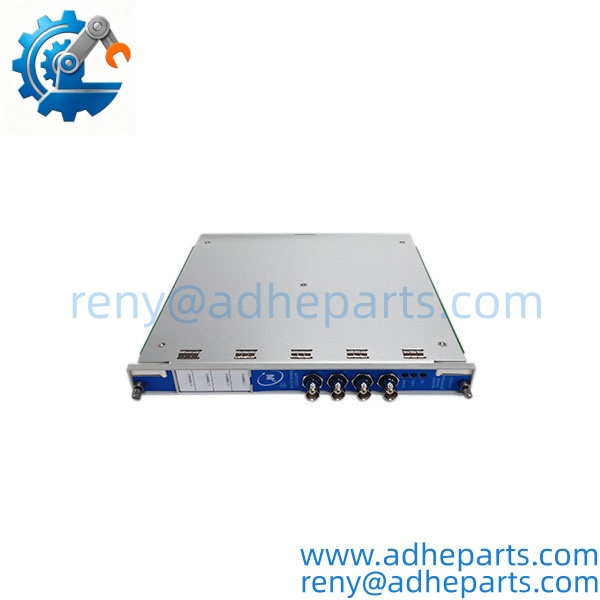

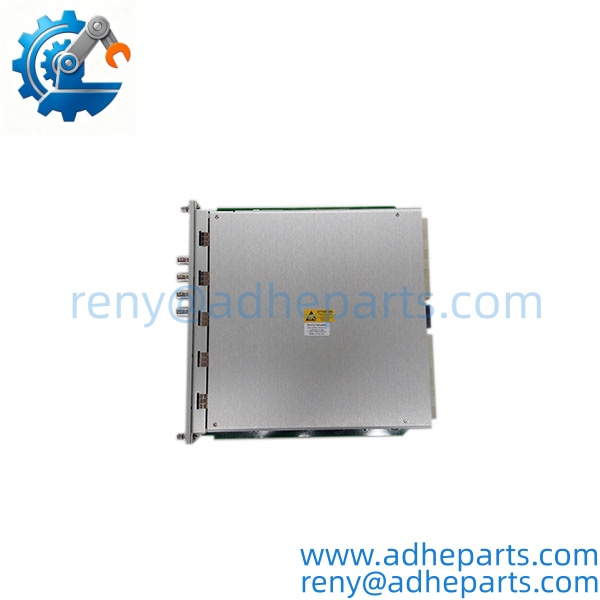

3500/42M

3500/42M

3500/42M

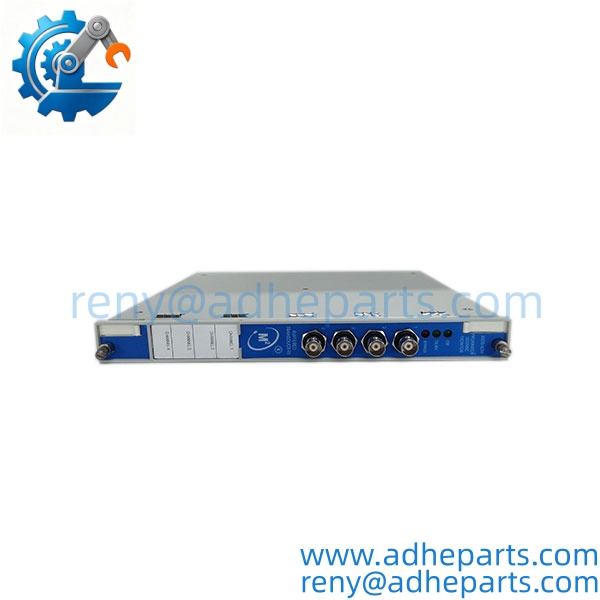

3500/42M

QC, Procurement & Logistics SOP

1) Inbound Verification
Verify the front-panel marking, model number, module revision, labels, connectors, and physical condition. For a replacement request, obtain a clear photo of the customer’s existing 3500/42M whenever possible. Different ordering configurations and I/O arrangements should not be assumed interchangeable simply because the front label says 3500/42M.

2) Live Rig Testing
Where a compatible 3500 test rack is available, verify module startup, rack communication, channel status, and configured signal processing. Check the front-panel OK, TX/RX, and Bypass indicators. For analog recorder outputs, verify the expected 4–20 mA response against a controlled test signal. The manufacturer’s documentation specifies individual recorder values for each channel.

3) QA & ESD Packaging
Handle the module using ESD precautions. Protect the front connectors and PCB assembly from static discharge, impact, and moisture. Record the serial number and visible revision before packing, particularly when supplying a surplus or discontinued system spare.

4) Procurement Check
Confirm the customer’s complete 3500 rack configuration, I/O module type, transducer type, measurement function, and required environmental or hazardous-area approvals. Bently Nevada states that the 3500 system is available with SIL 2 and various hazardous-area/country-specific approvals, so approval requirements should be checked against the actual installation.

5) Global Logistics & Export Compliance
For international shipments, verify the commercial invoice description, country of origin, HS classification, declared value, and destination import requirements. The customs classification should be confirmed according to the actual shipment and destination tariff rules.

6) Secure Air/Sea Packaging
Use ESD protection, anti-static packaging, rigid cushioning, and a moisture-resistant outer carton. For high-value machinery protection modules, the unit should be immobilized inside the carton so the front-panel connectors cannot receive impact during transportation.

Technical Pitfalls & Integration Warnings

1) Do not treat every 3500/42M as an identical configuration.
The 3500/42M supports multiple measurement functions, and channel configuration is performed through the 3500 Rack Configuration Software. Confirm the existing application’s configuration before replacing the module.

2) Check the transducer type and sensitivity.
The module can accept proximity, velocity, or acceleration transducer signals, but the applicable sensitivity and signal-conditioning configuration depend on the measurement function. For example, published specifications include different sensitivities for radial vibration, thrust, acceleration, velocity, and other measurements.

3) Verify the recorder-output load.
The 3500/42M provides +4 to +20 mA recorder outputs, with a specified load range of 0–600 Ω. A downstream control or monitoring device should not be connected without checking the loop/load requirements.

4) Do not confuse the 3500/42M with the 3500/40M.
Both are part of the 3500 machinery protection family, but their functions and supported monitoring configurations differ. The 3500/42M is specifically the Proximitor/Seismic Monitor and provides four configurable channels for proximity and seismic-related measurements.

Frequently Asked Questions (FAQ)

Q1: What is the Bently Nevada 3500/42M used for?
It is a four-channel machinery protection monitor used to process proximity, velocity, and acceleration transducer signals for vibration and position monitoring.

Q2: How many channels does the 3500/42M have?
The module has four channels. The channels are configured in pairs, allowing different functions to be assigned to Channels 1–2 and Channels 3–4.

Q3: What measurements can the 3500/42M monitor?
Depending on configuration, it can monitor radial vibration, thrust position, differential expansion, eccentricity, REBAM, acceleration, velocity, shaft absolute, and circular acceptance region parameters.

Q4: Does the 3500/42M provide a 4–20 mA output?
Yes. The published datasheet specifies individual +4 to +20 mA recorder outputs for the channels, with a 0–600 Ω load range.

Q5: Can I replace a 3500/42M without checking the configuration?
It is not advisable. The module’s channel functions, transducer type, sensitivity, alarm settings, and rack configuration should be checked before replacement.

Q6: Can the 3500/42M be hot-swapped?
Do not assume that removing the module under power is acceptable for every installation. Follow the site’s machinery protection maintenance procedure and verify the rack configuration before removing or inserting the module.

Q7: What information should I provide when requesting a replacement 3500/42M?
Provide the complete 3500/42M part number or ordering code, module revision, nameplate photo, existing rack configuration, transducer model, and the measurement function being monitored. This is particularly useful when replacing an installed engineering spare rather than purchasing a generic module.
