Bently Nevada 176449-02 | 3500/42M Vibration Monitor Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The 3500/42M 176449-02 is a four-channel Proximitor/Seismic Monitor used within the Bently Nevada 3500 Machinery Protection System. The module can accept proximity and seismic transducer signals and process them for machinery-protection and condition-monitoring functions. Bently Nevada documentation identifies 176449-02 specifically as the spare for the 3500/42M Proximitor/Seismic Monitor.

Product Introduction (Anti-Template)

Operating as a configurable monitoring module in the Bently Nevada 3500 Machinery Protection System, the 3500/42M 176449-02 processes signals from proximity and seismic transducers for rotating-equipment protection. Depending on the configuration, the four channels can be assigned to different machinery measurements, with processed values compared against programmed alarm conditions. The module is intended for applications where vibration and position information must be integrated into a dedicated machinery protection rack.

The 3500/42M is configured through the 3500 Rack Configuration Software rather than being a fixed-purpose vibration input card. This is important when purchasing a spare: the same 176449-02 hardware can support different monitoring applications, but the replacement still needs to be configured correctly for the installed machine and transducer arrangement. Bently Nevada documentation also lists specific software and firmware requirements for different 3500/42M functions.

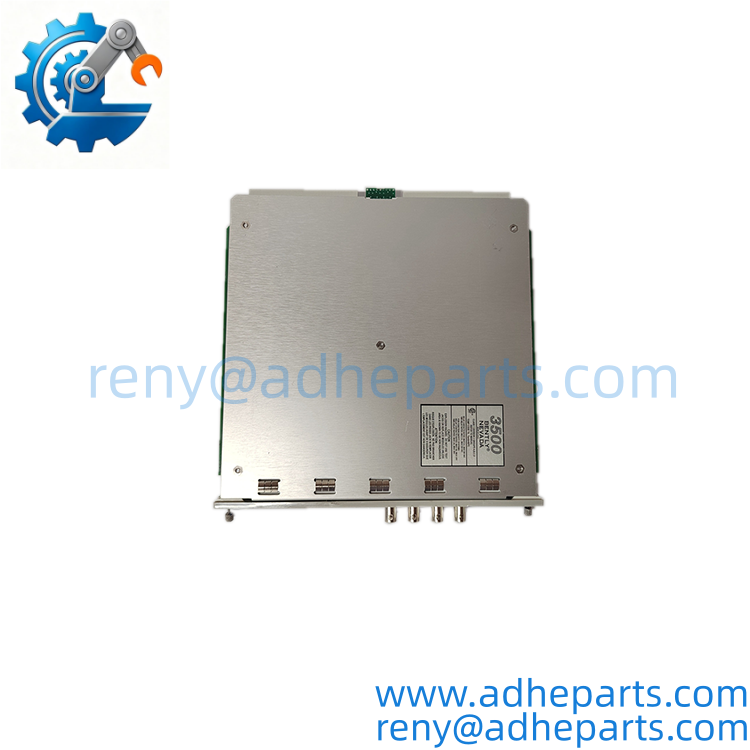

350042M-176449-02

350042M-176449-02

350042M-176449-02

350042M-176449-02

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete 176449-02 part number, 3500/42M identification, hardware revision, serial number, front-panel indicators, backplane connector, and overall module condition. Photograph the nameplate before shipment.
2. Live Rig Testing
   Where a compatible 3500 rack and test equipment are available, verify module startup, OK status, communication, channel operation, and appropriate response to simulated proximity or seismic input signals. For a critical machinery-protection application, test the actual configured measurement function rather than relying only on a power-on check.
3. QA & Anti-Static Packaging
   Handle the monitor as ESD-sensitive electronic equipment. Protect the backplane connector and front-panel assembly against impact, moisture, and contamination. Use antistatic packaging and sufficient cushioning during international transportation.
4. Global Logistics & Export Compliance
   Confirm the applicable HS classification based on the actual product description and destination requirements. Use shock-resistant export packaging for air or sea freight. Keep 3500/42M / 176449-02 consistent across the quotation, commercial invoice, packing list, and shipment documentation.

Technical Pitfalls & Integration Warnings

1. Firmware / Software Revision Mismatch
   The 3500/42M has different firmware and software requirements depending on its monitoring function. Bently Nevada documentation lists, for example, specific firmware and 3500 software requirements for Shaft Absolute, Acceleration II, Velocity II, and other configurations. Verify the installed system revision before commissioning a replacement.
2. Configuration Errors
   The module is configurable, so the same hardware can be assigned to different monitoring functions. Incorrect channel type, scaling, alarm thresholds, or transducer configuration can produce incorrect measurements or unwanted alarm behavior. The module should be configured through the approved 3500 configuration procedure before being returned to service.
3. Wiring / I/O Module Compatibility
   The 3500/42M monitor must be matched with the appropriate Proximitor/Seismic I/O module. Bently Nevada documentation lists separate I/O options, including internal-termination and external-termination versions. Do not assume that an existing I/O module is suitable simply because the monitor has the correct 176449-02 part number.
4. ESD During Unboxing
   Avoid removing the module from antistatic packaging until installation. Ground the technician and work surface, and avoid unnecessary contact with the backplane connector. For machinery-protection equipment, field wiring should also be isolated according to the site’s maintenance procedure before module replacement.

Frequently Asked Questions (FAQ)

1. What is Bently Nevada 3500/42M 176449-02?
It is a four-channel Proximitor/Seismic Monitor for the Bently Nevada 3500 Machinery Protection System. It processes signals from proximity and seismic transducers for rotating-machinery monitoring and protection.

2. How many channels does the 3500/42M provide?
The 3500/42M provides four configurable monitoring channels. Depending on the configuration, channels can be used with proximity, velocity, or acceleration transducers.

3. What machines can use the 3500/42M?
Typical applications include steam turbines, gas turbines, compressors, generators, pumps, motors, and other rotating machinery where vibration or position monitoring is required.

4. Is 176449-02 the same as the complete 3500/42M system?
176449-02 identifies the monitor module. A complete monitoring point also depends on the appropriate I/O module, transducer, rack, configuration, and associated 3500 hardware. Bently Nevada’s spare-parts documentation separately identifies the 176449-02 monitor and several compatible I/O modules.

5. Does 176449-02 need configuration before use?
Yes. The 3500/42M is configurable, and its monitoring function, channel setup, scaling, and alarm parameters must match the installed application. Bently Nevada documentation states that the monitor can be shipped unconfigured and subsequently configured for the required monitoring function.

6. Can I replace an older 3500/42 monitor with 176449-02?
Do not assume direct interchangeability solely from the 3500/42 designation. Check the existing hardware revision, I/O module, transducer type, firmware/software requirements, and configured measurement function before approving the replacement.

7. What information should I send when requesting a replacement?
Provide the complete 3500/42M 176449-02 part number, nameplate photo, hardware revision, existing I/O module part number, quantity, destination country, and—if available—the current 3500 configuration information. This allows the replacement to be checked against the installed machinery-protection architecture.
