Triconex 9662-810 | 16-Point Fused 24 VDC Termination Panel

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

The Triconex 9662-810 is a 16-point commoned digital output termination panel designed for 24 VDC digital output circuits in Tricon v9–v10 systems. Rather than processing the output logic itself, the panel provides the field-side termination and protection interface between the Tricon digital output module and connected loads. Each output point is protected by a fuse with a corresponding blown-fuse indicator.

This distinction matters when sourcing a replacement. The 9662-810 is a termination panel, not the 3604E output module itself. The documented combination is particularly associated with the 3604E 16-point 24 VDC TMR digital output module, while the panel provides commoned power terminals and field load connections.

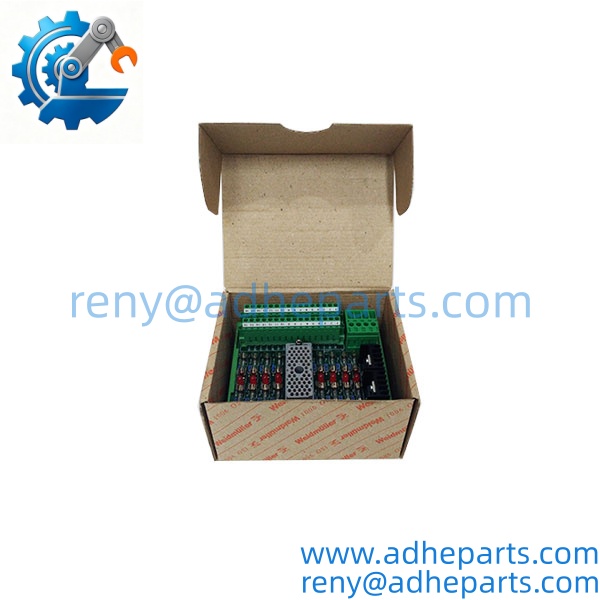

9662-810

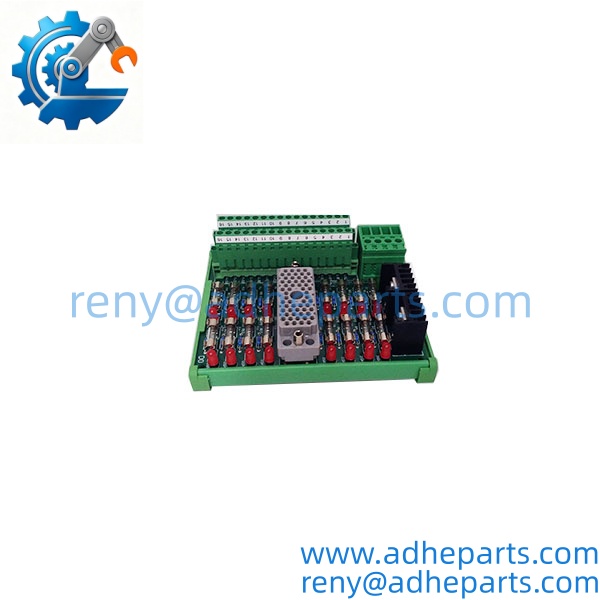

9662-810

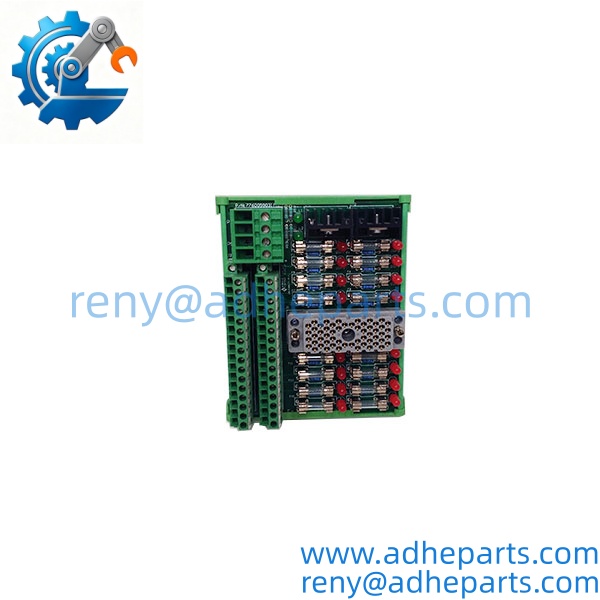

9662-810

Key Technical Specifications

The Tricon field-termination guide specifically identifies 9662-810 as a 24 VDC, commoned, 16-point termination panel, with a maximum total current of 16 A. It lists the 3604E as the compatible module and specifies a 2.5 A fast primary fuse for that module.

Field Application & Technical Pitfalls (The Engineer’s Guide)

24 VDC Digital Output Termination

The 9662-810 sits on the field side of the Tricon output architecture. Its job is to provide organized termination for 16 digital output circuits while distributing the commoned power connection to the field loads.

Typical loads can include solenoid valves, relays, contactor interfaces, and other 24 VDC discrete devices used in process safety applications. The actual load type and current must still be checked against the associated output module and field circuit design.

TMR Digital Output Systems

The documented compatible module is the 3604E, a 16-point, 24 VDC, non-commoned, opto-isolated TMR digital output module. The termination panel and electronic output module therefore perform different jobs within the same signal path.

Pitfall 1 — Confusing the termination panel with the DO module:
The 9662-810 does not replace a 3604E. It provides the field termination interface for the compatible output architecture. Ordering the wrong side of the signal path can leave a maintenance team with a physically similar component that does not solve the actual failure.

Pitfall 2 — Ignoring the commoned configuration:
The 9662-810 uses commoned power terminals. Do not treat it as an independently isolated 16-channel termination panel. The field wiring arrangement must match the commoned architecture and the cabinet drawings.

Pitfall 3 — Exceeding the current capacity:
The documented maximum total current is 16 A. Individual circuit protection also matters because each output point is fused. Do not size the replacement solely from the number of channels; check the total load and individual circuit protection.

A practical maintenance example: a single solenoid output stops operating and the Tricon output module appears healthy. The engineer may initially suspect the logic module, but the termination panel’s individual fuse or field connection can be the actual fault. Checking the output indication, fuse indicator, wiring, and load current together avoids unnecessary replacement of the TMR output module.

Quality Control (QC) SOP & Transparency

1. Inbound Identification
   Verify the marking 9662-810, manufacturer identification, revision information, and any additional assembly labels.
2. Configuration Verification
   Confirm that the panel is the 24 VDC commoned 16-point configuration and is intended for the customer’s Tricon architecture.
3. Physical Inspection
   Inspect terminal blocks, fuse holders, indicators, mounting points, connectors, and PCB areas for cracks, corrosion, contamination, or mechanical damage.
4. Fuse and Indicator Check
   Inspect the installed fuses and verify that the blown-fuse indication mechanism is physically intact.
5. Terminal Verification
   Check the 16 load terminals and commoned PWR+ / PWR− connections against the required wiring arrangement.
6. Module Compatibility Check
   Confirm the associated Tricon digital output module, particularly where a 3604E is being used.
7. Electrical Verification
   Where appropriate test equipment is available, verify continuity, terminal integrity, and the relevant 24 VDC field-side circuits. Do not apply arbitrary test voltage to an installed safety system.
8. Final QA and Packaging
   Photograph the part number, fuse area, terminal section, and overall condition. Use suitable protective packaging to prevent terminal or connector damage during shipment.

FAQ

Q1. What is Triconex 9662-810?
It is a 24 VDC, 16-point commoned digital output termination panel for Tricon v9–v10 systems.

Q2. Is 9662-810 a digital output module?
Not in the signal-processing sense. It is the field termination panel. The documented compatible 3604E is the electronic TMR digital output module.

Q3. How many output points does it provide?
The panel has 16 load terminals/points. Its documented maximum total current is 16 A.

Q4. What voltage does the 9662-810 support?
The documented configuration is 24 VDC. It should not be treated as a universal AC/DC termination panel.

Q5. Does each output have protection?
Yes. The field-termination guide states that each output point is protected by a fuse with a blown-fuse indicator.

Q6. Which Tricon output module is documented as compatible?
The field-termination guide specifically lists the 3604E, a 16-point, 24 VDC, non-commoned, opto-isolated TMR digital output module, with a 2.5 A fast primary fuse.

Q7. Is 9662-810 suitable for a Tricon v11 installation?
The documentation located for this exact part identifies it within the Tricon v9–v10 field-termination architecture. For a newer system, compatibility should be verified from the exact I/O module, cabinet design, and termination documentation rather than assumed from the part number.

Q8. What should be provided when requesting a replacement?
Provide the 9662-810 part number, associated Tricon I/O module number, cabinet/termination drawing if available, photos of the existing panel, and the required field voltage and load type. This is especially important for safety-system spare parts where a visually similar termination panel may have a different commoning or protection arrangement.
