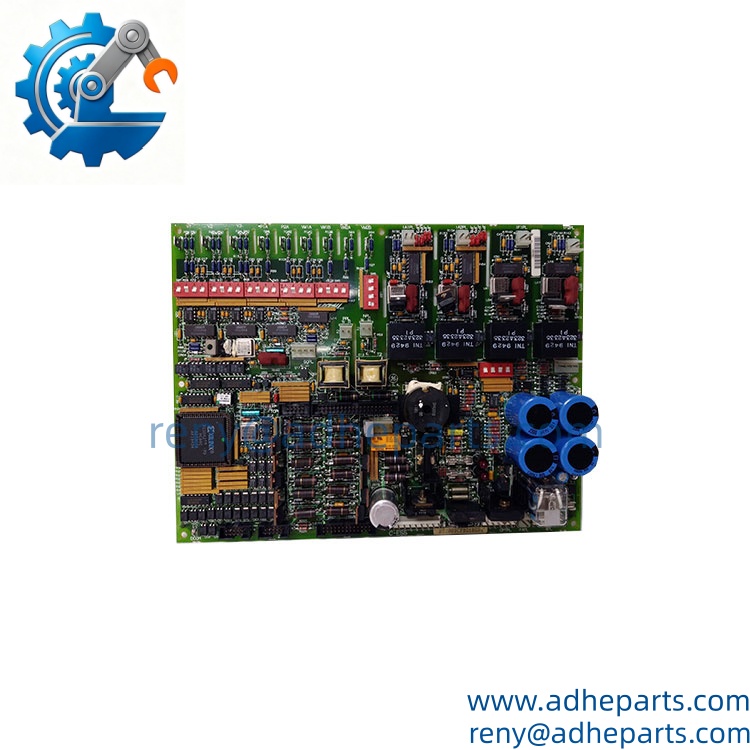

GE DS200DCFBG1BGB | DC2000 Power Supply Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The GE DCFB documentation identifies the board as a Power Supply Board and explains that the DCFB assembly provides control-level power as well as voltage and current feedback functions. The documentation also states that all digits of the board catalog number are important when ordering or replacing the board.

For the DCFB family, the documented power architecture includes regulated +5 VDC and ±15 VDC supplies, unregulated ±24 VDC supplies, and isolated supplies used by armature-current feedback circuits. VCO circuits convert selected analog measurements into frequency signals for the associated control board.

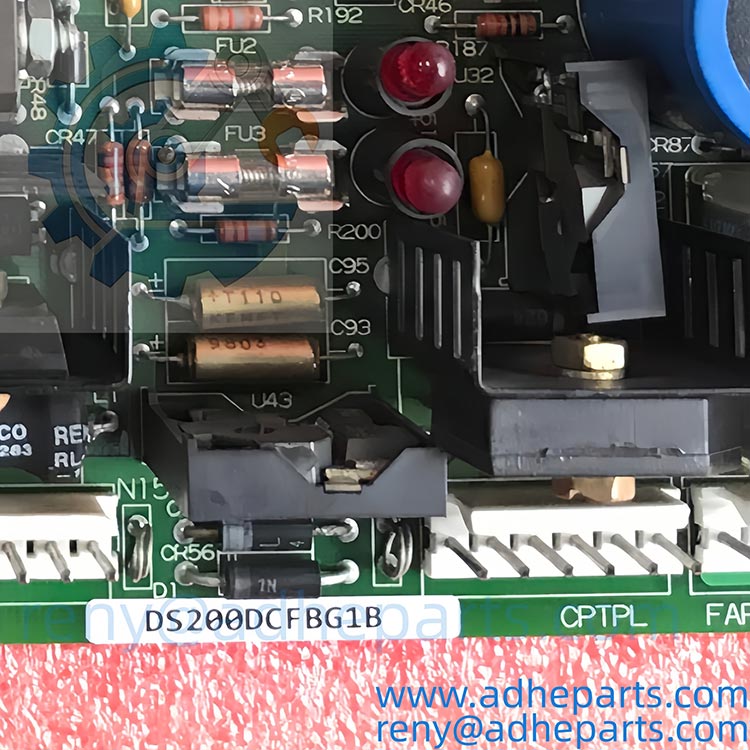

DS200DCFBG1BGB label

Product Introduction (Anti-Template)

When a GE drive begins showing unstable feedback, missing control voltage, or unexplained resets, the DCFB board is one of the places worth checking before condemning the main control card. The GE DS200DCFBG1BGB belongs to the Mark V DCFB board family and combines power conversion with voltage and current feedback functions for compatible GE drive and excitation equipment.

Its job is broader than simply supplying DC voltage. The board generates several control supplies and processes feedback through VCO circuits before sending the resulting signals toward the drive control electronics. The exact jumper and DIP-switch configuration matters—these settings are not decorative. GE’s documentation specifically identifies configurable jumpers and switches as part of the board’s application setup.

QC, Procurement & Logistics SOP

1. Inbound Verification
   • Confirm the complete catalog number: DS200DCFBG1BGB.
   • Check the board identification label and revision markings.
   • Inspect all connectors, stab terminals, fuses, LEDs, DIP switches, jumpers, and visible components.
   • Compare the replacement board against the customer’s existing DCFB board.
   • Verify the associated drive or excitation system before approving shipment.
2. Live Rig Testing
   • Perform controlled power-supply testing using an appropriate DCFB test environment.
   • Check the regulated +5 VDC and ±15 VDC outputs.
   • Check the ±24 VDC supply circuits where applicable.
   • Verify fuse status and associated diagnostic indicators.
   • Where suitable equipment is available, check representative VCO feedback signals.
   • Do not apply an arbitrary input voltage simply to confirm that the board “powers on.” The DCFB has multiple supply and feedback circuits that require controlled testing.
3. QA & Anti-Static Packaging
   • Record the exact board number and revision before packing.
   • Use anti-static packaging for the PCB.
   • Protect the card-edge and multipin connectors against impact.
   • Prevent jumper caps and DIP-switch components from being disturbed during packing.
   • Use rigid cushioning to prevent bending or vibration damage.
4. Global Logistics & Export Compliance
   • Prepare the commercial invoice, packing list, product description, country-of-origin information, and applicable HS classification.
   • Describe the item accurately as an industrial drive power supply and feedback board.
   • Air freight is normally suitable for this type of electronic spare.
   • Use moisture-resistant ESD packaging for international transportation.
   • The final customs classification should be checked against the destination country’s tariff schedule rather than relying solely on a generic electronic-board code.

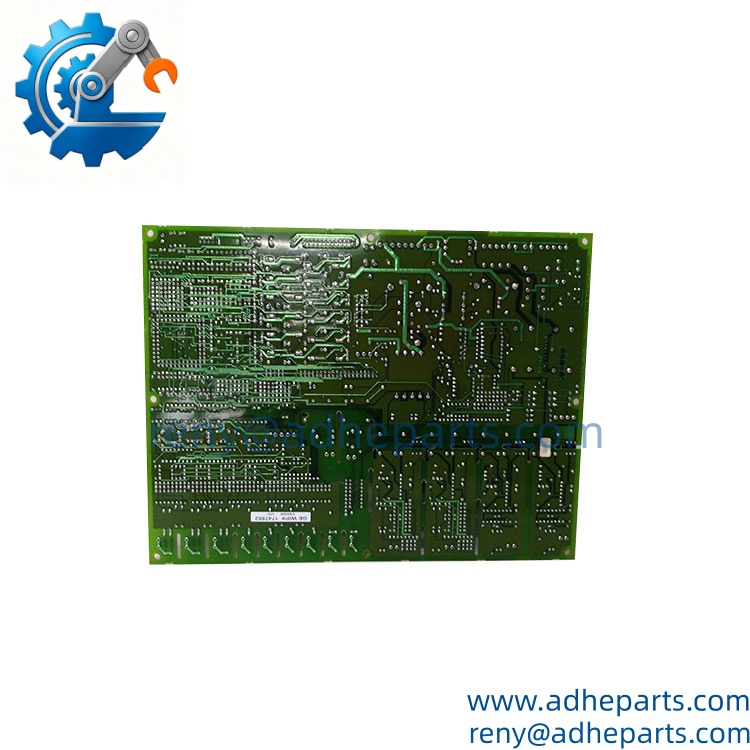

DS200DCFBG1BGB backside

Technical Pitfalls & Integration Warnings

1. Board Revision Mismatch

GE’s DCFB documentation explains the board-number revision structure and notes that revision changes can be backward compatible, functionally different, or effectively constitute a new catalog number. All characters in the catalog number matter.

Do not purchase a visually similar DS200DCFBG1B variant without checking the complete suffix. A board that looks identical can still have a different application configuration.

2. DIP Switch / Jumper Configuration

The DCFB board contains configurable jumpers and seven DIP switches. Many of these settings are factory configured for the customer’s application.

A practical scenario: the replacement board passes a bench power test but the drive reports incorrect feedback after installation. The hardware may not be defective—the configuration may simply not match the original board. Photograph the original settings before replacement.

3. Input Voltage Confusion

Do not assume every DCFB variant uses the same input arrangement. GE’s DCFB documentation covers boards accepting different control-power configurations, including 38–115 VAC variants. The exact board designation and equipment wiring must therefore be checked before energization.

4. ESD and Connector Damage During Unboxing

The board contains sensitive power-conversion and feedback circuitry. Keep it in ESD-safe packaging until installation. Do not pull on individual wires or force the multipin connectors into place. A damaged connector can create intermittent feedback faults that are much harder to diagnose than an obvious failed component.

Frequently Asked Questions (FAQ)

Q1: What is the GE DS200DCFBG1BGB used for?

It is a DCFB power supply and feedback board used in GE Mark V drive and excitation-related equipment. It provides control-level power while also handling voltage and current feedback functions. GE documentation identifies DCFB boards for systems including DC2000, EX2000, and other compatible GE drive platforms.

Q2: Is DS200DCFBG1BGB a Mark V board?

Yes. The DS200DCFBG1BGB belongs to the DS200 DCFB board family associated with GE Mark V equipment. The DCFB documentation specifically covers DS200DCFBG1A and DS200DCFBG1B board families.

Q3: What DC voltages does the DCFB board generate?

The documented DCFB power architecture includes:

• +5 VDC
• +15 VDC
• -15 VDC
• +24 VDC
• -24 VDC

The documented +5 VDC output is rated at 4 A, while the +24 VDC and -24 VDC outputs are rated at 3 A and 1 A respectively.

Q4: What are the VCO circuits for?

The voltage-controlled oscillator circuits convert selected analog voltage or current feedback signals into frequency signals. The documented nominal VCO output is approximately 250 kHz, with a stated range of 0–500 kHz depending on the input signal.

Q5: Can I replace with DS200DCFBG1B?

Do not assume so. GE’s board identification documentation emphasizes that all digits are important when ordering or replacing a board. Revision and group suffixes can indicate meaningful hardware or functional differences. Match the complete catalog number first.

Q6: Can this board be hot-swapped?

It should not be treated as a routine hot-swappable module. The DCFB board is connected to power supplies, feedback circuits, and drive-control hardware. Proper equipment isolation and discharge procedures should be completed before removal.

Q7: What should I provide when ordering a replacement?

For an accurate compatibility check, provide:

• Complete part number:
• Photograph of the board nameplate
• Board revision
• Existing drive or excitation-system model
• Photographs of connectors and jumper/DIP-switch settings
• Existing fault code, if available

That information is particularly useful for legacy Mark V equipment where several DCFB variants can look similar.

Q8: How should be shipped internationally?

For a single replacement board, air freight is generally practical. Use ESD-safe packaging, connector protection, moisture control, and rigid cushioning. If the shipment is part of a larger Mark V spare-parts consignment, consolidated air or sea freight may also be considered depending on urgency.
