ABB 3ASC25H215E DATX131 Signal Measurement Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

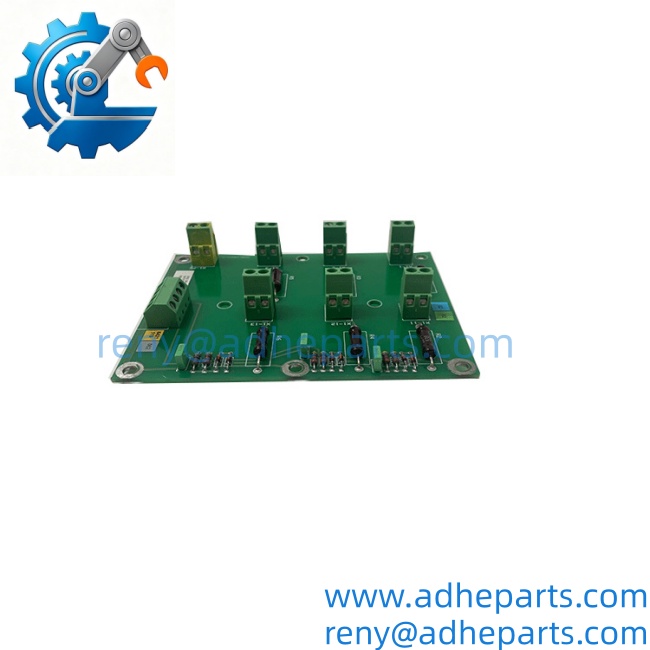

ABB 3ASC25H215E DATX131

Key Technical Specifications

Available product data identifies the DATX131 as a voltage divider board and associates it with ABB ASTAT digital drives. The same data lists a net weight of approximately 0.207 kg and Sweden as the country of origin.

The commonly repeated claims that this part is a Modbus/PROFINET communication adapter, a 220 V standalone controller, or a general-purpose analog output module are not sufficiently supported. Those descriptions should not be used for technical purchasing without further verification.

Product Introduction — Anti-Template

The ABB DATX131 3ASC25H215E is a drive-specific electronic board used for voltage measurement and signal scaling inside ABB industrial drive equipment. It is associated with ASTAT digital drive applications, where accurate voltage feedback is required by the drive’s control and protection circuits. The board should be treated as an internal measurement component, not as a conventional plug-in PLC I/O module.

Because the DATX131 works as part of a larger drive assembly, its suitability depends on the host equipment, board revision, connector arrangement, and voltage-sensing circuit. In this case, the complete part number is more important than a generic description such as “industrial control module.” A replacement that looks similar but has a different divider ratio or connector layout may produce incorrect feedback values.

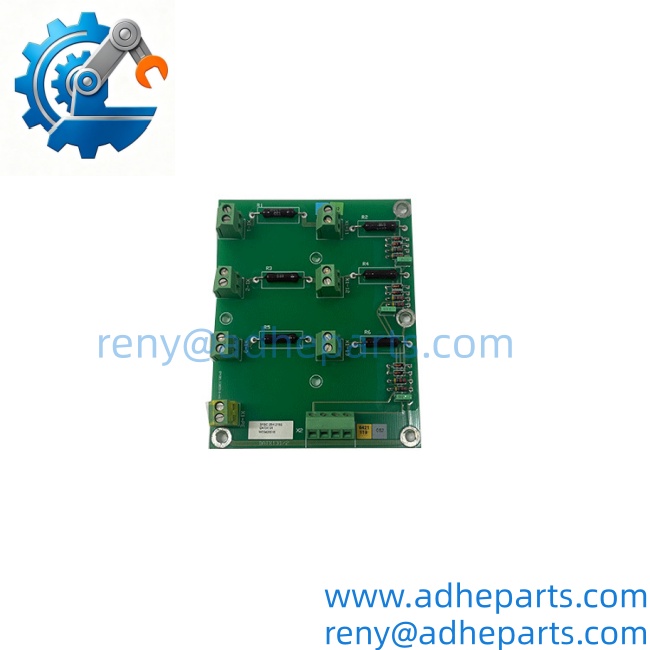

ABB 3ASC25H215E DATX131

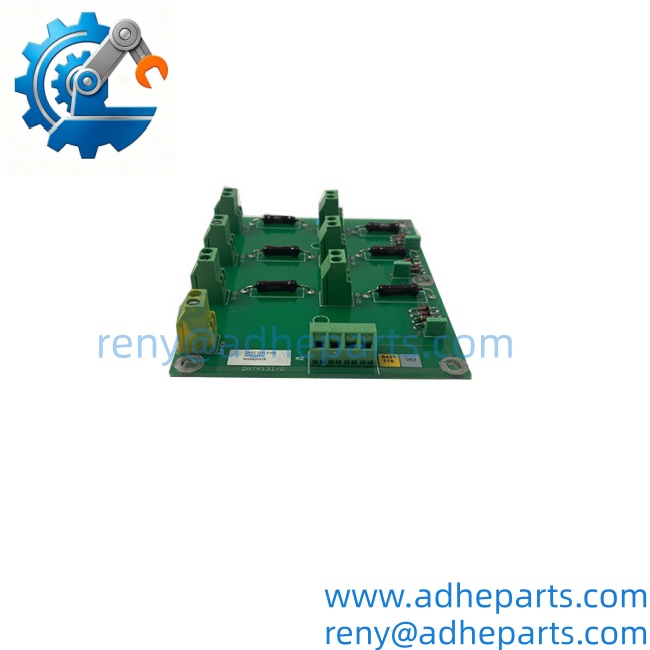

ABB 3ASC25H215E DATX131

QC, Procurement & Logistics SOP

1) Inbound Verification

Check the following before adding the board to inventory:

• Full marking: DATX131.
• ABB part number: 3ASC25H215E.
• PCB revision and serial number.
• Connector type and pin condition.
• Resistors, transformers, capacitors, and other voltage-divider components.
• Signs of overheating, carbonization, corrosion, or previous repair.
• Mounting holes, brackets, and insulation barriers.
• Compatibility with the customer’s ABB drive model.

Photograph the front and rear of the board, including all labels and connectors. For this type of component, the PCB layout and revision can be as important as the printed part number.

2) Functional Testing

Testing should be performed with the correct host-drive test setup or an approved electrical test fixture.

Recommended checks include:

1. Visual inspection under magnification.
2. Resistance measurement across the voltage-divider paths.
3. Verification of connector continuity.
4. Insulation and short-circuit checks.
5. Low-voltage signal injection where the test procedure permits.
6. Measurement of scaled output ratios.
7. Comparison with the reference board or approved schematic.
8. Verification of abnormal-voltage and overheating symptoms.

Do not apply full drive voltage to an unverified board merely to check whether it powers up. A voltage-divider board may contain components connected directly to hazardous potential.

3) QA & ESD Packaging

• Use ESD-safe handling.
• Keep the board inside an anti-static bag.
• Protect exposed connectors and component leads.
• Use non-abrasive cushioning.
• Prevent the PCB from flexing inside the carton.
• Add moisture protection for international shipment.
• Record the board condition before dispatch.

4) Export & Logistics

For international shipment, prepare:

• Commercial invoice.
• Packing list.
• Product model and part number.
• Country of origin.
• Net and gross weight.
• Package dimensions.
• Product description: “Industrial drive voltage divider board.”
• Correct customs classification.
• End-use information when required.

The board is relatively light, but the packaging should prevent connector damage and electrostatic discharge. Express air shipment is normally suitable for one or several pieces.

Technical Pitfalls & Integration Warnings

1) Do not treat DATX131 as a communication adapter

Several online listings describe this part as a communication adapter supporting Modbus, PROFINET, or Ethernet. That identification is not adequately supported by the more specific voltage-divider data. The safer classification is drive voltage divider / measurement board.

2) Confirm the host drive model

The is associated with ABB ASTAT digital drive equipment. It should not be installed in another ABB drive simply because the connector or board dimensions appear similar.

3) Verify the voltage-divider ratio

The board may scale a higher drive voltage to a lower measurement signal. The ratio must match the host control circuit. An incorrect ratio can cause inaccurate voltage feedback, nuisance trips, unstable control, or damage to downstream measurement electronics.

4) Check connector orientation and pin assignment

A connector that fits mechanically may still have a different pin arrangement. Compare the original board, wiring diagram, and replacement board before installation.

5) Inspect for heat damage

Voltage-divider boards can be exposed to electrical stress and thermal cycling. Darkened resistors, cracked solder joints, discolored PCB material, or damaged insulation should be treated as warning signs rather than cosmetic defects.

6) Do not test directly on an energized drive without an approved procedure

The board may be connected to hazardous DC-bus or line-voltage circuits. Use the host equipment’s isolation, discharge, and measurement procedures before removing or testing it.

7) Confirm the revision before purchase

The complete designation 3ASC25H215E should be recorded. If the customer provides only “,” request a label photograph and the host-drive model before confirming compatibility.

Frequently Asked Questions

Q1. What is ABB 3ASC25H215E?
It is a voltage divider and signal measurement board associated with ABB ASTAT digital drive equipment.

Q2. Is a PLC or communication module?
No. Available technical data identifies it as a drive voltage-divider board, not a standalone PLC CPU or industrial communication adapter.

Q3. What does the do?
It scales voltage signals for measurement and control circuits inside the host drive assembly.

Q4. Can be used in any ABB drive?
No. Compatibility depends on the host drive model, board revision, connector arrangement, and voltage-divider ratio.

Q5. Does the board have a separate power supply?
It is normally supplied through the host equipment. It should not be treated as a standalone 24 V DC module without confirming the original circuit design.

Q6. What information is needed to quote a replacement?
Provide the complete marking 3ASC25H215E , clear photos of both sides of the board, the host ABB drive model, the required quantity, and the destination country.

Q7. What is the approximate weight?
Available product data lists the net weight at approximately 0.207 kg.
